JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD
SOT-363 Plastic-Encapsulate Diodes

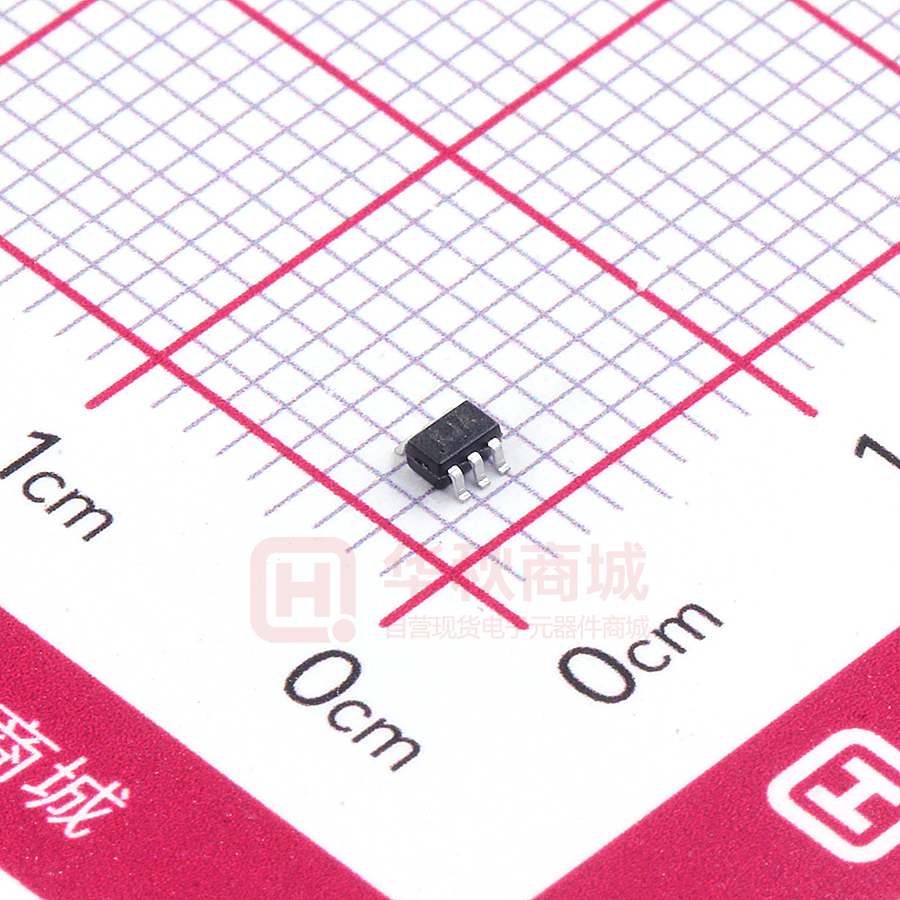

BAV70DW
SWITCHING DIODE
SOT-363
FEATURES
Fast Switching Speed
z
z
Ultra-Small Surface Mount Package
z
For General Purpose Switching Applications
z
High Conductance
6
5
4
1
2
3
MAKING: KJA
- + +
- + +
KJA
KJA
+ + -
+ + -
Solid dot = Pin1 indicate.
Solid dot = Green molding compound device,
if none,the normal device.
Maximum Ratings @Ta=25℃
Parameter
Symbol
Limit
Unit
VRRM
VRWM
VR
100
100
75
V
Forward Continuous Current
IFM
300
mA
Average Rectified Output Current
IO
150
mA
Non-Repetitive Peak Forward Surge Current @t=8 .3ms
IFSM
2
A
Power Dissipation
PD
200
mW
RθJA
625
℃/W
Operating Junction Temperature
TJ
150
℃
Storage Temperature
TSTG
-55~+150
℃
Peak Repetitive Peak Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Thermal Resistance From Junction to Ambient
ELECTRICAL CHARACTERISTICS(Ta=25℃ unless otherwise specified)
Parameter
V(BR)
Reverse current
IR
Forward voltage
Total capacitance
Reverse recovery time
www.cj-elec.com
Test conditions
Symbol
Reverse voltage
VF
Ctot
trr
IR=2.5μA
Min
Typ
Max
75
VR=75V
Unit
V
2.5
μA
VR=20V
25
nA
IF=1mA
0.715
IF=10mA
0.855
IF=50mA
1
IF=150mA
1.25
V
VR=0,f=1MHz
2
pF
IF= IR=10mA, Irr=0.1×IR, RL=100Ω
4
ns
1
C,Oct,2014
Typical Characteristics
Forward Characteristics
Reverse Characteristics
10000
(nA)
100
REVERSE CURRENT IR
T=
a 2
5℃
T=
a 1
00
℃
FORWARD CURRENT
IF
(mA)
300
10
1
0.0
Ta=100℃
1000
100
Ta=25℃
10
1
0.2
0.4
0.6
0.8
1.0
FORWARD VOLTAGE
1.2
1.4
1.6
20
0
VF (V)
40
60
REVERSE VOLTAGE
80
VR
100
(V)
Power Derating Curve
Capacitance Characteristics
1.1
250
Ta=25℃
200
PD
(mW)
1.0
0.9
POWER DISSIPATION
CAPACITANCE BETWEEN TERMINALS
C (pF)
f=1MHz
0.8
0.7
150
100
50
0.6
0
0
4
8
12
REVERSE VOLTAGE
www.cj-elec.com
16
VR
20
0
(V)
25
50
75
AMBIENT TEMPERATURE
2
100
125
150
Ta (℃)
C,Oct,2014
SOT-363 Package Outline Dimensions
Symbol
A
A1
A2
b
c
D
E
E1
e
e1
L
L1
θ
Dimensions In Millimeters
Min
Max
0.900
1.100
0.000
0.100
0.900
1.000
0.150
0.350
0.080
0.150
2.000
2.200
1.150
1.350
2.150
2.450
0.650 TYP
1.200
1.400
0.525 REF
0.260
0.460
0°
8°
Dimensions In Inches
Min
Max
0.035
0.043
0.000
0.004
0.035
0.039
0.006
0.014
0.003
0.006
0.079
0.087
0.045
0.053
0.085
0.096
0.026 TYP
0.047
0.055
0.021 REF
0.010
0.018
0°
8°
SOT-363 Suggested Pad Layout
www.cj-elec.com
3
C,Oct,2014
SOT-363 Tape and Reel
www.cj-elec.com
4
C,Oct,2014
