DSR1M

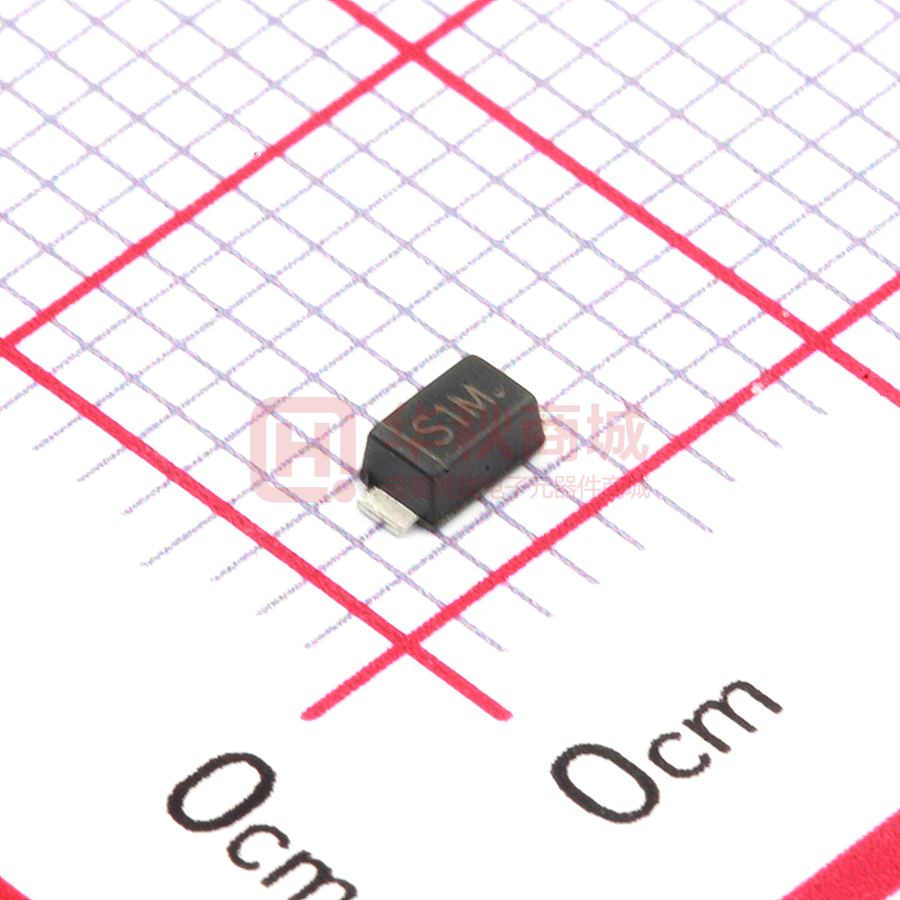

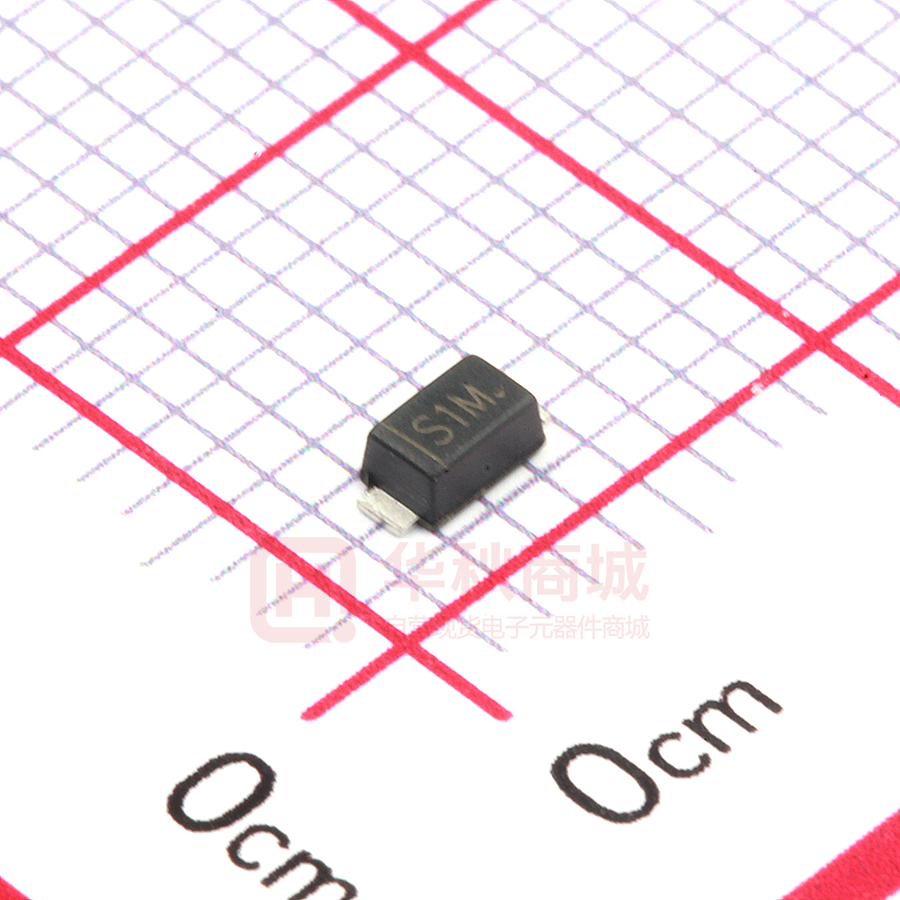

JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD SOD-123FL Plastic-Encapsulate Diodes DSR1A THRU DSR1M G eneral Purpose Rectifier Diodes Features ●IF(AV) 1A ● VRRM 50V-1000V SOD-1 23FL ●High surge current capability ● Polarity: Color band denotes cathode Applications ● Rectifier Marking ● DSR1A~DSR1K : A1~A6 DSR1M : S1M Limiting Values(Absolute Maximum Rating) Item DSR1 Symbol Unit Test Conditions A B D G J K M Repetitive Peak Reverse Voltage VRRM V 50 100 200 400 600 800 1000 Maximum RMS Voltage V RMS V 35 70 140 280 420 560 700 Maximum DC Blocking Voltage VDC V 50 100 200 400 600 800 1000 Average Forward Current IF(AV) A 60Hz Half-sine wave， Resistance load，Ta(Fig.1) 1.0 Surge(Non-repetitive)Forward Current IFSM A 60Hz Half-sine wave， 1 cycle，Ta=25℃ 30 TJ ℃ -55 ~ +150 TSTG ℃ -55 ~ +150 K M Junction Temperature Storage Temperature Electrical Characteristics (T=25℃ Unless otherwise specified） DSR1 Item Maximum Peak Forward Voltage Maximun Peak Reverse Current Typical junction capacitance Typical Thermal Resistance Symbol Unit VF IRRM1 V IRRM2 μA CJ pF RθJ-A RθJ-L ℃/ W Test Condition IF =1.0A VRM=VRRM A B D G J 1.0 Ta =25℃ 10 Ta =125℃ Measured at 1MHz and applied reverse voltage of 4.0V D.C. 50 Between junction and ambient 95 Between junction and terminal 25 4 Notes: Thermal resistance from junction to ambient and from junction to lead mounted on P.C.B. with 0.2" x 0.2" (5.0 mm x 5.0 mm) copper pad areas www.jscj-elec.com 1 Rev. - 1.0 Typical Characteristics IFSM(A) FIG.2:MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT P.C.B mounted on 30 25 0.2*0.2"(5.0*5.0mm) copper pad areas 8.3ms SINGLE HALF SINE-WAVE 20 15 Single Phase Half Wave 60Hz Resistive or inductive Load 10 5 0 0 25 50 75 100 125 150 175 1 10 100 Number of Cycles TL(℃) FIG.4:TYPICAL REVERSE CHARACTERISTICS IR(uA) IF(A) FIG.3: TYPICAL FORWARD CHARACTERISTICS 20 10 TJ=25 C PULSE WIDTH=300 µs 2%DUTY CYCLE 1000 100 1.0 10 TJ=125 C 1.0 TJ=75 C 0.1 0.1 TJ=25 C 0.01 0.01 0.2 www.jscj-elec.com 0.6 1.0 1.4 1.8 0 2.0 VF(V) 20 40 60 80 100 Voltage(%) 2 Rev. - 1.0 SOD-1 23FL 0.047(1.2) 0.032(0.8) 0.004(0.10) 0.045(1.15) 0.057(1.45) 0.118(3.0) 0.102(2.6) 0.018(0.30) 0.063(1.6) 0.079(2.0) Cathode Band Top View 0.033(0.85) 0.013(0.35) 0.153(3.9) 0.138(3.5) Dimensions in millimeters SOD-1 23FL 1.4 2.85 1.2 NOTICE JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other changes without further notice to any product herein.JSCJ does not assume any liability arising out of the application or use of any product described herein. www.jscj-elec.com 3 Rev. - 1.0 Reel Taping Specifications For Surface Mount Devices-SOD-123FL FIG:CONFIGURATION OF SURFACE MOUNTED DEVICES TAPING SOD-123FL 54 1.0 2.13 0.039 www.jscj-elec.com 4 Rev. - 1.0
