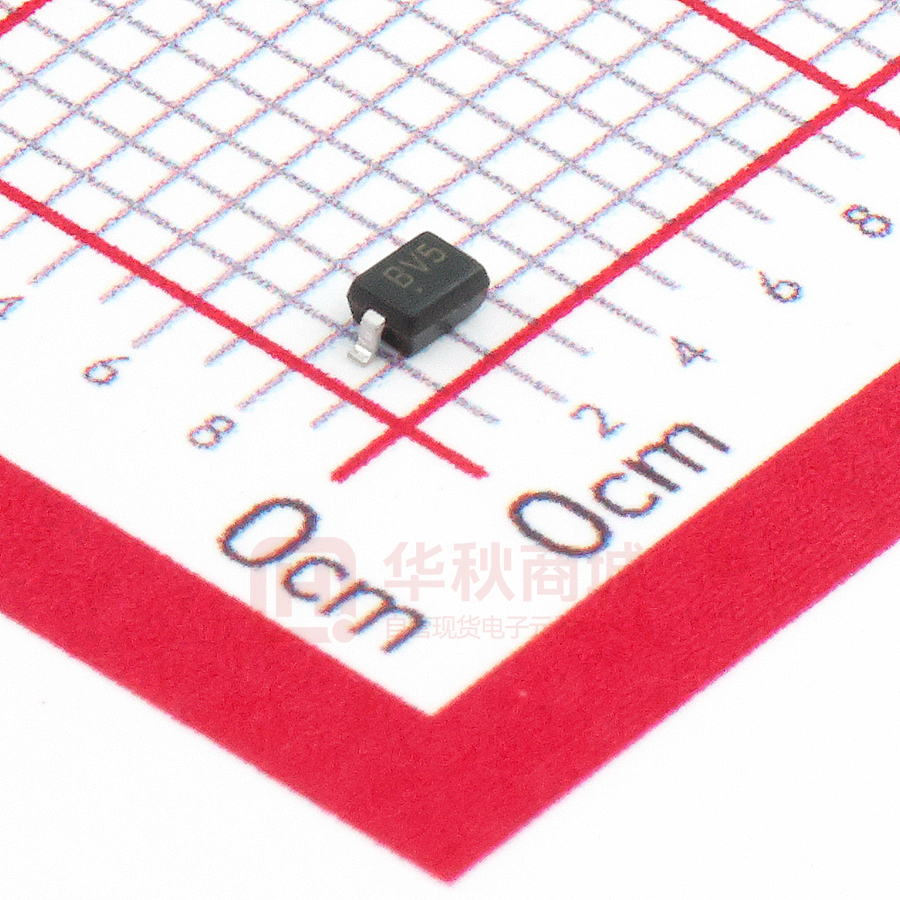

ESDBKV5V0D3

JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD SOD-323 ESDBKV5V0D3 Plastic-Encapsulate Diodes Bi-direction ESD Protection Diode DESCRIPTION SOD-323 Designed to protect voltage sensitive electronic components from ESD and other transients. Excellent clamping capability, low leakage, low capacitance, and fast response time provide best in class protection on designs that are exposed to ESD. The combination of small size, low capacitance, and high level of ESD protection makes them a flexible solution for applications such as HDMI, Display Port TM, and MDDI interfaces. It is designed to replace multiplayer varistors (MLV) in consumer equipments applications such as mobile phone, notebook, PAD, STB, LCD TV etc. FEATURES  Bi-directional ESD protection of one line  Excellent package:1.7mm×1.3mm×1.0mm  Low capacitance: 2pF  Fast response time  Low reverse stand−off voltage: 5V  JESD22-A114-B ESD Rating of class 3B per human  Low reverse clamping voltage  Low leakage current body model  IEC 61000-4-2 Level 4 ESD protection APPLICATIONS  Cellular phones  Portable electronics  High speed data lines  USB Interface  Handheld-Wireless Systems  Other electronics equipments communi-  PDAs  Ethernet – 10/100/1000 Base T cation systems MARKING BV5 = Device code Solid dot = Green molding compound device,if none, the normal device Front side www.jscj-elec.com 1 Rev. - 2.1 ESDBKV5V0D3 CHANGJING ELEC.TECH. MAXIMUM RATINGS ( Ta=25℃ unless otherwise noted ) Parameter Symbol IEC 61000-4-2 ESD Voltage Air Model Contact Model JESD22-A114-B ESD Voltage Per Human Body Model ESD Voltage VESD(1) Storage Temperature Range ±16 kV ±0.4 750 W (2) 30 A TL 260 ℃ TJ,Tstg -55 ~ +150 ℃ IPP Lead Solder Temperature − Maximum (10 Second Duration) ±25 (2) PPP Peak Pulse Current Unit ±25 Machine Model Peak Pulse Power Limit (1).Device stressed with ten non-repetitive ESD pulses. (2).Non-repetitive current pulse 8/20µs exponential decay waveform according to IEC61000-4-5. ESD standards compliance IEC61000-4-2 Standard JESD22-A114-B Standard Contact Discharge Air Discharge ESD Class Human Body Discharge V Level Test Voltage kV Level Test Voltage kV 0 0～249 1 2 1 2 2 4 2 4 1A 1B 1C 250～499 500～999 1000～1999 3 6 3 8 4 8 4 15 2 3A 3B 2000～3999 4000～7999 8000～15999 ESD pulse waveform according to IEC61000-4-2 www.jscj-elec.com 8/20μs pulse waveform according to IEC 61000-4-5 2 Rev. - 2.1 ESDBKV5V0D3 CHANGJING ELEC.TECH. ELECTRICAL PARAMETER Symbol Parameter VC Clamping Voltage @ IPP IPP Peak Pulse Current VBR Breakdown Voltage @ IT IT Test Current IR Reverse Leakage Current @ VRWM VRWM Reverse Standoff Voltage V-I characteristics for a Bi-directional TVS ELECTRICAL CHARACTERISTICS(Ta=25℃ unless otherwise specified) Parameter Reverse stand off voltage Reverse leakage current Breakdown voltage Clamping voltage Junction capacitance Symbol Test conditions Min Typ Max Unit 5 V 1 μA 8 V IPP=30A 27 V VR=0V,f=1MHz 2 pF （1） VRWM IR V(BR) （2） VC CJ VRWM=5V IT=1mA 6 (1).Other voltages available upon request. (2).Non-repetitive current pulse 8/20μs exponential decay waveform according to IEC61000-4-5 www.jscj-elec.com 3 Rev. - 2.1 ESDBKV5V0D3 CHANGJING ELEC.TECH. TYPICAL CHARACTERISTICS Reverse VC —— Characteristics 100 Ta=25℃ Pulsed tp=8/20us 50 CLAMPING VOLTAGE VC(V) T= a 2 5℃ 25 T= a 1 00 ℃ (mA) 75 REVERSE CURRENT IR IPP 40 0 -25 -50 30 20 10 -75 -100 -9 -6 -3 0 REVERSE VOLTAGE 3 VR 6 0 9 0 5 10 15 20 25 30 35 REVERSE PEAK PULSE CURRENT IPP (A) (V) Capacitance Characteristics 2.0 Ta=25℃ JUNCTION CAPACITANCE CJ (pF) f=1MHz 1.6 1.2 0.8 0.4 0 1 2 REVERSE VOLTAGE www.jscj-elec.com 3 4 VR 5 (V) 4 Rev. - 2.1 ESDBKV5V0D3 CHANGJING ELEC.TECH. PACKAGE OUTLINE AND PAD LAYOUT INFORMATION Dime imen nsio ion ns In M Miilli llim meters Min Mi n Maxx Ma 1.100 0. 0.000 000 0.100 1.000 0. 0.800 800 0. 0.250 250 0.350 0. 0.080 080 0.150 1. 1.200 200 1.400 1. 1.600 600 1.800 2.7 .7550 2. 2.500 500 0. 0.475 475 REF 0. 0.250 250 0.400 0° 8° Symbol A A1 A2 b c D E E1 L L1 θ Dim imeensions In In Incches Min Mi n Maxx Ma 0.0 .0443 0.00 0000 0.00 0044 0.03 .039 0.03 0311 0.01 0100 0.01 0144 0.00 0033 0.00 0066 0.04 0477 0.05 0555 0.06 0633 0.07 0711 0.09 0988 0.1 .1008 0. 0.019 019 REF 0.01 0100 0.01 0166 0° 8° NOTICE JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other changes without further notice to any product herein. JSCJ does not assume any liability arising out of the application or use of any product described herein. www.jscj-elec.com 5 Rev. - 2.1 ESDBKV5V0D3 CHANGJING ELEC.TECH. TAPE AND REEL INFORMATION www.jscj-elec.com 6 Rev. - 2.1
