JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD
Digital Transistors (Built-in Resistors)
JC(T

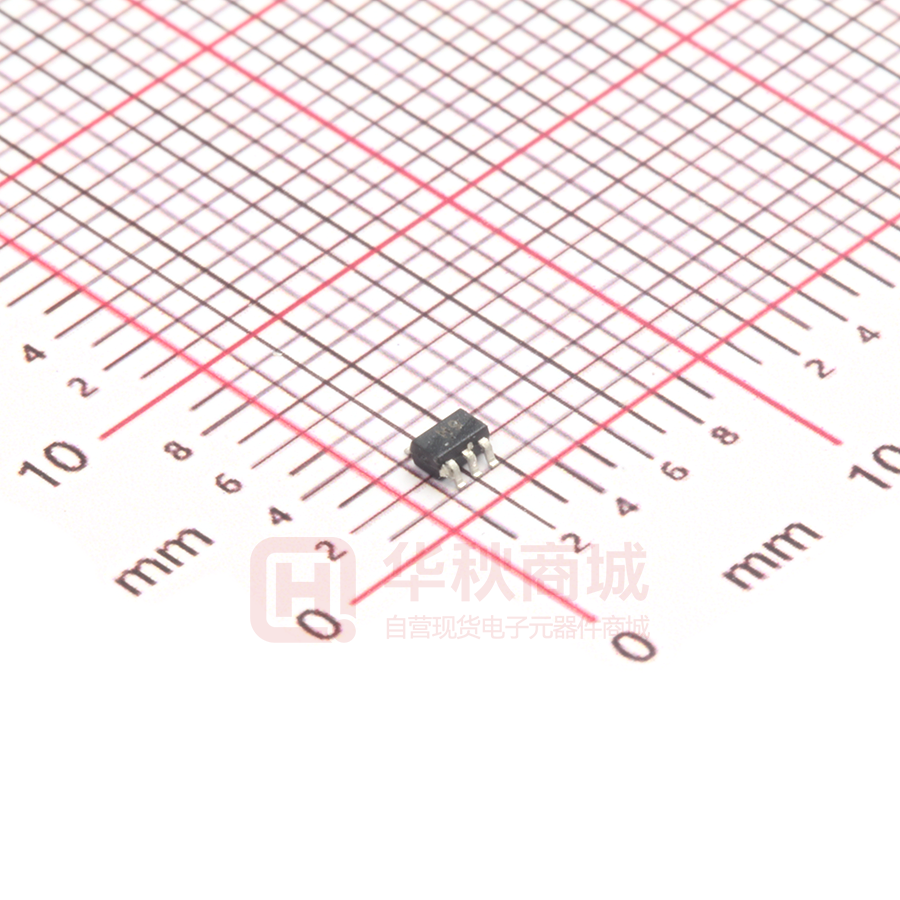

UMH9N
Dual Digital Transistors (NPN+NPN)
SOT-363
FEATURES
Two DTC114Y chips in a package
z
Transistor elements are independent, eliminating interference
z
Mounting cost and area can be cut in half
z
MARKING:H9
Absolute maximum ratings(Ta=25℃)
Parameter
Symbol
Value
Unit
Supply voltage
VCC
50
V
Input voltage
VIN
-6~40
V
IO
70
IC(MAX)
100
Power dissipation
Pd
150(TOTAL)
mW
Junction temperature
Tj
150
℃
Storage temperature
Tstg
-55~150
℃
Output current
mA
Electrical characteristics (Ta=25℃)
Parameter
Input voltage
Symbol
Min.
VI(off)
Typ
Max.
0.3
Unit
V
Conditions
VCC=5V ,IO=100µA
VI(on)
1.4
Output voltage
VO(on)
0.3
V
IO/II=5mA/0.25mA
Input current
II
0.88
mA
VI=5V
Output current
IO(off)
0.5
μA
VCC=50V, VI=0
DC current gain
GI
68
Input resistance
R1
7
10
13
Resistance ratio
R2/R1
3.7
4.7
5.7
Transition frequency
fT
www.cj-elec.com
VO=0.3V ,IO=1 mA
VO=5V ,IO=5mA
250
KΩ
MHz
1
VCE=10V ,IE=-5mA,f=100MHz
F,Mar,2016
B,ul,2011
Typical Characteristics
ON Characteristics
OFF Characteristics
100
10
(mA)
(V)
VO=0.3V
Ta=100℃
1
OUTPUT CURRENT
INPUT VOLTAGE
IO
VI(ON)
10
Ta=25℃
1
Ta=25℃
0.1
Ta=100℃
VCC=5V
0.1
0.1
1
10
OUTPUT CURRENT
IO
GI
IO
——
0.01
0.0
100
0.4
(mA)
0.8
INPUT VOLTAGE
VO(ON) ——
1000
1000
1.2
VI(OFF)
1.6
(V)
IO
VO=5V
IO/II=20
Ta=100℃
VO(ON)
DC CURRENT GAIN
GI
(mV)
300
OUTPUT VOLTAGE
Ta=25℃
100
Ta=100℃
100
Ta=25℃
3
10
10
1
100
10
OUTPUT CURRENT
CO
6
——
IO
10
1
OUTPUT CURRENT
(mA)
PD
VR
——
100
IO
(mA)
Ta
200
150
PD
4
POWER DISSIPATION
OUTPUT CAPACITANCE
CO
(pF)
(mW)
f=1MHz
Ta=25℃
2
0
100
50
0
0
4
8
REVERSE VOLTAGE
www.cj-elec.com
12
VR
16
20
0
(V)
25
50
75
AMBIENT TEMPERATURE
2
100
Ta
125
150
(℃ )
F,Mar,2016
B,ul,2011
SOT-363 Package Outline Dimensions
Symbol
A
A1
A2
b
c
D
E
E1
e
e1
L
L1
θ
Dimensions In Millimeters
Min
Max
0.900
1.100
0.000
0.100
0.900
1.000
0.150
0.350
0.100
0.150
2.000
2.200
1.150
1.350
2.150
2.400
0.650 TYP
1.200
1.400
0.525 REF
0.260
0.460
0°
8°
Dimensions In Inches
Min
Max
0.035
0.043
0.000
0.004
0.035
0.039
0.006
0.014
0.004
0.006
0.079
0.087
0.045
0.053
0.085
0.094
0.026 TYP
0.047
0.055
0.021 REF
0.010
0.018
0°
8°
SOT-363 Suggested Pad Layout
www.cj-elec.com
3
F,Mar,2016
B,ul,2011
SOT-363 Tape and Reel
www.cj-elec.com
4
F,Mar,2016
B,ul,2011
