JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD
SOT-353 Plastic-Encapsulate Diodes
UMN1N
SWITCHING DIODE
SOT-353
FEATURES
Multiple Diodes in One Small Surface Mount Package
Diode Characteristics are Matched in the Package
APPLICATIONS
High Speed Switching

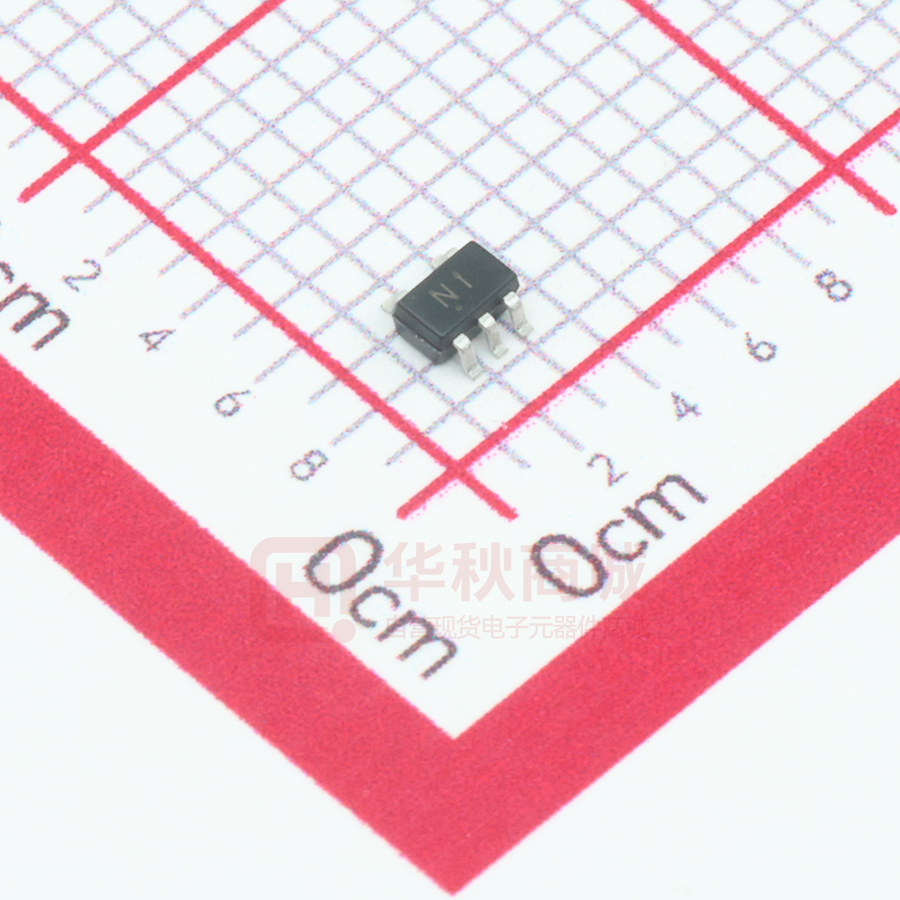

MARKING: N1
+
+
+
N1
+
-
+
N1
+
+
-
Solid dot = Green molding compound device,
if none,the normal device.
+
MAXIMUM RATINGS ( Ta=25℃ unless otherwise noted )
Symbol
Parameter
Value
Unit
VR
Continuous Reverse Voltage
80
V
IO
Continuous Forward Current
25
mA
IFM
Peak Forward Current
80
mA
IFSM
Non-repetitive Peak Forward Surge Current@t= 8.3ms
0.25
A
Power Dissipation
150
mW
Thermal Resistance From Junction To Ambient
833
℃/W
-55~+150
℃
PD
RθJA
TJ ,Tstg
Operation Junction and Storage Temperature Range
ELECTRICAL CHARACTERISTICS(Ta=25℃ unless otherwise specified)
Parameter
Symbol
Test conditions
Typ
Max
V(BR)
Reverse current
IR
VR=70V
0.1
μA
Forward voltage
VF
IF=5mA
0.9
V
Total capacitance
Ctot
VR=6V,f=1MHz
3.5
pF
4
ns
www.jscj-elec.com
trr
80
Unit
Reverse voltage
Reverse recovery time
IR=100μA
Min
IF= IR=5mA, VR=6V, RL=50Ω
1
V
Rev. - 2.0
Typical Characteristics
Forward Characteristics
Reverse Characteristics
10000
25
(nA)
(mA)
10
1000
Ta=100℃
REVERSE CURRENT IR
FORWARD CURRENT
IF
Ta=100℃
Ta=25℃
1
100
10
Ta=25℃
0.1
0.2
0.4
0.6
0.8
FORWARD VOLTAGE
1
0.1
1.0
1
VF (V)
80
10
REVERSE VOLTAGE
VR
(V)
Power Derating Curve
Capacitance Characteristics
1.20
200
Ta=25℃
(W)
150
PD
1.15
POWER DISSIPATION
CAPACITANCE BETWEEN TERMINALS
CT (pF)
f=1MHz
1.10
1.05
1.00
0
4
8
12
REVERSE VOLTAGE
www.jscj-elec.com
16
VR
100
50
0
20
20
(V)
0
25
50
75
AMBIENT TEMPERATURE
2
100
125
150
Ta ( ℃ )
Rev. - 2.0
SOT-353 Package Outline Dimensions
Symbol
A
A1
A2
b
c
D
E
E1
e
e1
L
L1
θ
Dimensions In Millimeters
Min
Max
0.900
1.100
0.000
0.100
0.900
1.000
0.150
0.350
0.100
0.150
2.000
2.200
1.150
1.350
2.150
2.400
0.650 TYP
1.200
1.400
0.525 REF
0.260
0.460
0°
8°
Dimensions In Inches
Min
Max
0.035
0.043
0.004
0.000
0.035
0.039
0.006
0.014
0.004
0.006
0.079
0.087
0.045
0.053
0.085
0.094
0.026 TYP
0.047
0.055
0.021 REF
0.010
0.018
0°
8°
SOT-353 Suggested Pad Layout
NOTICE
JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other
changes without further notice to any product herein. JSCJ does not assume any liability arising
out of the application or use of any product described herein.
www.jscj-elec.com
3
Rev. - 2.0
SOT-353 Tape and Reel
www.jscj-elec.com
4
Rev. - 2.0
