MOC3063-V

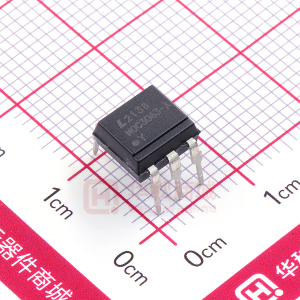

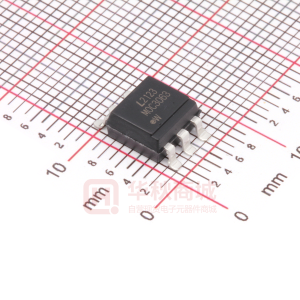

LITE-ON TECHNOLOGY CORPORATION Property of Lite-on Only FEATURES 1. This specification shall be applied to photocoupler. Model No. MOC3063 as an option. 2. Applicable Models (Business dealing name) * Dual-in-line package : MOC3063-V : 1-channel type * Wide lead spacing package : MOC3063M-V : 1-channel type * Surface mounting package : MOC3063S-V : 1-channel type * Tape and reel packaging : MOC3063S TA1-V 3. The relevant models are the models Approved by VDE according to DIN VDE 0884:1992-06 Approved Model No.: MOC3063 / MOC3063M / MOC3063S / VDE approved No.: 094722 (According to the specification DIN VDE 0884:1992-06) * Operating isolation voltage VIORM : 850V (Peak) * Transient voltage VTR : 6000V (Peak) * Pollution : 2 (According to VDE 0110-1 : 1997-04) * Clearances distance (Between input and output) : 7.0mm (MIN.) * Creepage distance (Between input and output) : 7.0mm (MIN.) * Isolation thickness between input and output : 0.4mm (MIN.) * Safety limit values Current (Isi) : 400mA (Diode side) Power (Psi) : 700mW (Phototransistor side) Temperature(Tsi) : 175oC In order to keep safety electric isolation of photocoupler, please set the protective circuit to keep within safety limit values when the actual application equipment troubled. * Indication of VDE 0884 approval prints " " on sleeve package. Part No. : MOC3063-V SERIES BNS-OD-C131/A4 Page : 1 of 10 LITE-ON TECHNOLOGY CORPORATION Property of Lite-on Only OUTLINE DIMENSIONS Dual-in-line package : Wide lead spacing package: *1. *2. *3. *4. Year date code. 2-digit work week. Factory identification mark shall be marked (Z : Taiwan, Y : Thailand, X : China). Model No.: MOC3063 Page : 2 of 10 Part No. : MOC3063-V SERIES BNS-OD-C131/A4 LITE-ON TECHNOLOGY CORPORATION Property of Lite-on Only OUTLINE DIMENSIONS Surface mounting package : *1. *2. *3. *4. Year date code. 2-digit work week. Factory identification mark shall be marked (Z : Taiwan, Y : Thailand, X : China). Model MOC3063 Part No. : MOC3063-V SERIES BNS-OD-C131/A4 Page : 3 of 10 LITE-ON TECHNOLOGY CORPORATION Property of Lite-on Only TAPING DIMENSIONS Tape and reel package ( TYPE I ): MOC3063S-TA1 Description Tape wide Pitch of sprocket holes Distance of compartment Distance of compartment to compartment Symbol W P0 F P2 P1 Dimensions in mm ( inches ) 16 ± 0.3 ( .63 ) 4 ± 0.1 ( .15 ) 7.5 ± 0.1 ( .295 ) 2 ± 0.1 ( .079 ) 12 ± 0.1 ( .472 ) Part No. : MOC3063-V BNS-OD-C131/A4 Page : 4 of 10 LITE-ON TECHNOLOGY CORPORATION Property of Lite-on Only ABSOLUTE MAXIMUM RATING ( Ta = 25°C ) PARAMETER Forward Current INPUT Reverse Voltage Power Dissipation Off-State Output Terminal Voltage OUTPUT Peak Repetitive Surge Current ( PW=100µs, 120pps ) Collector Power Dissipation Total Power Dissipation *1 Isolation Voltage Ambient Operating Temperature Range Storage Temperature Range *2 Soldering Temperature SYMBOL IF VR PD VDRM ITSM PC Ptot Viso TA Tstg TL RATING 50 6 120 600 1 150 250 5,000 -40 ~ +100 -55 ~ +150 260 UNIT mA V mW V A mW mW Vrms °C °C °C *1. AC For 1 Minute, R.H. = 40 ~ 60% Isolation voltage shall be measured using the following method. (1) Short between anode and cathode on the primary side and between collector, emitter on the secondary side. (2) The isolation voltage tester with zero-cross circuit shall be used. (3) The waveform of applied voltage shall be a sine wave. *2. For 10 Seconds Part No. : MOC3063-V SERIES BNS-OD-C131/A4 Page : 5 of 10 LITE-ON TECHNOLOGY CORPORATION Property of Lite-on Only ELECTRICAL - OPTICAL CHARACTERISTICS ( Ta = 25°C ) PARAMETER Forward Voltage INPUT Reverse Current *1 Peak Blocking Current, Either Direction OUTPUT Peak On-State Voltage, Either Direction *2 Critical rate of Rise of Off-State Voltage *3 IR IDRM1 — — 0.05 — 10 500 µA nA VR=6V VDRM = 600V SYMBOL MIN. TYP. MAX. UNIT VF — 1.2 1.4 V CONDITIONS IF=20mA VTM — — 3.0 V V/µs ITM=100 mA Peak Dv/dt 600 1500 — Led Trigger Current, Current Required to Latch Output, Either Direction Holding Current, Either Direction Turn-On Time IFT — — 5 mA Main Terminal Voltage = 3V COUPLED IH TON — — 400 8 — 20 µA µs VP=9V, IF=20mA RL = 100Ω IF=Rated IFT, MT1-MT2 Voltage above which device will not trigger. IF = Rated IFT, Rated VDRM, Off State Inhibit Voltage ZERO CROSSING Leakage in Inhibited State VINH — 5 20 Volts IDRM2 — — 500 µA *1 Test voltage must be applied within dv/dt rating. *2 This is static dv/dt. Commutating dv/dt is a function of the load-driving thyristor(s) only. *3 All devices are guaranteed to trigger at an IF value less than or equal to max IFT. Therefore, recommended operating IF lies between max IFT ( 5mA for MOC3063-V) and absolute max IF (50mA) Part No. : MOC3063-V SERIES BNS-OD-C131/A4 Page : 6 of 10 LITE-ON TECHNOLOGY CORPORATION Property of Lite-on Only ISOLATION SPECIFICATION ACCORDING TO VDE 0884 Parameter Class of environmental test Pollution Maximum Operating Isolation Voltage Partial Discharge Diagram 1 Test Voltage (Between Input and Diagram 2 Output) Maximum Over-voltage Safety Maximum Ratings 1) Case Temperature 2) Input Current 3) Electric Power (Output or Total Power Issipation) Symbol VIORM Conditions DIN IEC68 DIN VDE0110 tp=60s, qc
