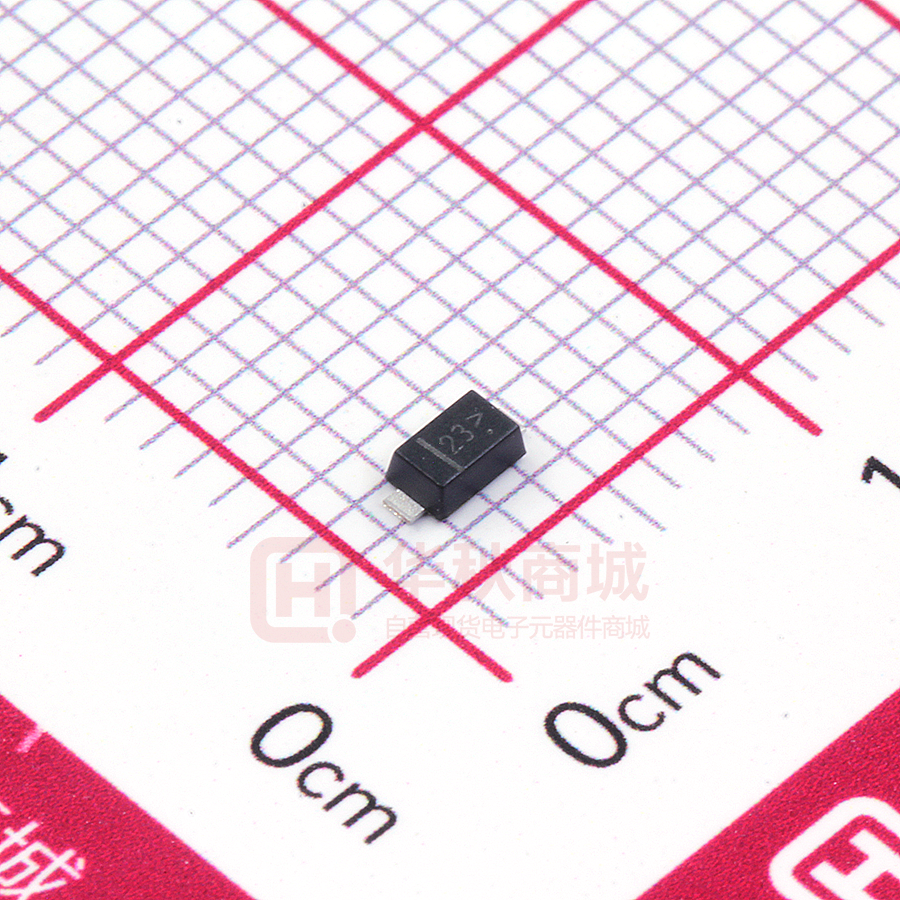

LMBR230FT1G
S-LMBR230FT1G
Schottky Barrier Rectifiers
1. FEATURES
SOD123FL
●
Low power losses, high efficiency.
●
Guardring for over voltage protection.
●
For use in low voltage high frequency inverters,
free wheeling,and polarity protection applications
●
We declare that the material of product compliance with
RoHS requirements and Halogen Free.
S- prefix for automotive and other applications requiring
23
unique site and control change requirements; AEC-Q101
M
●
qualified and PPAP capable.
Marking
2. DEVICE MARKING AND ORDERING INFORMATION
Device
Marking
Month Code
Shipping
LMBR230FT1G
23
3000/Tape&Reel
S-LMBR230FT1G
23
3000/Tape&Reel
3. MAXIMUM RATINGS(Ta = 25ºC)
Parameter
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Symbol
VRRM
Limits
30
Unit
V
VRMS
21
V
VDC
30
V
IF(AV)
2
A
IFSM
50
A
PD
400
mW
RθJA
170
RθJL
TJ
40
–55 ~ +150
TSTG
–65 ~ +175
Maximum DC blocking voltage
Maximum average forward rectified
current at TC = 75°C
Peak forward surge current 8.3ms single half sine-wave
superimposed on rated load (JEDEC Method)
Power Dissipation
Typical thermal resistance (Note 1)
Operating junction temperature range
storage temperature range
℃/W
℃
℃
1. 8.0mm²(.013mm thick) land areas
4. ELECTRICAL CHARACTERISTICS (Ta= 25 ºC)
Characteristic
Maximum instantaneous forward voltage at 2.0A
Maximum DC reverse current at rated
DC blocking voltage TA = 25℃
Tj = 100 ℃
Typical junction capacitance at 4.0V, 1MHz
Leshan Radio Company, LTD.
Symbol
VF
Min.
-
Typ.
-
Max.
0.5
Unit
V
IR
-
100
0.5
20
mA
-
-
pF
CJ
Rev.B Jun. 2020
-
1/3
LMBR230FT1G,S-LMBR230FT1G
Schottky Barrier Rectifiers
5.ELECTRICAL CHARACTERISTICS CURVES
100
2E-02
150℃
2E-03
125℃
2E-04
125℃
IR Reverse Current(A)
IFForward Current(A)
10
150℃
1
85℃
25℃ -55℃
0.1
85℃
2E-05
2E-06
25℃
2E-07
2E-08
2E-09
0.01
-55℃
2E-10
0.0
0.2
0.4
0.6
0.8
VF Forward Voltage(V)
1.0
IF vs. VF
0
5
10
15
20
25
VR Reverse Voltage(V)
30
IR vs. VR
350
f=1MHz
Ta=25℃
300
CT Capacitor(pF)
250
200
150
100
50
0
0
5
10 15 20 25 30 35 40 45 50
VR Reverse Voltage(V)
CT vs. VR
Leshan Radio Company, LTD.
Rev.B Jun. 2020
2/3
LMBR230FT1G,S-LMBR230FT1G
Schottky Barrier Rectifiers
6.OUTLINE AND DIMENSIONS
SOD123FL
DIM MIN
NOR
MAX
A 0.90 1.05 1.15
b 0.75 0.80 0.95
L 0.50 0.80 1.10
E 2.60 2.75 2.90
D 1.60 1.75 1.90
HE 3.50 3.65 3.80
c 0.12 0.17 0.22
L1 0.25 0.45 0.65
All Dimensions in mm
7.SOLDERING FOOTPRINT
DIM
X
Y
X1
Leshan Radio Company, LTD.
Rev.B Jun. 2020
(mm)
1.20
1.10
2.00
3/3
