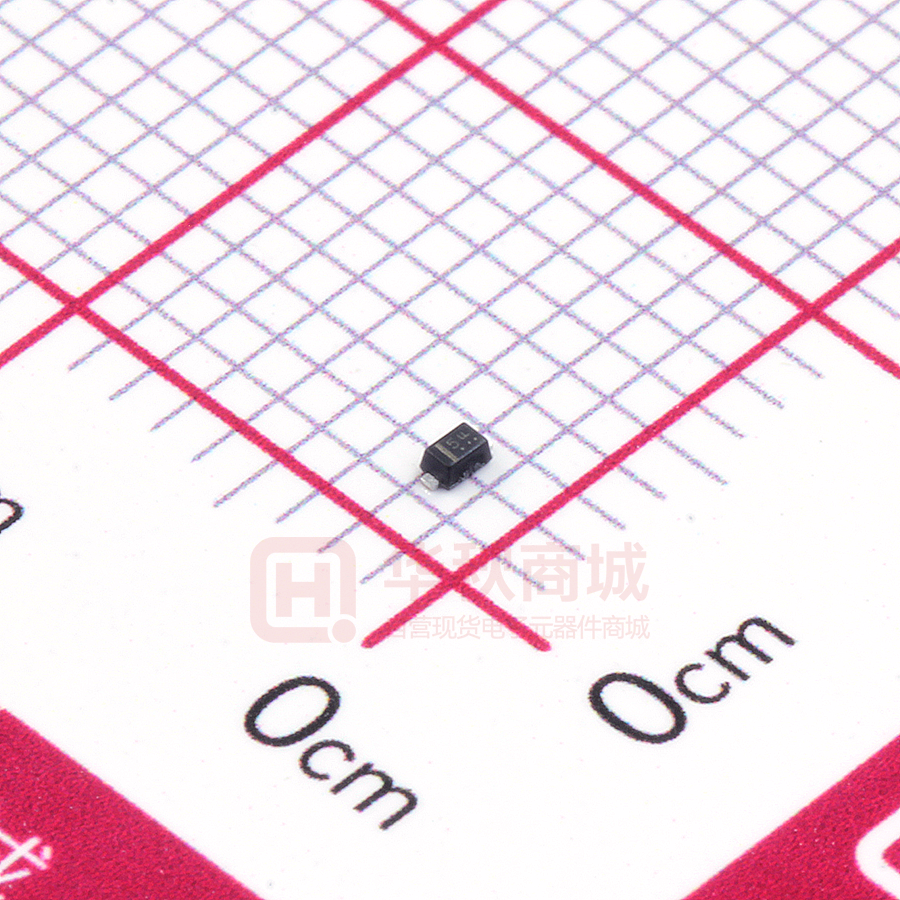

LRB751S-40T1G S-LRB751S-40T1G Schottky Barrier Diode 1. FEATURES ● We declare that the material of product compliance with RoHS requirements and Halogen Free. ● S- prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q101 qualified and PPAP capable. ● Low reverse current and low forward voltage. ● High reliability SOD523(SC-79) 2. APPLICATIONS ● Silicon epitaxial planar 3. DEVICE MARKING AND ORDERING INFORMATION Device Marking Shipping LRB751S-40T1G 5 3000/Tape&Reel LRB751S-40T5G 5 8000/Tape&Reel 4. MAXIMUM RATINGS(Ta = 25ºC) Parameter Symbol Limits Unit VRM 40 V VR 30 V Peak Reverse Voltage DC Reverse Voltage IO 30 mA Peak Forward Surge Current Junction temperature IFSM TJ 200 125 mA ºC Storage temperature Tstg -40~+125 ºC Mean Rectifying Current 5. ELECTRICAL CHARACTERISTICS (Ta= 25ºC) Characteristic Min. Typ. Max. Forward voltage(IF=1mA) Symbol VF - - 0.37 Unit V Reverse Current(VR=30V) IR - - 0.5 μA Diode Capacitance(VR = 1V, f = 1.0 MHz) CT - 2 - pF Leshan Radio Company, LTD. Rev.A Aug. 2017 1/3 LRB751S-40T1G, S-LRB751S-40T1G Schottky Barrier Diode 6.ELECTRICAL CHARACTERISTICS CURVES 1000 1000 125℃ 100 IF,Forward Current(mA) IR,Reverse Current(uA) 125℃ 100 85℃ 10 25℃ -55℃ 1 85℃ 10 1 25℃ 0.1 0.01 -55℃ 0.001 0.1 0.0001 0 0.5 1 1.5 VF,Forward Voltage(V) 2 Forward Characteristics 0 10 20 30 40 50 VR,Reverse Voltage(V) 60 70 Reverse Characteristics 3 C,Capacitor(pF) f=1MHz 2 1 0 0 5 10 15 VR, Reverse Voltage(V) Capacitor Characteristics Leshan Radio Company, LTD. Rev.A Aug. 2017 2/3 LRB751S-40T1G, S-LRB751S-40T1G Schottky Barrier Diode 7.OUTLINE AND DIMENSIONS Notes: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: MILLIMETERS. 3. MAXIMUM LEAD THICKNESS INCLUDES LEAD FINISH. MINIMUM LEAD THICKNESS IS THE MINIMUM THICKNESS OF BASE MATERIAL. 4. DIMENSIONS D AND E DO NOT INCLUDE MOLD FLASH, PROTRUSIONS OR GATE BURRS. MILLIMETERS INCHES DIM MIN A 0.50 NOM MAX MIN NOM MAX 0.60 0.70 0.020 0.024 0.028 b 0.25 0.30 0.35 0.010 0.012 0.014 c 0.07 0.14 0.20 0.003 0.006 0.008 D 1.10 1.20 1.30 0.043 0.047 0.051 E HE 0.70 0.80 0.90 0.028 0.031 0.035 1.50 1.60 1.70 0.059 0.063 0.067 L L2 0.30 REF 0.15 0.20 0.012 REF 0.25 0.006 0.008 0.010 8.SOLDERING FOOTPRINT Leshan Radio Company, LTD. Rev.A Aug. 2017 3/3
