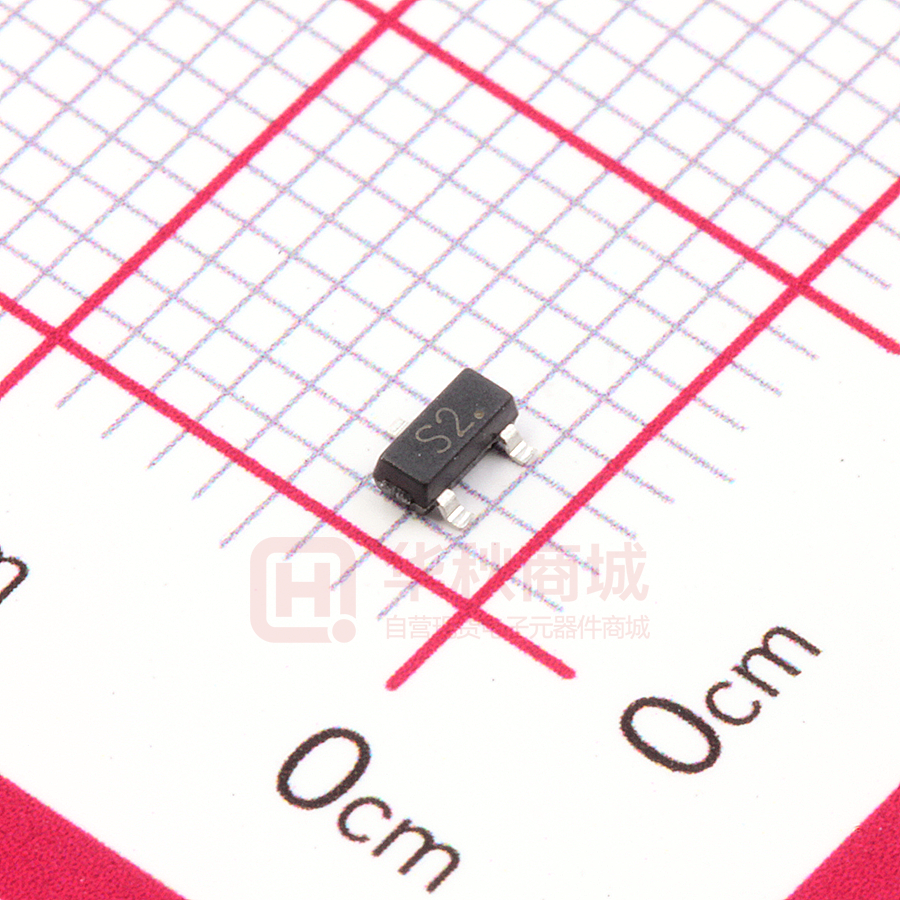

SI2302A-TP

SI2302A Features • • • • • • • Rugged and Reliable Lead Free Product is Acquired High Dense Cell Design for Extremely Low RDS(ON) Epoxy Meets UL 94 V-0 Flammability Rating Moisture Sensitivity Level 1 Halogen Free Available Upon Request by Adding Suffix "-HF" Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) N-Channel Enhancement Mode Field Effect Transistor Maximum Ratings • Operating Junction Temperature Range: -55°C to +150°C • Storage Temperature Range: -55°C to +150°C • Thermal Resistance: 100°C/W Junction to Ambient Parameter SOT-23 Symbol Rating Unit Drain-Source Voltage VDS 20 V Gate-Source Voltage VGS ±8 V Drain Current-Continuous ID 3.0 A Drain Current-Pulsed(Note1) IDM 10 A Power Dissipation PD 1.25 W A D 3 C 1 F B 2 E H G J L K DIMENSIONS INCHES MM DIM MIN MAX MIN MAX A 0.110 0.120 2.80 3.04 B 0.083 0.104 2.10 2.64 C 0.047 0.055 1.20 1.40 0.034 0.041 0.85 1.05 D E 0.067 0.083 1.70 2.10 F 0.018 0.024 0.45 0.60 G 0.0004 0.006 0.01 0.15 H 0.035 0.043 0.90 1.10 J 0.003 0.007 0.08 0.18 K 0.012 0.020 0.30 0.51 L 0.007 0.020 0.20 0.50 Internal Structure D 1. GATE 2. SOURCE 3. DRAIN G S Marking: S2 NOTE Suggested Solder Pad Layout 0.031 0.800 0.035 0.900 0.079 2.000 0.037 0.950 Rev.3-1-01012019 1/4 inches mm 0.037 0.950 MCCSEMI.COM SI2302A ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified) Parameter Symbol Test conditions Min Typ Max Unit Static Characteristics V(BR)DSS VGS=0V, ID=10µA 20 Gate-Threshold Voltage(Note3) VGS(th) VDS=VGS, ID=50µA 0.65 Gate-Body Leakage Current IGSS Zero Gate Voltage Drain Current IDSS Drain-Source Breakdown Voltage Drain-Source On-Resistance(Note3) Forward Transconductance(Note3) RDS(on) gFS V 1.2 V VGS=± 8V, VDS=0V ±100 nA VDS=20V, VGS=0V 1 µA VGS=4.5V, ID=3.6A 55 72 VGS=2.5V, ID=3.1A 82 110 VDS=5V, ID=3.6A 8.5 mΩ S Dynamic Characteristics(Note4) Input Capacitance Ciss Output Capacitance Coss Reverse Transfer Capacitance Crss 45 Turn-On Delay Time td(on) 23 45 Turn-On Rise Time tr 11 30 Turn-Off Delay Time td(off) 34 70 Turn-Off Fall Time tf 36 70 Total Gate Charge Qg 6 10 Gate-Source Charge Qgs Gate-Drain Charge Qgd 237 VDS=10V,VGS=0V, f=1MHz pF 120 Switching Characteristics(Note4) VDD=10V, VGS=4.5V, ID=3.6A, RGEN=6Ω VDS=10V, VGS=4.5V, ID=3.6A 1.4 ns nC 1.8 Drain-Source Diode Characteristics and Maximum Ratings Diode Forward Voltage(Note3) VSD Drain-Source Diode Forward Current(Note2) IS VGS=0V, IS=0.94A 1.2 V 0.94 A Notes: 1.Repetitive Rating : Pulse Width Iimited By Maximum Junction Temperature. 2.Surface Mounted on FR4 Board, t < 10 sec. 3.Pulse Test : Pulse Width < 300μs, Duty Cycle < 2%. 4.Guaranteed By Design, Not Subject to Production Testing. Rev.3-1-01012019 2/4 MCCSEMI.COM SI2302A Curve Characteristics Fig. 2 - Transfer Characteristics Fig. 1 - Output Characteristics 10 10 TA=25°C Pulsed VGS=4.5V,3.5V,2.5V 8 8 Drain Current (A) Drain Current (A) TA=25°C 6 VGS=2.0V 4 2 6 4 2 VGS=1.5V TA=125°C TA=-55°C 0 0 1 2 3 4 0 5 0 1 Fig. 3 - Capacitance Characteristics Fig. 4 - RDS(ON)—Temperature 600 2.2 2.0 Normalized On-Resistance Capacitance (pF) 500 400 300 Ciss 200 Coss 100 0 3 2 Gate to Source Voltage (V) Drain to Source Voltage (V) Crss 0 5 10 15 1.8 1.6 1.4 VGS=4.5V ID=3.6A 1.2 1.0 0.8 0.6 0.4 -100 25 20 -50 0 50 100 150 200 Junction Temperature (°C) Drain at to Source Voltage (V) Fig. 5 - Threshold Voltage 1.3 Fig. 6 - IS—VSD 50 10 1.1 Source Current (A) Threshold Voltage (V) 1.2 ID= 250μA 1.0 0.9 0.8 1 0.7 0.6 -50 -25 0 25 50 75 100 125 0.1 0.2 150 Junction Temperature (°C) Rev.3-1-01012019 TA=25°C 0.4 0.6 0.8 1.0 1.2 Source to Drain Voltage (V) 3/4 MCCSEMI.COM SI2302A Ordering Information Device Packing Part Number-TP Tape&Reel:3Kpcs/Reel Note : Adding "-HF" Suffix For Halogen Free, eg. Part Number-TP-HF ***IMPORTANT NOTICE*** Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. Rev.3-1-01012019 4/4 MCCSEMI.COM
