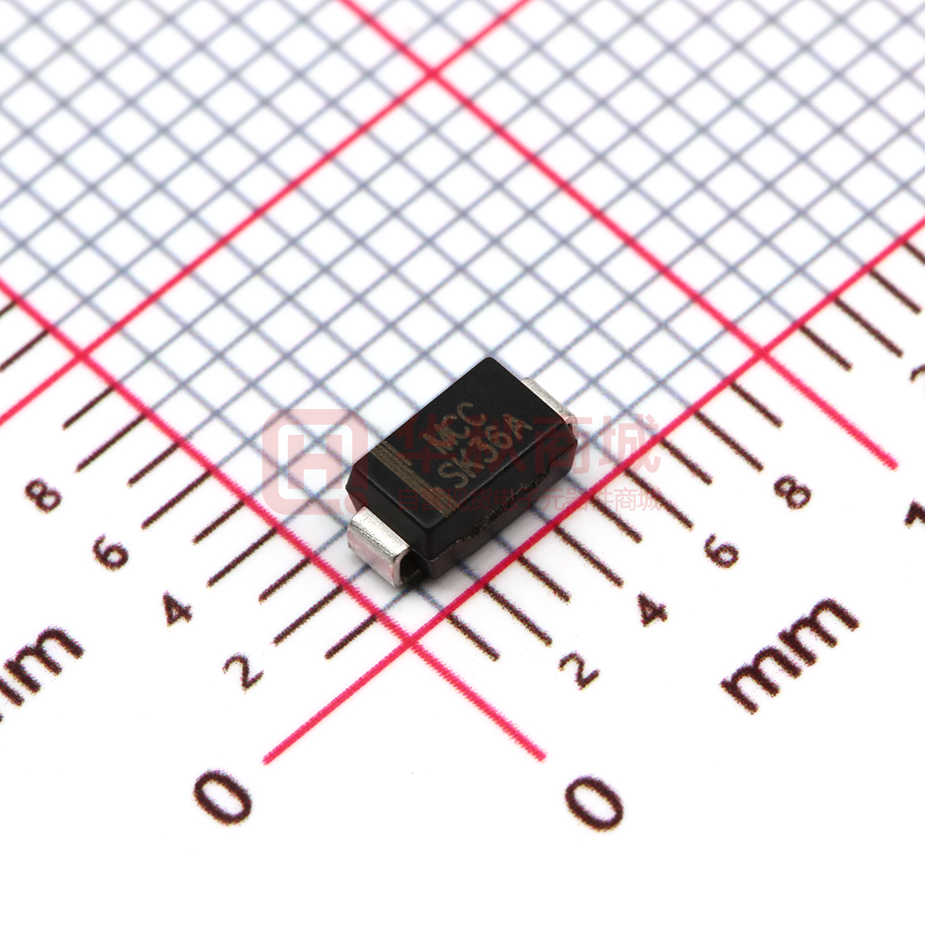

SK36A-LTP

SK32A-L THRU SK310A-L Features • Halogen Free Available Upon Request by Adding Suffix "-HF" • Lead Free Finish/RoHS Compliant(Note 1) ("P" Suffix Designates Compliant. See Ordering Information) • High Current Capability with Low Forward Voltage • Epoxy Meets UL 94 V-0 Flammability Rating • Moisture Sensitivity Level 1 • For Surface Mount Applications • Easy Pick and Place 3 Amp Schottky Rectifier 20 to 100 Volts Maximum Ratings • • • • • Operating Junction Temperature Range: -55°C to +125°C(SK32A-L~SK345A-L) Operating Junction Temperature Range: -55°C to +150°C(SK35A-L~SK310A-L) Storage Temperature Range: -55°C to +150°C Maximum Thermal Resistance: 10°C/W Junction to Lead Maximum Thermal Resistance: 80°C/W Junction to Ambient MCC Part Number SK32A-L SK33A-L SK34A-L SK345A-L SK35A-L SK36A-L SK38A-L SK310A-L Device Marking Maximum Maximum DC Recurrent Maximum Blocking Peak Reverse RMS Voltage Voltage Voltage SK32A SK33A SK34A SK345A SK35A SK36A SK38A SK310A 20V 30V 40V 45V 50V 60V 80V 100V 14V 21V 28V 31.5V 35V 42V 56V 70V Average Forward Current IF(AV) 3.0A Fig.1 Peak Forward Surge Current IFSM 80A 8.3ms,Half Sine VF 0.50V 0.75V 0.85V IFM=3.0A; TJ=25⁰C* 0.1mA TJ=25⁰C; TJ=100⁰C Maximum DC Reverse Current at Rated DC Blocking Voltage IR Typical Junction Capacitance CJ 10mA 250pF J Cathode Mark A E C D F B G DIM A B C D E F G H J DIMENSIONS INCHES MM MIN MAX MIN MAX 0.079 0.096 2.00 2.44 0.050 0.064 1.27 1.63 0.002 0.006 0.051 0.203 --- 0.020 --0.51 0.030 0.060 0.76 1.52 0.065 0.091 1.65 2.32 0.189 0.220 4.80 5.59 0.157 0.181 4.00 4.60 0.090 0.115 2.25 2.92 NOTE SUGGESTED SOLDER PAD LAYOUT 2.27mm Measured at 1.0MHz, VR=4.0V *Pulse Test: Pulse Width 200 µsec, Duty Cycle 2% Note :1. High Temperature Solder Exemption Applied, See EU Directive Annex 7a. Rev.3-1-01012019 H 20V 30V 40V 45V 50V 60V 80V 100V Electrical Characteristics @ 25°C Unless Otherwise Specified Maximum Instantaneous Forward Voltage SK32A-L~345A-L SK35A-L~36A-L SK38A-L~310A-L SMA (DO-214AC) 1/4 2.16mm 1.78mm MCCSEMI.COM SK32A-L THRU SK310A-L Curve Characteristics Fig. 1 - Forward Current Derating Curve Fig. 2 - Maximum Non-Repetitive Peak Forward Surge Current 100 Peak Forward Surge Current (A) Average Forward Current (A) 4 3 2 SK32A-L~SK345A-L SK35A-L~SK310A-L 1 80 60 40 20 8.3 ms Single Half Sine-Wave 0 0 25 50 75 100 125 0 150 10 1 Lead Temperature (°C) Fig. 4 - Typical Instantaneous Forward Characteristics 10 10 5 5 Instantaneous Forward Current (A) Instantaneous Forward Current (A) Fig. 3 - Typical Instantaneous Forward Characteristics 2 1 TJ=125°C 0.5 0.2 TJ=75°C 0.1 0.05 TJ=25°C 0.02 0.01 0.0 0.1 0.2 0.3 0.5 0.6 0.7 2 1 0.5 0.2 0.05 0.01 0.0 0.8 0.1 0.2 0.3 0.4 SK35A-L~36A-L 0.5 0.6 0.7 0.8 Fig. 6 - Typical Reverse Leakage Characteristics 10000 Instantaneous Reverse Leakage Current (μA) 10 5 Instantaneous Forward Current (A) TJ=25°C Instantaneous Forward Voltage (V) Fig. 5 - Typical Instantaneous Forward Characteristics 2 1 TJ=125°C 0.5 0.2 TJ=75°C 0.1 0.05 TJ=25°C 0.02 0.2 0.3 0.4 0.5 SK38A-L~310A-L 0.6 0.7 0.8 0.9 1.0 TJ=125°C 1000 100 TJ=75°C 10 TJ=25°C 1 20 40 60 SK32A-L~SK345A-L 80 100 Percent of Rated Peak Reverse Voltage (%) Instantaneous Forward Voltage (V) Rev.3-1-01012019 TJ=75°C 0.1 Instantaneous Forward Voltage (V) 0.01 0.1 TJ=125°C 0.02 SK32A-L~345A-L 0.4 100 Number of Cycles at 60 Hz 2/4 MCCSEMI.COM SK32A-L THRU SK310A-L Curve Characteristics Fig. 7 - Typical Reverse Leakage Characteristics Fig. 8 - Typical Reverse Leakage Characteristics 1000 Instantaneous Reverse Leakage Current (μA) Instantaneous Reverse Leakage Current (μA) 10000 TJ=125°C 1000 100 TJ=75°C 10 TJ=25°C 1 20 40 60 SK35A-L~SK36A-L 80 100 10 TJ=75°C 1 0.1 TJ=25°C 0.01 20 40 60 SK38A-L~SK310A-L 80 100 Percent of Rated Peak Reverse Voltage (%) Percent of Rated Peak Reverse Voltage (%) Rev.3-1-01012019 TJ=125°C 100 3/4 MCCSEMI.COM SK32A-L THRU SK310A-L Ordering Information Device Packing SK32A-LTP~SK310A-LTP Tape&Reel: 5Kpcs/Reel Note : Adding "-HF" Suffix For Halogen Free, eg. SK32A-LTP-HF~SK310A-LTP-HF ***IMPORTANT NOTICE*** Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. Rev.3-1-01012019 4/4 MCCSEMI.COM
