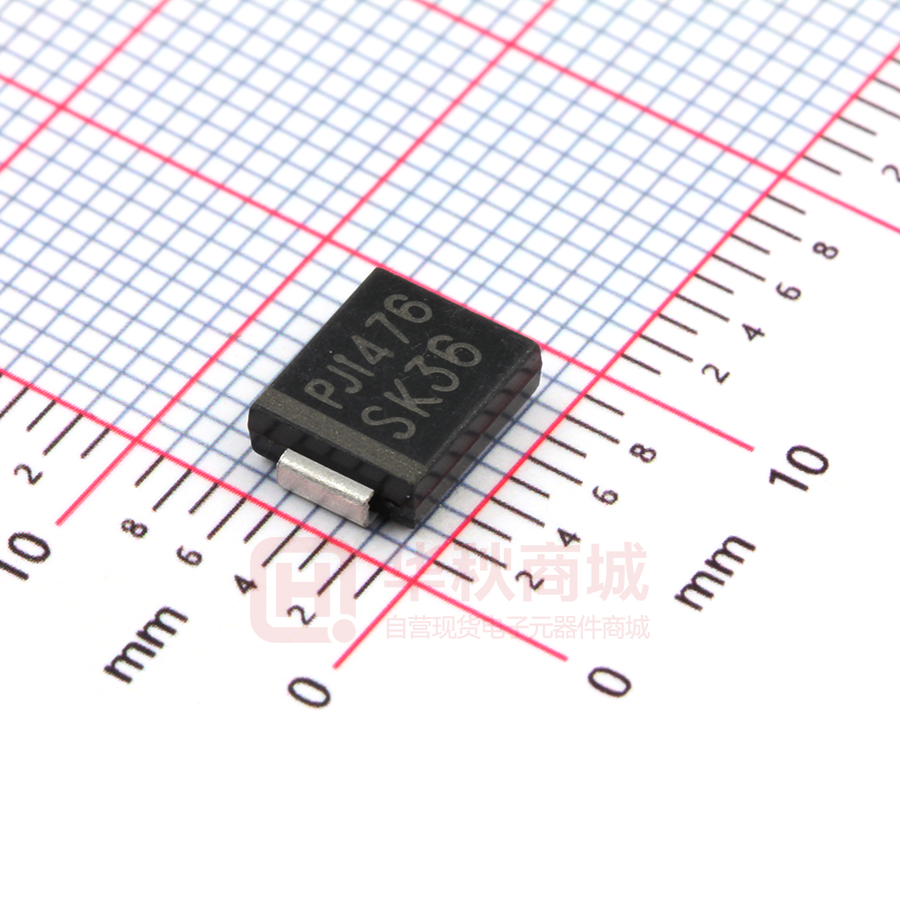

SK36_R1_00001

SK32 ~ SK36 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER VOLTAGE 20 to 60 Volt 3 Ampere CURRENT FEATURES • Plastic package has Underwriters Laboratory Flammability Classification 94V-O • For surface mounted applications in order to optimize board space • Low power loss,high efficiency • High surge capacity • Lead free in compliance with EU RoHS 2.0 • Green molding compound as per IEC 61249 standard MECHANICAL DATA • • • • • Case: JEDEC DO-214AB molded plastic Terminals: Solder plated, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Standard packaging: 16mm tape (EIA-481) Weight: 0.0082 ounces, 0.2325 grams 1 2 Cathode Anode MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified. Resistive or inductive load. PA R A M E T E R SY MBO L SK32 SK33 SK34 SK35 SK36 UNI T S M a ximum R e c ur r e nt P e a k R e ve r s e Vo l t a g e V RRM 20 30 40 50 60 V M a ximum R M S V o lt a g e V RM S 14 21 28 35 42 V M a ximum D C B lo c k i ng V o l t a g e V DC 20 30 40 50 60 V M a ximum A ve r a g e F o r w a r d C ur r e nt I F( AV) 3 A P e a k F o r w a r d S ur g e C ur r e nt : 8 . 3 ms S ing le Ha l f S i ne - Wa ve S up e r i mp o s e d O n R a t e d L o a d I FS M 100 A M a ximum F o r w a r d Vo l t a g e a t 3 A ( No t e 1 ) VF 0. 5 0.75 V IR 0. 2 20 0. 1 20 mA M a ximum D C R e ve r s e Cur r e nt a t R a t e d D C B l o c k i ng Vo lt a g e T J= 2 5 O C T J= 1 0 0 O C Ty p i c a l T he r ma l R e s i s t a nc e ( No t e 2 ) ( No t e 3 ) O p e r a t ing J unc t io n Te mp e r a t ur e R a ng e R θJ L RθJA TJ S t o r a g e Te mp e r a t ur e R a ng e T S TG 15 11 0 - 55 t o +125 O - 55 t o +150 -55 t o +150 C / W O C O C NOTES : 1. Pulse Test with PW = 300µsec, 1% Duty Cycle. 2. Mounted on a FR4 PCB, single-sided copper, with 100cm 2 copper pad area. 3. Mounted on a FR4 PCB, single-sided copper, mini pad. April 19,2018-REV.09 PAGE . 1 120 100 VOLTAGE (%) PERCENT OF REVERSE SK32 ~ SK36 80 60 40~60V 40 20~30V 20 0 0 25 50 75 100 125 150 TJ, JUNCTION TEMPERATURE (°C) April 19,2018-REV.09 PAGE . 2 SK32 ~ SK36 MOUNTING PAD LAYOUT ORDER INFORMATION • Packing information T/R - 3K per 13" plastic Reel T/R - 0.8K per 7" plastic Reel April 19,2018-REV.09 PAGE . 3 SK32 ~ SK36 Part No_packing code_Version SK32_R1_00001 SK32_R2_00001 For example : RB500V-40_R2_00001 Serial number Part No. Version code means HF Packing size code means 13" Packing type means T/R Packing Code XX Packing type Tape and Ammunition Box (T/B) Tape and Reel (T/R) Bulk Packing (B/P) Tube Packing (T/P) Tape and Reel (Right Oriented) (TRR) Tape and Reel (Left Oriented) (TRL) FORMING April 19,2018-REV.09 Version Code XXXXX 1st Code Packing size code A N/A 0 HF 0 serial number R 7" 1 RoHS 1 serial number B 13" 2 T 26mm X S 52mm Y L F PANASERT T/B CATHODE UP (PBCU) PANASERT T/B CATHODE DOWN (PBCD) 2nd Code HF or RoHS 1st Code 2nd~5th Code U D PAGE . 4 SK32 ~ SK36 Disclaimer • Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. • Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. • Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. • Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. • Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. • The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. • Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. April 19,2018-REV.09 PAGE . 5
