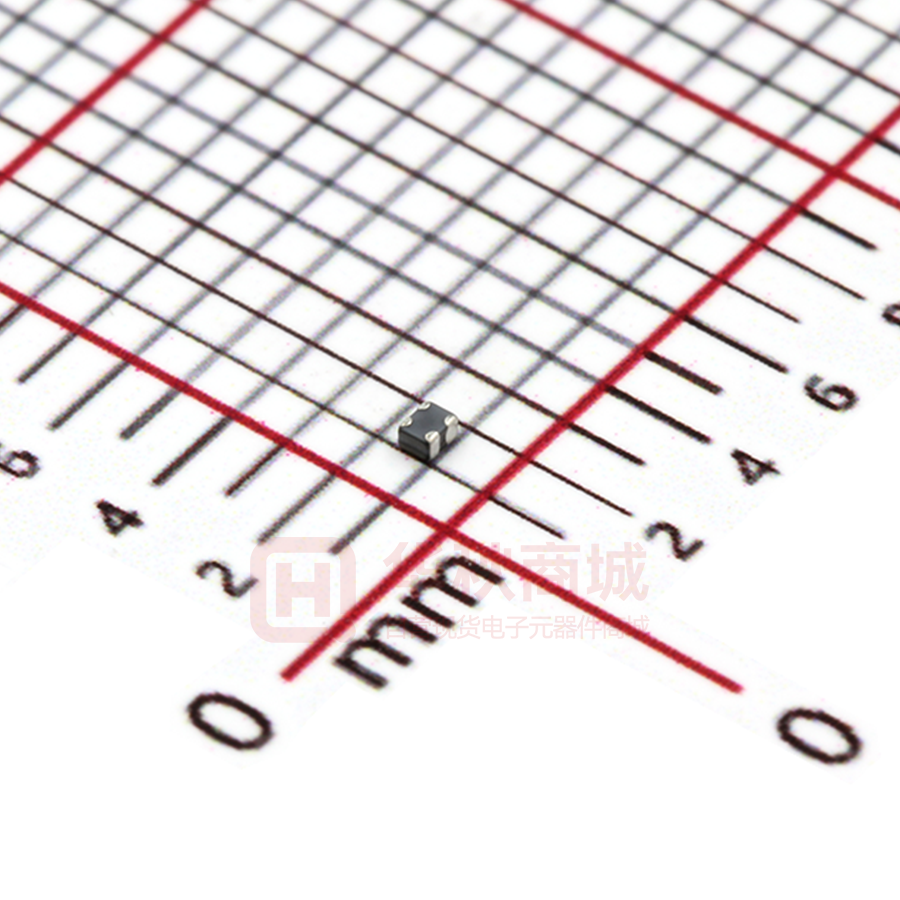

DLM0QSN900HY2D

Product Search Data Sheet DLM0QSN900HY2# “#” indicates a package specification code. < List of part numbers with package codes > DLM0QSN900HY2B DLM0QSN900HY2D Appearance & Shape Features 1. Small size and tight dimensional tolerance Size: 0.65x0.50x0.30mm Tolerance: +-0.05mm 2. Suitable common mode impedance of 90ohm(at 100MHz) for high speed signal lines. 3. Prevents signal damaging in high speed differential lines. 4. Designed to match line impedance. Applications Other Usage For general Packaging Information Packaging Specifications Minimum Order Quantity B Bulk(Bag) 500 D 180mm Paper Tape 15000 1 of 3 Atten ti o n 1.T his datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. T herefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2.T his datasheet has only typical specifications because there is no space for detailed specifications. T herefore, please review our product specifications or consult the approval sheet for product specifications before ordering. URL : http://www.murata.com/ Last updated ：2016/08/03 Product Search Data Sheet DLM0QSN900HY2# “#” indicates a package specification code. Specifications Shape SMD Operating Temperature Range -40 ℃ to 85 ℃ Size Code (in mm) 0605 Mass(typ.) 0.0003g Size Code (in inch) 025020 Number of Circuit 1 Length 0.65mm Operating Temperature Range(Selftemperature rise is included) No Length Tolerance ±0.05mm Width 0.5mm Width Tolerance ±0.05mm Thickness 0.3mm Thickness Tolerance ±0.05mm Common Mode Impedance (at 100MHz) 90Ω Common Mode Impedance (at 100MHz) Tolerance ±25% Rated Current 50.0mA Rated Voltage 5Vdc Withstanding Voltage 12.5Vdc DC Resistance(max.) 5.0Ω DC Resistance 4.0Ω±25% Insulation Resistance(min.) 10MΩ 2 of 3 Atten ti o n 1.T his datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. T herefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2.T his datasheet has only typical specifications because there is no space for detailed specifications. T herefore, please review our product specifications or consult the approval sheet for product specifications before ordering. URL : http://www.murata.com/ Last updated ：2016/08/03 Product Search Data Sheet DLM0QSN900HY2# “#” indicates a package specification code. Product Data Impedance-Frequency Characteristics Differential Mode Transmission Characteristics (Typ.) Equivalent Circuit 3 of 3 Atten ti o n 1.T his datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. T herefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. 2.T his datasheet has only typical specifications because there is no space for detailed specifications. T herefore, please review our product specifications or consult the approval sheet for product specifications before ordering. URL : http://www.murata.com/ Last updated ：2016/08/03
