Choke Coils
Power Choke Coil
Series:
PCC-M0512W (MC)
High power, Low loss, Low-profile
■ Features
●
●
●
●
●
●
Small type (5.4×5.15×H1.2 mm)
High power (2.2 A to 5.5 A)
Low loss (RDC :19.2 to 168.0 mΩ)
Suitable for high frequency circuit (up to 1 MHz)
Low buzz noise due to its gap-less structure
RoHS compliant
■ Recommended Applications
● HDD, Tablet PC power supply modules
● Servers, Routers, DC-DC converters for driving CPUs
■ Standard Packing Quantity
● 3000 pcs./Reel
■ Explanation of Part Numbers
1
2
3
4
5
6
&
5
2
1
8
Product Code
Classification Size
7
Winding
8
9
Inductance
10
11
12
Core
Packaging
Suffix
■ Standard Parts
Inductance (at 20 °C)✽1
L1✽3
L0 at 0A
Part No.
Rated
current
(A) ✽2
DC resistance
(at 20 °C)
(mΩ)
5.5
19.2
(μH)
(μH)

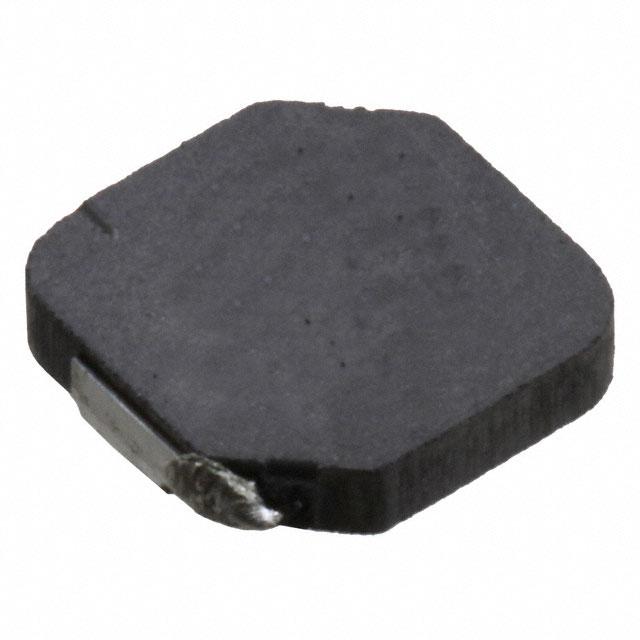

ETQP1WR47WFP
0.47±20 %
(0.42)
Measurement
current
(A)
5.5
ETQP1W1R0WFP
1.00±20 %
(0.87)
4.4
4.4
46.5
ETQP1W2R2WFP
2.20±20 %
(1.80)
3.4
3.4
77.3
ETQP1W3R3WFP
3.30±20 %
(2.70)
2.8
2.8
103.0
ETQP1W4R7WFP
4.70±20 %
(3.90)
2.2
2.2
168.0
(✽1) Inductance is measured at 100 kHz.
(✽2) Rated current defines actual value of DC current, when temperature rise of coil becomes 40 K.
(✽3) Reference Only
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
02 Jun. 2013
100
Choke Coils
■ Performance Characteristics (Reference)
Case Temperature vs DC Current
Inductance vs DC Current
&521838'1
&521838'1
&521838'1
&521838'1
&521838'1
(uH)
5.0
120
110
100
90
80
70
60
50
40
30
20
10
0
4.5
4.0
Temp. rise (K)
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
&521838'1
&521838'1
&521838'1
&521838'1
&521838'1
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
5
5.5
6
6.5
7
7.5
0
1
2
3
4
(A)
5
6
7
8
Idc (A)
■ Dimensions in mm (not to scale)
5.15±0.30
2.00±0.15
5.4±0.3
P2
P1
(1.05)
1.2 max.
■ Recommended Land Pattern in mm (not to scale)
■ Connection
2.5
P2
P1
2.2
6.0
■ Packaging Methods, Soldering Conditions and Safety Precautions (Power Choke Coils for Consumer use)
Please see Data Files
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
02 Jun. 2013
101
