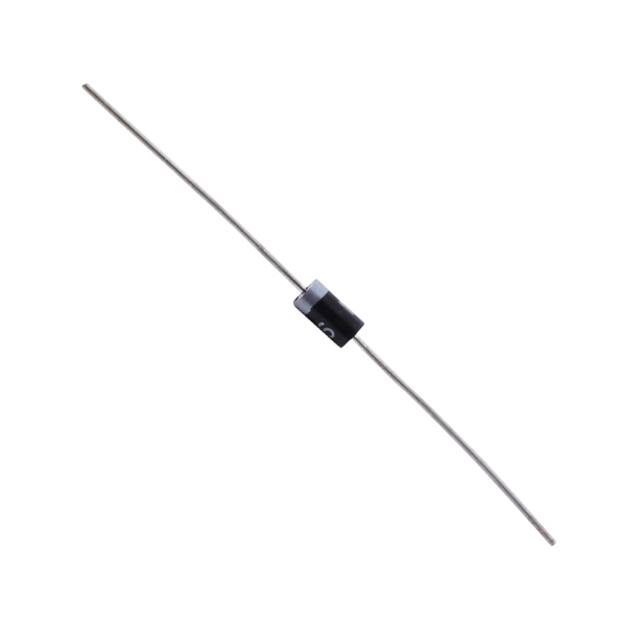

NTE156
General Purpose Silicon Rectifier
Features:
D Low Leakage
D Low Forward Voltage Drop
D High Current Capability
Maximum Ratings: (TA = +25C unless otherwise specified. Single phase, half wave, 60Hz,
resistive or inductive load. For capacitive load, derate current by 20%)
Peak Repetitive Reverse Voltage, VRRM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000V
DC Blocking Voltage, VR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000V
RMS Reverse Voltage, VR(RMS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 700V
Average Rectified Forward Current. IO
(.375” (9.5mm) lead length, TA = +50C) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2A
Non−Repetitive Peak Surge Current, IFSM
(8.3ms single half sine−wave superimposed on rated load) . . . . . . . . . . . . . . . . . . . . . . . . 70A
Operating Junction Temperature Range, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −65 to +175C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −65 to +175C
Typical Thermal Resistance, Junction−to−Ambient, RthJA . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50C/W
Electrical Characteristics: (TA = +25C unless otherwise specified. Single phase, half wave, 60Hz,
resistive or inductive load. For capacitive load, derate current by 20%)
Parameter
Symbol
Test Conditions
Min Typ Max Unit
Maximum Instantaneous Forward
Voltage Drop
VF
IF = 2A
−
−
1.1
V
Maximum Reverse Current
IR
VRRM = 1000V, TJ = +25C
−
−
5.0
A
VRRM = 1000V, TJ = +100C
−
−
50
TL +75C, .375 (9.5) leads
−
−
30
A
Note 1
−
40
−
pF
Maximum Full−Cycle Average Reverse
Current
Typical Junction Capacitance
IR(AV)
Cj
Note 1. Measured at 1MHz and applied reverse voltage of 4.0 volts.
1.075
(27.3)
Min
.250
(6.35)
Max
.030 (0.76) Dia Max
.130 (3.3)
Dia Max
Color Band Denotes Cathode
