NTE541

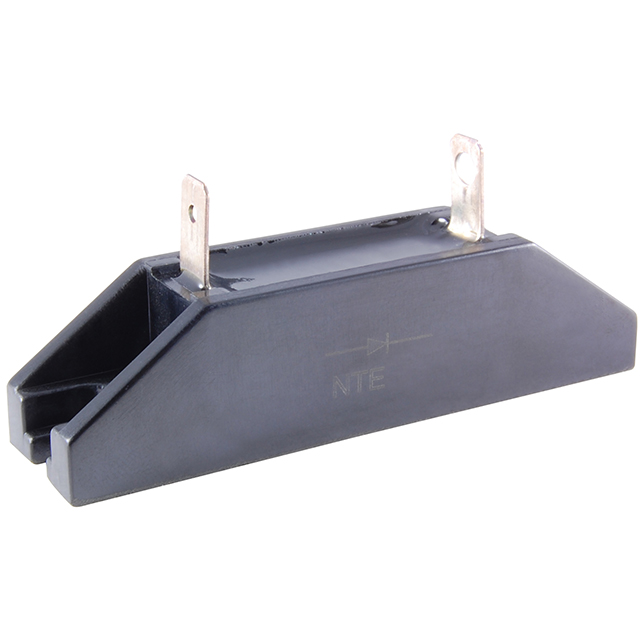

NTE541 Silicon High Voltage Plastic Rectifier Module for Industrial and Microwave Ovens Features: D Low Leakage D Isolated Case D Surge Overload Rating: 50A Peak D Low Forward Voltage Drop Maximum Ratings and Electrical Characteristics: (TA = +25°C unless otherwise specified.) Maximum Peak Reverse Voltage (IR = 0.5μA), VRRM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12kV Maximum Peak Working Reverse Voltage (IR = 0.5μA), VRWM . . . . . . . . . . . . . . . . . . . . . . . . . . . 12kV Maximum Non−Repetitive Peak Reverse Voltage (IR = 0.5μA), VRSM . . . . . . . . . . . . . . . . . . . 13.2kV Maximum Average Forward Current (50Hz, TA = +50°C), IO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.0A Peak Forward Surge Current (50Hz, 0.01S), IFM(Surge) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50A Maximum Reverse Breakdown Voltage (IF = 1.0A), VF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18V Maximum DC Reverse Current (at Rated Blocking Voltage), IR TA = +25°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5μA TA = +80°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50μA Maximum Junction Temperature, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +120°C Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −40° to +120°C 3.032 (77.0) 2.520 (64.0) .165 (4.2) .772 (19.6) 1.425 (36.2) .244 (6.2) .791 (20.1) Rev. 11−11
