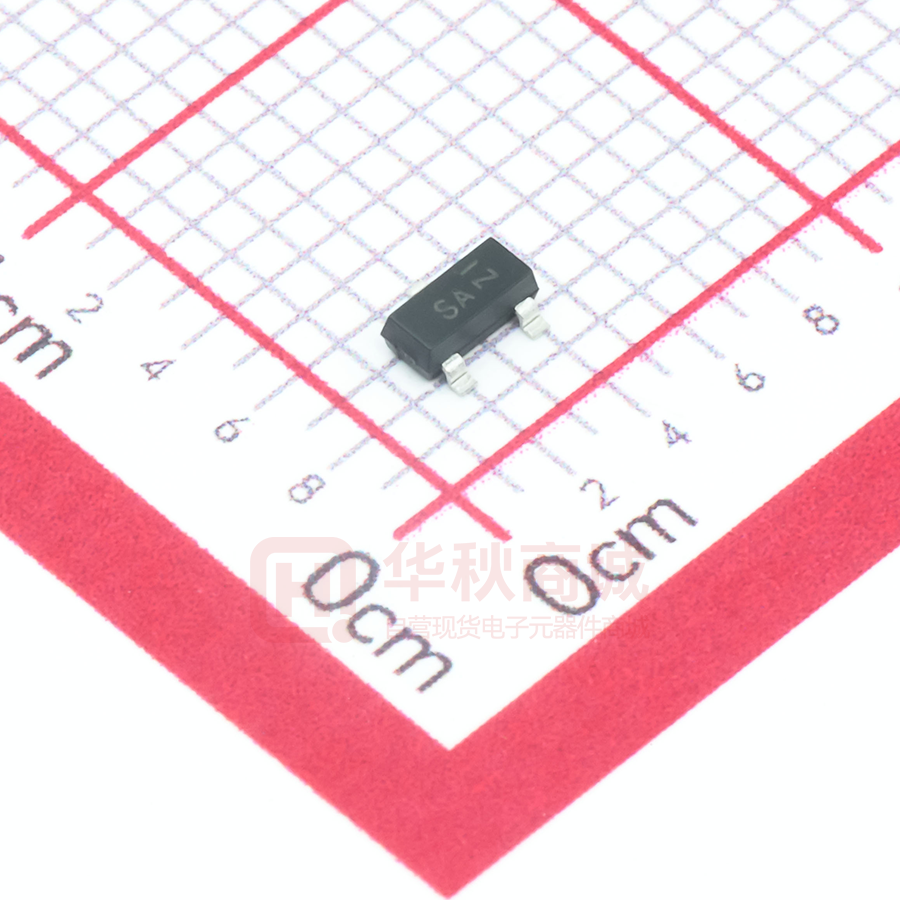

BSS123

BSS123 BSS123 N-Channel Logic Level Enhancement Mode Field Effect Transistor General Description Features These N-Channel enhancement mode field effect transistors are produced using ON Semiconductor’s proprietary, high cell density, DMOS technology. These products have been designed to minimize onstate resistance while provide rugged, reliable, and fast switching performance. These products are particularly suited for low voltage, low current applications such as small servo motor control, power MOSFET gate drivers, and other switching applications. • 0.17 A, 100 V. RDS(ON) = 6Ω @ VGS = 10 V RDS(ON) = 10Ω @ VGS = 4.5 V • High density cell design for extremely low RDS(ON) • Rugged and Reliable • Compact industry standard SOT-23 surface mount package D D S S G SOT-23 G Absolute Maximum Ratings Symbol TA=25oC unless otherwise noted Ratings Units VDSS Drain-Source Voltage Parameter 100 V VGSS Gate-Source Voltage ±20 V ID Drain Current 0.17 A – Continuous (Note 1) – Pulsed 0.68 Maximum Power Dissipation PD (Note 1) Derate Above 25°C TJ, TSTG Operating and Storage Junction Temperature Range Maximum Lead Temperature for Soldering Purposes, 1/16” from Case for 10 Seconds TL 0.36 2.8 W mW/°C −55 to +150 °C 300 Thermal Characteristics Thermal Resistance, Junction-to-Ambient RθJA (Note 1) 350 °C/W Package Marking and Ordering Information Device Marking Device Reel Size Tape width Quantity SA BSS123 7’’ 8mm 3000 units 2003 Semiconductor Components Industries, LLC. September-2017, Rev. 7 Publication Order Number: BSS123/D Symbol Parameter TA = 25°C unless otherwise noted Test Conditions Min Typ Max Units Off Characteristics ID = 250 µA BVDSS Drain–Source Breakdown Voltage VGS = 0 V, ∆BVDSS ∆TJ IDSS Breakdown Voltage Temperature Coefficient Zero Gate Voltage Drain Current ID = 250 µA,Referenced to 25°C VDS = 100 V, 100 V 97 VGS = 0 V VDS = 100 V,VGS = 0 V TJ = 125°C IGSS Gate–Body Leakage. On Characteristics mV/°C 1 µA 60 µA VDS = 20 V, VGS = 0 V 10 nA VGS = ±20 V, VDS = 0 V ±50 nA (Note 2) VGS(th) ∆VGS(th) ∆TJ RDS(on) Gate Threshold Voltage Gate Threshold Voltage Temperature Coefficient Static Drain–Source On–Resistance ID(on) gFS VDS = VGS, ID = 1 mA 0.8 ID = 1 mA,Referenced to 25°C On–State Drain Current VGS = 10 V, ID = 0.17 A VGS = 4.5 V, ID = 0.17 A VGS = 10 V, ID = 0.17 A, TJ = 125°C VGS = 10 V, VDS = 5 V 0.68 Forward Transconductance VDS = 10V, ID = 0.17 A 0.08 VDS = 25 V, f = 1.0 MHz V GS = 0 V, 1.7 –2.7 2 1.2 1.3 2.2 6 10 12 V mV/°C Ω A 0.8 S 73 pF 7 pF 3.4 pF VGS = 15 mV, f = 1.0 MHz 2.2 Ω VDD = 30 V, VGS = 10 V, 1.7 3.4 9 18 ns 31 ns Dynamic Characteristics Ciss Input Capacitance Coss Output Capacitance Crss Reverse Transfer Capacitance RG Gate Resistance Switching Characteristics (Note 2) td(on) Turn–On Delay Time tr Turn–On Rise Time td(off) Turn–Off Delay Time 17 tf Turn–Off Fall Time 2.4 5 ns Qg Total Gate Charge 1.8 2.5 nC Qgs Gate–Source Charge Qgd Gate–Drain Charge VDS = 30 V, VGS = 10 V ID = 0.28 A, RGEN = 6 Ω ID = 0.22 A, ns 0.2 nC 0.3 nC Drain–Source Diode Characteristics and Maximum Ratings IS Maximum Continuous Drain–Source Diode Forward Current VSD trr Drain–Source Diode Forward Voltage Diode Reverse Recovery Time Qrr Diode Reverse Recovery Charge VGS = 0 V, IS = 0.34 A(Note 2) IF = 0.17 A, diF/dt = 100 A/µs 0.8 0.17 A 1.3 V 11 nS 3 nC NOTE: 1. RθJA is the sum of the junction-to-case and case-to-ambient thermal resistance where the case thermal reference is defined as the solder mounting surface of the drain pins. RθJC is guaranteed by design while RθCA is determined by the user's board design. a) 350°C/W when mounted on a minimum pad.. Scale 1 : 1 on letter size paper 2. Pulse Test: Pulse Width ≤ 300 µs, Duty Cycle ≤ 2.0% www.onsemi.com 2 BSS123 Electrical Characteristics BSS123 Typical Characteristics 1 1.6 VGS = 10V RDS(ON), NORMALIZED DRAIN-SOURCE ON-RESISTANCE 3.5V 6.0V ID, DRAIN CURRENT (A) 0.8 4.5V 3.0V 2.5V 0.6 0.4 0.2 2.0V 1 2 3 4 1.4 VGS = 2.5V 1.3 1.2 3.0V 1.1 3.5V 0 5 0.2 Figure 1. On-Region Characteristics. 10V 0.4 0.6 0.8 1 Figure 2. On-Resistance Variation with Drain Current and Gate Voltage. 2.2 3.4 ID = 170mA VGS = 10V 2 RDS(ON), ON-RESISTANCE (OHM) RDS(ON), NORMALIZED DRAIN-SOURCE ON-RESISTANCE 6.0V ID, DRAIN CURRENT (A) VDS, DRAIN TO SOURCE VOLTAGE (V) 1.8 1.6 1.4 1.2 1 0.8 0.6 ID = 0.08A 3 TA = 125oC 2.6 2.2 1.8 1.4 TA = 25oC 1 0.4 -50 -25 0 25 50 75 100 125 0 150 2 o 4 6 8 10 VGS, GATE TO SOURCE VOLTAGE (V) TJ, JUNCTION TEMPERATURE ( C) Figure 3. On-Resistance Variation with Temperature. Figure 4. On-Resistance Variation with Gate-to-Source Voltage. 1 IS, REVERSE DRAIN CURRENT (A) 1 VDS = 10V ID, DRAIN CURRENT (A) 4.5V 1 0.9 0 0 1.5 0.8 0.6 0.4 TA = 125oC 25oC 0.2 -55oC VGS = 0V 0.1 TA = 125oC 25oC 0.01 -55oC 0.001 0.0001 0 1 1.5 2 2.5 0 3 Figure 5. Transfer Characteristics. 0.2 0.4 0.6 0.8 1 1.2 VSD, BODY DIODE FORWARD VOLTAGE (V) VGS, GATE TO SOURCE VOLTAGE (V) Figure 6. Body Diode Forward Voltage Variation with Source Current and Temperature. www.onsemi.com 3 BSS123 Typical Characteristics 100 ID = 0.17A f = 1 MHz VGS = 0 V VDS = 30V 50V CISS 80 8 70V CAPACITANCE (pF) VGS, GATE-SOURCE VOLTAGE (V) 10 6 4 60 40 20 2 COSS CRSS 0 0 0 0.4 0.8 1.2 1.6 0 2 20 Qg, GATE CHARGE (nC) Figure 7. Gate Charge Characteristics. RDS(ON) LIMIT ID, DRAIN CURRENT (A) 10ms 100ms 1s 10s DC 0.01 VGS = 10V SINGLE PULSE RθJA = 350oC/W TA = 25oC 0.001 1 10 100 100 1000 SINGLE PULSE RθJA = 350°C/W TA = 25°C 4 3 2 1 0 0.001 0.01 0.1 1 VDS, DRAIN-SOURCE VOLTAGE (V) 10 100 1000 t1, TIME (sec) Figure 9. Maximum Safe Operating Area. r(t), NORMALIZED EFFECTIVE TRANSIENT THERMAL RESISTANCE 80 5 100µs 1ms 0.1 60 Figure 8. Capacitance Characteristics. P(pk), PEAK TRANSIENT POWER (W) 1 40 VDS, DRAIN TO SOURCE VOLTAGE (V) Figure 10. Single Pulse Maximum Power Dissipation. 1 D = 0.5 RθJA(t) = r(t) * RθJA o 0.2 0.1 RθJA = 350 C/W 0.1 0.05 P(pk) 0.02 0.01 t1 t2 TJ - TA = P * RθJA(t) Duty Cycle, D = t1 / t2 0.01 SINGLE PULSE 0.001 0.0001 0.001 0.01 0.1 1 10 t1, TIME (sec) Figure 11. Transient Thermal Response Curve. Thermal characterization performed using the conditions described in Note 1a. Transient thermal response will change depending on the circuit board design. www.onsemi.com 4 100 1000 ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using ON Semiconductor products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by ON Semiconductor. “Typical” parameters which may be provided in ON Semiconductor data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. ON Semiconductor does not convey any license under its patent rights nor the rights of others. ON Semiconductor products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use ON Semiconductor products for any such unintended or unauthorized application, Buyer shall indemnify and hold ON Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that ON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Literature Distribution Center for ON Semiconductor 19521 E. 32nd Pkwy, Aurora, Colorado 80011 USA Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada Email: orderlit@onsemi.com ❖ © Semiconductor Components Industries, LLC N. American Technical Support: 800−282−9855 Toll Free USA/Canada Europe, Middle East and Africa Technical Support: Phone: 421 33 790 2910 Japan Customer Focus Center Phone: 81−3−5817−1050 ON Semiconductor Website: www.onsemi.com Order Literature: http://www.onsemi.com/orderlit For additional information, please contact your local Sales Representative www.onsemi.com
