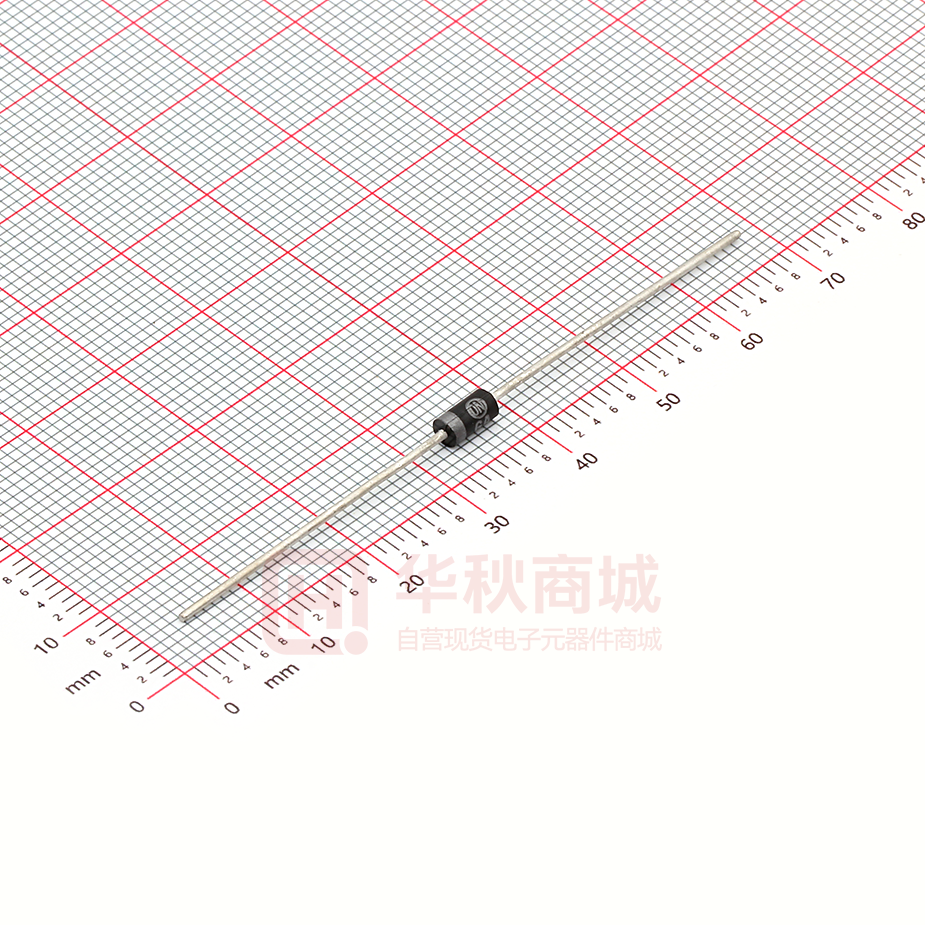

MUR260RLG

MUR260 Preferred Device SWITCHMODEt Power Rectifier These state−of−the−art devices are designed for use in switching power supplies, inverters and as free wheeling diodes. Features http://onsemi.com • • • • • • Ultrafast 50 Nanosecond Recovery Times 175°C Operating Junction Temperature Low Forward Voltage Low Leakage Current High Temperature Glass Passivated Junction These are Pb−Free Devices* ULTRAFAST RECTIFIER 2.0 AMPERES, 600 VOLTS Mechanical Characteristics: • Case: Epoxy, Molded • Weight: 0.4 Gram (Approximately) • Finish: All External Surfaces Corrosion Resistant and Terminal • • • Leads are Readily Solderable Lead Temperature for Soldering Purposes: 260°C Max. for 10 Seconds Shipped in Plastic Bags; 1,000 per Bag Available Tape and Reel; 5,000 per Reel, by Adding a “RL’’ Suffix to the Part Number PLASTIC AXIAL LEAD CASE 59 MAXIMUM RATINGS Rating Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forward Current (Note 1) (Square Wave Mounting Method #3 Per Note 3) Non-Repetitive Peak Surge Current (Surge applied at rated load conditions, halfwave, single phase, 60 Hz) Operating Junction Temperature and Storage Temperature Range Symbol VRRM VRWM VR IF(AV) IFSM Value 600 − 2.0 @ TA = 60°C 35 Unit V MARKING DIAGRAM A MUR260 YYWW G G A A A = Assembly Location Y = Year WW = Work Week G = Pb−Free Package (Note: Microdot may be in either location) TJ, Tstg −65 to +175 °C THERMAL CHARACTERISTICS Characteristics Maximum Thermal Resistance, Junction−to−Ambient Symbol RqJA Value See Note 3 Unit °C/W MUR260 ORDERING INFORMATION Device Package Axial Lead** Axial Lead** Axial Lead** Axial Lead** Shipping † 1000 Units/Bag 1000 Units/Bag 5000/Tape & Reel 5000/Tape & Reel MUR260G MUR260RL MUR260RLG Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability. 1. Pulse Test: Pulse Width = 300 ms, Duty Cycle ≤ 2.0%. *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. © Semiconductor Components Industries, LLC, 2006 †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. **This package is inherently Pb−Free. Preferred devices are recommended choices for future use and best overall value. 1 July, 2006 − Rev. 4 Publication Order Number: MUR260/D MUR260 ELECTRICAL CHARACTERISTICS Characteristics Maximum Instantaneous Forward Voltage (Note 2) (IF = 2.0 Amp, TJ = 150°C) (IF = 2.0 Amp, TJ = 25°C) Maximum Instantaneous Reverse Current (Note 2) (Rated dc Voltage, TJ = 150°C) (Rated dc Voltage, TJ = 25°C) Maximum Reverse Recovery Time (IF = 1.0 Amp, di/dt = 50 Amp/ms) (IF = 0.5 Amp, IR = 1.0 Amp, IREC = 0.25 A) Maximum Forward Recovery Time (IF = 1.0 A, di/dt = 100 A/ms, IREC to 1.0 V) 2. Pulse Test: Pulse Width = 300 ms, Duty Cycle ≤ 2.0%. Symbol vF 1.15 1.35 iR 150 5.0 trr 75 50 tfr 50 ns ns mA Value Unit V 10 10 I F , INSTANTANEOUS FORWARD CURRENT (AMPS) i , INSTANTANEOUS FORWARD CURRENT (AMPS) F 125°C 75°C 25°C VF @ 150°C 1.0 VF @ 150°C 1.0 125°C 75°C 25°C 0.1 0.1 0.5 0.7 0.9 1.1 1.3 1.5 1.7 1.9 2.1 VF, INSTANTANEOUS VOLTAGE (VOLTS) 0.5 0.7 0.9 1.1 1.3 1.5 1.7 1.9 2.1 VF, INSTANTANEOUS VOLTAGE (VOLTS) Figure 1. Maximum Forward Voltage Figure 2. Typical Forward Voltage http://onsemi.com 2 MUR260 100 TJ = 150°C IR, REVERSE CURRENT (m A) 125°C 10 75°C 100 IR @ 150°C 10 1.0 125°C IR, REVERSE CURRENT (m A) 75°C 1.0 0.1 0.01 25°C 25°C 0.1 0 20 40 60 80 100 120 140 160 180 200 VR, REVERSE VOLTAGE (VOLTS) 0.001 0 75 150 225 300 375 450 525 600 VR, REVERSE VOLTAGE (VOLTS) Figure 3. Maximum Reverse Current Figure 4. Typical Reverse Current IF(AV), AVERAGE FORWARD CURRENT (AMPS) 5.0 PF(AV), AVERAGE POWER DISSIPATION (WATTS) SQUARE WAVE 3.0 dc 4.0 3.0 2.0 2.0 dc 1.0 1.0 SQUARE WAVE 0 0 50 100 150 200 0 0 0.5 1.0 1.5 2.0 2.5 3.0 IF(AV), AVERAGE FORWARD CURRENT (AMPS) TA, AMBIENT TEMPERATURE (°C) Figure 5. Current Derating Figure 6. Power Dissipation 50 TJ = 25°C C, CAPACITANCE (pF) 30 20 10 7.0 5.0 0 10 20 30 40 50 VR, REVERSE VOLTAGE (VOLTS) Figure 7. Typical Capacitance http://onsemi.com 3 MUR260 NOTE 3 — AMBIENT MOUNTING DATA Data shown for thermal resistance, junction−to−ambient (RqJA) for the mountings shown is to be used as typical guideline values for preliminary engineering or in case the tie point temperature cannot be measured. TYPICAL VALUES FOR RqJA IN STILL AIR Mounting Method 1 2 RqJA 3 Lead 1/8 52 67 Length, L 1/4 1/2 65 72 80 87 50 Units °C/W °C/W °C/W MOUNTING METHOD 1 L L ÉÉÉÉÉÉÉÉÉÉÉ ÉÉÉÉÉÉÉÉÉÉÉ MOUNTING METHOD 2 L L ÉÉÉÉÉÉÉÉÉÉÉÉ ÉÉÉÉÉÉÉÉÉÉÉÉ Vector Pin Mounting MOUNTING METHOD 3 ÉÉ ÉÉ ÉÉ ÉÉ ÉÉ ÉÉ ÉÉ L = 3/8 ″ Board Ground Plane P.C. Board with 1−1/2 ″ X 1−1/2″ Copper Surface http://onsemi.com 4 MUR260 PACKAGE DIMENSIONS AXIAL LEAD CASE 59−10 ISSUE U B NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: INCH. 3. ALL RULES AND NOTES ASSOCIATED WITH JEDEC DO−41 OUTLINE SHALL APPLY 4. POLARITY DENOTED BY CATHODE BAND. 5. LEAD DIAMETER NOT CONTROLLED WITHIN F DIMENSION. INCHES MIN MAX 0.161 0.205 0.079 0.106 0.028 0.034 −−− 0.050 1.000 −−− MILLIMETERS MIN MAX 4.10 5.20 2.00 2.70 0.71 0.86 −−− 1.27 25.40 −−− K F D DIM A B D F K A POLARITY INDICATOR OPTIONAL AS NEEDED (SEE STYLES) F K STYLE 1: PIN 1. CATHODE (POLARITY BAND) 2. ANODE SWITCHMODE is a trademark of Semiconductor Components Industries, LLC. ON Semiconductor and are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC reserves the right to make changes without further notice to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. “Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where personal injury or death may occur. Should Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Literature Distribution Center for ON Semiconductor P.O. Box 5163, Denver, Colorado 80217 USA Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada Email: orderlit@onsemi.com N. American Technical Support: 800−282−9855 Toll Free USA/Canada Europe, Middle East and Africa Technical Support: Phone: 421 33 790 2910 Japan Customer Focus Center Phone: 81−3−5773−3850 ON Semiconductor Website: www.onsemi.com Order Literature: http://www.onsemi.com/orderlit For additional information, please contact your local Sales Representative http://onsemi.com 5 MUR260/D
