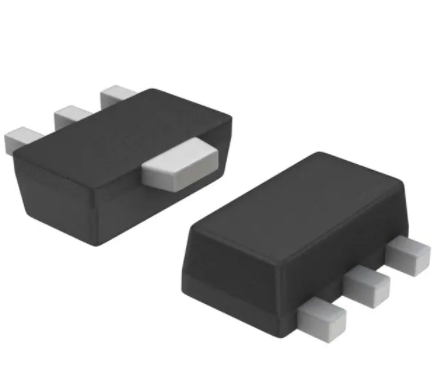

PCP1403-TD-H

Ordering number : ENA2294A PCP1403 N-Channel Power MOSFET 60V, 4.5A, 117mΩ, Single PCP http://onsemi.com Features • On-resistance RDS(on)1=92mΩ(typ.) • 4V drive • Protection Diode in • Halogen free compliance Specifications Absolute Maximum Ratings at Ta = 25°C Parameter Symbol Conditions Value Unit Drain to Source Voltage VDSS 60 V Gate to Source Voltage VGSS ±20 V Drain Current (DC) ID 4.5 A Drain Current (Pulse) IDP Power Dissipation PD Junction Temperature Tj Storage Temperature Tstg PW≤10μs, duty cycle≤1% 18 A Tc=25°C 3.5 W When mounted on ceramic substrate (600mm2×0.8mm) 1.3 W 150 °C - 55 to +150 °C Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. Thermal Resistance Ratings Parameter Symbol Junction to Case Steady State Junction to Ambient When mounted on ceramic substrate (600mm2×0.8mm) Value Unit RθJC 35.7 °C /W RθJA 96.1 °C /W Electrical Characteristics at Ta = 25°C Value Parameter Symbol Conditions Unit min typ Drain to Source Breakdown Voltage V(BR)DSS ID=1mA, VGS=0V Zero-Gate Voltage Drain Current IDSS VDS=60V, VGS=0V Gate to Source Leakage Current IGSS VGS=±16V, VDS=0V Gate Threshold Voltage VGS(th) VDS=10V, ID=1mA Forward Transconductance gFS VDS=10V, ID=2A 2.5 RDS(on)1 ID=2A, VGS=10V Static Drain to Source On-State Resistance RDS(on)2 ID=1A, VGS=4.5V RDS(on)3 ID=1A, VGS=4V Input Capacitance Ciss Output Capacitance Coss Reverse Transfer Capacitance Crss VDS=20V, f=1MHz max 60 V 1 μA ±10 μA 2.6 V 92 117 mΩ 120 168 mΩ 132 185 mΩ 1.2 S 310 pF 40 pF 25 pF Continued on next page. ORDERING INFORMATION See detailed ordering and shipping information on page 2 of this data sheet. Semiconductor Components Industries, LLC, 2014 May, 2014 52014 TKIM TC-00003103/22514 TKIM No. A2294-1/5 PCP1403 Continued from preceding page. Value Parameter Symbol Conditions Unit min typ max Turn-ON Delay Time td(on) 5.6 ns Rise Time tr 7.0 ns Turn-OFF Delay Time td(off) 26 ns Fall Time tf 14 ns Total Gate Charge Qg 6.7 nC Gate to Source Charge Qgs 1.0 nC Gate to Drain “Miller” Charge Qgd 1.6 nC Forward Diode Voltage VSD See specified Test Circuit VDS=30V, VGS=10V, ID=4.5A IS=4.5A, VGS=0V 0.88 1.2 V Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions. Package Shipping note PCP1403-TD-H PCP, SC-62 SOT-89, TO-243 1,000 pcs. / reel Pb-Free and Halogen Free Marking LOT No. Packing Type:TD Device QT Ordering & Package Information TD(PCP) Electrical Connection Switching Time Test Circuit 2 1 3 No.A2294-2/5 PCP1403 No.A2294-3/5 Allowable Power Dissipation, PD -- W PCP1403 No.A2294-4/5 PCP1403 Package Dimensions PCP1403-TD-H SOT-89/PCP-1 CASE 419AU ISSUE O Unit : mm 1: Gate 2: Drain 3: Source Recommended Soldering Footprint 0.9 2.2 3.7 45° 45° 1.0 1.8 1.5 1.0 1.5 3.0 Note on usage : Since the PCP1403 is a MOSFET product, please avoid using this device in the vicinity of highly charged objects. ON Semiconductor and the ON logo are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of SCILLC’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent-Marking.pdf. SCILLC reserves the right to make changes without further notice to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. “Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where personal injury or death may occur. Should Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PS No.A2294-5/5
