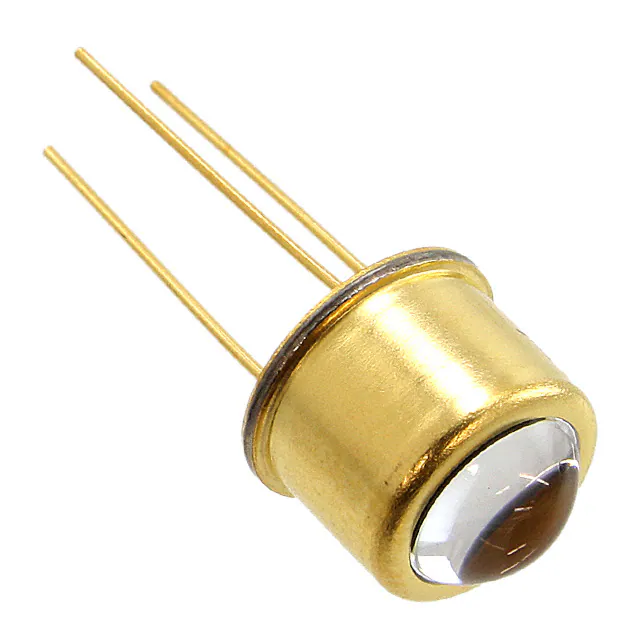

OD-110L

From Deep UV to Mid-IR OD-110L Super High-Power GaAlAs IR Emitters An ITW Company FEATURES • Ultra-High Optical Output • Four Wire Bonds on Die Corners • Very Narrow Optical Beam • Standard 3-Lead TO-39 Hermetic Package Chip Size: 0.026" x 0.026" Electro-Optical Characteristics at 25°C Parameters Test Conditions Min Typ Total Power Output, Po IF = 500 mA 55 110 mW Peak Emission Wavelength, λP IF = 50 mA 850 nm Spectral Bandwidth at 50%, Δλ IF = 50 mA 40 nm Half Intensity Beam Angle, θ IF = 50 mA 7 Deg Forward Voltage, VF IF = 500 mA 1.7 Reverse Breakdown Voltage, VR IR = 10 µA 5 Max Units 2 Volts 30 Volts Rise Time IFP = 50 mA 20 nsec Fall Time IFP = 50 mA 20 nsec Absolute Maximum Ratings at 25°C Case Parameters Units 1 Power Dissipation 1000 mW Continuous Forward Current 500 mA 2 Peak Forward Current (10 µs, 200 Hz) Reverse Voltage 5V Lead Soldering Temperature (1/16" from case for 10 sec) 1 2 1.5 A 260°C Derate per thermal derating curve above 25°C. Derate linearly above 25°C. Thermal Parameters Parameters Units Storage and Operating Temperature Range Maximum Junction Temperature 1 2 -40°C to 100°C 100°C Thermal Resistance, RTHJA 1 150°C/W Typical Thermal Resistance, RTHJA 2 60°C/W Typical Heat transfer minimized by measuring in still air with minimum heat conducting through leads. Air circulating at a rapid rate to keep case temperature at 25°C. Revision July 16, 2018 Page 1 of 4 From Deep UV to Mid-IR An ITW Company Revision July 16, 2018 Super High-Power GaAlAs IR Emitters OD-110L Page 2 of 4 From Deep UV to Mid-IR An ITW Company Revision July 16, 2018 Super High-Power GaAlAs IR Emitters OD-110L Page 3 of 4 From Deep UV to Mid-IR An ITW Company Super High-Power GaAlAs IR Emitters OD-110L Package Information All surfaces are gold plated. Dimensions are nominal values in inches unless otherwise specified. Two Anode pins must be externally connected together. Specifications are subject to change without prior notice. 1260 Calle Suerte, Camarillo, California 93012 Phone: +1 805.499.0335 | Fax: +1 805.499.8108 | sales@optodiode.com | www.optodiode.com Revision July 16, 2018 Page 4 of 4
