R1RW0416D Series
4M High Speed SRAM (256-kword × 16-bit)
REJ03C0107-0200
Rev. 2.00
Dec.12.2008
Description

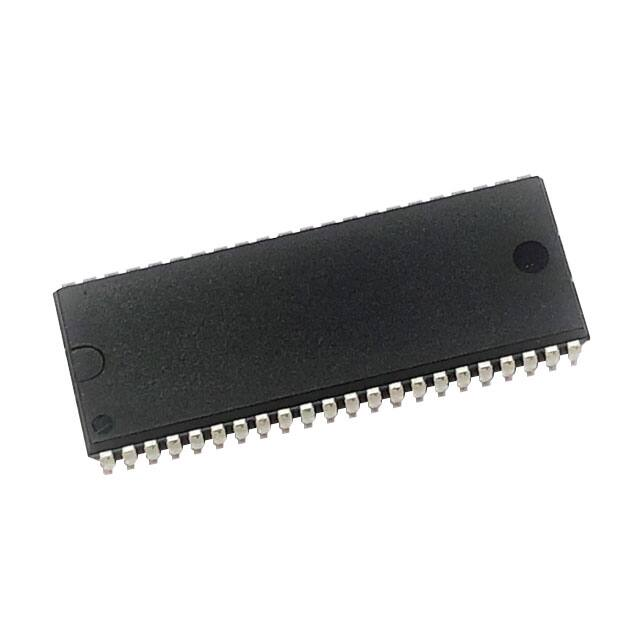

The R1RW0416D is a 4-Mbit high speed static RAM organized 256-kword × 16-bit. It has realized high
speed access time by employing CMOS process (6-transistor memory cell) and high speed circuit
designing technology. It is most appropriate for the application which requires high speed, high density
memory and wide bit width configuration, such as cache and buffer memory in system. Especially, LVersion and S-Version are low power consumption and it is the best for the battery backup system.
The
package prepares 400-mil 44-pin SOJ and 400-mil 44-pin plastic TSOPII for high density surface
mounting.
Features
• Single 3.3 V supply: 3.3 V ± 0.3 V
• Access time: 10 ns / 12 ns (max)
• Completely static memory
No clock or timing strobe required
• Equal access and cycle times
• Directly TTL compatible
All inputs and outputs
• Operating current: 145 / 130mA (max)
• TTL standby current: 40 mA (max)
• CMOS standby current : 5 mA (max)
:
:
0.8 mA (max) (L-version)
0.5 mA (max) (S-version)
• Data retention current :
0.4 mA (max) (L-version)
:0.2 mA (max) (S-version)
• Data retention voltage: 2.0 V (min) (L-version , S-version)
• Center VCC and VSS type pin out
REJ03C0107-0200 Rev.2.00,
Dec.12.2008,
page 1 of 15
R1RW0416D Series
Ordering Information
Type No.
Access time
R1RW0416DGE-0PR
10 ns
R1RW0416DGE-2PR
12 ns
R1RW0416DGE-2LR
12 ns
R1RW0416DGE-2SR
12 ns
R1RW0416DSB-0PR
10 ns
R1RW0416DSB-2PR
12 ns
R1RW0416DSB-2LR
12 ns
R1RW0416DSB-2SR
12 ns
Package
400-mil 44-pin plastic SOJ (44P0K)
400-mil 44-pin plastic TSOPII (44P3W-H)
Pin Arrangement
44-pin SOJ
A0
A1
A2
A3
A4
CS#
I/O1
I/O2
I/O3
I/O4
VCC
VSS
I/O5
I/O6
I/O7
I/O8
WE#
A5
A6
A7
A8
A9
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
(Top View)
REJ03C0107-0200
Dec.12.2008,
Rev.2.00,
page 2 of 15
44-pin TSOP
A17
A16
A15
OE#
UB#
LB#
I/O16
I/O15
I/O14
I/O13
VSS
VCC
I/O12
I/O11
I/O10
I/O9
NC
A14
A13
A12
A11
A10
A0
A1
A2
A3
A4
CS#
I/O1
I/O2
I/O3
I/O4
VCC
VSS
I/O5
I/O6
I/O7
I/O8
WE#
A5
A6
A7
A8
A9
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
(Top View)
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
A17
A16
A15
OE#
UB#
LB#
I/O16
I/O15
I/O14
I/O13
VSS
VCC
I/O12
I/O11
I/O10
I/O9
NC
A14
A13
A12
A11
A10
R1RW0416D Series
Pin Description
Pin name
Function
A0 to A17
Address input
I/O1 to I/O16
Data input/output
CS#
Chip select
OE#
Output enable
WE#
Write enable
UB#
Upper byte select
LB#
Lower byte select
VCC
Power supply
VSS
Ground
NC
No connection
REJ03C0107-0200
Dec.12.2008,
Rev.2.00,
page 3 of 15
R1RW0416D Series
Block Diagram
(LSB)
A14
A13
A12
A5
A6
A7
A11
A10
A3
(MSB) A1
VCC
Row
decoder
Memory matrix
1024 rows × 32 columns ×
8 blocks × 16 bit
(4,194,304 bits)
VSS
CS
I/O1
..
.
I/O8
Column I/O
Input
data
control
I/O9
..
.
I/O16
UB#
OE#
CS
Dec.12.2008,
CS
(LSB) A8 A9 A17 A15 A16 A0 A2 A4 (MSB)
WE#
CS#
LB#
REJ03C0107-0200
Column decoder
Rev.2.00,
page 4 of 15
R1RW0416D Series
Operation Table
CS# OE# WE# LB# UB# Mode
VCC current
I/O1−I/O8
I/O9−I/O16
Ref. cycle
H
×
×
×
×
Standby
ISB, ISB1
High-Z
High-Z
L
H
H
×
×
Output disable
ICC
High-Z
High-Z
L
L
H
L
L
Read
ICC
Output
Output
Read cycle
L
L
H
L
H
Lower byte read ICC
Output
High-Z
Read cycle
L
L
H
H
L
Upper byte read ICC
High-Z
Output
Read cycle
L
L
H
H
H
ICC
High-Z
High-Z
L
×
L
L
L
Write
ICC
Input
Input
Write cycle
L
×
L
L
H
Lower byte write ICC
Input
High-Z
Write cycle
L
×
L
H
L
Upper byte write ICC
High-Z
Input
Write cycle
L
×
L
H
H
High-Z
High-Z
Note: H:
VIH, L: VIL, ×:
ICC
VIH or VIL
Absolute Maximum Ratings
Parameter
Symbol
Value
Supply voltage relative to VSS
VCC
−0.5 to +4.6
1
Unit
V
2
Voltage on any pin relative to VSS
VT
−0.5* to VCC + 0.5*
Power dissipation
PT
1.0
W
Operating temperature
Topr
0 to +70
°C
Storage temperature
Tstg
−55 to +125
°C
Storage temperature under bias
Tbias
−10 to +85
°C
Notes: 1. VT (min) = −2.0 V for pulse width (under shoot) ≤ 6 ns.
2. VT (max) = VCC + 2.0 V for pulse width (over shoot) ≤ 6 ns.
REJ03C0107-0200
Dec.12.2008,
Rev.2.00,
page 5 of 15
V
R1RW0416D Series
Recommended DC Operating Conditions
(Ta = 0 to +70°C)
Parameter
Symbol
Supply voltage
Typ
Max
Unit
3.0
3.3
3.6
V
4
0
0
0
VCC*
VSS*
Input voltage
VIH
VIL
Notes: 1.
2.
3.
4.
Min
3
2.0
−0.5*
1
VCC + 0.5*
V
0.8
V
VIL (min) = −2.0 V for pulse width (under shoot) ≤ 6 ns.
VIH (max) = VCC + 2.0 V for pulse width (over shoot) ≤ 6 ns.
The supply voltage with all VCC pins must be on the same level.
The supply voltage with all VSS pins must be on the same level.
REJ03C0107-0200
Dec.12.2008,
Rev.2.00,
page 6 of 15
V
2
R1RW0416D Series
DC Characteristics
(Ta = 0 to +70°C, VCC = 3.3 V ± 0.3 V, VSS = 0 V)
Parameter
Symbol
Min
Max
Unit
Test conditions
Input leakage current
|ILI|
2
µA
VIN = VSS to VCC
Output leakage current
|ILO|
2
µA
VIN = VSS to VCC
10 ns cycle
ICC
145
mA
Min cycle
CS# = VIL, IOUT = 0 mA
Other inputs = VIH/VIL
12 ns cycle
ICC
130
mA
ISB
40
mA
Min cycle, CS# = VIH,
Other inputs = VIH/VIL
ISB1
5
mA
f = 0 MHz
VCC ≥ CS# ≥ VCC − 0.2 V,
(1) 0 V ≤ VIN ≤ 0.2 V or
(2) VCC ≥ VIN ≥ VCC − 0.2
V
Operating power supply
current
Standby power supply current
1
*
2
0.8*
1
mA
0.5*
2
mA
VOL
0.4
V
IOL = 8 mA
VOH
2.4
V
IOH = −4 mA
Output voltage
Note:
*
1. This characteristics is guaranteed only for L-version.
2. This characteristics is guaranteed only for S-version.
Capacitance
(Ta = +25°C, f = 1.0 MHz)
Parameter
1
Input capacitance*
Input/output capacitance*
Note:
1
Symbol
Min
Max
Unit
Test conditions
CIN
6
pF
VIN = 0 V
CI/O
8
pF
VI/O = 0 V
1. This parameter is sampled and not 100% tested.
REJ03C0107-0200
Dec.12.2008,
Rev.2.00,
page 7 of 15
R1RW0416D Series
AC Characteristics
(Ta = 0 to +70°C, VCC = 3.3 V ± 0.3 V, unless otherwise noted.)
Test Conditions
•
•
•
•
Input pulse levels:
3.0 V/0.0 V
Input rise and fall time: 3 ns
Input and output timing reference levels: 1.5 V
Output load: See figures (Including scope and jig)
3.3 V
1.5 V
RL = 50 Ω
DOUT Zo = 50 Ω
319 Ω
DOUT
353 Ω
30 pF
5 pF
Output load (B)
(for tCLZ, tOLZ, tBLZ, tCHZ, tOHZ,
tBHZ, tWHZ, and tOW)
Output load (A)
Read Cycle
R1RW0416D
10ns Version
12ns Version
Parameter
Symbol
Min
Max
Min
Max
Unit
Read cycle time
tRC
10
12
ns
Address access time
tAA
10
12
ns
Chip select access time
tACS
10
12
ns
Output enable to output valid
tOE
5
6
ns
Byte select to output valid
tBA
5
6
ns
Output hold from address change
tOH
3
3
ns
Chip select to output in low-Z
tCLZ
3
3
ns
1
Output enable to output in low-Z
tOLZ
0
0
ns
1
Byte select to output in low-Z
tBLZ
0
0
ns
1
Chip deselect to output in high-Z
tCHZ
5
6
ns
1
Output disable to output in high-Z
tOHZ
5
6
ns
1
Byte deselect to output in high-Z
tBHZ
5
6
ns
1
REJ03C0107-0200
Dec.12.2008,
Rev.2.00,
page 8 of 15
Notes
R1RW0416D Series
Write Cycle
R1RW0416D
10ns Version
12ns Version
Parameter
Symbol
Min
Max
Min
Max
Unit
Write cycle time
tWC
10
12
ns
Notes
Address valid to end of write
tAW
7
8
ns
Chip select to end of write
tCW
7
8
ns
8
Write pulse width
tWP
7
8
ns
7
Byte select to end of write
tBW
7
8
ns
Address setup time
tAS
0
0
ns
5
Write recovery time
tWR
0
0
ns
6
Data to write time overlap
tDW
5
6
ns
Data hold from write time
tDH
0
0
ns
Write disable to output in low-Z
tOW
3
3
ns
1
Output disable to output in high-Z
tOHZ
5
6
ns
1
Write enable to output in high-Z
tWHZ
5
6
ns
1
Notes: 1. Transition is measured ±200 mV from steady voltage with output load (B). This parameter is
sampled and not 100% tested.
2. If the CS# or LB# or UB# low transition occurs simultaneously with the WE# low transition or after
the WE# transition, output remains a high impedance state.
3. WE# and/or CS# must be high during address transition time.
4. If CS#, OE#, LB# and UB# are low during this period, I/O pins are in the output state. Then the
data input signals of opposite phase to the outputs must not be applied to them.
5. tAS is measured from the latest address transition to the latest of CS#, WE#, LB# or UB# going
low.
6. tWR is measured from the earliest of CS#, WE#, LB# or UB# going high to the first address
transition.
7. A write occurs during the overlap of a low CS#, a low WE# and a low LB# or a low UB# (tWP). A
write begins at the latest transition among CS# going low, WE# going low and LB# going low or
UB# going low. A write ends at the earliest transition among CS# going high, WE# going high
and LB# going high or UB# going high.
8. tCW is measured from the later of CS# going low to the end of write.
REJ03C0107-0200
Dec.12.2008,
Rev.2.00,
page 9 of 15
R1RW0416D Series
Timing Waveforms
Read Timing Waveform (1) (WE# = VIH)
t RC
Address
Valid address
tAA
tACS
CS#
tOE
tCHZ *1
tBA
tOHZ *1
tBLZ *1
tBHZ *1
OE#
LB#, UB#
tOLZ *1
tOH
tCLZ *1
High impedance *4
DOUT
REJ03C0107-0200
Dec.12.2008,
Rev.2.00,
page 10 of 15
Valid data
*4
R1RW0416D Series
Read Timing Waveform (2) (WE# = VIH, LB# = VIL, UB# = VIL)
tRC
Address
Valid address
tOH
tAA
tACS
tCHZ*1
CS#
tOE
tOHZ*1
OE#
tOLZ*1
tCLZ *1
High impedance *4
DOUT
REJ03C0107-0200
Dec.12.2008,
Rev.2.00,
page 11 of 15
Valid data
*4
R1RW0416D Series
Write Timing Waveform (1) (WE# Controlled)
tWC
Valid address
Address
tWR
tAW
tAS
tWP
WE#*3
tCW
CS#*3
OE#
tBW
LB#, UB#
tOLZ
tWHZ
tOW
tOHZ
High impedance
DOUT
*2
DIN
tDH
Valid data
REJ03C0107-0200
Dec.12.2008,
tDW
Rev.2.00,
page 12 of 15
R1RW0416D Series
Write Timing Waveform (2) (CS# Controlled)
tWC
Valid address
Address
tWR
tAW
tAS
tWP
WE# *3
tCW
CS# *3
OE#
tBW
LB#, UB#
tOLZ
tWHZ
tOW
tOHZ
High impedance *
DOUT
*2
tDH
Valid data
DIN
REJ03C0107-0200
Dec.12.2008,
tDW
Rev.2.00,
page 13 of 15
4
R1RW0416D Series
Write Timing Waveform (3) (LB#, UB# Controlled, OE# = VIH)
tWC
Address
Valid address
tAW
tWR
tWP
WE#*3
tCW
CS#*3
tAS
tBW
UB# (LB#)
tBW
LB# (UB#)
tDW
DIN-UB
(DIN-LB)
tDH
Valid data
tDW
DIN-LB
(DIN-UB)
Valid data
DOUT
High impedance
REJ03C0107-0200
Dec.12.2008,
tDH
Rev.2.00,
page 14 of 15
R1RW0416D Series
Low VCC Data Retention Characteristics
(Ta = 0 to +70°C)
This characteristics is guaranteed only for L-version and S-version.
Parameter
Symbol
Min
Max
Unit
Test conditions
VCC for data retention
VDR
2.0
V
VCC ≥ CS# ≥ VCC − 0.2 V,
(1) 0 V ≤ VIN ≤ 0.2 V or
(2) VCC ≥ VIN ≥ VCC − 0.2 V
Data retention current L-Version
ICCDR
400
µA
VCC = 3 V
VCC ≥ CS# ≥ VCC − 0.2 V,
(1) 0 V ≤ VIN ≤ 0.2 V or
(2) VCC ≥ VIN ≥ VCC − 0.2 V
See retention waveform
S-Version
200
Chip deselect to data retention time
tCDR
0
ns
Operation recovery time
tR
5
ms
Low VCC Data Retention Timing Waveform
t CDR
Data retention mode
V CC
3.0 V
V DR
2.0 V
VCC ≥ CS# ≥ VCC – 0.2 V
CS#
0V
REJ03C0107-0200
Dec.12.2008,
Rev.2.00,
page 15 of 15
tR
Revision History
Rev.
Date
R1RW0416D Series Data Sheet
Contents of Modification
Page
Description
0.01
Sep. 30, 2003
Initial issue
1.00
Mar.12.2004
Deletion of Preliminary
2.00
Dec.12.2008
Addition of access grade 10ns version and S-version.
P2
The product lineup :R1RW0416DSB-0PR/DGE-0PR is added.
P2
The product lineup :R1RW0416DSB-2SR/DGE-2SR is added.
P7
Operating power supply current of 10ns cycle version is described to the
DC characteristic.
ISB1 of S-Version is described to the DC characteristic.
P8/P9 The timing standard of 10ns version is described at the read cycle
The timing standard of 10ns version is described at the write cycle
P15
ICCDR of S-version is described to the low Vcc data retention characteristic.
Sales Strategic Planning Div.
Nippon Bldg., 2-6-2, Ohte-machi, Chiyoda-ku, Tokyo 100-0004, Japan
Notes:
1. This document is provided for reference purposes only so that Renesas customers may select the appropriate Renesas products for their use. Renesas neither makes
warranties or representations with respect to the accuracy or completeness of the information contained in this document nor grants any license to any intellectual property
rights or any other rights of Renesas or any third party with respect to the information in this document.
2. Renesas shall have no liability for damages or infringement of any intellectual property or other rights arising out of the use of any information in this document, including,
but not limited to, product data, diagrams, charts, programs, algorithms, and application circuit examples.
3. You should not use the products or the technology described in this document for the purpose of military applications such as the development of weapons of mass
destruction or for the purpose of any other military use. When exporting the products or technology described herein, you should follow the applicable export control laws
and regulations, and procedures required by such laws and regulations.
4. All information included in this document such as product data, diagrams, charts, programs, algorithms, and application circuit examples, is current as of the date this
document is issued. Such information, however, is subject to change without any prior notice. Before purchasing or using any Renesas products listed in this document,
please confirm the latest product information with a Renesas sales office. Also, please pay regular and careful attention to additional and different information to be
disclosed by Renesas such as that disclosed through our website. (http://www.renesas.com )
5. Renesas has used reasonable care in compiling the information included in this document, but Renesas assumes no liability whatsoever for any damages incurred as a
result of errors or omissions in the information included in this document.
6. When using or otherwise relying on the information in this document, you should evaluate the information in light of the total system before deciding about the applicability
of such information to the intended application. Renesas makes no representations, warranties or guaranties regarding the suitability of its products for any particular
application and specifically disclaims any liability arising out of the application and use of the information in this document or Renesas products.
7. With the exception of products specified by Renesas as suitable for automobile applications, Renesas products are not designed, manufactured or tested for applications
or otherwise in systems the failure or malfunction of which may cause a direct threat to human life or create a risk of human injury or which require especially high quality
and reliability such as safety systems, or equipment or systems for transportation and traffic, healthcare, combustion control, aerospace and aeronautics, nuclear power, or
undersea communication transmission. If you are considering the use of our products for such purposes, please contact a Renesas sales office beforehand. Renesas shall
have no liability for damages arising out of the uses set forth above.
8. Notwithstanding the preceding paragraph, you should not use Renesas products for the purposes listed below:
(1) artificial life support devices or systems
(2) surgical implantations
(3) healthcare intervention (e.g., excision, administration of medication, etc.)
(4) any other purposes that pose a direct threat to human life
Renesas shall have no liability for damages arising out of the uses set forth in the above and purchasers who elect to use Renesas products in any of the foregoing
applications shall indemnify and hold harmless Renesas Technology Corp., its affiliated companies and their officers, directors, and employees against any and all
damages arising out of such applications.
9. You should use the products described herein within the range specified by Renesas, especially with respect to the maximum rating, operating supply voltage range,
movement power voltage range, heat radiation characteristics, installation and other product characteristics. Renesas shall have no liability for malfunctions or damages
arising out of the use of Renesas products beyond such specified ranges.
10. Although Renesas endeavors to improve the quality and reliability of its products, IC products have specific characteristics such as the occurrence of failure at a certain
rate and malfunctions under certain use conditions. Please be sure to implement safety measures to guard against the possibility of physical injury, and injury or damage
caused by fire in the event of the failure of a Renesas product, such as safety design for hardware and software including but not limited to redundancy, fire control and
malfunction prevention, appropriate treatment for aging degradation or any other applicable measures. Among others, since the evaluation of microcomputer software
alone is very difficult, please evaluate the safety of the final products or system manufactured by you.
11. In case Renesas products listed in this document are detached from the products to which the Renesas products are attached or affixed, the risk of accident such as
swallowing by infants and small children is very high. You should implement safety measures so that Renesas products may not be easily detached from your products.
Renesas shall have no liability for damages arising out of such detachment.
12. This document may not be reproduced or duplicated, in any form, in whole or in part, without prior written approval from Renesas.
13. Please contact a Renesas sales office if you have any questions regarding the information contained in this document, Renesas semiconductor products, or if you have
any other inquiries.
http://www.renesas.com
RENESAS SALES OFFICES
Refer to "http://www.renesas.com/en/network" for the latest and detailed information.
Renesas Technology America, Inc.
450 Holger Way, San Jose, CA 95134-1368, U.S.A
Tel: (408) 382-7500, Fax: (408) 382-7501
Renesas Technology Europe Limited
Dukes Meadow, Millboard Road, Bourne End, Buckinghamshire, SL8 5FH, U.K.
Tel: (1628) 585-100, Fax: (1628) 585-900
Renesas Technology (Shanghai) Co., Ltd.
Unit 204, 205, AZIACenter, No.1233 Lujiazui Ring Rd, Pudong District, Shanghai, China 200120
Tel: (21) 5877-1818, Fax: (21) 6887-7858/7898
Renesas Technology Hong Kong Ltd.
7th Floor, North Tower, World Finance Centre, Harbour City, Canton Road, Tsimshatsui, Kowloon, Hong Kong
Tel: 2265-6688, Fax: 2377-3473
Renesas Technology Taiwan Co., Ltd.
10th Floor, No.99, Fushing North Road, Taipei, Taiwan
Tel: (2) 2715-2888, Fax: (2) 3518-3399
Renesas Technology Singapore Pte. Ltd.
1 Harbour Front Avenue, #06-10, Keppel Bay Tower, Singapore 098632
Tel: 6213-0200, Fax: 6278-8001
Renesas Technology Korea Co., Ltd.
Kukje Center Bldg. 18th Fl., 191, 2-ka, Hangang-ro, Yongsan-ku, Seoul 140-702, Korea
Tel: (2) 796-3115, Fax: (2) 796-2145
Renesas Technology Malaysia Sdn. Bhd
Unit 906, Block B, Menara Amcorp, Amcorp Trade Centre, No.18, Jln Persiaran Barat, 46050 Petaling Jaya, Selangor Darul Ehsan, Malaysia
Tel: 7955-9390, Fax: 7955-9510
© 2008. Renesas Technology Corp., All rights reserved. Printed in Japan.
Colophon .7.2
工商网监
湘ICP备2023018690号
