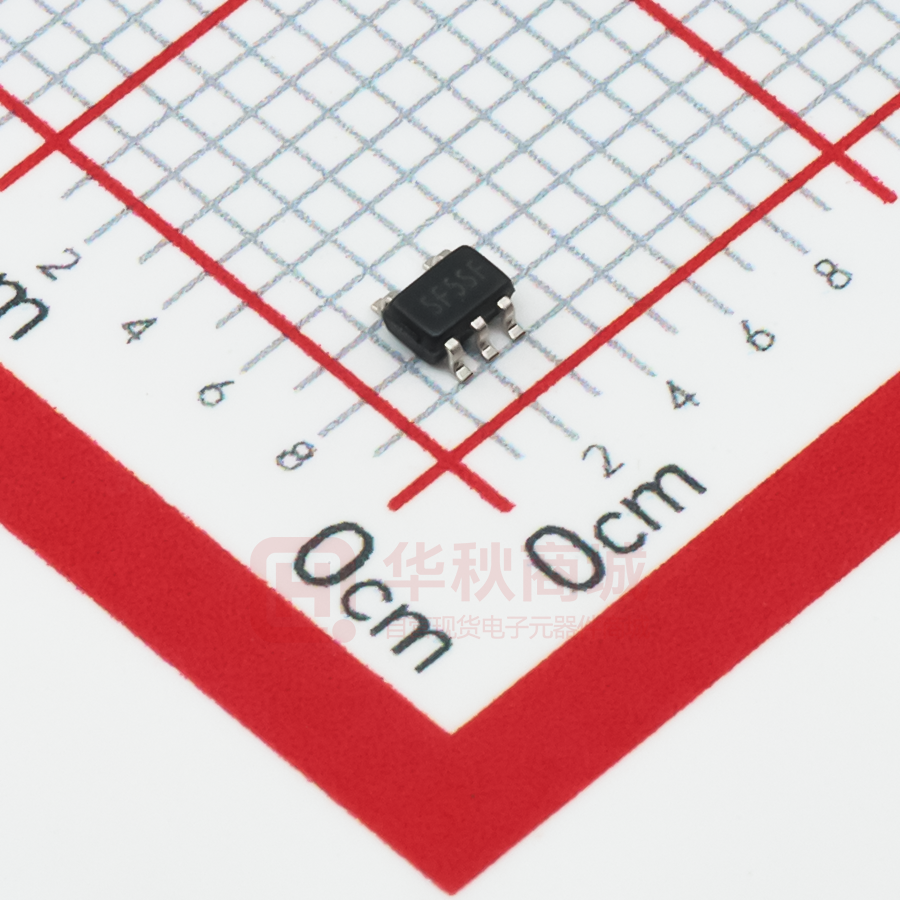

SGM7SZ08YC5G/TR

SGM7SZ08 Small Logic Two-Input AND Gate GENERAL DESCRIPTION FEATURES The SGM7SZ08 is a single two-input AND with ● Wide Supply Voltage Range: 1.65V to 5.5V advanced CMOS technology. The supply voltage pin of ● Ultra-High Speed: tPD of 3.6ns (TYP) into 50pF at this device accepts any voltage from 1.65V to 5.5V. VCC = 3.3V The inputs can tolerate a maximum of 6V, regardless of ● Support LCX Performance at VCC = 3.3V the supply voltage range. When VCC is at 0V, the inputs ● High Output Drive: ±24mA at VCC = 3V and output are in the high-impedance state. ● Inputs Over-Voltage Tolerance Makes 5V to 3V This device can achieve ultra-high speed operation with high output drive, while the low static power dissipation over the wide supply voltage operating range is maintained. Translation Available ● Power Down High-Impedance Inputs/Output ● Available in Green SOT-23-5, SC70-5, XTDFN-1×1-6L and UTDFN-1.45×1-6L Packages The SGM7SZ08 is available in Green SOT-23-5, SC70-5, XTDFN-1×1-6L and UTDFN-1.45×1-6L packages. It operates over an ambient temperature range of -40℃ to +85℃. LOGIC SYMBOL A FUNCTION TABLE Y B INPUTS OUTPUT A B Y L L L L H L H L L H H H Y = AB H = HIGH Logic Level L = LOW Logic Level SG Micro Corp www.sg-micro.com SEPTEMBER 2021 – REV. A. 2 SGM7SZ08 Small Logic Two-Input AND Gate PACKAGE/ORDERING INFORMATION MODEL SGM7SZ08 PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE ORDERING NUMBER PACKAGE MARKING PACKING OPTION SC70-5 -40℃ to +85℃ SGM7SZ08YC5G/TR SF5XX Tape and Reel, 3000 SOT-23-5 -40℃ to +85℃ SGM7SZ08YN5G/TR SF6XX Tape and Reel, 3000 XTDFN-1×1-6L -40℃ to +85℃ SGM7SZ08YXDM6G/TR G2 Tape and Reel, 10000 UTDFN-1.45×1-6L -40℃ to +85℃ SGM7SZ08YUDL6G/TR G3X Tape and Reel, 5000 MARKING INFORMATION NOTE: X = Date Code. XX = Date Code. SC70-5/SOT-23-5 UTDFN-1.45×1-6L YY X YYY X X Date Code - Month Date Code - Year Serial Number Date Code - Year Serial Number Green (RoHS & HSF): SG Micro Corp defines "Green" to mean Pb-Free (RoHS compatible) and free of halogen substances. If you have additional comments or questions, please contact your SGMICRO representative directly. ABSOLUTE MAXIMUM RATINGS Supply Voltage, VCC .......................................... -0.5V to 6.0V DC Input Voltage, VIN........................................ -0.5V to 6.0V DC Output Voltage, VOUT .................................. -0.5V to 6.0V DC Input Diode Current, IIK (VIN < -0.5V) ................................................................. -50mA DC Output Diode Current, IOK (VOUT < -0.5V) .............................................................. -50mA DC Output Current, IOUT .............................................. ±50mA DC VCC or Ground Current, ICC or IGND ........................ ±50mA Junction Temperature .................................................+150℃ Storage Temperature Range ....................... -65℃ to +150℃ Lead Temperature (Soldering, 10s) ............................+260℃ ESD Susceptibility HBM ............................................................................. 7000V MM ................................................................................. 400V RECOMMENDED OPERATING CONDITIONS Operating Temperature Range ....................... -40℃ to +85℃ OVERSTRESS CAUTION Stresses beyond those listed in Absolute Maximum Ratings may cause permanent damage to the device. Exposure to absolute maximum rating conditions for extended periods may affect reliability. Functional operation of the device at any conditions beyond those indicated in the Recommended Operating Conditions section is not implied. ESD SENSITIVITY CAUTION This integrated circuit can be damaged if ESD protections are not considered carefully. SGMICRO recommends that all integrated circuits be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage. ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because even small parametric changes could cause the device not to meet the published specifications. DISCLAIMER SG Micro Corp reserves the right to make any change in circuit design, or specifications without prior notice. SG Micro Corp www.sg-micro.com SEPTEMBER 2021 2 SGM7SZ08 Small Logic Two-Input AND Gate PIN CONFIGURATIONS (TOP VIEW) A 1 6 VCC B 2 5 NC GND 3 4 Y XTDFN-1×1-6L (TOP VIEW) 1 B 2 GND 3 SYYxx A (TOP VIEW) 5 4 VCC Y SOT-23-5/SC70-5 A 1 6 VCC B 2 5 NC GND 3 4 Y UTDFN-1.45×1-6L PIN DESCRIPTION PIN NAME FUNCTION SOT-23-5/ SC70-5 UTDFN-1.45×1-6L/ XTDFN-1×1-6L 1 1 A Input. Unused input must be held high or low. It may not float. 2 2 B Input. Unused input must be held high or low. It may not float. 3 3 GND Ground. 4 4 Y Output. 5 6 VCC Power Supply. ― 5 NC No Connection. SG Micro Corp www.sg-micro.com SEPTEMBER 2021 3 SGM7SZ08 Small Logic Two-Input AND Gate ELECTRICAL CHARACTERISTICS (TA = -40℃ to +85℃, typical values are at TA = +25℃, unless otherwise noted.) PARAMETER SYMBOL CONDITIONS VCC (V) MIN TYP MAX UNITS General Power Supply Range Supply Voltage Data Retention Input Voltage Output Voltage Input Rise and Fall Times 1.65 5.50 1.50 5.50 VIN 0.00 5.50 V VOUT 0.00 VCC V 1.8, 2.5 ± 0.2 0 20 3.3 ± 0.3 0 10 5.0 ± 0.5 0 5 0.75VCC VCC tr, tf V ns/V DC Performance HIGH Level Input Voltage VIH 1.65 to 5.5 LOW Level Input Voltage VIL 1.65 to 5.5 VOH VIN = VIH 1.62 1.65 1.80 1.77 1.80 2.30 2.27 2.30 3.00 2.97 3.00 4.50 4.47 4.50 IOH = -4mA 1.65 1.46 1.55 IOH = -8mA 2.30 2.03 2.18 IOH = -16mA 3.00 2.51 2.81 IOH = -24mA 3.00 2.34 2.70 IOH = -32mA 4.50 4.01 4.20 Input Leakage Current VOL IIN VIN = VIL V 0.00 0.02 1.80 0.00 0.02 2.30 0.00 0.02 3.00 0.00 0.02 4.50 0.00 0.02 IOL = 4mA 1.65 0.06 0.11 IOL = 8mA 2.30 0.09 0.17 IOL = 16mA 3.00 0.16 0.32 IOL = 24mA 3.00 0.24 0.49 IOL = 32mA 4.50 0.29 0.55 0 to 5.5 ±0.10 ±5 μA 0 0.10 5 μA 1.65 to 5.5 0.10 10 μA VIN = 5.5V, GND Power Off Leakage Current IOFF VIN or VOUT = 5.5V Quiescent Supply Current ICC VIN = 5.5V, GND SG Micro Corp www.sg-micro.com V 1.65 IOL = 100µA LOW Level Output Voltage 0.25VCC 1.65 IOH = -100µA HIGH Level Output Voltage V V SEPTEMBER 2021 4 SGM7SZ08 Small Logic Two-Input AND Gate ELECTRICAL CHARACTERISTICS (continued) (TA = -40℃ to +85℃, typical values are at TA = +25℃, unless otherwise noted.) PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS AC Performance VCC = 1.65V VCC = 1.80V VCC = 2.50V ± 0.20V Propagation Delay tPHL, tPLH VCC = 3.30V ± 0.30V 8.8 CL = 15pF, RL = 1MΩ, Figure 1, Figure 2 VCC = 5.00V ± 0.50V VCC = 3.30V ± 0.30V VCC = 5.00V ± 0.50V Input Capacitance CIN Power Dissipation Capacitance (2) CPD VCC = 5.00V 4.1 3.2 ns 2.6 CL = 50pF, RL = 500Ω, Figure 1, Figure 2 VCC = 0V VCC = 3.30V 7.2 3.6 2.8 4.0 Figure 3 19.0 20.0 pF pF NOTES: 1. Unused inputs must be held HIGH or LOW. They may not float. 2. CPD is defined as the value of the internal equivalent capacitance which is derived from dynamic operating current consumption (ICCD) at no output loading and operating at 50% duty cycle (see Figure 3). CPD is related to dynamic operating current ICCD by the expression: ICCD = (CPD) (VCC) (fIN) + (ICC,Static). SG Micro Corp www.sg-micro.com SEPTEMBER 2021 5 SGM7SZ08 Small Logic Two-Input AND Gate TEST CIRCUITS tr = 3ns VCC tf = 3ns 90% 50% INPUT OUTPUT INPUT CL VCC 90% 50% 10% 10% GND tW RL tPLH tPHL VOH CL includes load and stray capacitance; Input PRR = 1.0MHz; tW = 500ns. Figure 1. AC Test Circuit OUTPUT 50% 50% VOL Figure 2. AC Waveforms VCC A INPUT Input = AC Waveform; tr = tf = 1.8ns; PRR = 10MHz; Duty Cycle = 50%. Figure 3. ICCD Test Circuit REVISION HISTORY NOTE: Page numbers for previous revisions may differ from page numbers in the current version. SEPTEMBER 2021 ‒ REV.A.1 to REV.A.2 Page Updated Package Outline Dimensions section ................................................................................................................................................ 8, 9 JUNE 2015 ‒ REV.A to REV.A.1 Page Changed Packing Option ..................................................................................................................................................................................... 2 Changed Tape and Reel Information ................................................................................................................................................................. 11 Changes from Original (OCTOBER 2013) to REV.A Page Changed from product preview to production data ............................................................................................................................................. All SG Micro Corp www.sg-micro.com SEPTEMBER 2021 6 PACKAGE INFORMATION PACKAGE OUTLINE DIMENSIONS SOT-23-5 1.90 D e1 E1 2.59 E 0.99 b e 0.69 0.95 RECOMMENDED LAND PATTERN (Unit: mm) L A A1 θ A2 Symbol Dimensions In Millimeters MIN MAX c 0.2 Dimensions In Inches MIN MAX A 1.050 1.250 0.041 0.049 A1 0.000 0.100 0.000 0.004 A2 1.050 1.150 0.041 0.045 b 0.300 0.500 0.012 0.020 c 0.100 0.200 0.004 0.008 D 2.820 3.020 0.111 0.119 E 1.500 1.700 0.059 0.067 E1 2.650 2.950 0.104 0.116 e 0.950 BSC 0.037 BSC e1 1.900 BSC 0.075 BSC L 0.300 0.600 0.012 0.024 θ 0° 8° 0° 8° NOTES: 1. Body dimensions do not include mode flash or protrusion. 2. This drawing is subject to change without notice. SG Micro Corp www.sg-micro.com TX00033.000 PACKAGE INFORMATION PACKAGE OUTLINE DIMENSIONS SC70-5 D e1 0.65 e E1 1.9 E 0.75 b 0.4 1.3 RECOMMENDED LAND PATTERN (Unit: mm) L L1 A θ A1 c 0.20 A2 Symbol Dimensions In Millimeters MIN MAX Dimensions In Inches MIN MAX A 0.800 1.100 0.031 0.043 A1 0.000 0.100 0.000 0.004 A2 0.800 1.000 0.031 0.039 b 0.150 0.350 0.006 0.014 c 0.080 0.220 0.003 0.009 D 2.000 2.200 0.079 0.087 E 1.150 1.350 0.045 0.053 E1 2.150 2.450 0.085 0.096 e 0.65 TYP 0.026 TYP e1 1.300 BSC 0.051 BSC L 0.525 REF 0.021 REF L1 0.260 0.460 0.010 0.018 θ 0° 8° 0° 8° NOTES: 1. Body dimensions do not include mode flash or protrusion. 2. This drawing is subject to change without notice. SG Micro Corp www.sg-micro.com TX00043.001 PACKAGE INFORMATION PACKAGE OUTLINE DIMENSIONS UTDFN-1.45×1-6L e D N6 E L DETAIL A PIN 1# TOP VIEW DETAIL B N1 b L1 BOTTOM VIEW SEATING PLANE 0.30 A C 0.49 A2 A1 eee C 0.75 SIDE VIEW L (L1) L2 ALTERNATE A-1 ALTERNATE A-3 ALTERNATE A-2 0.5 DETAIL A ALTERNATE TERMINAL CONSTRUCTION RECOMMENDED LAND PATTERN (Unit: mm) A2 ALTERNATE B-1 ALTERNATE B-2 A1 ALTERNATE B-3 DETAIL B ALTERNATE CONSTRUCTION Symbol Dimensions In Millimeters MIN MAX Dimensions In Inches MIN MAX A 0.450 0.600 0.018 0.024 A1 0.000 0.050 0.000 0.002 A2 0.150 REF 0.006 REF D 1.374 1.526 0.054 0.060 E 0.924 1.076 0.036 0.042 b 0.150 0.300 0.006 0.012 e 0.500 TYP 0.020 TYP eee 0.050 0.002 L 0.250 0.450 0.010 0.018 L1 0.250 0.500 0.010 0.020 L2 0.000 0.100 0.000 0.004 NOTE: This drawing is subject to change without notice. SG Micro Corp www.sg-micro.com TX00069.002 PACKAGE INFORMATION PACKAGE OUTLINE DIMENSIONS XTDFN-1×1-6L e D N6 E L1 k N1 b L BOTTOM VIEW TOP VIEW 0.20 0.53 1.20 A A1 A2 0.15 0.35 SIDE VIEW RECOMMENDED LAND PATTERN (Unit: mm) Symbol Dimensions In Millimeters MIN MAX Dimensions In Inches MIN MAX A 0.320 0.400 0.013 0.016 A1 0.000 0.050 0.000 0.002 A2 0.100 REF 0.004 REF D 0.950 1.050 0.037 0.041 E 0.950 1.050 0.037 0.041 0.230 0.005 k b 0.150 MIN 0.120 e 0.006 MIN 0.350 TYP 0.009 0.014 TYP L 0.350 0.450 0.014 0.018 L1 0.350 0.450 0.014 0.018 NOTE: This drawing is subject to change without notice. SG Micro Corp www.sg-micro.com TX00072.000 PACKAGE INFORMATION TAPE AND REEL INFORMATION REEL DIMENSIONS TAPE DIMENSIONS P2 W P0 Q1 Q2 Q1 Q2 Q1 Q2 Q3 Q4 Q3 Q4 Q3 Q4 B0 Reel Diameter A0 P1 K0 Reel Width (W1) DIRECTION OF FEED NOTE: The picture is only for reference. Please make the object as the standard. KEY PARAMETER LIST OF TAPE AND REEL Reel Diameter Reel Width W1 (mm) A0 (mm) B0 (mm) K0 (mm) P0 (mm) P1 (mm) P2 (mm) W (mm) Pin1 Quadrant SOT-23-5 7″ 9.5 3.20 3.20 1.40 4.0 4.0 2.0 8.0 Q3 SC70-5 7″ 9.5 2.25 2.55 1.20 4.0 4.0 2.0 8.0 Q3 UTDFN-1.45×1-6L 7″ 9.5 1.15 1.60 0.75 4.0 4.0 2.0 8.0 Q1 XTDFN-1×1-6L 7″ 9.5 1.16 1.16 0.50 4.0 2.0 2.0 8.0 Q1 SG Micro Corp www.sg-micro.com TX10000.000 DD0001 Package Type PACKAGE INFORMATION CARTON BOX DIMENSIONS NOTE: The picture is only for reference. Please make the object as the standard. KEY PARAMETER LIST OF CARTON BOX Length (mm) Width (mm) Height (mm) Pizza/Carton 7″ (Option) 368 227 224 8 7″ 442 410 224 18 SG Micro Corp www.sg-micro.com DD0002 Reel Type TX20000.000
