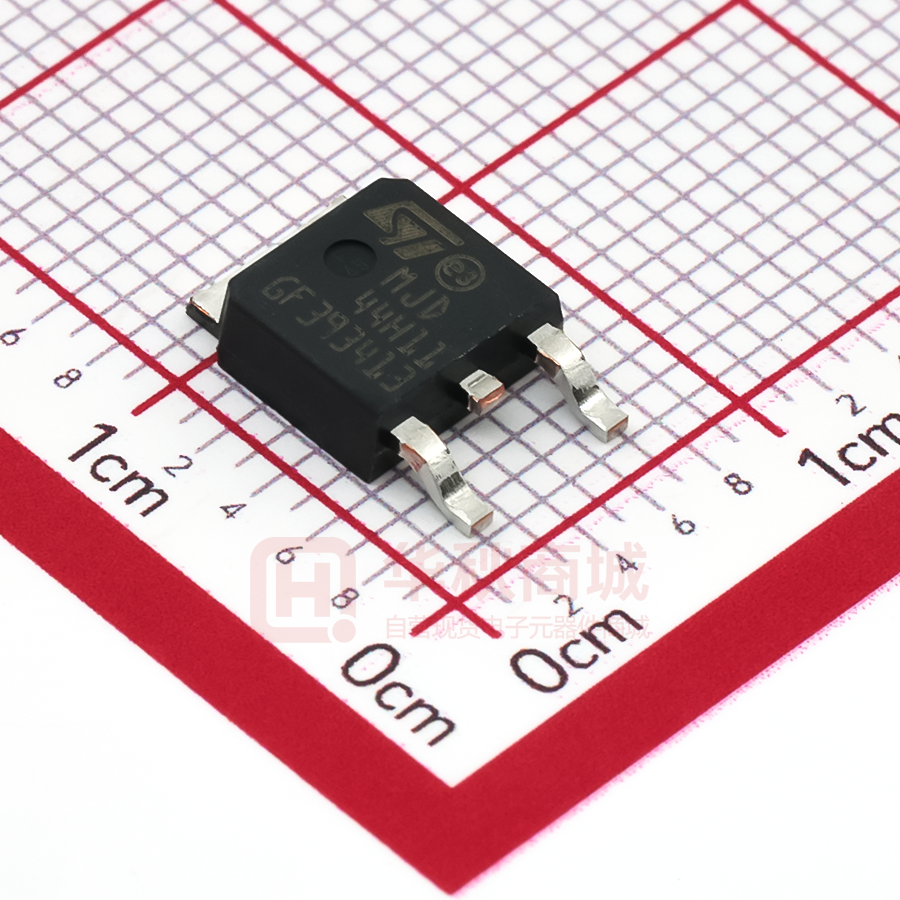

MJD44H11T4

MJD44H11T4, MJD45H11T4 Datasheet Low voltage complementary power transistors Features • • TAB 2 3 1 Low collector-emitter saturation voltage Fast switching speed Application DPAK • C (2, TAB) General purpose switching and amplifier C (2, TAB) Description These devices are manufactured using low voltage multi epitaxial planar technology. They are intended for general-purpose linear and switching applications. B (1) B (1) E (3) E (3) SC08810 SC06960 Product status links MJD44H11T4 MJD45H11T4 Product summary Order code MJD44H11T4 Marking MJD44H11 Polarity NPN Package DPAK Packing Tape and reel Order code MJD45H11T4 Marking MJD45H11 Polarity PNP Package DPAK Packing Tape and reel DS1232 - Rev 5 - May 2021 For further information contact your local STMicroelectronics sales office. www.st.com MJD44H11T4, MJD45H11T4 Electrical ratings 1 Electrical ratings Table 1. Absolute maximum ratings Symbol Value Unit VCEO Collector-emitter voltage (IB = 0 A) 80 V VEBO Collector-base voltage (IC = 0 A) 5 V Collector current 8 A Collector peak current 16 A PTOT Total power dissipation at TC = 25°C 20 W Tstg Storage temperature range -55 to 150 °C 150 °C Value Unit IC ICM TJ Note: Parameter Maximum operating junction temperature For PNP types voltage and current values are negative. Table 2. Thermal data Symbol DS1232 - Rev 5 Parameter RthJC Thermal resistance, junction-to-case 6.25 °C/W RthJA Thermal resistance, junction-to-ambient 100 °C/W page 2/12 MJD44H11T4, MJD45H11T4 Electrical characteristics 2 Electrical characteristics TC = 25°C unless otherwise specified. Table 3. Electrical characteristics Symbol VCEO(sus)(1) Parameter Test conditions Min. Typ. 60 - Max. Unit Collector-emitter sustaining voltage IC = 30 mA, IB = 0 A ICES Collector cut-off current VCE = 80 V, VBE = 0 V - 10 μA IEBO Emitter cut-off current VEB = 5 V, IC = 0 A - 50 μA Collector-emitter saturation voltage IC = 8 A, IB = 0.4 A - 1 V Base-emitter saturation voltage IC = 8 A, IB = 0.8 A - 1.5 V VCE(sat)(1) (1) VBE(sat) hFE(1) DC current gain IC = 2 A, VCE = 1 V 60 - IC = 4 A, VCE = 1 V 40 - V 1. Pulsed: Pulse duration ≤ 300 μs, duty cycle ≤ 2%. Note: DS1232 - Rev 5 For PNP types voltage and current values are negative. page 3/12 MJD44H11T4, MJD45H11T4 Electrical characteristics (curves) 2.1 Electrical characteristics (curves) Figure 1. Safe operating area GC73790 Figure 3. DC current gain (NPN) GC61320 Figure 5. Collector-emitter saturation voltage (NPN) GC61300 DS1232 - Rev 5 Figure 2. Derating curves GC57291 Figure 4. DC current gain (PNP) DG11910 Figure 6. Collector-emitter saturation voltage (PNP) GC73780 page 4/12 MJD44H11T4, MJD45H11T4 Package information 3 Package information In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK packages, depending on their level of environmental compliance. ECOPACK specifications, grade definitions and product status are available at: www.st.com. ECOPACK is an ST trademark. 3.1 DPAK (TO-252) type C2 package information Figure 7. DPAK (TO-252) type C2 package outline 0068772_type-C2_rev30 DS1232 - Rev 5 page 5/12 MJD44H11T4, MJD45H11T4 DPAK (TO-252) type C2 package information Table 4. DPAK (TO-252) type C2 mechanical data Dim. mm Min. Typ. Max. A 2.20 2.30 2.38 A1 0.90 1.01 1.10 A2 0.00 0.10 b 0.72 0.85 b4 5.13 c 0.47 0.60 c2 0.47 0.60 D 6.00 D1 5.10 E 6.50 E1 5.20 e 2.186 2.286 2.386 H 9.80 10.10 10.40 L 1.40 1.50 1.70 L1 L2 6.20 5.60 6.60 6.70 5.50 0.90 1.25 0.51 BSC 0.60 L6 DS1232 - Rev 5 6.10 5.46 2.90 REF L3 L4 5.33 0.80 1.00 1.80 BSC θ1 5° 7° 9° θ2 5° 7° 9° V2 0° 8° page 6/12 MJD44H11T4, MJD45H11T4 DPAK (TO-252) type C2 package information Figure 8. DPAK (TO-252) recommended footprint (dimensions are in mm) FP_0068772_30 DS1232 - Rev 5 page 7/12 MJD44H11T4, MJD45H11T4 DPAK (TO-252) packing information 3.2 DPAK (TO-252) packing information Figure 9. DPAK (TO-252) tape outline 10 pitches cumulative tolerance on tape +/- 0.2 mm T P0 Top cover tape P2 D E F B1 K0 For machine ref. only including draft and radii concentric around B0 W B0 A0 P1 D1 User direction of feed R Bending radius User direction of feed AM08852v1 DS1232 - Rev 5 page 8/12 MJD44H11T4, MJD45H11T4 DPAK (TO-252) packing information Figure 10. DPAK (TO-252) reel outline T 40mm min. access hole at slot location B D C N A G measured at hub Tape slot in core for tape start 2.5mm min.width Full radius AM06038v1 Table 5. DPAK (TO-252) tape and reel mechanical data Tape Dim. mm mm Dim. Min. Max. A0 6.8 7 A B0 10.4 10.6 B 1.5 12.1 C 12.8 1.6 D 20.2 G 16.4 50 B1 DS1232 - Rev 5 Reel Min. Max. 330 13.2 D 1.5 D1 1.5 E 1.65 1.85 N F 7.4 7.6 T K0 2.55 2.75 P0 3.9 4.1 Base qty. 2500 P1 7.9 8.1 Bulk qty. 2500 P2 1.9 2.1 R 40 T 0.25 0.35 W 15.7 16.3 18.4 22.4 page 9/12 MJD44H11T4, MJD45H11T4 Revision history Table 6. Document revision history Date Version Changes 21-Jun-2004 2 Document migration, no content change. 06-Aug-2009 3 Updated mechanical data. 18-May-2012 4 Updated: mechanical data Inserted: packaging mechanical data Updated title, Features and added STPOWER LOGO in cover page. 05-May-2021 5 Updated Table 2. Thermal data. Updated Section 3 Package information. Minor text changes. DS1232 - Rev 5 page 10/12 MJD44H11T4, MJD45H11T4 Contents Contents 1 Electrical ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 2 Electrical characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 2.1 3 Electrical characteristics (curves) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Package information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 3.1 DPAK (TO-252) type C2 package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 3.2 DPAK (TO-252) packing information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 DS1232 - Rev 5 page 11/12 MJD44H11T4, MJD45H11T4 IMPORTANT NOTICE – PLEASE READ CAREFULLY STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of Purchasers’ products. No license, express or implied, to any intellectual property right is granted by ST herein. Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product. ST and the ST logo are trademarks of ST. For additional information about ST trademarks, please refer to www.st.com/trademarks. All other product or service names are the property of their respective owners. Information in this document supersedes and replaces information previously supplied in any prior versions of this document. © 2021 STMicroelectronics – All rights reserved DS1232 - Rev 5 page 12/12
