STEVAL-CCH003V2
HDMI interface evaluation kit based on the HDMI2C1-14HD
(main board plus daughter board)
Data brief
Description

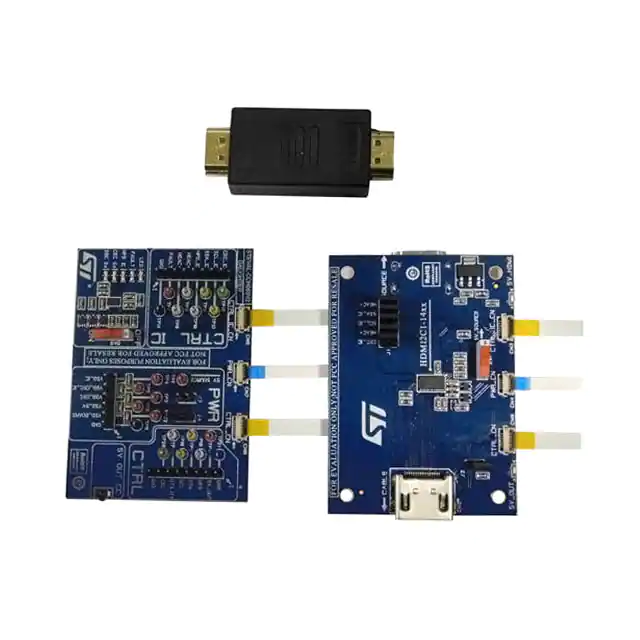

The STEVAL-CCH003V2 evaluation kit
demonstrates how the HDMI2Cx-14HD series
can be a simple and fast means to reach full
compliance with stringent HDMI™ 1.4 standards.
This evaluation kit is made up of a main board
which can accept an optional daughter board
through dedicated connectors.
It provides easy access to all HDMI control stage
signals and the main board power supplies (+5 V
of the DDC bus, +3.3 V of the CEC bus, and VDD
of the ASIC HDMI).
Features
Interface between any HDMI source
equipment (transmitter) and an HDMI sink
(receiver) through an HDMI cable
HDMI™ 2.0 (4K / 2K 60 fps) compliant from
-40 to 85 °C
Fully integrated ESD protection
RoHS compliant
November 2016
The main board can be used in a standalone
configuration as a plug and play board to show
the interface is working properly. It can also be
used to demonstrate the capability of the
HDMI2C1-14HD device to drive cables with a
high capacitance load (poor quality or long HDMI
cable).
Finally, it can be used to evaluate power
consumption in various operating configurations
(e.g., transmitter in standby mode, various ASIC
power supply voltage values and ruggedness
against external stresses).
DocID029685 Rev 2
For further information contact your local STMicroelectronics sales
office
1/4
www.st.com
SHIELD
20
CN1
0
HDMI_A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
D3
LED
R8
2k
5V_SOURCE
SW1
Switch_2
1
2
3
4
5
J1
10
9
8
7
6
VIN
U2
1B
2B
3B
4B
5B
C7
10u
3
Jumper5
1A
2A
3A
4A
5A
R11
220
LD1117
VOUT
2
120
C8
10u
8
7
6
5
4
3
2
1
R10
1
D2
1
D1
HEAC+
HEAC-
2
3
2
2
3
2
3
BAT54AWFILM
1
1u
VDD_CEC
VDD_CEC_IC
VDD_5V
VDD_IC
11
10
9
8
7
6
5
4
3
2
1
DAT_D2+_IC
DAT_CLK-_IC
DAT_CLK+_IC
DAT_D0-_IC
DAT_D0+_IC
DAT_D1-_IC
DAT_D1+_IC
DAT_D2-_IC
10k
R2
5V_SOURCE
ESD_DISCH
HPD_IC
SDA_IC
U1
10k
R4
HDMI2C1-14HD
10k
270k
C1
R3
R1
BAT54AWFILM
1
3
0
Zdiff=100ohms
Zdiff=100ohms
Zdiff=100ohms
Zdiff=100ohms
HPD_IC
SCL_IC
SDA_IC
FAULT
CEC_IC
1: GND
2: FAULT
3: HEAC4: HEAC+
5: HPD_IC
6: SDA_IC
7: SCL_IC
8: CEC_IC
CN4
PWR_CN
DAT_CLK-
DAT_CLK+
DAT_D0-
DAT_D0+
DAT_D1-
DAT_D1+
DAT_D2-
DAT_D2+
NC_27
5V_OUT
VDD_5V
100n
C3
CEC
UTILITY
SCL
SDA
HPD
19
20
21
22
23
24
25
26
27
28
29
100n
C5
1u
C4
100n
VDD_IC
BAT54
D4
100n
C2
VDD_5V
VDD_CEC
VDD_CEC_IC
1.8k
R7
5V_OUT
1.8k
R6
Zdiff=100ohms
27k
R5
Zdiff=100ohms
Zdiff=100ohms
Zdiff=100ohms
C6
1: GND
2: VDD_5V
3: VDD_CEC
4: VDD_CEC_IC
5: VDD_IC
6: 5V_SOURCE
CN5
CTRL_CN
J2
1B
Jumper1
1A
2
D5
LED
R9
2k
1: GND
2: 5V_OUT
3: 5V_OUT
4: HPD
5: SDA
6: SCL
7: UTILITY
8: CEC
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
HDMI_A
TDMS DATA2+
TMDS DATA2 SHIELD
TDMS DATA2TDMS DATA1+
TMDS DATA1 SHIELD
TDMS DATA1TDMS DATA0+
TMDS DATA0 SHIELD
TDMS DATA0TMDS CLOCK+
TMDS CLOCK SHIELD
TMDS CLOCKCEC
UTILITY
SCL
SDA
DDC/CEC GND
+5V
HPD
CN2
decoupling capacitance to be placed
as close as possible to HDMI2C1-14HD
1
8
7
6
5
4
3
2
1
CN3
CTRL_IC_CN
12
TDMS DATA2+
TMDS DATA2 SHIELD
TDMS DATA2TDMS DATA1+
TMDS DATA1 SHIELD
TDMS DATA1TDMS DATA0+
TMDS DATA0 SHIELD
TDMS DATA0TMDS CLOCK+
TMDS CLOCK SHIELD
TMDS CLOCKCEC
UTILITY
SCL
SDA
DDC/CEC GND
+5V
HPD
1A
1
B
2
2A
3
36
SCL_IC
HEAC+
35
CEC_IC
34
14
33
FAULT
HPD
32
NC_32
VDD_IC
SDA
15
SCL
16
HEAC13
6
5
4
3
2
1
30
VDD_CEC
31
VDD_CEC_IC
UTILITY
17
CEC
18
TAB
DocID029685 Rev 2
37
SHIELD
2/4
20
1
GND
1
Schematic diagram
STEVAL-CCH003V2
Schematic diagram
Figure 1: STEVAL-CCH003V2 circuit schematic
STEVAL-CCH003V2
2
Revision history
Revision history
Table 1: Document revision history
Date
Version
Changes
06-Sep-2016
1
Initial release
11-Nov-2016
2
Updated features on the cover page
DocID029685 Rev 2
3/4
STEVAL-CCH003V2
