Part Number: XTHI12W850

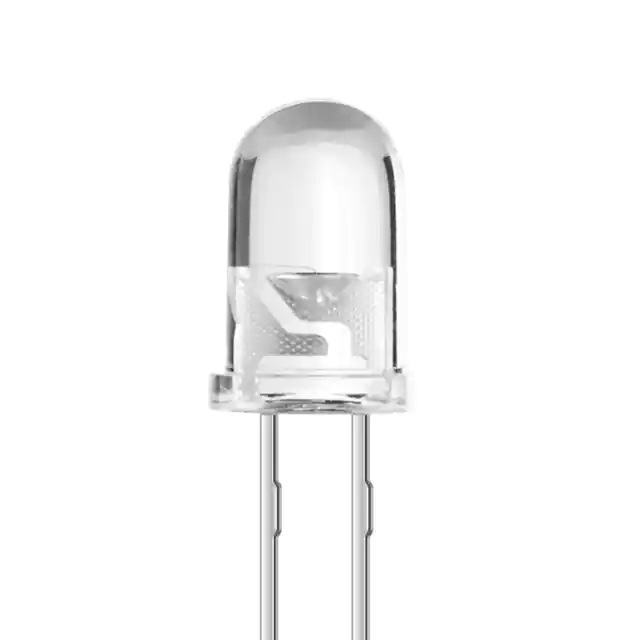

T-1 3/4 (5mm) Infrared Emitting Diode
Features
Package Schematics
● Radial / Through hole package
● Reliable & robust
● Low power consumption
● Available on tape and reel
● RoHS Compliant
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25(0.01") unless otherwise noted.
3. Specifications are subject to change without notice.
Absolute Maximum Ratings
(TA=25°C)
THI/850
(GaAlAs)
Unit
Reverse Voltage
VR
5
V
Forward Current
IF
50
mA
Forward Current (Peak)
1/100 Duty Cycle
10us Pulse Width
iFS
Power Dissipation
PD
95
Operating Temperature
TA
-40 ~ +85
1000
mA
mW
°C
Storage Temperature
Tstg
-40 ~ +85
Lead Solder Temperature
[2mm Below Package Base]
260°C For 3 Seconds
Lead Solder Temperature
[5mm Below Package Base]
260°C For 5 Seconds
A Relative Humidity between 40% and 60% is recommended in
ESD-protected work areas to reduce static build up during assembly
process (Reference JEDEC/JESD625-A and JEDEC/J-STD-033)
Part
Number
XTHI12W850
Emitting
Material
GaAlAs
Lens-color
Water Clear
Operating Characteristics
(TA=25°C)
THI/850
(GaAlAs)
Unit
Forward Voltage (Typ.)
(IF=20mA)
VF
1.4
V
Forward Voltage (Max.)
(IF=20mA)
VF
1.6
V
Reverse Current (Max.)
(VR=5V)
IR
10
µA
Wavelength of Peak
Emission CIE127-2007* (Typ.)
(IF=20mA)
λP
850*
nm
Spectral Line Full Width
At Half-Maximum (Typ.)
(IF=20mA)
△λ
50
nm
C
30
pF
Wavelength
CIE127-2007*
nm
λP
Viewing
Angle
2θ 1/2
850*
20°
Capacitance (Typ.)
(VF=0V, f=1MHz)
Radiant Intensity
CIE127-2007*
(Po=mW/sr)
@20mA
Radiant Intensity
CIE127-2007*
(Po=mW/sr)
@50mA
min.
typ.
min.
typ.
12*
29*
40*
89*
*Radiant intensity value and wavelength are in accordance with CIE127-2007 standards.
Dec 07,2020
XDSA4506
V8-Z
Layout: Maggie L.
P. 1/3
Part Number: XTHI12W850
T-1 3/4 (5mm) Infrared Emitting Diode
THI/850
Relative Radiant Intensity
100%
Ta = 25 °C
15°
Ta = 25 °C
80%
0°
1.0
30°
60%
45°
40%
60°
0.5
20%
75°
0%
750
800
850
900
Wavelength (nm)
950
1000
1050
90°
0°
Relative Intensity Vs. CIE Wavelength
15°
30°
45°
60°
75°
0.0
90°
Spatial Distribution
Radiant intensity normalised
at 20 mA
Forward current (mA)
Ta = 25 °C
40
30
20
10
1.0
1.2
1.4
1.6
Forward voltage (V)
Forward Current vs.
Forward Voltage
1.8
Ta = 25 °C
2.0
1.5
1.0
0.5
0.0
0
10
20
30
40
Forward current (mA)
Radiant Intensity vs.
Forward Current
50
2.5
60
Radiant intensity normalised
at T a = 25 °C
2.5
50
0
0.8
Permissible forward current (mA)
THI/850
50
40
30
20
10
0
2.0
1.5
1.0
0.5
0.0
-40 -20 0 20 40 60 80 100
Ambient temperature (°C)
Forward Current Derating Curve
-40 -20 0 20 40 60 80 100
Ambient temperature (°C)
Radiant Intensity vs.
Ambient Temperature
Remarks:
If special sorting is required (e.g. binning based on forward voltage,
luminous intensity / luminous flux),
the typical accuracy of the sorting process is as follows:
1. Radiant Intensity / Luminous Flux: +/-15%
2. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
Dec 07,2020
XDSA4506
V8-Z
Layout: Maggie L.
P. 2/3
Part Number: XTHI12W850
T-1 3/4 (5mm) Infrared Emitting Diode
PACKING & LABEL SPECIFICATIONS
TERMS OF USE
1. Data presented in this document reflect statistical figures and should be treated as technical reference only.
2. Contents within this document are subject to improvement and enhancement changes without notice.
3. The product(s) in this document are designed to be operated within the electrical and environmental specifications indicated on the datasheet.
User accepts full risk and responsibility when operating the product(s) beyond their intended specifications.
4. The product(s) described in this document are intended for electronic applications in which a person’s life is not reliant upon the LED. Please
consult with a SunLED representative for special applications where the LED may have a direct impact on a person’s life.
5. The contents within this document may not be altered without prior consent by SunLED.
6. Additional technical notes are available at https://www.SunLEDusa.com/TechnicalNotes.asp
Dec 07,2020
XDSA4506
V8-Z
Layout: Maggie L.
P. 3/3
