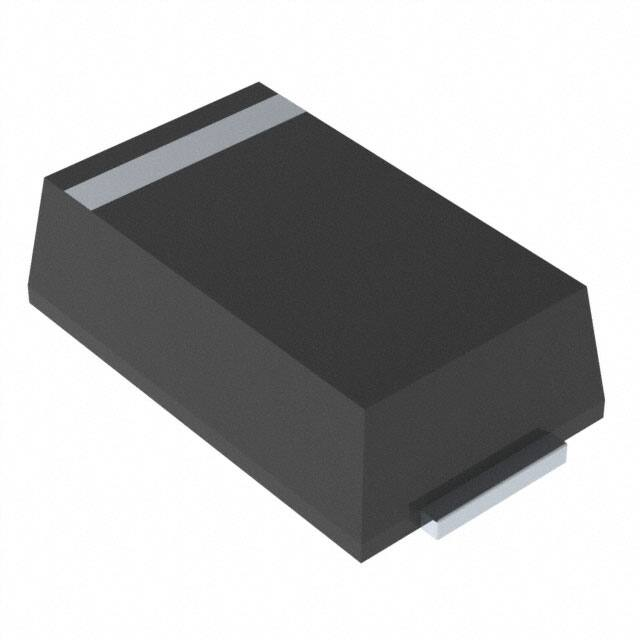

V3P6HM3_A/H

V3P6 www.vishay.com Vishay General Semiconductor Surface-Mount TMBS® (Trench MOS Barrier Schottky) Rectifier FEATURES eSMP® Series • Low profile package Available • Ideal for automated placement • Trench MOS Schottky technology • Low power losses, high efficiency • Low forward voltage drop • Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C SMP (DO-220AA) Cathode Anode • AEC-Q101 qualified available - Automotive ordering code; base P/NHM3 • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 ADDITIONAL RESOURCES 3D 3D TYPICAL APPLICATIONS 3D Models For use in low voltage, high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications. MECHANICAL DATA PRIMARY CHARACTERISTICS IF(AV) 3.0 A VRRM 60 V IFSM 60 A VF at IF = 3.0 A 0.48 V TJ max. 150 °C Package SMP (DO-220AA) Circuit configuration Single Case: SMP (DO-220AA) Molding compound meets UL 94 V-0 flammability rating Base P/N-M3 - halogen-free, RoHS-compliant, and commercial grade Base P/NHM3_X - halogen-free, RoHS-compliant, and AEC-Q101 qualified (“_X” denotes revision code e.g. A, B,.....) Terminals: matte tin plated leads, solderable per J-STD-002 and JESD 22-B102 M3 suffix meets JESD 201 class 2 whisker test, HM3 suffix meets JESD 201 class 2 whisker test Polarity: color band denotes the cathode end MAXIMUM RATINGS (TA = 25 °C unless otherwise noted) PARAMETER SYMBOL Device marking code Maximum repetitive peak reverse voltage Maximum DC forward current Peak forward surge current 10 ms single half sine-wave superimposed on rated load Voltage rate of change (rated VR) Operating junction and storage temperature range V3P6 UNIT V36 VRRM 60 IF (1) 3.0 IF (2) 2.4 IFSM 60 A dV/dt 10 000 V/μs TJ, TSTG -55 to +150 °C V A Notes (1) Mounted on 8 mm x 8 mm pad areas, 1 oz. FR4 PCB (2) Free air, mounted on recommended copper pad area Revision: 27-Feb-2020 Document Number: 89344 1 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 V3P6 www.vishay.com Vishay General Semiconductor ELECTRICAL CHARACTERISTICS (TA = 25 °C unless otherwise noted) PARAMETER TEST CONDITIONS Instantaneous forward voltage IF = 3.0 A Reverse current VR = 60 V Typical junction capacitance 4.0 V, 1 MHz TA = 25 °C TA = 125 °C TA = 25 °C TA = 125 °C SYMBOL VF (1) TYP. MAX. 0.53 0.63 0.48 0.59 V - 900 μA 4 15 mA 250 - pF IR (2) CJ UNIT Notes (1) Pulse test: 300 μs pulse width, 1 % duty cycle (2) Pulse test: pulse width ≤ 40 ms THERMAL CHARACTERISTICS (TA = 25 °C unless otherwise specified) PARAMETER Typical thermal resistance SYMBOL V3P6 RθJA (1) 125 RθJM (2) 15 UNIT °C/W Notes (1) Free air, mounted on recommended PCB, 1 oz. pad area; thermal resistance R θJA - junction to ambient (2) Units mounted on PCB with specific copper pad areas; R θJM - junction to mount ORDERING INFORMATION (Example) PREFERRED P/N UNIT WEIGHT (g) PREFERRED PACKAGE CODE BASE QUANTITY DELIVERY MODE 0.024 84A 3000 7" diameter plastic tape and reel V3P6-M3/85A 0.024 85A 10 000 13" diameter plastic tape and reel V3P6HM3_A/H (1) 0.024 H 3000 7" diameter plastic tape and reel 0.024 I 10 000 13" diameter plastic tape and reel V3P6-M3/84A V3P6HM3_A/I (1) Note (1) AEC-Q101 qualified RATINGS AND CHARACTERISTICS CURVES (TA = 25 °C unless otherwise noted) 2.4 3.0 2.0 Average Power Loss (W) Average Forward Rectified Current (A) 3.5 2.5 2.0 1.5 1.0 D = 0.5 D = 0.8 D = 0.3 D = 0.1 1.6 D = 1.0 1.2 T 0.8 0.4 TM Measured at Terminal 0.5 D = 0.2 0 D = tp/T tp 0 0 25 50 75 100 125 150 0 0.4 0.8 1.2 1.6 2.0 2.4 2.8 3.2 3.6 TM - Mount Temperature (°C) Average Forward Current (A) Fig. 1 - Maximum Forward Current Derating Curve Fig. 2 - Forward Power Loss Characteristics Revision: 27-Feb-2020 Document Number: 89344 2 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 V3P6 www.vishay.com Vishay General Semiconductor Axis Title 10000 1000 TJ = 150 °C 1000 10 TJ = 125 °C TJ = 100 °C 1 TJ = 25 °C f = 1.0 MHz Vsig = 50 mVp-p Junction Capacitance (pF) 2nd line Instantaneous Forward Current (A) 100 100 TJ = 25 °C 100 TJ = -40 °C 10 0.1 10 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 0.1 1 Instantaneous Forward Voltage (V) 10 100 Reverse Voltage (V) Fig. 3 - Typical Instantaneous Forward Characteristics Fig. 5 - Typical Junction Capacitance Axis Title 10000 1000 Transient Thermal Impedance (°C/W) 2nd line Instantaneous Reverse Current (mA) 100 10 1 1000 0.1 TJ = 100 °C TJ = 150 °C TJ = 125 °C 0.01 TJ = 25 °C 100 0.001 0.0001 TJ = -40 °C 10 0.00001 20 40 60 80 Junction to Ambient 100 10 1 0.01 100 0.1 Percent of Rated Peak Reverse Voltage (%) 1 10 100 t - Pulse Duration (s) Fig. 4 - Typical Reverse Characteristics Fig. 6 - Typical Transient Thermal Impedance PACKAGE OUTLINE DIMENSIONS in inches (millimeters) SMP (DO-220AA) 0.012 (0.30) REF. Cathode Band 0.053 (1.35) 0.041 (1.05) 0.086 (2.18) 0.074 (1.88) 0.142 (3.61) 0.126 (3.19) 0.036 (0.91) 0.024 (0.61) 0.103 (2.60) 0.087 (2.20) 0.032 (0.80) 0.016 (0.40) 0.158 (4.00) 0.146 (3.70) 0.105 (2.67) 0.013 (0.35) 0.004 (0.10) 0.025 0.030 (0.635) (0.762) 0.045 (1.15) 0.033 (0.85) 0.012 (0.30) 0.018 (0.45) 0.000 (0.00) 0.006 (0.15) 0.100 (2.54) 0.050 (1.27) Revision: 27-Feb-2020 Document Number: 89344 3 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Legal Disclaimer Notice www.vishay.com Vishay Disclaimer ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay's knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer's responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer's technical experts. Product specifications do not expand or otherwise modify Vishay's terms and conditions of purchase, including but not limited to the warranty expressed therein. Hyperlinks included in this datasheet may direct users to third-party websites. These links are provided as a convenience and for informational purposes only. Inclusion of these hyperlinks does not constitute an endorsement or an approval by Vishay of any of the products, services or opinions of the corporation, organization or individual associated with the third-party website. Vishay disclaims any and all liability and bears no responsibility for the accuracy, legality or content of the third-party website or for that of subsequent links. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. © 2021 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED Revision: 09-Jul-2021 1 Document Number: 91000
