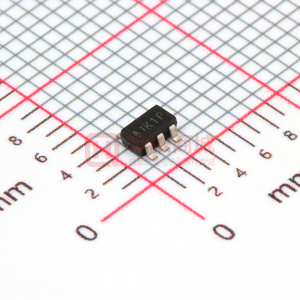

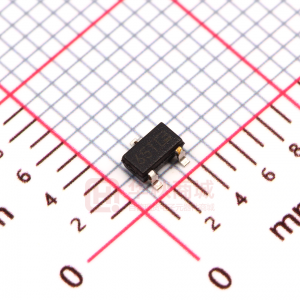

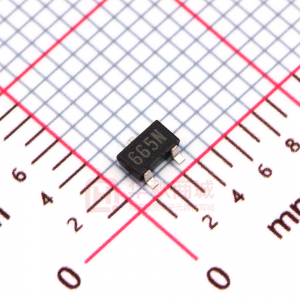

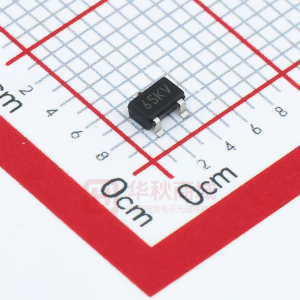

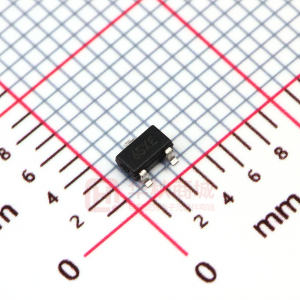

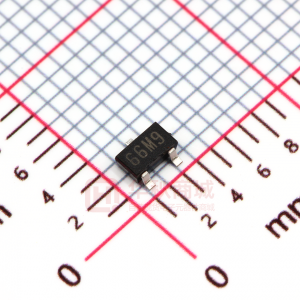

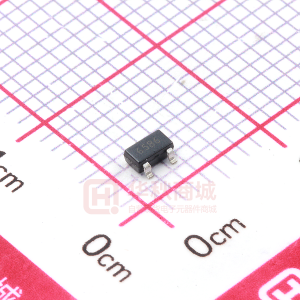

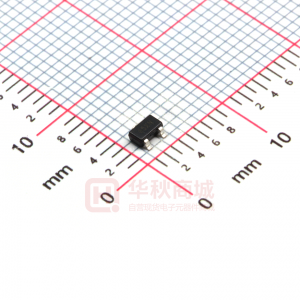

XC6206

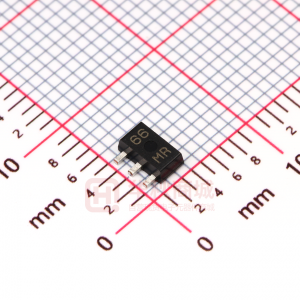

ETR0305_003a ■GENERAL DESCRIPTION The XC6206 series are highly precise, low power consumption, high voltage, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The XC6206 consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error correction circuit. The series is compatible with low ESR ceramic capacitors. The currrent limiter's foldback circuit also operates as a short protect for the output current limiter and the output pin. Output voltage can be set internally by laser trimming technologies. It is selectable in 0.1V increments within a range of 1.2V to 5.0V. SOT-23, SOT-89, TO-92 and USP-6B packages are available. ■APPLICATIONS ●Battery powered equipment ●Reference voltage sources ●Cameras, video cameras ●Portable AV systems ●Mobile phones ●Portable games ●Cordless phones, wireless communication equipment ■FEATURES CMOS Maximum Output Current Dropout Voltage Maximum Operating Voltage Output Voltage Range Highly Accurate : 250mA (5.0V type) : 250mV @ 100mA (3.0V type) : 6.0V : 1.2V ~ 5.0V (0.1V increments) : Fixed voltage accuracy ±2% (+30mV@VOUT2.0V) Low Power Consumption Operating Temperature Range Low ESR Capacitor Current Limit Circuit Built-in Ultra Small Package : SOT-23 SOT-89 TO-92 USP-6B : EU RoHS Compliant, Pb Free : 1.0μA (TYP.) : -40OC ~ 85 OC : Ceramic capacitor compatible Environmentally Friendly ■TYPICAL APPLICATION CIRCUIT ■TYPICAL PERFORMANCE CHARACTERISTICS 1/17 XC6206 Series ■PIN CONFIGURATION *The dissipation pad for the USP-6B package should be solder-plated in recommended mount pattern and metal masking so as to enhance mounting strength and heat release. If the pad needs to be connected to other pins, it should be connected to the pin number 4 (VIN). (SIDE VIEW) ■PIN ASSIGNMENT SOT-23 1 3 2 PIN NUMBER SOT-89/TO-92 (T) USP-6B 1 2 3 2 4 6 1, 3, 5 TO-92 (L) 2 1 3 PIN NAME VSS VIN VOUT NC FUNCTIONS Ground Power Input Output No Connection ■PRODUCT CLASSIFICATION ●Ordering Information XC6206P ①②③④⑤-⑥( DESIGNATOR ①② ③ *1) DESCRIPTION Output Voltage Accuracy SYMBOL 12~50 2 1* MR PR PR-G DR TH TB LH LB DESCRIPTION e.g. VOUT: 3.0V→①=3, ②=0 Within + 2% (within +30mV when VOUT 2.0V. (*1) (*2) The “-G” suffix indicates that the products are Halogen and Antimony free as well as being fully RoHS compliant. The device orientation is fixed in its embossed tape pocket. For reverse orientation, please contact your local Torex sales office or representative. (Standard orientation: ④R-⑥, Reverse orientation: ④L-⑥) 2/17 XC6206 Series ■BLOCK DIAGRAM *Diodes inside the circuit are an ESD protection diode and a parasitic diode. ■ABSOLUTE MAXIMUM RATINGS Ta=25OC PARAMETER Input Voltage Output Current Output Voltage SOT-23 Power Dissipation SOT-89 USP-6B TO-92 Operating Temperature Range Storage Temperature Range * IOUT=Pd / (VIN-VOUT) Topr Tstg Pd SYMBOL VIN IOUT VOUT RATINGS 7.0 500 * VSS – 0.3 ~ VIN + 0.3 250 500 100 300 - 40 ~ + 85 - 55 ~ + 125 O UNITS V mA V mW C C O 3/17 XC6206 Series ■ELECTRICAL CHARACTERISTICS ●XC6206P series PARAMETER Output Voltage (*7) Maximum Output Current Load Regulation SYMBOL VOUT(E) (*2) Ta=25 OC CONDITIONS IOUT=30mA VOUT(T)>1.8V: 1mA≦IOUT≦100mA VOUT(T)1.8V: IOUT=100mA VOUT(T)1.5V, accuracy is +2%. When VOUT(T)2.0V 4/17 XC6206 Series ■ELECTRICAL CHARACTERISTICS (Continued) ●Electrical Characteristics Chart E-1 PARAMETER E-2 MAX. OUTPUT CURRENT IOUTMAX (mA) MIN. E-3 LOAD REGULATION VOUT (mV) MAX. 40 E-4 DROPOUT VOLTAGE 1 Vdif1 (mV) TYP. MAX. 460 400 350 300 250 200 150 760 650 590 510 450 410 390 E-5 DROPOUT VOLTAGE 2 Vdif2 (mV) TYP. MAX. 700 580 450 960 860 810 E-6 SHORT CURRENT Ishort (mA) TYP. 180 OUTPUT VOLTAGE 2% ACCURACY VOUT(E) (V) MIN. MAX. 1.230 1.330 1.430 1.530 1.632 1.734 1.836 1.938 2.040 2.042 2.244 2.346 2.448 2.550 2.652 2.754 2.856 2.958 3.060 3.162 3.264 3.366 3.468 3.570 3.672 3.774 3.876 3.978 4.080 4.182 4.284 4.386 4.488 4.590 4.692 4.794 4.896 4.998 5.100 1% ACCURACY VOUT(E) (V) MIN. MAX. SETTING VOLTAGE VOUT(T) 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2.0 2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9 3.0 3.1 3.2 3.3 3.4 3.5 3.6 3.7 3.8 3.9 4.0 4.1 4.2 4.3 4.4 4.5 4.6 4.7 4.8 4.9 5.0 1.170 1.270 1.370 1.470 1.568 1.666 1.764 1.862 1.960 2.058 2.156 2.254 2.352 2.450 2.548 2.646 2.744 2.842 2.940 3.038 3.136 3.234 3.332 3.430 3.528 3.626 3.724 3.822 3.920 4.018 4.116 4.214 4.312 4.410 4.508 4.606 4.704 4.802 4.900 60 Not Available 80 155 45 780 1.980 2.079 2.178 2.277 2.376 2.475 2.574 2.673 2.772 2.871 2.970 3.069 3.168 3.267 3.366 3.465 3.564 3.663 3.762 3.861 3.960 4.059 4.158 4.257 4.356 4.455 4.554 4.653 4.752 4.851 4.950 2.020 2.121 2.222 2.323 2.424 2.525 2.626 2.727 2.828 2.929 3.030 3.131 3.232 3.333 3.434 3.535 3.636 3.737 3.838 3.939 4.040 4.141 4.242 4.343 4.444 4.545 4.646 4.747 4.848 4.949 5.050 130 120 50 100 370 350 710 150 55 60 200 75 350 250 680 100 65 70 250 75 60 320 200 630 80 50 290 175 600 5/17 XC6206 Series ■TEST CIRCUITS Circuit ① Circuit ② 6/17 XC6206 Series ■TYPICAL PERFORMANCE CHARACTERISTICS (1) Output Voltage vs. Output Current (2) Current Limit Topr=25℃ Topr=25℃ Topr=25℃ 7/17 XC6206 Series ■TYPICAL PERFORMANCE CHARACTERISTICS (Continued) (3) Output Voltage vs. Input Voltage (4) Dropout Voltage vs. Output Current 8/17 XC6206 Series ■TYPICAL PERFORMANCE CHARACTERISTICS (Continued) (5) Supply Current vs. Input Voltage (6) Output Voltage vs. Ambient Temperature 9/17 XC6206 Series ■TYPICAL PERFORMANCE CHARACTERISTICS (Continued) (7) Output Voltage vs. Ambient Temperature (8) Input Transient Response 1 Time (0.4ms / div) Time (0.4ms / div) Time (0.4ms / div) Time (0.4ms / div) Time (0.4ms / div) Time (0.4ms / div) 10/17 XC6206 Series ■TYPICAL PERFORMANCE CHARACTERISTICS (Continued) (9) Input Transient Response 2 Time (2ms / div) Time (2ms / div) Time (2ms / div) Time (2ms / div) Time (2ms / div) Time (2ms / div) (10) Load Transient Response Time (1ms / div) Time (1ms / div) Time (1ms / div) 11/17 XC6206 Series ■TYPICAL PERFORMANCE CHARACTERISTICS (Continued) (11) Ripple Rejection Rate 12/17 XC6206 Series ■PACKAGING INFORMATION ●SOT-23 ●SOT-89 ●USP-6B ●TO-92 13/17 XC6206 Series ■PACKAGING INFORMATION (Continued) ●USP-6B Reference Pattern Layout ●USP-6B Reference Metal Mask Design 14/17 XC6206 Series ■MARKING RULE ●SOT-23, SOT-89 3 ① ② ③④ ① represents product number MARK 6 ② represents 3 pins regulator MARK VOLTAGE＝0.1 ~ 3.0V VOLTAGE＝3.1 ~ 6.0V 5 ③ represents output voltage MARK VOLTAGE (V) 0 1 2 3 4 5 6 7 8 9 A B C D E 1.2 1.3 1.4 1.5 3.1 3.2 3.3 3.4 3.5 3.6 3.7 3.8 3.9 4.0 4.1 4.2 4.3 4.4 4.5 6 PRODUCT SERIES XC6206P***** PRODUCT SERIES XC6206P***** 1 SOT-23 (TOP VIEW) 2 ② ④ MARK F H K L M N P R S T U V X Y Z OUTPUT VOLTAGE (V) 1.6 1.7 1.8 1.9 2.0 2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9 3.0 4.6 4.7 4.8 4.9 5.0 - ① 1 2 SOT-89 (TOP VIEW) ③ 3 ④ represents production lot number 0 to 9, A to Z repeated. (G, I, J, O, Q, W excluded) *No character inversion used. 15/17 XC6206 Series ■MARKING RULE (Continued) ●USP-6B ①② represents product number MARK ① 0 ③ represents 3 pins regulator MARK USP-6B (TOP VIEW) ② 6 PRODUCT SERIES XC6206P***D* PRODUCT SERIES XC6206P***D* P ④⑤ represents output voltage MARK OUTPUT VOLTAGE(V) ④ ⑤ 3 5 3 0 3.3 5.0 PRODUCT SERIES XC6206P33*D* XC6206P50*D* ⑥ represents production lot number 0 to 9, A to Z repeated. (G, I, J, O, Q, W excluded) *No character inversion used. ● TO-92 ① represents type of regulator MARK P ②③ represents output voltage MARK VOLTAGE (V) ② ③ 3 3 3.3 5 0 5 ④ represents detect voltage accuracy MARK 1 2 DETECT VOLTAGE ACCURACY Within±1% Within±2% PRODUCT SERIES XC6206P**1** XC6206P**2** PRODUCT SERIES XC6206P***** PRODUCT SERIES XC6206P33*** XC6206P50*** TO-92 (L Type) (SIDE VIEW) TO-92 (T Type) (SIDE VIEW) ⑤ represents least significant digit of the production year MARK PRODUCTION YEAR 3 2003 4 2004 ⑥ represents production lot number 0 to 9, A to Z repeated. (G, I, J, O, Q, W excluded) *No character inversion used. 16/17 XC6206 Series 1. The products and product specifications contained herein are subject to change without notice to improve performance characteristics. Consult us, or our representatives before use, to confirm that the information in this datasheet is up to date. 2. We assume no responsibility for any infringement of patents, patent rights, or other rights arising from the use of any information and circuitry in this datasheet. 3. Please ensure suitable shipping controls (including fail-safe designs and aging protection) are in force for equipment employing products listed in this datasheet. 4. The products in this datasheet are not developed, designed, or approved for use with such equipment whose failure of malfunction can be reasonably expected to directly endanger the life of, or cause significant injury to, the user. (e.g. Atomic energy; aerospace; transport; combustion and associated safety equipment thereof.) 5. Please use the products listed in this datasheet within the specified ranges. Should you wish to use the products under conditions exceeding the specifications, please consult us or our representatives. 6. We assume no responsibility for damage or loss due to abnormal use. 7. All rights reserved. No part of this datasheet may be copied or reproduced without the prior permission of TOREX SEMICONDUCTOR LTD. 17/17
