◆CMOS Low Power Consumption ◆Dropout Voltage : 160mV @ 100mA : 400mV @ 200mA ◆Output Current : More Than 250mA (5.0V type) ◆Highly Accurate : +2% ◆Output Voltage Range : 1.2V ~ 5.0V ◆Low ESR Capacitor Compatible
■APPLICATIONS
●Battery powered equipment ●Reference voltage sources ●Cameras, video cameras ●Portable AV systems ●Mobile phones ●Portable games
■GENERAL DESCRIPTION
The XC6206 series are highly precise, low power consumption, high voltage, positive voltage regulators manufactured technologies. using CMOS and laser trimming The series provides large currents with a
■FEATURES
Maximum Output Current Dropout Voltage Maximum Operating Voltage Output Voltage Range Highly Accurate : 250mA (5.0V type) : 160mV @ IOUT=100mA (5.0V type) : 6.0V : 1.2V ~ 5.0V (100mV steps) : +2% (+30mV@VOUT2.0V) Low Power Consumption Operational Temperature Range Ultra Small Package Low ESR Capacitor : 1.0µA (TYP.) : -40OC ~ 85 OC : SOT-23, SOT-89, TO-92 USP-6B : Ceramic capacitor compatible
significantly small dropout voltage. The XC6206 consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error correction circuit. The series is compatible with low ESR ceramic capacitors. The currrent limiter's foldback circuit also operates as a short protect for the output current limiter and the output pin. Output voltage can be set internally by laser trimming technologies. It is selectable in 100mV increments within a range of 1.2V to 5.0V. SOT-23, SOT-89, TO-92 and USP-6B packages are available.
■TYPICAL APPLICATION CIRCUIT
■TYPICAL PERFORMANCE CHARACTERISTICS
XC6206 ETR0305_001.doc
279
XC6206 Series
■PIN CONFIGURATION
*The dissipation pad for the USP-6B package should be solder-plated in recommended mount pattern and metal masking so as to enhance mounting strength and heat release. If the pad needs to be connected to other pins, it should be connected to the VIN pin.
(TOP VIEW)
■PIN ASSIGNMENT
SOT-23 1 3 2 PIN NUMBER SOT-89/TO-92 (T) USP-6B 1 2 2 4 3 6 1, 3, 5 TO-92 (L) 2 1 3 PIN NAME VSS VIN VOUT NC FUNCTIONS Ground Power Input Output No Connection
■PRODUCT CLASSIFICATION
●Ordering Information XC6206P ①②③④⑤ DESIGNATOR ①② ③ DESCRIPTION Output Voltage Accuracy SYMBOL 12~50 2 1* M P D T L R L H B DESCRIPTION : e.g. VOUT: 3.0V→①= 3, ② = 0 : Within + 2% (within +30mV when VOUT 2.0V.
280
XC6206
Series
■PACKAGING INFORMATION

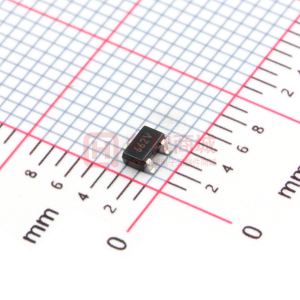

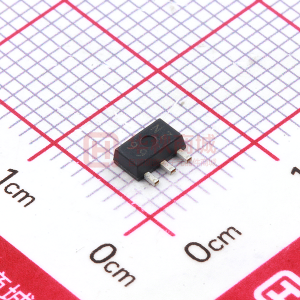

●SOT-23 ●SOT-89
●USP-6B
●TO-92
281
XC6206 Series
■MARKING RULE
●SOT-23 & SOT-89 ① Represents product series MARK 6
③④
3
① ②
PRODUCT SERIES XC6206Pxxxxx
1
SOT-23 (TOP VIEW)
2
② Represents three pins regulator MARK VOLTAGE: VOLTAGE: 0.1 ~ 3.0V 3.1 ~ 6.0V 5 6
PRODUCT SERIES XC6206Pxxxxx
③ Represents output voltage MARK OUTPUT VOLTAGE (V) 0 1 2 3 4 5 6 7 8 9 A B C D E 1.2 1.3 1.4 1.5 3.1 3.2 3.3 3.4 3.5 3.6 3.7 3.8 3.9 4.0 4.1 4.2 4.3 4.4 4.5 ② ④
MARK F H K L M N P R S T U V X Y Z
OUTPUT VOLTAGE (V) 1.6 1.7 1.8 1.9 2.0 2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9 3.0 4.6 4.7 4.8 4.9 5.0 -
①
1
2
SOT-89 (TOP VIEW)
③
3
④ Represents production lot number 0 to 9, A to Z, reversed character of 0 to 9 and A to Z repeated. (G, I, J, O, Q, W excepted) ●USP-6B ①② Represents product series MARK ① ② 0 ③ Represents three pins regulator MARK P 6 PRODUCT SERIES XC6206PxxxDx
USP-6B (TOP VIEW)
TYPE Three pins regulator
PRODUCT SERIES XC6206PxxxDx
④⑤ Represents output voltage MARK OUTPUT VOLTAGE (V) ① ② 3 5 3 0 3.3 5.0
PRODUCT SERIES XC6206P33xDx XC6206P50xDx
⑥ Represents production lot number 0 to 9, A to Z reversed (G, I, J, O, Q, W excepted) * No character inversion used.
282
XC6206
Series
■MARKING RULE (Continued)
●TO-92
① Represents type of regulator MARK P ②③ Represents output voltage MARK ② 3 5 ③ 3 0 VOLTAGE (V) 3.3 3.3 PRODUCT NAME XC6206P33xxx XC6206P50xxx PRODUCT NAME XC6206Pxxxxx
④ Represents output voltage accuracy
TO-92 (L TYPE) (TOP VIEW) TO-92 (T TYPE) (TOP VIEW)
MARK 1 2
OUTPUT VOLTAGE ACCURACY within ±1% within ±2%
PRODUCT NAME XC6206Pxx1xx XC6206Pxx2xx
⑤ Represents least significant digit of production year MARK PRODUCTION YEAR 3 2003 4 2004 ⑥ Represents production lot number 0 to 9, A to Z repeated (G, I, J, O, Q, W excepted) Note: No character inversion used.
■BLOCK DIAGRAM
283
XC6206 Series
■ABSOLUTE MAXIMUM RATINGS
Ta=25OC PARAMETER Input Voltage Output Current Output Voltage SOT-23 Power Dissipation SOT-89 USP-6B TO-92 Operating Temperature Range Storage Temperature Range * IOUT=Pd / (VIN-VOUT) Topr Tstg Pd SYMBOL VIN IOUT VOUT RATINGS 7.0 500 * VSS – 0.3 ~ VIN + 0.3 250 500 100 300 - 40 ~ + 85 - 55 ~ + 125
O O
UNITS V mA V
mW
C C
■ELECTRICAL CHARACTERISTICS
●XC6206 series PARAMETER Output Voltage (*7) Maximum Output Current Load Regulation Dropout Voltage Supply Current Line Regulation Input Voltage Output Voltage Temperature Characteristics Short Circuit Current SYMBOL VOUT(E) IOUTMAX △VOUT Vdif1 Vdif2 IDD △VOUT △VIN・VOUT VIN △VOUT △Topr・ VOUT Ishort IOUT=30mA -40 OC≦Topr≦85 OC VIN=VOUT+1.5V, VOUT=VSS VOUT(T)>1.8V, 1mA≦IOUT≦100mA VOUT(T)1.8V: IOUT=100mA VOUT(T)1.5V, accuracy is +2%. When VOUT(T)2.0V
284
XC6206
Series
■ELECTRICAL CHARACTERISTICS (Continued)
Electrical Characteristics Chart E-1
PARAMETER
E-2 1% ACCURACY VOUT(E) (V) MIN. MAX. MAX. OUTPUT CURRENT IOUTMAX (mA) MIN. 60
E-3 LOAD REGULATION VOUT MAX. 40
E-4 DROPOUT VOLTAGE 1 Vdif1 TYP. 460 400 350 300 250 200 150 MAX. 760 650 590 510 450 410 390
E-5 DROPOUT VOLTAGE 2 Vdif2 TYP. 700 580 450 MAX. 960 860 810
E-6 SHORT CURRENT Ishort TYP. 180
OUTPUT VOLTAGE 2% ACCURACY VOUT(E) (V) MIN. 1.170 1.270 1.370 1.470 1.568 1.666 1.764 1.862 1.960 2.058 2.156 2.254 2.352 2.450 2.548 2.646 2.744 2.842 2.940 3.038 3.136 3.234 3.332 3.430 3.528 3.626 3.724 3.822 3.920 4.018 4.116 4.214 4.312 4.410 4.508 4.606 4.704 4.802 4.900 MAX. 1.230 1.330 1.430 1.530 1.632 1.734 1.836 1.938 2.040 2.042 2.244 2.346 2.448 2.550 2.652 2.754 2.856 2.958 3.060 3.162 3.264 3.366 3.468 3.570 3.672 3.774 3.876 3.978 4.080 4.182 4.284 4.386 4.488 4.590 4.692 4.794 4.896 4.998 5.100
SETTING VOLTAGE
VOUT(T) 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2.0 2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9 3.0 3.1 3.2 3.3 3.4 3.5 3.6 3.7 3.8 3.9 4.0 4.1 4.2 4.3 4.4 4.5 4.6 4.7 4.8 4.9 5.0
155
80
45
780 1.980 2.079 2.178 2.277 2.376 2.475 2.574 2.673 2.772 2.871 2.970 3.069 3.168 3.267 3.366 3.465 3.564 3.663 3.762 3.861 3.960 4.059 4.158 4.257 4.356 4.455 4.554 4.653 4.752 4.851 4.950 2.020 2.121 2.222 2.323 2.424 2.525 2.626 2.727 2.828 2.929 3.030 3.131 3.232 3.333 3.434 3.535 3.636 3.737 3.838 3.939 4.040 4.141 4.242 4.343 4.444 4.545 4.646 4.747 4.848 4.949 5.050 130 120 50 100 370 350 710 150 55
60
200
75
350
250
680 100
65
70
250 75
60
320
200
630
80
50
290
175
600
285
XC6206 Series
■TEST CIRCUITS
Circuit ①
Circuit ②
286
XC6206
Series
■TYPICAL PERFORMANCE CHARACTERISTICS
(1) Output Voltage vs. Output Current
(2) Current Limit
287
XC6206 Series
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
(3) Output Voltage vs. Input Voltage
(4) Dropout Voltage vs. Output Current
288
XC6206
Series
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
(5) Supply Current vs. Input Voltage
(6) Output Voltage vs. Ambient Temperature
289
XC6206 Series
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
(7) Output Voltage vs. Ambient Temperature
(8) Input Transient Response 1
Time(0.4msec/div)
Time(0.4msec/div)
Time(0.4msec/div)
290
XC6206
Series
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
(9) Input Transient Response 2
(10) Load Transient Response
291
XC6206 Series
■TYPICAL PERFORMANCE CHARACTERISTICS (Continued)
(11) Ripple Rejection Rate
292
