Getting started
YOU NEED
-

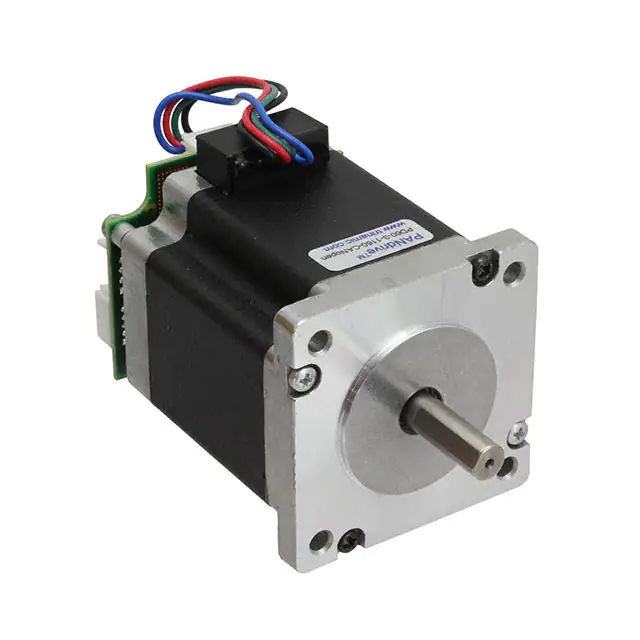

PD-1160
Serial interface: RS485, CAN, or USB
If you choose RS485 or CAN: interface
converter suitable to your module
Supply voltage: +24 V DC or +48 V DC
(9… 51 V DC)
TMCL-IDE program and PC
Cables for interface and power

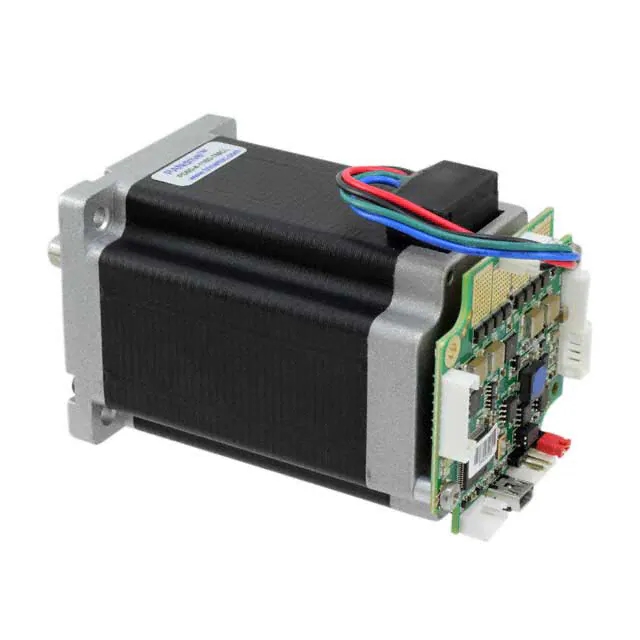

PD-1160
PRECAUTIONS
-
Do not mix up connections or short-circuit pins.
Avoid bounding I/O wires with motor power
wires.
Do not exceed the maximum power supply of
+51 V DC!
Do not connect or disconnect the motor while
powered!
START WITH POWER SUPPLY OFF!
STARTING UP
4.
5.
USB
Serial USB
interface
Converter
Converter
e.g. USB-2-485
e.g. USB-2-X
CAN
Pin 2 CAN_L
Pin 1 CAN_H
Pin 3 GND
1
1
ROL 0, 500
//Rotate motor 0 with speed 500
WAIT TICKS, 0, 500
MST 0
ROR 0, 250
//Rotate motor 0 with speed 250
WAIT TICKS, 0, 500
MST 0
6.
7.
USB
S/D
In/Out
POWER SUPPLY
Pin 1 VDriver
Pin 2 VLogic
Pin 1 Shutdown
Pin 4 GND
Interface
Encoder
RS485
Pin 5 RS485Pin 4 RS485+
Pin 3 GND
1
1
RS485
Power
2.
3.
Choose your interface.
USB: connect USB interface to PC.
Download and install the file TMCM1160.inf
(www.trinamic.com)
after
connecting the power supply.
RS485 or CAN: use the interface
connector and connect an interface
converter.
Connect the chosen interface to PC.
Connect the power supply.
Turn power ON. The green LED starts
flashing slowly and the motor is
powered but in standstill now. If this
does not occur, turn power OFF and
check your connections and power
supply!
Start the TMCM-IDE program.
See next page how to configure the
connection and to use the IDE.
Type in the open window:
CA
N
1.
1
Motor
1
QSH5718
QSH6018
Click the Assemble icon. Thereafter click the Download icon to download the code to the module.
Click the Run icon. The program will now be executed.
Click the Stop icon and start TMCL™ Direct Mode to issue the following commands:
ROR rotate right, motor 0, value 500 -> click Execute / The motor is rotating now.
MST motor stop, motor 0 -> click Execute / The motor stops now.
FIRST STEPS ARE MADE.
Please refer to the PD-1160 Hardware and Firmware Manuals, too.
TRINAMIC Motion Control GmbH & Co. KG
Hamburg, Germany
www.trinamic.com
Getting started
PD-1160
TMCL-IDE
The TMCL-IDE is available on www.trinamic.com.
1.
2.
3.
4.
Make sure the COM port you intend to
use is not blocked by another program.
Open TMCL-IDE by clicking TMCL.exe.
Choose Setup and Options and
thereafter the Connection tab.
6.
Click Assemble first, then Download and
Run to start the program.
Download Dissemble Run Stop Continue
Assemble
7.
Stop all running programs by clicking
Stop and start Direct Mode by clicking the
appropriate icon.
8.
The PD-1160 is automatically detected, if
the communication is established.
Issue a command by choosing Instruction,
Type, Motor, and Value and click Execute
to send it to the module.
Choose COM port and Type. Click OK.
9.
TROUBLESHOOTING
IF COMMUNICATION IS NOT ESTABLISHED
-
5.
Write a program code into the editor
window and save it with File/Save.
Note, that TMCL programs run
standalone on the module, too.
-
Check if the green LED lights up. If not, check
your power supply.
Try to start Direct Mode and check, if the
module is detected automatically.
Check, if you are using the right COM port and
it is not blocked by another program.
Check, if the file TMCM-1160.inf is installed
correctly.
Check your connection settings. Default: 9600
baud, address 1.
Check if the RS485 or CAN converter functions.
IF MOTOR DOES NOT RESPOND
-
-
TRINAMIC Motion Control GmbH & Co. KG
Hamburg, Germany
www.trinamic.com
Usually the communication is not established
(see above).
Check the motor connection.
If you are using a TMCL program try a
movement command in Direct Mode to check
if there is a problem with it.
Restore factory settings by using instruction
137 for cancelling all settings modified by the
user.
