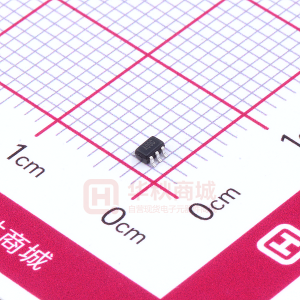

U74AHC1G00

UNISONIC TECHNOLOGIES CO., LTD U74AHC1G00 2-INPUT NAND GATE 3 2 1 CMOS IC DESCRIPTION The U74AHC1G00 is a 2-input NAND gate which provides the Function Y=A*B . 3 2 1 4 5 SOT-25 FEATURES * Operation Voltage Range: 2~5.5V * Low Power Dissipation: ICC=1.0µA(Max) * High Speed: tpd=4.3ns(Typ) 4 5 SOT-353 *Pb-free plating product number: U74AHC1G00L ORDERING INFORMATION Order Number Normal Lead Free Plating U74AHC1G00-AF5-R U74AHC1G00L-AF5-R U74AHC1G00-AL5-R U74AHC1G00L-AL5-R Package SOT-25 SOT-353 Packing Tape Reel Tape Reel U74AHC1G00L-AF5-R (1)Packing Type (2)Package Type (3)Lead Plating (1) R: Tape Reel (2) AF5: SOT-25, AL5: SOT-353 (3) L: Lead Free Plating, Blank: Pb/Sn MARKING 3 2 A 00 4 5 1 Lead Plating www.unisonic.com.tw Copyright © 2005 Unisonic Technologies Co., Ltd 1 of 5 QW-R502-069,A U74AHC1G00 PIN CONFIGURATION GND 3 B 2 A 1 CMOS IC 4 Y 5 VCC FUNCTION TABLE (each gate) INPUT A L L H H B L H L H OUTPUT Y H H H L LOGIC DIAGRAM (positive logic) 1 4 2 Y 1 2 & 4 Y A B A B UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 2 of 5 QW-R502-069,A U74AHC1G00 ABSOLUTE MAXIMUM RATING (unless otherwise specified)(Note 1) CMOS IC PARAMETER SYMBOL RATINGS UNIT Supply Voltage VCC -0.5~7 V Input Voltage VIN -0.5~7 V Output Voltage VOUT -0.5~VCC+0.5 V Input Clamp Current IIK -20 mA Output Clamp Current IOK ±20 mA Output Current IOUT ±25 mA VCC or GND Current ICC ±50 mA Storage Temperature TSTG -65 ~ +150 ℃ Note 1. The input and output voltage ratings may be exceeded if the input and output current ratings are observed. 2. Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied. RECOMMENDED OPERATING COMDITIONS PARAMETER Supply Voltage Input Voltage Output Voltage High-Level Output Current SYMBOL VCC VIN VOUT IOH CONDITIONS MIN 2 0 0 TYP MAX 5.5 5.5 VCC -50 -4 -8 50 4 8 100 -40 TA=25℃ TYP MAX 20 85 -40~85℃ MIN MAX 1.5 2.1 3.85 0.5 0.9 1.65 1.9 2.9 4.4 2.48 3.8 0.1 0.1 0.1 0.44 0.44 ±1 10 10 UNIT V V V µA mA mA µA mA mA ns/V ℃ VCC=2V VCC=3.3±0.3V VCC=5±0.3V VCC=2V Low-Level Output Current IOL VCC=3.3±0.3V VCC=5±0.5V Input Rise and Fall Times Operating Temperature dt/dv TA VCC=3.3+0.3V VCC=5.0+0.5V STATIC CHARACTERISTICS PARAMETER High-Level Input Voltage SYMBOL VIH TEST CONDITIONS VCC=2.0V VCC=3.0V VCC=5.5V VCC=2.0V VCC=3.0V VCC=5.5V VCC=2.0V, IOH=-50µA VCC=3.0V, IOH=-50µA VCC=4.5V, IOH=-50µA VCC=3.0V, IOH=-4mA VCC=4.5V, IOH=-8mA VCC=2.0V, IOL=50µA VCC=3.0V, IOL=50µA VCC=4.5V, IOL=50µA VCC=3.0V, IOL=4mA VCC=4.5V, IOL=8mA VCC=0~5.5V, VIN=VCC or GND VCC=5.5V, VIN=VCC or GND, IOUT=0 VCC=5V, VIN=VCC or GND MIN 1.5 2.1 3.85 UNIT V Low-Level Input Voltage VIL 0.5 0.9 1.65 1.9 2.9 4.4 2.58 3.94 2.0 3.0 4.5 V High-Level Output Voltage VOH V Low-Level Output Voltage VOL Input Leakage Current Quiescent Supply Current Input Capacitance II(LEAK) ICC CIN 0.1 0.1 0.1 0.36 0.36 ±0.1 1 4 10 V µA µA pF UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 3 of 5 QW-R502-069,A U74AHC1G00 DYNAMIC CHARACTERISTICS (Input: tR, tF≤3ns; PRR≤1MHz) PARAMETER Propagation Delay Time Input (A or B) to Output(Y) SYMBOL tPLH tPHL tPLH tPHL tPLH tPHL tPLH tPHL TEST CONDITIONS VCC=3.3±0.3, CL=15pF VCC=3.3±0.3, CL=50pF VCC=5±0.5, CL=15pF VCC=5±0.5, CL=50pF MIN TA=25℃ TYP 5.5 5.5 8 8 3.7 3.7 5.2 5.2 MAX 7.9 7.9 11.4 11.4 5.5 5.5 7.5 7.5 CMOS IC Propagation Delay Time Input (A or B) to Output(Y) -40~85℃ MIN MAX 1 9.5 1 9.5 1 13 1 13 1 6.5 1 6.5 1 8.5 1 8.5 UNIT ns ns OPERATING CHARACTERISTICS PARAMETER Power Dissipation Capacitance SYMBOL TEST CONDITIONS Cpd No load, f=1MHz, VCC=5 MIN TYP 9.5 MAX UNIT pF UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 4 of 5 QW-R502-069,A U74AHC1G00 TEST CIRCUIT AND WAVEFORMS CMOS IC Output C L (Note) Note: CL includes probe and jig capacitance. VCC 1/2 * VCC Input tPLH 1/2 * VCC tPHL GND VOH 1/2 * VCC Output 1/2 * VCC VOL UTC assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specifications of any and all UTC products described or contained herein. UTC products are not designed for use in life support appliances, devices or systems where malfunction of these products can be reasonably expected to result in personal injury. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 5 of 5 QW-R502-069,A
