10BQ015

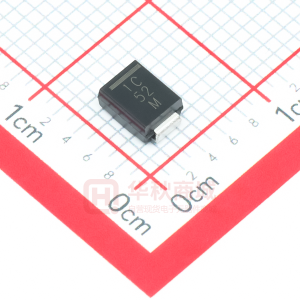

10BQ015PbF Vishay High Power Products Schottky Rectifier, 1.0 A FEATURES • 125 °C TJ operation (VR < 5 V) • Optimized for OR-ing applications • Ultralow forward voltage drop • High frequency operation Cathode Anode SMB • Guard ring for enhanced ruggedness and long term reliability • High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance • Lead (Pb)-free (“PbF” suffix) • Designed and qualified for industrial level PRODUCT SUMMARY IF(AV) VR 1.0 A 15 V DESCRIPTION The 10BQ015PbF surface mount Schottky rectifier has been designed for applications requiring low forward drop and very small foot prints on PC boards. The proprietary barrier technology allows for reliable operation up to 125 °C junction temperature. Typical applications are in disk drives, switching power supplies, converters, freewheeling diodes, battery charging, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL IF(AV) VRRM IFSM VF TJ tp = 5 µs sine 1.0 Apk, TJ = 125 °C Range CHARACTERISTICS Rectangular waveform VALUES 1.0 15 140 0.32 - 55 to 125 UNITS A V A V °C VOLTAGE RATINGS PARAMETER Maximum DC reverse voltage Maximum working peak reverse voltage SYMBOL VR VRWM 10BQ015PbF 15 25 UNITS V ABSOLUTE MAXIMUM RATINGS PARAMETER Maximum average forward current See fig. 5 Maximum peak one cycle non-repetitive surge current See fig. 7 Non-repetitive avalanche energy Repetitive avalanche current SYMBOL IF(AV) TEST CONDITIONS 50 % duty cycle at TL = 84 °C, rectangular waveform 5 µs sine or 3 µs rect. pulse IFSM 10 ms sine or 6 ms rect. pulse EAS IAR TJ = 25 °C, IAS = 1 A, L = 2 mH Current decaying linearly to zero in 1 µs Frequency limited by TJ maximum VA = 1.5 x VR typical Following any rated load condition and with rated VRRM applied VALUES 1.0 140 A 40 1.0 1.0 mJ A UNITS A * Pb containing terminations are not RoHS compliant, exemptions may apply Document Number: 94110 Revision: 04-Nov-08 For technical questions, contact: diodes-tech@vishay.com www.vishay.com 1 10BQ015PbF Vishay High Power Products Schottky Rectifier, 1.0 A ELECTRICAL SPECIFICATIONS PARAMETER SYMBOL 1A Maximum forward voltage drop See fig. 1 VFM (1) 2A 1A 2A Maximum reverse leakage current See fig. 2 Threshold voltage Forward slope resistance Typical junction capacitance Typical series inductance Maximum voltage rate of change Note (1) Pulse width < 300 µs, duty cycle < 2 % IRM (1) VF(TO) rt CT LS dV/dt TJ = 25 °C TJ = 100 °C TJ = TJ maximum VR = 5 VDC, (test signal range 100 kHz to 1 MHz) 25 °C Measured lead to lead 5 mm from package body Rated VR TEST CONDITIONS TJ = 25 °C VALUES 0.35 0.44 0.32 0.40 0.5 12 390 2.0 10 000 mA V mΩ pF nH V/µs V UNITS TJ = 125 °C VR = Rated VR THERMAL - MECHANICAL SPECIFICATIONS PARAMETER Maximum junction temperature range Maximum storage temperature range Maximum thermal resistance, junction to lead Maximum thermal resistance, junction to ambient Approximate weight Marking device Notes (1) SYMBOL TJ (1) TStg RthJL (2) RthJA DC operation See fig. 4 DC operation TEST CONDITIONS VALUES - 55 to 125 - 55 to 150 36 UNITS °C °C/W 80 0.10 0.003 g oz. V1C Case style SMB (similar to DO-214AA) dP tot 1 ------------ < ------------- thermal runaway condition for a diode on its own heatsink dT J R thJA Mounted 1" square PCB (2) www.vishay.com 2 For technical questions, contact: diodes-tech@vishay.com Document Number: 94110 Revision: 04-Nov-08 10BQ015PbF Schottky Rectifier, 1.0 A Vishay High Power Products 10 10 IF - Instantaneous Forward Current (A) IR - Reverse Current (mA) TJ = 100 °C 1 TJ = 75 °C 1 TJ = 100 °C TJ = 75 °C TJ = 25 °C TJ = 50 °C 0.1 TJ = 25 °C 0.1 0 0.2 0.4 0.6 0.8 1.0 0.01 0 3 6 9 12 15 VFM - Forward Voltage Drop (V) Fig. 1 - Maximum Forward Voltage Drop Characteristics VR - Reverse Voltage (V) Fig. 2 - Typical Values of Reverse Current vs. Reverse Voltage 1000 CT - Junction Capacitance (pF) TJ = 25 °C 100 10 0 3 6 9 12 15 VR - Reverse Voltage (V) Fig. 3 - Typical Junction Capacitance vs. Reverse Voltage ZthJC - Thermal Impedance (°C/W) 100 10 D = 0.75 D = 0.50 D = 0.33 D = 0.25 D = 0.20 PDM t1 t2 1 Single pulse (thermal resistance) 0.1 0.00001 Notes: 1. Duty factor D = t1/t2 . 2. Peak TJ = PDM x ZthJC + TC 1 10 . 100 0.0001 0.001 0.01 0.1 t1 - Rectangular Pulse Duration (s) Fig. 4 - Maximum Thermal Impedance ZthJC Characteristics (Per Leg) Document Number: 94110 Revision: 04-Nov-08 For technical questions, contact: diodes-tech@vishay.com www.vishay.com 3 10BQ015PbF Vishay High Power Products Schottky Rectifier, 1.0 A 100 0.5 Allowable Case Temperature (°C) Average Power Loss (W) 0.4 80 Square wave (D = 0.50) 80 % rated VR applied 60 DC D = 0.20 D = 0.25 D = 0.33 D = 0.50 D = 0.75 RMS limit 0.3 0.2 DC 0.1 See note (1) 40 0 0.3 0.6 0.9 1.2 1.5 0 0 0.3 0.6 0.9 1.2 1.5 IF(AV) - Average Forward Current (A) Fig. 5 - Maximum Allowable Case Temperature vs. Average Forward Current IF(AV) - Average Forward Current (A) Fig. 6 - Forward Power Loss Characteristics IFSM - Non-Repetitive Surge Current (A) 1000 At any rated load condition and with rated VRRM applied following surge 100 10 10 100 1000 10 000 tp - Square Wave Pulse Duration (µs) Fig. 7 - Maximum Non-Repetitive Surge Current (1) Note Formula used: TC = TJ - (Pd + PdREV) x RthJC; Pd = Forward power loss = IF(AV) x VFM at (IF(AV)/D) (see fig. 6); PdREV = Inverse power loss = VR1 x IR (1 - D); IR at VR1 = 80 % rated VR www.vishay.com 4 For technical questions, contact: diodes-tech@vishay.com Document Number: 94110 Revision: 04-Nov-08 10BQ015PbF Schottky Rectifier, 1.0 A Vishay High Power Products ORDERING INFORMATION TABLE Device code 10 1 1 2 3 4 5 6 - B 2 Q 3 015 4 TR 5 PbF 6 Current rating B = Single lead diode Q = Schottky “Q” series Voltage rating (015 = 15 V) None = Box (1000 pieces) TR = Tape and reel (3000 pieces) None = Standard production PbF = Lead (Pb)-free LINKS TO RELATED DOCUMENTS Dimensions Part marking information Packaging information SPICE model http://www.vishay.com/doc?95017 http://www.vishay.com/doc?95029 http://www.vishay.com/doc?95034 http://www.vishay.com/doc?95355 Document Number: 94110 Revision: 04-Nov-08 For technical questions, contact: diodes-tech@vishay.com www.vishay.com 5 Legal Disclaimer Notice Vishay Disclaimer All product specifications and data are subject to change without notice. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained herein or in any other disclosure relating to any product. Vishay disclaims any and all liability arising out of the use or application of any product described herein or of any information provided herein to the maximum extent permitted by law. The product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein, which apply to these products. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications unless otherwise expressly indicated. Customers using or selling Vishay products not expressly indicated for use in such applications do so entirely at their own risk and agree to fully indemnify Vishay for any damages arising or resulting from such use or sale. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. Product names and markings noted herein may be trademarks of their respective owners. Document Number: 91000 Revision: 18-Jul-08 www.vishay.com 1
