BAV99WT
RoHS
COMPLIANT
Dual Switching Diode
Features
●Epoxy meets UL-94 V-0 flammability rating
●Moisure Sensitivity Level 1
●Fast switching speed
●High Conductance
●Surface mount package ideally Suited for Automatic
Insertion
Mechanical Data

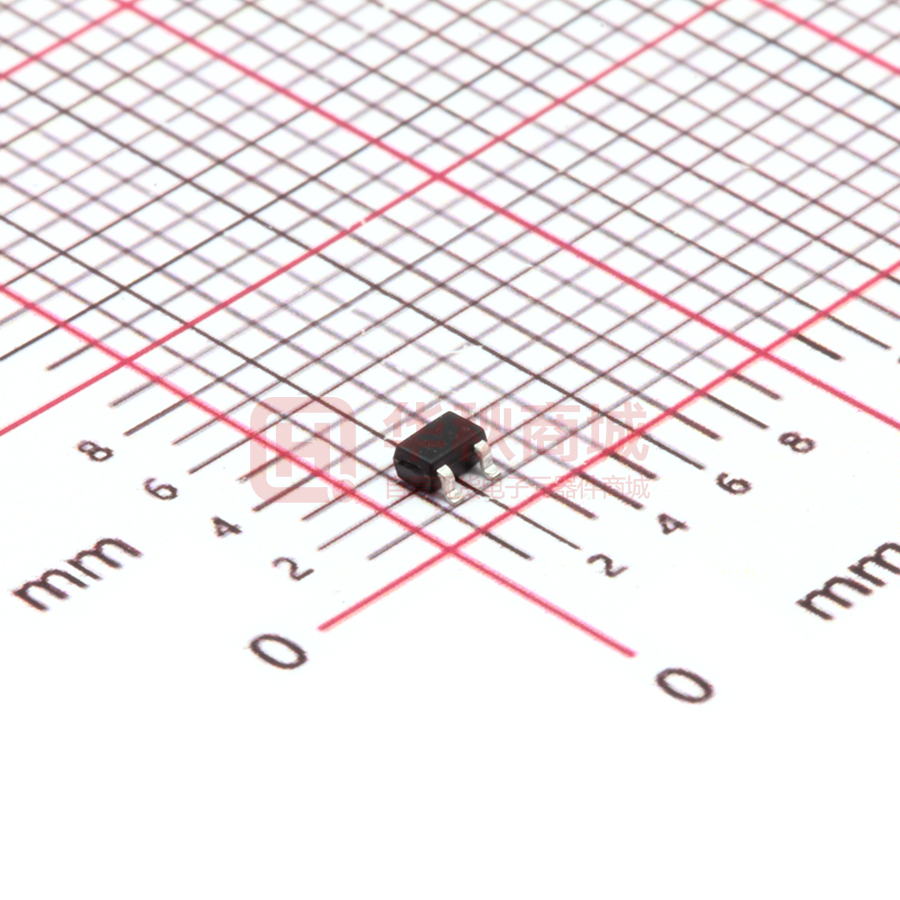

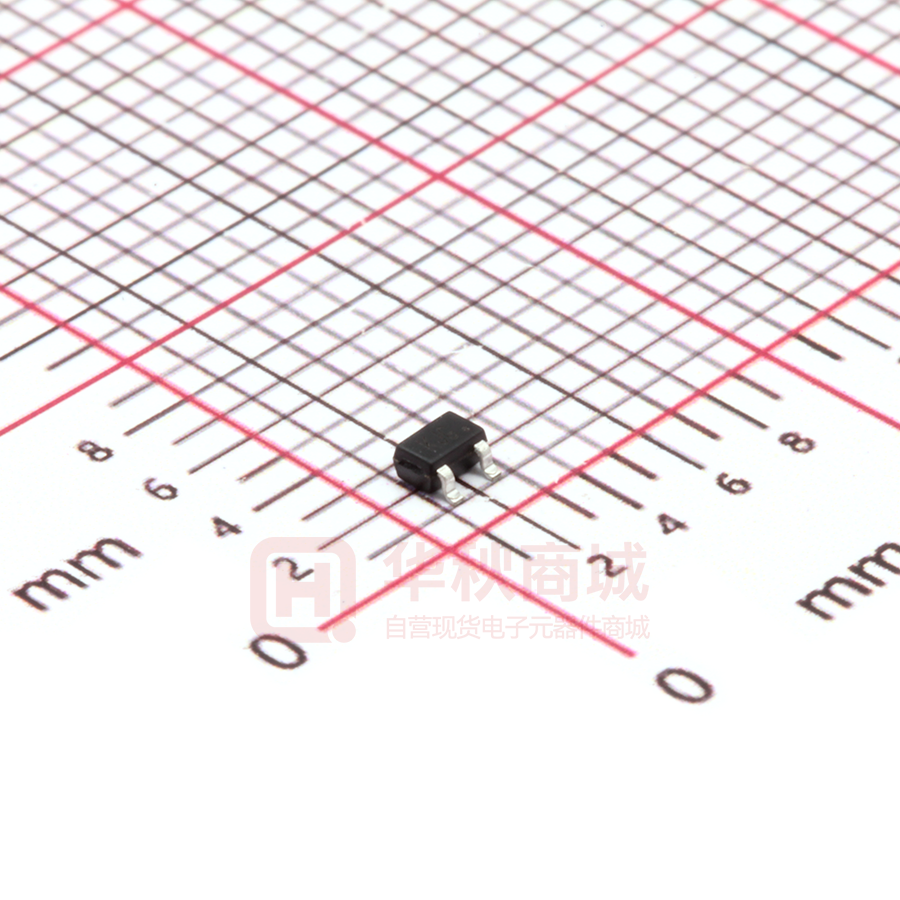

● Package: SOT-323
● Terminals: Tin plated leads, solderable per
J-STD-002 and JESD22-B102
● Marking: KJG
■Maximum Ratings (Ta=25℃ Unless otherwise specified)
Item
Symbol
Unit
Value
VRRM
V
100
Reverse Voltage
VR
V
75
Peak Forward Current
IFAV
mA
150
RθJA
℃/W
625
TJ
℃
-55 to +150
TSTG
℃
-55 to +150
Peak Reverse Voltage
Thermal Resistance from Junction to Ambient
Operation Junction Temperature
Storage Temperature
1/4
S-S1750
Rev.1.1,26-July-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
BAV99WT
■Electrical Characteristics (Ta=25℃ unless otherwise specified)
Item
Symbol
Reverse Voltage
Unit
VR
Maximum Instantaneous Forward Voltage
V
VF
Conditions
IR=100uA
Value
75
IF=1mA
0.715
IF=10mA
0.855
IF=50mA
1.0
IF=150mA
1.25
2.5
V
Maximum DC Reverse Current
IR
uA
VR=75V
Typical Junction Capacitance
CJ
pF
f=1.0MHz, VR=0V
2
Reverse Recovery Time
Trr
ns
IF=IR=10mA
Irr=0.1*IR, RL=100Ω
4
■ Ordering Information (Example)
Prefered P/N
Packing
Code
Unit Weight(G)
Minimum
Package(Pcs)
Inner Box
Quantity(Pcs)
Outer Carton
Quantity(Pcs)
Delivery Mode
BAV99WT
F2
Approximate 0.005
3000
30000
120000
7” reel
■ Characteristics (Typical)
2/4
S-S1750
Rev.1.1,26-July-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
BAV99WT
■ SOT-323 Package Outline Dimensions
■ SOT-323 Suggested Pad Layout
3/4
S-S1750
Rev.1.1,26-July-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
BAV99WT
Disclaimer
The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the
right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design
or otherwise.
The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with
equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as
medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety
devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use
of sale.
This publication supersedes & replaces all information previously supplied. For additional information, please visit our website
http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance.
