MMBTA05 THRU MMBTA06
RoHS
COMPLIANT
NPN General Purpose Amplifier transistors
Features
●Epoxy meets UL-94 V-0 flammability rating
●Halogen free available upon request by adding suffix ”HF”
●Moisture Sensitivity Level 1
●High Conductance
●Surface Mount Package Ideally Suited for Automatic
Insertion
Mechanical Data

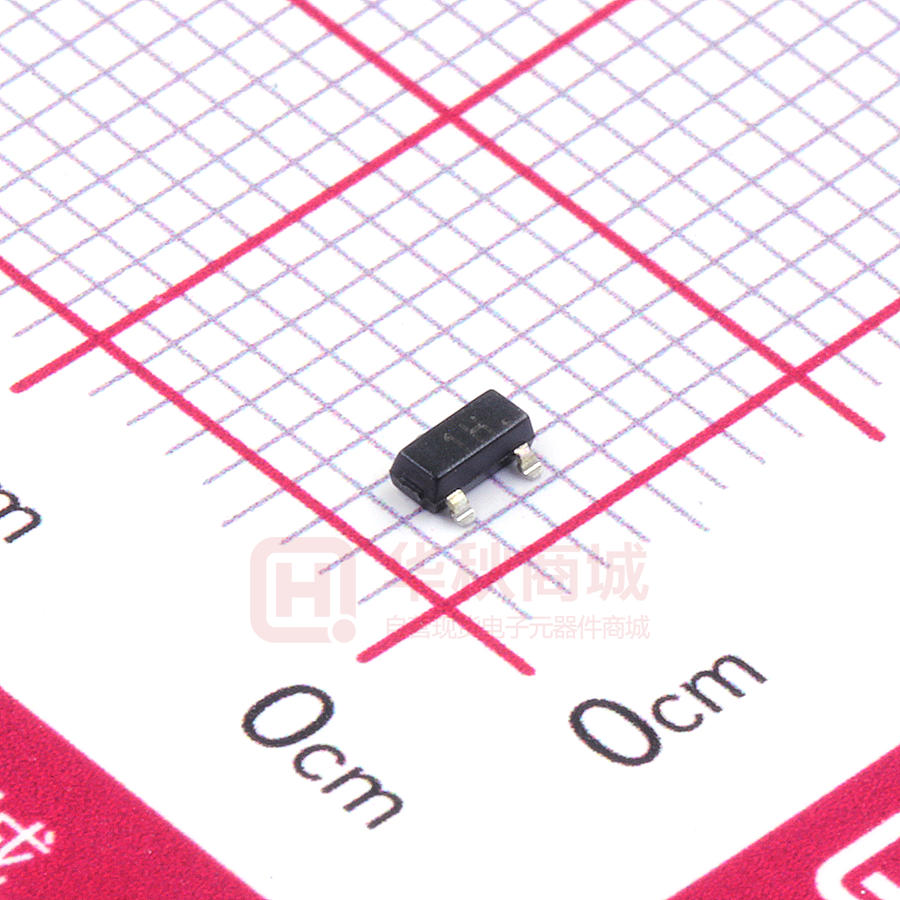

● Package: SOT-23
Molding compound meets UL 94 V-0 flammability rating,
RoHS-compliant, halogen-free
● Terminals: Tin plated leads, solderable per
J-STD-002 and JESD22-B102
● Marking:
MMBTA05
MMBTA06
1H
1GM
■Maximum Ratings (Ta=25℃ unless otherwise noted)
Item
Symbol
Rating
VCBO
MMBTA05
MMBTA06
VCEO
MMBTA05
MMBTA06
Unit
60
80
V
60
80
V
VEBO
4
V
Collector Current
IC
500
mA
Collector Power Dissipation
PC
300
mW
Operation Junction Temperature
Tj
-55 to +150
℃
Tstg
-55 to +150
℃
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Storage Temperature
1/5
S-S2110
Rev.1.1,10-Dec-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
RoHS
MMBTA05 THRU MMBTA06
COMPLIANT
■Electrical Characteristics(Ta=25℃ Unless otherwise specified)
Item
Symbol
Unit
Conditions
Min
IC=100μA,IE=0
MMBTA05
MMBTA06
IC =1mA,IB=0
MMBTA05
MMBTA06
Max
60
80
Collector-base breakdown voltage
VCBO
V
Collector-emitter breakdown voltage
VCEO
V
Emitter-base breakdown voltage
VEBO
V
IE=100μA,IC=0
Collector-base cut-off current
ICBO
nA
VCB=60V,IE=0
100
Collector-emitter cut-off current
ICEO
nA
VCE=60V,IB=0
100
Emitter-base cut-off current
IEBO
nA
VEB=3V,IC=0
100
60
80
4
hFE
VCE=1V,IC=10mA
100
hFE
VCE=1V,IC=100mA
100
400
DC current gain
Collector-emitter saturation voltage
VCE(sat)
V
IC=100mA,IB=10mA
0.25
Base-emitter saturation voltage
VBE(sat)*
V
IC=100mA,IB=10mA
1.2
■Other Characteristics(Ta=25℃ Unless otherwise specified)
Item
Symbol
Transition frequency
Ft
Unit
MHz
Conditions
Min
VCE=2V,IC=10mA,f=100MHz
Max
100
■Ordering Information (Example)
PREFERED P/N
PACKING
CODE
UNIT WEIGHT(g)
MINIMUM
PACKAGE(pcs)
INNER BOX
QUANTITY(pcs)
OUTER CARTON
QUANTITY(pcs)
DELIVERY MODE
MMBTA05
MMBTA06
F2
Approximate 0.008
3000
30000
120000
7” reel
2/5
S-S2110
Rev.1.1,10-Dec-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
MMBTA05 THRU MMBTA06
RoHS
COMPLIANT
■Characteristics(Typical)
3/5
S-S2110
Rev.1.1,10-Dec-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
MMBTA05 THRU MMBTA06
RoHS
COMPLIANT
■SOT-23 Package Outline Dimensions
■SOT-23 Soldering Footprint
4/5
S-S2110
Rev.1.1,10-Dec-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
MMBTA05 THRU MMBTA06
RoHS
COMPLIANT
Disclaimer
The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the
right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design
or otherwise.
The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with
equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as
medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety
devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use
of sale.
This publication supersedes & replaces all information previously supplied. For additional information, please visit our website
http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance.
5/5
S-S2110
Rev.1.1,10-Dec-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
