RoHS
COMPLIANT
RB520S-40
Schottky Barrier Diode
Features
● VR 40V
● IF 200mA
Typical Applications
● Low Forward Voltage Drop
Mechanical Data

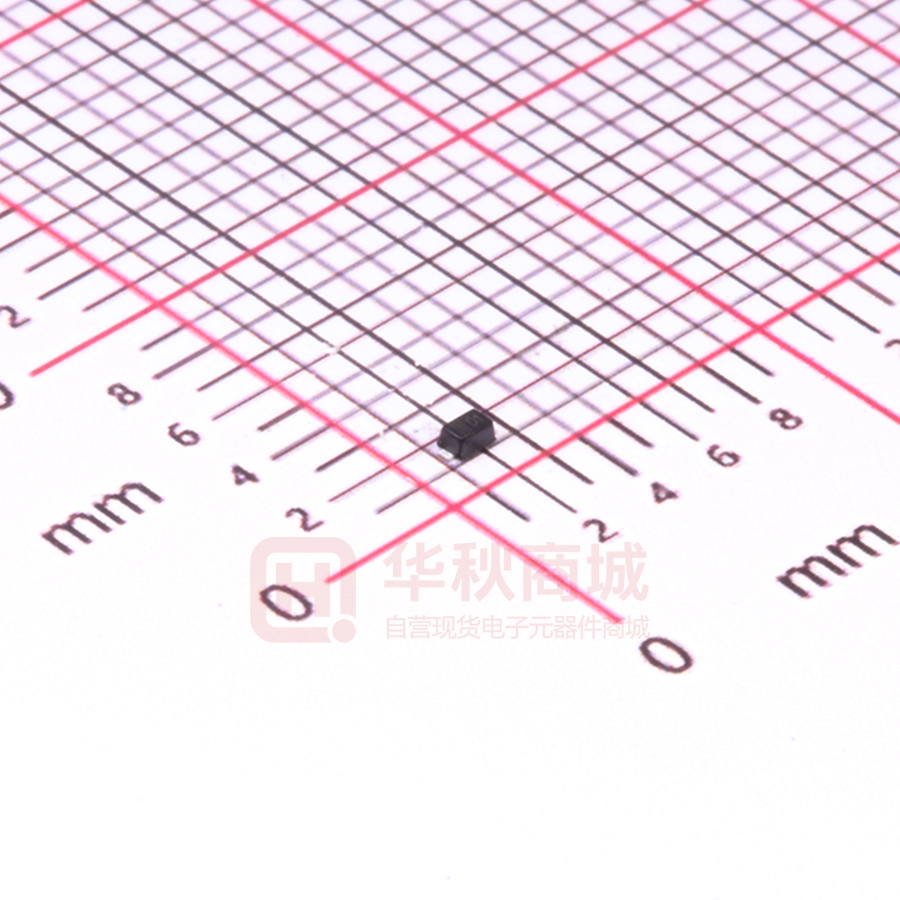

● Package: SOD-523
● Terminals: Tin plated leads, solderable per
J-STD-002 and JESD22-B102
● Polarity: Cathode line denotes the cathode end
● Marking: 3B
■Limiting Values (Absolute Maximum Rating)
Item
Limit
Max
Symbol
Unit
Conditions
Power Dissipation
PD
mW
150
Storage temperature range
Tstg
℃
-55 to +125
Junction Temperature
Tj
℃
125
Reverse Voltage
VR
V
40
Average Forward Current
IFAV
mA
200
Non-Repetitive Peak Forward Surge Current
IFSM
A
8.3ms single half sine-wave
1.0
■Electrical Characteristics(Ta=25℃ Unless otherwise specified)
Item
Symbol
Unit
Conditions
Min
40
Max
Breakdown Voltage
VR
V
IR= 10uA
Forward Voltage
VF
V
IF=100mA
0.55
Reverse Leakage Current
IR
uA
VR=10V
1
■Ordering Information (Example)
PREFERED P/N
PACKING
CODE
UNIT WEIGHT(g)
MINIMUM
PACKAGE(pcs)
INNER BOX
QUANTITY(pcs)
RB520S-40
F2
Approximate 0.0025
8000
80000
OUTER CARTON
DELIVERY MODE
QUANTITY(pcs)
320000
7” reel
1/4
S-S2660
Rev.1.4,30-Nov-20
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
RB520S-40
■Characteristics(Typical)
2/4
S-S2660
Rev.1.4,30-Nov-20
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
RB520S-40
■ SOD-523 Package Outline Dimensions
SOD-523
1.50(0.059)
1.70(0.067)
0.70(0.028)
0.90(0.035)
0.25(0.010)
0.35(0.014)
1.10(0.043)
1.30(0.051)
0.05(0.002)
0.20(0.008)
0.50(0.020)
0.70(0.028)
■ SOD-523 Soldering Footprint
Unit:mm
3/4
S-S2660
Rev.1.4,30-Nov-20
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
RB520S-40
Disclaimer
The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the
right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design
or otherwise.
The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with
equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as
medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety
devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use
of sale.
This publication supersedes & replaces all information previously supplied. For additional information, please visit our website
http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance.
4/4
S-S2660
Rev.1.4,30-Nov-20
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
