RoHS

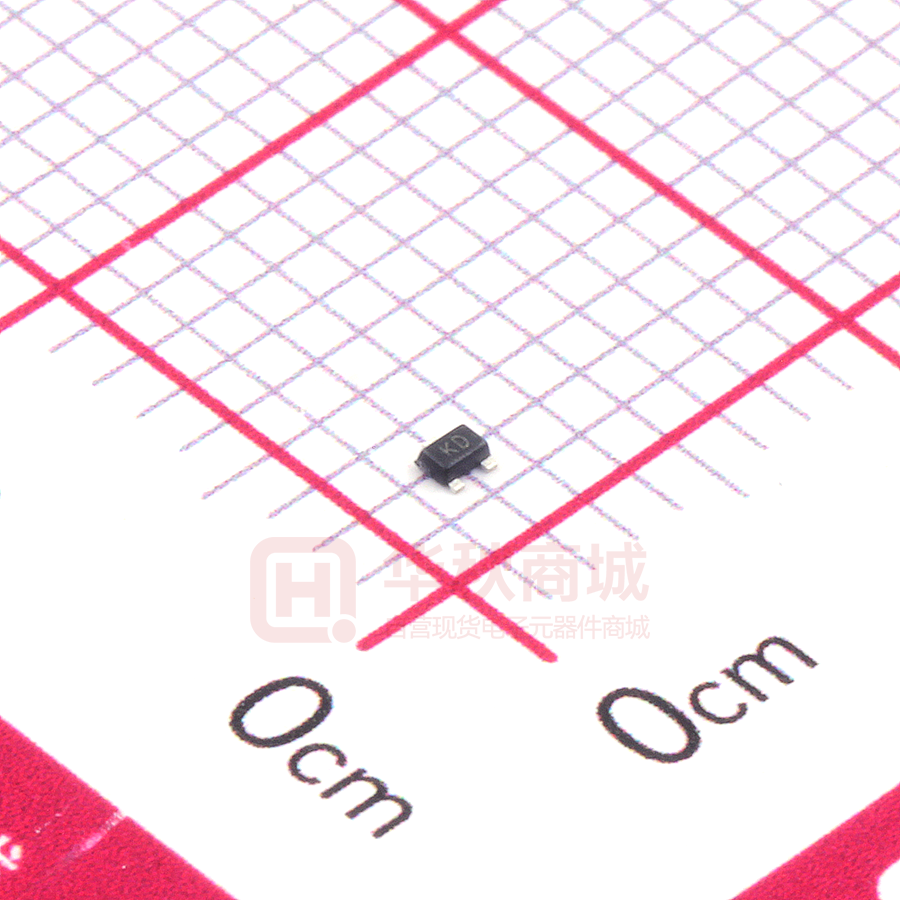

YJL3139KT
COMPLIANT
P-Channel Enhancement Mode Field Effect Transistor
Product Summary
● VDS
-20V
● ID
-0.65A
● RDS(ON)( at VGS=-4.5V)
<520 mohm
● RDS(ON)( at VGS=-2.5V)
<750 mohm
● ESD Protected Up to 4.5KV (HBM)
General Description
● Trench Power LV MOSFET technology
● High Density Cell Design for Low RDS(ON)
● High Speed switching
Applications
● Interfacing, Logic switch
● Load switch
● Power management
■ Absolute Maximum Ratings (TA=25℃unless otherwise noted)
Parameter
Symbol
Maximum
Drain-source Voltage
VDS
-20
V
Gate-source Voltage
VGS
±12
V
Drain Current
TA=25℃ Steady State
-0.65
ID
TA=70℃ Steady State
Unit
A
-0.52
Pulsed Drain Current A
IDM
-2.6
A
Total Power Dissipation @ TA=25℃ Steady State
PD
0.18
W
RθJA
694
℃/ W
TJ ,TSTG
-55~+150
℃
Thermal Resistance Junction-to-Ambient @ Steady State B
Junction and Storage Temperature Range
■ Ordering Information (Example)
PREFERED P/N
PACKING
CODE
Marking
MINIMUM
PACKAGE(pcs)
INNER BOX
QUANTITY(pcs)
OUTER CARTON
QUANTITY(pcs)
DELIVERY MODE
YJL3139KT
F1
KD
8000
80000
320000
7“ reel
1/6
S-E262
Rev.3.0,10-Sep-20
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
YJL3139KT
■ Electrical Characteristics (TJ=25℃ unless otherwise noted)
Parameter
Symbol
Conditions
Min
Drain-Source Breakdown Voltage
BVDSS
VGS= 0V, ID=-250μA
-20
Zero Gate Voltage Drain Current
IDSS
VDS=-20V,VGS=0V,TC=25℃
Typ
Max
Units
Static Parameter
Gate-Body Leakage Current
V
-1
μA
VGS= ±10V, VDS=0V
±1.5
±10
μA
VGS= ±8V, VDS=0V
±500
±2000
nA
-0.61
-1.2
V
VGS= -4.5V, ID=-0.6A
360
520
VGS= -2.5V, ID=-0.5A
570
750
VGS= -1.8V, ID=-0.3A
860
1300
IS=-0.65A,VGS=0V
-0.8
-1.2
V
-0.65
A
IGSS
Gate Threshold Voltage
VGS(th)
Static Drain-Source On-Resistance
VDS= VGS, ID=-250μA
RDS(ON)
Diode Forward Voltage
VSD
Maximum Body-Diode Continuous Current
-0.35
IS
mΩ
Dynamic Parameters
Input Capacitance
Ciss
71
Output Capacitance
Coss
Reverse Transfer Capacitance
Crss
15
Total Gate Charge
Qg
1.24
Gate Source Charge
Qgs
Gate Drain Charge
Qgd
Reverse Recovery Chrage
Qrr
VDS=-10V,VGS=0V,f=1MHZ
20
pF
Switching Parameters
VGS=-4.5V,VDD=-10V,ID=-0.65A
0.37
nC
0.27
0.97
IF=-0.5A, di/dt=-20A/us
Reverse Recovery Time
trr
26
Turn-on Delay Time
tD(on)
4
Turn-on Rise Time
tr
Turn-off Delay Time
tD(off)
Turn-off Fall Time
A.
B.
VGS=-4.5V,VDD=-10V, RL=2.5Ω,
RGEN=3Ω
tf
19
ns
16
25
Pulse Test: Pulse Width≤300us,Duty cycle ≤2%.
Device mounted on FR-4 PCB, 1 inch x 0.85 inch x 0.062 inch.
2/6
S-E262
Rev.3.0,10-Sep-20
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
YJL3139KT
■ Typical Performance Characteristics
Figure1. Output Characteristics
Figure2. Transfer Characteristics
Figure3. Capacitance Characteristics
Figure4. Gate Charge
Figure5. Drain-Source on Resistance
Figure6. Drain-Source on Resistance
3/6
S-E262
Rev.3.0,10-Sep-20
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
YJL3139KT
Figure7. Safe Operation Area
Figure8. Switching wave
4/6
S-E262
Rev.3.0,10-Sep-20
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
YJL3139KT
■ SOT-723 Package information
5/6
S-E262
Rev.3.0,10-Sep-20
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
YJL3139KT
Disclaimer
The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the
right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design
or otherwise.
The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with
equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as
medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety
devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use
of sale.
This publication supersedes & replaces all information previously supplied. For additional information, please visit our website
http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance.
6/6
S-E262
Rev.3.0,10-Sep-20
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
