PBSS5350Z
50 V, 3 A PNP low VCEsat (BISS) transistor
18 November 2019
Product data sheet
1. General description
PNP low VCEsat Breakthrough In Small Signal (BISS) transistor in a medium power SOT223
(SC-73) Surface-Mounted Device (SMD) plastic package.
NPN complement: PBSS4350Z
2. Features and benefits
•
•
•
•
•
Low collector-emitter saturation voltage VCEsat
High collector current capability: IC and ICM
High collector current gain (hFE) at high IC
High energy efficiency due to less heat generation
AEC-Q101 qualified
3. Applications
•
•
•
•
•
•
•
DC/DC converters
Supply line switching
Battery charger
LED backlighting
Linear voltage regulation (LDO)
Driver in low supply voltage applications, e.g. lamps, LEDs
Inductive load driver (for example relays, buzzers, motors)
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
Conditions
Min
Typ
Max
Unit
VCEO
collector-emitter
voltage
open base
-
-
-50
V
IC
collector current
-
-
-3
A
ICM
peak collector current
single pulse; tp ≤ 1 ms
-
-
-5
A
RCEsat
collector-emitter
saturation resistance
IC = -2 A; IB = -200 mA; Tamb = 25 °C
-
120
150
mΩ
[1]
Pulsed test: tp ≤ 300 μs; δ ≤ 0.02
[1]
PBSS5350Z
Nexperia
50 V, 3 A PNP low VCEsat (BISS) transistor
5. Pinning information
Table 2. Pinning information
Pin
Symbol
Description
1
B
base
2
C
collector
3
E
emitter
4
C
collector
Simplified outline
Graphic symbol
C
4
B
1
2
3

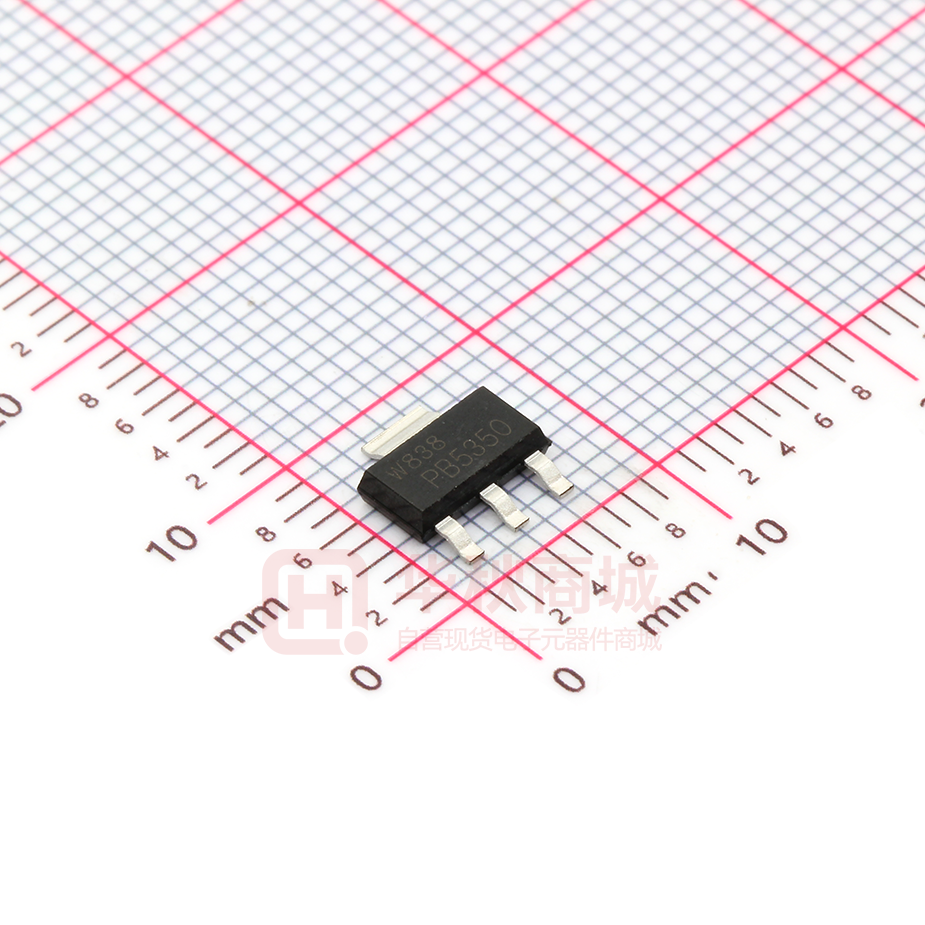

SC-73 (SOT223)
E
sym132
6. Ordering information
Table 3. Ordering information
Type number
Package
PBSS5350Z
Name
Description
Version
SC-73
plastic, surface-mounted package with increased heatsink; 4
leads; 2.3 mm pitch; 6.5 mm x 3.5 mm x 1.65 mm body
SOT223
7. Marking
Table 4. Marking codes
Type number
Marking code
PBSS5350Z
PB5350
PBSS5350Z
Product data sheet
All information provided in this document is subject to legal disclaimers.
18 November 2019
©
Nexperia B.V. 2019. All rights reserved
2 / 12
PBSS5350Z
Nexperia
50 V, 3 A PNP low VCEsat (BISS) transistor
8. Limiting values
Table 5. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol
Parameter
Conditions
Min
Max
Unit
VCBO
collector-base voltage
open emitter
-
-60
V
VCEO
collector-emitter voltage
open base
-
-50
V
VEBO
emitter-base voltage
open collector
-
-6
V
IC
collector current
-
-3
A
ICM
peak collector current
-
-5
A
IBM
peak base current
-
-1
A
Ptot
total power dissipation
[1]
-
0.65
W
[2]
-
1
W
[3] [4]
-
1.35
W
[5]
-
2
W
single pulse; tp ≤ 1 ms
Tj
junction temperature
-
150
°C
Tamb
ambient temperature
-65
150
°C
Tstg
storage temperature
-65
150
°C
[1]
[2]
[3]
[4]
[5]
Device mounted on an FR4 Printed-Circuit Board (PCB), 35 µm single-sided copper, tin-plated and standard footprint.
2
Device mounted on an FR4 PCB, 35 µm single-sided copper, tin-plated, mounting pad for collector 1 cm .
2
Device mounted on an FR4 PCB, 35 µm single-sided copper, tin-plated, mounting pad for collector 6 cm .
2
Device mounted on an FR4 PCB, 70 μm single-sided copper, tin-plated, mounting pad for collector 1 cm .
2
Device mounted on an FR4 PCB, 70 µm single-sided copper, tin-plated, mounting pad for collector 6 cm .
006aac674
1.5
(1)
Ptot
(W)
(2)
1.0
(3)
0.5
0.0
-75
-25
25
75
2
125
175
Tamb (°C)
(1) FR4 PCB, mounting pad for collector 6 cm
2
(2) FR4 PCB, mounting pad for collector 1 cm
(3) FR4 PCB, standard footprint
Fig. 1.
Power derating curves
PBSS5350Z
Product data sheet
All information provided in this document is subject to legal disclaimers.
18 November 2019
©
Nexperia B.V. 2019. All rights reserved
3 / 12
PBSS5350Z
Nexperia
50 V, 3 A PNP low VCEsat (BISS) transistor
9. Thermal characteristics
Table 6. Thermal characteristics
Symbol
Parameter
Rth(j-a)
thermal resistance from in free air
junction to ambient
Rth(j-sp)
[1]
[2]
[3]
[4]
[5]
Conditions
Min
Typ
Max
Unit
[1]
-
-
192
K/W
[2]
-
-
125
K/W
[3] [4]
-
-
92
K/W
[5]
-
-
62.5
K/W
-
-
16
K/W
thermal resistance from
junction to solder point
Device mounted on an FR4 PCB, 35 μm single-sided copper, tin-plated and standard footprint.
2
Device mounted on an FR4 PCB, 35 μm single-sided copper, tin-plated, mounting pad for collector 1 cm .
2
Device mounted on an FR4 PCB, 35 μm single-sided copper, tin-plated, mounting pad for collector 6 cm .
2
Device mounted on an FR4 PCB, 70 μm single-sided copper, tin-plated, mounting pad for collector 1 cm .
2
Device mounted on an FR4 PCB, 70 µm single-sided copper, tin-plated, mounting pad for collector 6 cm .
aaa-010994
103
Zth(j-a)
(K/W)
duty cycle = 1
102
0.75
0.33
10
0.1
0.02
1
0.5
0.2
0.05
0.01
0
10-1
10-5
10-4
10-3
10-2
10-1
1
102
10
tp (s)
103
FR4 PCB, 35 µm single-sided copper, tin-plated and standard footprint.
Fig. 2.
Transient thermal impedance from junction to ambient as a function of pulse duration; typical values
aaa-010995
103
Zth(j-a)
(K/W)
102
duty cycle = 1
0.75
0.33
10
0.1
0.02
1
0.5
0.2
0.05
0.01
0
10-1
10-5
10-4
10-3
10-2
10-1
1
102
10
2
tp (s)
103
FR4 PCB, 35 µm single-sided copper, tin-plated, mounting pad for collector 1 cm .
Fig. 3.
Transient thermal impedance from junction to ambient as a function of pulse duration; typical values
PBSS5350Z
Product data sheet
All information provided in this document is subject to legal disclaimers.
18 November 2019
©
Nexperia B.V. 2019. All rights reserved
4 / 12
PBSS5350Z
Nexperia
50 V, 3 A PNP low VCEsat (BISS) transistor
aaa-010996
103
Zth(j-a)
(K/W)
102
duty cycle = 1
0.75
0.5
0.33
10
0.2
0.1
0.05
0.02
1
0.01
0
10-1
10-5
10-4
10-3
10-2
10-1
1
102
10
tp (s)
2
103
FR4 PCB, 35 µm single-sided copper, tin-plated, mounting pad for collector 6 cm .
Fig. 4.
Transient thermal impedance from junction to ambient as a function of pulse duration; typical values
10. Characteristics
Table 7. Characteristics
Tamb = 25 °C unless otherwise specified.
Symbol
Parameter
Conditions
Min
Typ
Max
Unit
V(BR)CBO
collector-base
breakdown voltage
IC = -100 µA; IE = 0 A
-60
-
-
V
V(BR)CEO
collector-emitter
breakdown voltage
IC = -10 mA; IB = 0 A
-50
-
-
V
V(BR)EBO
emitter-base
breakdown voltage
(collector open)
IE = -100 µA; IC = 0 A
-6
-
-
V
ICBO
collector-base cut-off
current
VCB = -50 V; IE = 0 A
-
-
-100
nA
VCB = -50 V; IE = 0 A; Tj = 150 °C
-
-
-50
µA
IEBO
emitter-base cut-off
current
VEB = -5 V; IC = 0 A
-
-
-100
nA
hFE
DC current gain
VCE = -2 V; IC = -500 mA
200
-
-
VCEsat
collector-emitter
saturation voltage
VCE = -2 V; IC = -1 A
[1]
200
-
-
VCE = -2 V; IC = -2 A
[1]
100
-
-
IC = -500 mA; IB = -50 mA
-
-
-100
mV
IC = -1 A; IB = -50 mA
-
-
-180
mV
IC = -2 A; IB = -200 mA
[1]
-
-
-300
mV
IC = -2 A; IB = -200 mA; Tamb = 25 °C
[1]
-
120
150
mΩ
RCEsat
collector-emitter
saturation resistance
VBEsat
base-emitter saturation IC = -2 A; IB = -200 mA
voltage
[1]
-
-
-1.2
V
VBEon
base-emitter turn-on
voltage
VCE = -2 V; IC = -1 A; Tamb = 25 °C
[1]
-
-
-1.1
V
fT
transition frequency
VCE = -5 V; IC = -100 mA; f = 100 MHz
100
-
-
MHz
PBSS5350Z
Product data sheet
All information provided in this document is subject to legal disclaimers.
18 November 2019
©
Nexperia B.V. 2019. All rights reserved
5 / 12
PBSS5350Z
Nexperia
50 V, 3 A PNP low VCEsat (BISS) transistor
Symbol
Parameter
Conditions
Min
Typ
Max
Unit
Cc
collector capacitance
VCB = -10 V; IE = 0 A; ie = 0 A;
f = 1 MHz
-
-
40
pF
[1]
Pulsed test: tp ≤ 300 μs; δ ≤ 0.02
mgw167
1000
mgw168
- 1.2
hFE
VBE
(V)
800
(1)
(1)
- 0.8
600
(2)
(2)
400
- 0.4
(3)
200
0
- 10- 1
-1
- 10
- 102
0
- 10- 1
- 103
- 104
IC (mA)
VCE = -2 V
(1) Tamb = 150 °C
(2) Tamb = 25 °C
(3) Tamb = -55 °C
Fig. 5.
(3)
-1
mgw169
- 103
- 103
- 104
IC (mA)
Fig. 6.
Base-emitter voltage as a function of collector
current; typical values
mgw170
- 1.4
VBEsat
(V)
- 1.2
VCEsat
(mV)
- 102
- 1.0
(1)
(1)
- 0.8
(2)
(2)
(3)
- 0.6
- 10
(3)
- 0.4
-1
- 10
- 102
- 0.2
- 10- 1
- 103
- 104
IC (mA)
IC/IB = 10
(1) Tamb = 150 °C
(2) Tamb = 25 °C
(3) Tamb = -55 °C
Fig. 7.
- 102
VCE = -2 V
(1) Tamb = -55 °C
(2) Tamb = 25 °C
(3) Tamb = 150 °C
DC current gain as a function of collector
current; typical values
-1
- 10- 1
- 10
Product data sheet
- 10
- 102
- 103
- 104
IC (mA)
IC/IB = 10
(1) Tamb = -55 °C
(2) Tamb = 25 °C
(3) Tamb = 150 °C
Collector-emitter saturation voltage as a
function of collector current; typical values
PBSS5350Z
-1
Fig. 8.
Base-emitter saturation voltage as a function of
collector current; typical values
All information provided in this document is subject to legal disclaimers.
18 November 2019
©
Nexperia B.V. 2019. All rights reserved
6 / 12
PBSS5350Z
Nexperia
50 V, 3 A PNP low VCEsat (BISS) transistor
mgw171
- 1000
IC
(mA)
(1) (2) (3)
IC
(A)
(2)
(3)
(4)
- 800
mgw172
-5
(1)
(4)
(5)
(6)
(7)
-4
(8)
(5)
(6)
- 600
(9)
-3
(7)
(10)
(8)
(9)
- 400
-2
(10)
(11)
- 200
-1
(12)
0
0
- 0.4
- 0.8
- 1.2
0
- 1.6
-2
VCE (V)
Tamb = 25 °C
(1) IB = −3.96 mA
(2) IB = −3.63 mA
(3) IB = −3.30 mA
(4) IB = −2.97 mA
(5) IB = −2.64 mA
(6) IB = −2.31 mA
(7) IB = −1.98 mA
(8) IB = −1.65 mA
(9) IB = −1.32 mA
(10) IB = −0.99 mA
(11) IB = −0.66 mA
(12) IB = −0.33 mA
Fig. 9.
0
- 0.4
- 0.8
- 1.2
- 1.6
-2
VCE (V)
Tamb = 25 °C
(1) IB = −250 mA
(2) IB = −225 mA
(3) IB = −200 mA
(4) IB = −175 mA
(5) IB = −150 mA
(6) IB = −125 mA
(7) IB = −100 mA
(8) IB = −75 mA
(9) IB = −50 mA
(10) IB = −25 mA
Fig. 10. Collector current as a function of collectoremitter voltage; typical values
Collector current as a function of collectoremitter voltage; typical values
mgu390
103
RCEsat
(Ω)
102
10
1
(1)
10- 1
- 10- 1
(2)
(3)
-1
- 10
- 102
- 103
- 104
IC (mA)
IC/IB = 20
(1) Tamb = 150 °C
(2) Tamb = 25 °C
(3) Tamb = -55 °C
Fig. 11. Collector-emitter saturation resistance as a function of collector current; typical values
PBSS5350Z
Product data sheet
All information provided in this document is subject to legal disclaimers.
18 November 2019
©
Nexperia B.V. 2019. All rights reserved
7 / 12
PBSS5350Z
Nexperia
50 V, 3 A PNP low VCEsat (BISS) transistor
11. Test information
Quality information
This product has been qualified in accordance with the Automotive Electronics Council (AEC)
standard Q101 - Stress test qualification for discrete semiconductors, and is suitable for use in
automotive applications.
12. Package outline
6.7
6.3
3.1
2.9
1.8
1.5
4
1.1
0.7
7.3
6.7
3.7
3.3
1
2
2.3
3
0.8
0.6
4.6
0.32
0.22
Dimensions in mm
04-11-10
Fig. 12. Package outline SC-73 (SOT223)
13. Soldering
7
3.85
3.6
3.5
0.3
1.3 1.2
(4×) (4×)
solder lands
4
solder resist
3.9
6.1 7.65
solder paste
occupied area
1
2
3
Dimensions in mm
2.3
2.3
1.2
(3×)
1.3
(3×)
6.15
sot223_fr
Fig. 13. Reflow soldering footprint for SC-73 (SOT223)
PBSS5350Z
Product data sheet
All information provided in this document is subject to legal disclaimers.
18 November 2019
©
Nexperia B.V. 2019. All rights reserved
8 / 12
PBSS5350Z
Nexperia
50 V, 3 A PNP low VCEsat (BISS) transistor
8.9
6.7
1.9
solder lands
4
solder resist
6.2
1
2
8.7
Dimensions in mm
3
1.9
(3×)
2.7
occupied area
preferred transport
direction during soldering
2.7
1.1
1.9
(2×)
sot223_fw
Fig. 14. Wave soldering footprint for SC-73 (SOT223)
PBSS5350Z
Product data sheet
All information provided in this document is subject to legal disclaimers.
18 November 2019
©
Nexperia B.V. 2019. All rights reserved
9 / 12
PBSS5350Z
Nexperia
50 V, 3 A PNP low VCEsat (BISS) transistor
14. Revision history
Table 8. Revision history
Data sheet ID
Release date
Data sheet status
Change notice
Supersedes
PBSS5350Z v.5
20191118
Product data sheet
-
PBSS5350Z v.4
Modifications:
•
•
The format of this data sheet has been redesigned to comply with the identity guidelines of
Nexperia.
Legal texts have been adapted to the new company name where appropriate.
PBSS5350Z v.4
20030513
Product data sheet
-
PBSS5350Z v.3
PBSS5350Z v.3
20030120
Product data sheet
-
PBSS5350Z v.2
PBSS5350Z v.2
20011113
Product data sheet
-
PBSS5350Z v.1
PBSS5350Z v.1
20010717
Product data sheet
-
-
PBSS5350Z
Product data sheet
All information provided in this document is subject to legal disclaimers.
18 November 2019
©
Nexperia B.V. 2019. All rights reserved
10 / 12
PBSS5350Z
Nexperia
50 V, 3 A PNP low VCEsat (BISS) transistor
15. Legal information
injury, death or severe property or environmental damage. Nexperia and its
suppliers accept no liability for inclusion and/or use of Nexperia products in
such equipment or applications and therefore such inclusion and/or use is at
the customer’s own risk.
Data sheet status
Quick reference data — The Quick reference data is an extract of the
product data given in the Limiting values and Characteristics sections of this
document, and as such is not complete, exhaustive or legally binding.
Document status
[1][2]
Product
status [3]
Definition
Objective [short]
data sheet
Development
This document contains data from
the objective specification for
product development.
Preliminary [short]
data sheet
Qualification
This document contains data from
the preliminary specification.
Product [short]
data sheet
Production
This document contains the product
specification.
[1]
[2]
[3]
Please consult the most recently issued document before initiating or
completing a design.
The term 'short data sheet' is explained in section "Definitions".
The product status of device(s) described in this document may have
changed since this document was published and may differ in case of
multiple devices. The latest product status information is available on
the internet at https://www.nexperia.com.
Definitions
Draft — The document is a draft version only. The content is still under
internal review and subject to formal approval, which may result in
modifications or additions. Nexperia does not give any representations or
warranties as to the accuracy or completeness of information included herein
and shall have no liability for the consequences of use of such information.
Short data sheet — A short data sheet is an extract from a full data sheet
with the same product type number(s) and title. A short data sheet is
intended for quick reference only and should not be relied upon to contain
detailed and full information. For detailed and full information see the relevant
full data sheet, which is available on request via the local Nexperia sales
office. In case of any inconsistency or conflict with the short data sheet, the
full data sheet shall prevail.
Product specification — The information and data provided in a Product
data sheet shall define the specification of the product as agreed between
Nexperia and its customer, unless Nexperia and customer have explicitly
agreed otherwise in writing. In no event however, shall an agreement be
valid in which the Nexperia product is deemed to offer functions and qualities
beyond those described in the Product data sheet.
Disclaimers
Limited warranty and liability — Information in this document is believed
to be accurate and reliable. However, Nexperia does not give any
representations or warranties, expressed or implied, as to the accuracy
or completeness of such information and shall have no liability for the
consequences of use of such information. Nexperia takes no responsibility
for the content in this document if provided by an information source outside
of Nexperia.
In no event shall Nexperia be liable for any indirect, incidental, punitive,
special or consequential damages (including - without limitation - lost
profits, lost savings, business interruption, costs related to the removal
or replacement of any products or rework charges) whether or not such
damages are based on tort (including negligence), warranty, breach of
contract or any other legal theory.
Notwithstanding any damages that customer might incur for any reason
whatsoever, Nexperia’s aggregate and cumulative liability towards customer
for the products described herein shall be limited in accordance with the
Terms and conditions of commercial sale of Nexperia.
Right to make changes — Nexperia reserves the right to make changes
to information published in this document, including without limitation
specifications and product descriptions, at any time and without notice. This
document supersedes and replaces all information supplied prior to the
publication hereof.
Suitability for use — Nexperia products are not designed, authorized or
warranted to be suitable for use in life support, life-critical or safety-critical
systems or equipment, nor in applications where failure or malfunction
of an Nexperia product can reasonably be expected to result in personal
PBSS5350Z
Product data sheet
Applications — Applications that are described herein for any of these
products are for illustrative purposes only. Nexperia makes no representation
or warranty that such applications will be suitable for the specified use
without further testing or modification.
Customers are responsible for the design and operation of their applications
and products using Nexperia products, and Nexperia accepts no liability for
any assistance with applications or customer product design. It is customer’s
sole responsibility to determine whether the Nexperia product is suitable
and fit for the customer’s applications and products planned, as well as
for the planned application and use of customer’s third party customer(s).
Customers should provide appropriate design and operating safeguards to
minimize the risks associated with their applications and products.
Nexperia does not accept any liability related to any default, damage, costs
or problem which is based on any weakness or default in the customer’s
applications or products, or the application or use by customer’s third party
customer(s). Customer is responsible for doing all necessary testing for the
customer’s applications and products using Nexperia products in order to
avoid a default of the applications and the products or of the application or
use by customer’s third party customer(s). Nexperia does not accept any
liability in this respect.
Limiting values — Stress above one or more limiting values (as defined in
the Absolute Maximum Ratings System of IEC 60134) will cause permanent
damage to the device. Limiting values are stress ratings only and (proper)
operation of the device at these or any other conditions above those
given in the Recommended operating conditions section (if present) or the
Characteristics sections of this document is not warranted. Constant or
repeated exposure to limiting values will permanently and irreversibly affect
the quality and reliability of the device.
Terms and conditions of commercial sale — Nexperia products are
sold subject to the general terms and conditions of commercial sale, as
published at http://www.nexperia.com/profile/terms, unless otherwise agreed
in a valid written individual agreement. In case an individual agreement is
concluded only the terms and conditions of the respective agreement shall
apply. Nexperia hereby expressly objects to applying the customer’s general
terms and conditions with regard to the purchase of Nexperia products by
customer.
No offer to sell or license — Nothing in this document may be interpreted
or construed as an offer to sell products that is open for acceptance or the
grant, conveyance or implication of any license under any copyrights, patents
or other industrial or intellectual property rights.
Export control — This document as well as the item(s) described herein
may be subject to export control regulations. Export might require a prior
authorization from competent authorities.
Non-automotive qualified products — Unless this data sheet expressly
states that this specific Nexperia product is automotive qualified, the
product is not suitable for automotive use. It is neither qualified nor tested in
accordance with automotive testing or application requirements. Nexperia
accepts no liability for inclusion and/or use of non-automotive qualified
products in automotive equipment or applications.
In the event that customer uses the product for design-in and use in
automotive applications to automotive specifications and standards,
customer (a) shall use the product without Nexperia’s warranty of the
product for such automotive applications, use and specifications, and (b)
whenever customer uses the product for automotive applications beyond
Nexperia’s specifications such use shall be solely at customer’s own risk,
and (c) customer fully indemnifies Nexperia for any liability, damages or failed
product claims resulting from customer design and use of the product for
automotive applications beyond Nexperia’s standard warranty and Nexperia’s
product specifications.
Translations — A non-English (translated) version of a document is for
reference only. The English version shall prevail in case of any discrepancy
between the translated and English versions.
Trademarks
Notice: All referenced brands, product names, service names and
trademarks are the property of their respective owners.
All information provided in this document is subject to legal disclaimers.
18 November 2019
©
Nexperia B.V. 2019. All rights reserved
11 / 12
PBSS5350Z
Nexperia
50 V, 3 A PNP low VCEsat (BISS) transistor
Contents
1. General description...................................................... 1
2. Features and benefits.................................................. 1
3. Applications.................................................................. 1
4. Quick reference data....................................................1
5. Pinning information......................................................2
6. Ordering information....................................................2
7. Marking.......................................................................... 2
8. Limiting values............................................................. 3
9. Thermal characteristics............................................... 4
10. Characteristics............................................................ 5
11. Test information.......................................................... 8
12. Package outline.......................................................... 8
13. Soldering..................................................................... 8
14. Revision history........................................................10
15. Legal information......................................................11
©
Nexperia B.V. 2019. All rights reserved
For more information, please visit: http://www.nexperia.com
For sales office addresses, please send an email to: salesaddresses@nexperia.com
Date of release: 18 November 2019
PBSS5350Z
Product data sheet
All information provided in this document is subject to legal disclaimers.
18 November 2019
©
Nexperia B.V. 2019. All rights reserved
12 / 12
