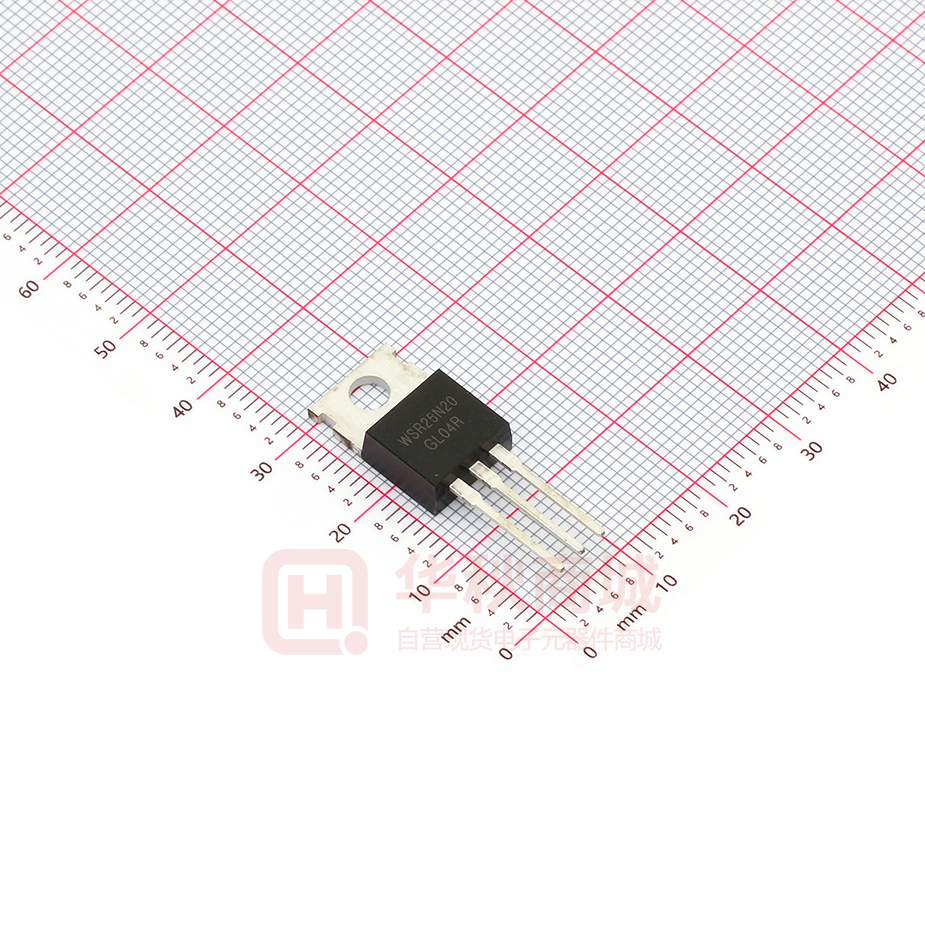

WSR25N20

WSR25N20 N-Ch MOSFET General Description Product Summery The WSR25N20 is the highest performance trench N-Ch MOSFET with extreme high cell density,which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . BVDSS RDSON ID 200V 60mΩ 25A Applications The WSR25N20 meet the RoHS and Green Product requirement , 100% EAS guaranteed with full function reliability approved. z High Frequency Point-of-Load Synchronous Buck Converter z Networking DC-DC Power System Features z Load Switch z Advanced high cell density Trench technology TO-220F Pin Configuration z Super Low Gate Charge z Excellent Cdv/dt effect decline z Green Device Available Absolute Maximum Ratings Symbol Parameter Rating Units VDS Drain-Source Voltage 200 V VGS Gate-Source Voltage ID@TC=25℃ ID@TC=100℃ IDM EAS ±20 V 1 25 A 1 17 A 100 A 250 mJ Continuous Drain Current, VGS @ 10V Continuous Drain Current, VGS @ 10V Pulsed Drain Current 2 3 Single Pulse Avalanche Energy 3 PD Total Power Dissipation 45 W TSTG Storage Temperature Range -55 to 175 ℃ TJ Operating Junction Temperature Range -55 to 175 ℃ Thermal Data Symbol Parameter Max. Unit RθJA Thermal Resistance Junction-ambient 1 --- 3.3 ℃/W RθJC Thermal Resistance Junction-Case1 --- 0.2 ℃/W www.winsok.tw Typ. Page 1 Dec.2014 WSR25N20 N-Ch MOSFET Electrical Characteristics (TJ=25 ℃, unless otherwise noted) Symbol BVDSS Parameter Conditions Drain-Source Breakdown Voltage VGS(th) Typ. Max. Unit 200 --- --- V --- 0.098 --- V/℃ 60 75 mΩ 1.0 1.5 2.5 V --- -4.57 --- mV/℃ VDS=160V , VGS=0V , TJ=25℃ --- --- 1 VDS=160V , VGS=0V , TJ=55℃ --- --- 5 VGS=0V , ID=250uA △BVDSS/△TJ BVDSS Temperature Coefficient RDS(ON) Min. Reference to 25℃ , ID=1mA 2 Static Drain-Source On-Resistance Gate Threshold Voltage VGS=10V , ID=15A VGS=VDS , ID =250uA --- △VGS(th) VGS(th) Temperature Coefficient IDSS Drain-Source Leakage Current IGSS Gate-Source Leakage Current VGS=±25V , VDS=0V --- --- ±100 nA gfs Forward Transconductance VDS=5V , ID=15A --- 32 --- S Qg Total Gate Charge (10V) --- 60 --- Qgs Gate-Source Charge --- 19 --- Qgd Td(on) VDS=100V , VGS=10V , ID=15A Gate-Drain Charge --- 17 --- Turn-On Delay Time --- 10 --- uA nC Rise Time VDD=30V , VGS=10V , --- 18 --- Turn-Off Delay Time RG=6Ω, ID=15A, RL=30Ω --- 22 --- Fall Time --- 5 --- Ciss Input Capacitance --- 4200 --- Coss Output Capacitance --- 163 --- Crss Reverse Transfer Capacitance --- 75 --- Min. Typ. Max. Unit --- --- 24 A --- --- 48 A --- --- 1.2 V --- 90 --- nS --- 300 --- nC Tr Td(off) Tf VDS=30V , VGS=0V , f=1MHz ns pF Diode Characteristics Symbol Parameter Conditions 1,6 IS Continuous Source Current ISM Pulsed Source Current2,6 2 VSD Diode Forward Voltage trr Reverse Recovery Time Qrr Reverse Recovery Charge VG=VD=0V , Force Current VGS=0V , IS=12A , TJ=25℃ IF=12A , dI/dt=100A/µs , TJ=25℃ Notes: 1. Repetitive Rating: Pulse width limited by maximum junction temperature. 2. Surface Mounted on FR4 Board, t ≤ 10 sec. 3. Pulse Test: Pulse Width ≤ 300μs, Duty Cycle ≤ 2%. 4. Guaranteed by design, not subject to production 5. EAS condition: Tj=25℃,VDD=50V,VG=10V,L=0.5mH,Rg=25Ω www.winsok.tw Page 2 Dec.2014 WSR25N20 N-Ch MOSFET ID- Drain Current (A) Normalized On-Resistance Typical Characteristics TJ-Junction Temperature(℃) Vds Drain-Source Voltage (V) Figure 4 Rdson-Junction Temperature ID- Drain Current (A) Vgs Gate-Source Voltage (V) Figure 1 Output Characteristics Vgs Gate-Source Voltage (V) Qg Gate Charge (nC) Figure 2 Transfer Characteristics Figure 5 Gate Charge www.winsok.tw Page 3 Dec.2014 WSR25N20 N-Ch MOSFET Is- Reverse Drain Current (A) Rdson On-Resistance(mΩ) Typical Characteristics ID- Drain Current (A) Vsd Source-Drain Voltage (V) Figure 6 Source- Drain Diode Forward C Capacitance (pF) Normalized BVdss Figure 3 Rdson- Drain Current Vds Drain-Source Voltage (V) TJ-Junction Temperature(℃) Figure 7 Capacitance vs Vds Figure 9 BVDSS vs Junction Temperature www.winsok.tw Page 4 Dec.2014 WSR25N20 N-Ch MOSFET ID- Drain Current (A) Typical Characteristics TJ-Junction Temperature(℃) Figure 8 Safe Operation Area Figure 10 VGS(th) vs Junction Temperature r(t),Normalized Effective Transient Thermal Impedance Vds Drain-Source Voltage (V) Square Wave Pluse Duration(sec) Figure 11 Normalized Maximum Transient Thermal Impedance www.winsok.tw Page 5 Dec.2014 WSR25N20 N-Ch MOSFET TO-220F Package Information A E A1 L L1 D d2 d1 P b c e A2 b2 TO-220F S Y M B O L A MIN. MAX. MIN. MAX. 4.20 4.80 0.165 0.189 A1 2.34 3.20 0.092 0.126 A2 2.10 2.90 0.083 0.114 b 0.50 0.90 0.020 0.035 0.075 MILLIMETERS RECOMMENDED LAND PATTERN INCHES b2 0.91 1.90 0.035 c 0.30 0.80 0.012 0.031 D 8.10 9.40 0.319 0.370 d1 14.50 16.50 0.571 0.650 d2 12.10 12.90 0.476 0.508 E 9.70 10.70 0.382 0.421 14.50 0.512 0.570 e 2.54 BSC R0. 45 UNIT: mm 0.100 BSC L 13.00 L1 1.60 4.00 0.063 0.157 P 3.00 3.60 0.118 0.142 www.winsok.tw 2.54 Page 6 Dec.2014 Attention 1,AnyandallWinsokpowerproductsdescribedorcontainedhereindonothavespecificationsthatcanhandle applicationsthatrequireextremelyhighlevelsofreliability,suchaslifeͲsupportsystems,aircraft'scontrolsystems,or otherapplicationswhosefailurecanbereasonablyexpectedtoresultinseriousphysicaland/ormaterialdamage.  ConsultwithyourWinsokpowerrepresentativenearestyoubeforeusinganyWinsokpowerproductsdescribedor containedhereininsuchapplications. 2,Winsokpowerassumesnoresponsibilityforequipmentfailuresthatresultfromusingproductsatvaluesthatexceed,  evenmomentarily,ratedvalues(suchasmaximumratings,operatingconditionranges,orotherparameters)listedin productsspecificationsofanyandallWinsokpowerproductsdescribedorcontainedherein. 3,SpecificationsofanyandallWinsokpowerproductsdescribedorcontainedhereinstipulatetheperformance, characteristics,andfunctionsofthedescribedproductsintheindependentstate,andarenotguaranteesofthe performance,characteristics,andfunctionsofthedescribedproductsasmountedinthecustomer’sproductsor equipment.Toverifysymptomsandstatesthatcannotbeevaluatedinanindependentdevice,thecustomershouldalways evaluateandtestdevicesmountedinthecustomer’sproductsorequipment. 4,WinsokpowerSemiconductorCO.,LTD.strivestosupplyhighͲqualityhighͲreliabilityproducts.However,anyandall semiconductorproductsfailwithsomeprobability.Itispossiblethattheseprobabilisticfailurescouldgiverisetoaccidents oreventsthatcouldendangerhumanlivesthatcouldgiverisetosmokeorfire,orthatcouldcausedamagetoother property.Whendesigningequipment,adoptsafetymeasuressothatthesekindsofaccidentsoreventscannotoccur.Such measuresincludebutarenotlimitedtoprotectivecircuitsanderrorpreventioncircuitsforsafedesign,redundantdesign, andstructuraldesign. 5,IntheeventthatanyorallWinsokpowerproducts(includingtechnicaldata,services)describedorcontainedhereinare controlledunderanyofapplicablelocalexportcontrollawsandregulations,suchproductsmustnotbeexportedwithout obtainingtheexportlicensefromtheauthoritiesconcernedinaccordancewiththeabovelaw. 6,Nopartofthispublicationmaybereproducedortransmittedinanyformorbyanymeans,electronicormechanical, includingphotocopyingandrecording,oranyinformationstorageorretrievalsystem,orotherwise,withouttheprior writtenpermissionofWinsokpowerSemiconductorCO.,LTD. 7,Information(includingcircuitdiagramsandcircuitparameters)hereinisforexampleonly;itisnotguaranteedfor volumeproduction. Winsokpowerbelievesinformationhereinisaccurateandreliable,butnoguaranteesaremadeor impliedregardingitsuseoranyinfringementsofintellectualpropertyrightsorotherrightsofthirdparties. 8,Anyandallinformationdescribedorcontainedhereinaresubjecttochangewithoutnoticeduetoproduct/technology improvement,etc.Whendesigningequipment,refertothe"DeliverySpecification"fortheWinsokpowerproductthatyou  Intendtouse. 9,thiscatalogprovidesinformationasofSep.2014. Specificationsandinformationhereinaresubjecttochangewithout notice.
