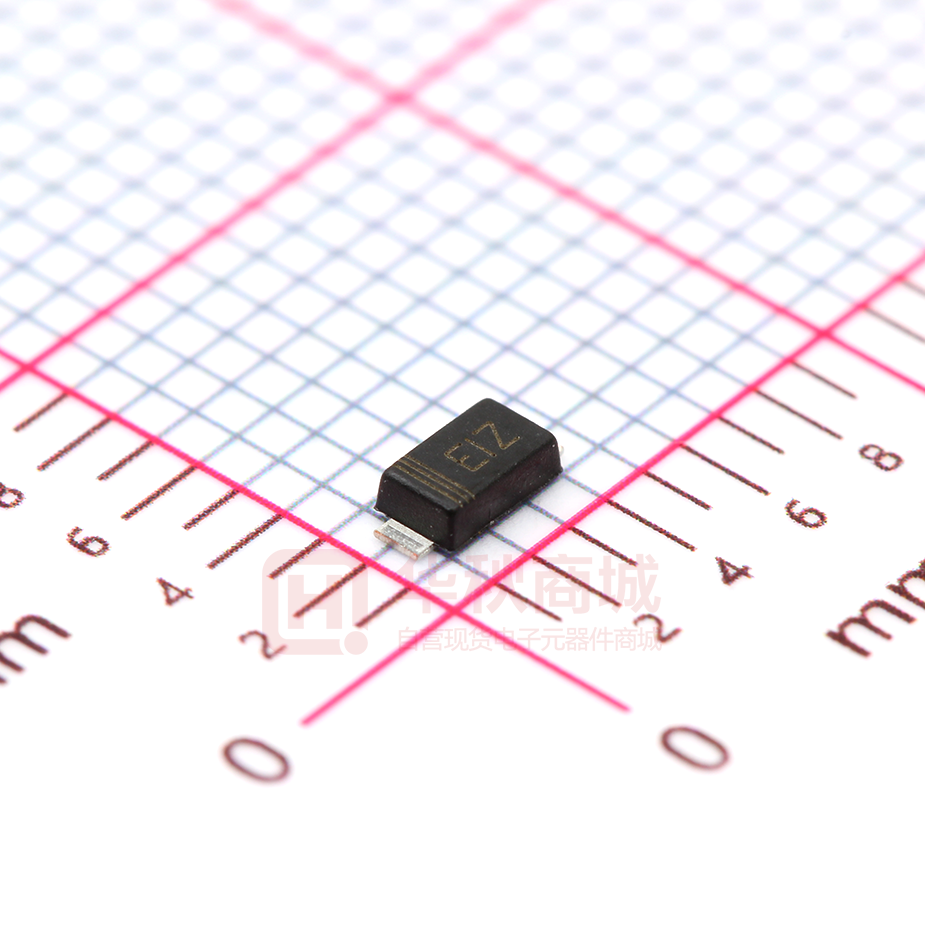

WPE2451D1F-T
Integrated in
OVP&OCP products
provider
24V Uni-directional TVS Diode
Description
Mechanical Characteristics
The WPE2451D1F-T is an uni-directional TVS diode,
utilizing leading monolithic silicon technology to provide fast
re-sponse time and low ESD clamping voltage, making this
device an ideal solution for protecting voltage sensitive data
n
Package: SOD-123FL
n
Lead Finish: Matte Tin
n
Case Material: “Green” Molding Compound.
n
UL Flammability Classification Rating 94V-0
and power lines. The WPE2451D1F-T complies with the
n
Moisture Sensitivity: Level 3 per J-STD-020
IEC 61000-4-2 (ESD) standard with ± 30kV air and ±30kV
n
Terminal Connections: See Diagram Below
contact discharge. It is assembled into a SOD-123FL lead -
n
Marking Information: See Below
free package. The small size and high ESD/surge protection make WPE2451D1F-T an ideal choice to protect cell
phone, digital cameras, audio players and many other
portable applications.
Features
n
Protects one data or power line
n
Ultra low leakage: nA level
n
Low operating voltage: 24V
n
Ultra low clamping voltage
n
Complies with following standards:
Applications
n
Fast-charge battery chargers
n
Power management system
n
Cellular Handsets and Accessories
n
Personal Digital Assistants
n
Notebooks and Handhelds
n
Portable Instrumentation
n
Digital Cameras
n
Peripherals
– IEC 61000-4-2 (ESD) immunity test
Marking Information
Air discharge: ±30kV
Contact discharge: ±30kV
– IEC61000-4-5 (Lightning) 170A (8/20μs)
n
RoHS Compliant
Dimensions & Symbol
Details marking code reference customer approval list
Ordering Information
1.90
Part Number
WPE2451D1F-T
Rev.A_Aug,2017
-1-
Packaging
3000/Tape & Reel
Reel Size
7 inch
www.wpmtek.com
WPE2451D1F-T
Integrated in
OVP&OCP products
provider
24V Uni-directional TVS Diode
Absolute Maximum Ratings (TA=25°C unless otherwise specified)
Parameter
Symbol
Value
Unit
Peak Pulse Power (8/20µs)
Ppk
5000
W
Peak Pulse Current (8/20µs)
Ipp
170
A
ESD per IEC 61000−4−2 (Air)
±30
VESD
ESD per IEC 61000−4−2 (Contact)
Operating Temperature Range
Storage Temperature Range
kV
±30
TJ
−55 to +125
°C
Tstg
−55 to +150
°C
Electrical Characteristics (TA=25°C unless otherwise specified)
Parameter
Reverse Working Voltage
Breakdown Voltage
Symbol
Min
Typ
VRWM
VBR
Max
24
26.7
Unit Test Condition
V
V
IT = 1mA
uA
VRWM = 24V
Reverse Leakage Current
IR
Clamping Voltage
VC
34
V
IPP = 170A (8 x 20µs pulse)
Junction Capacitance
CJ
300
pF
VR = 0V, f = 1MHz
Rev.A_Aug,2017
1
-2-
www.wpmtek.com
WPE2451D1F-T
Integrated in
OVP&OCP products
provider
24V Uni-directional TVS Diode
Typical Performance Characteristics (TA=25°C unless otherwise Specified)
Rev.A_Aug,2017
-3-
www.wpmtek.com
WPE2451D1F-T
Integrated in
OVP&OCP products
provider
24V Uni-directional TVS Diode
Soldering Parameters
Reflow Condition
Pre Heat
Pb-Free assembly
-Temperature Min (Ts(min))
+150℃
-Temperature Max(Ts(max))
+200℃
-Time (Min to Max) (ts)
60-180 secs.
Average ramp up rate (Liquid us Temp (TL) to peak)
3℃/sec. Max
Ts(max) to TL - Ramp-up Rate
3℃/sec. Max
Reflow
-Temperature(TL) (Liquid us)
+217℃
-Temperature(tL)
60-150 secs.
Peak Temp (Tp)
+260(+0/-5)℃
Time within 5℃ of actual Peak Temp (tp)
30 secs. Max
Ramp-down Rate
6℃/sec. Max
Time 25℃ to Peak Temp (TP)
8 min. Max
Do not exceed
+260℃
Rev.A_Aug,2017
-4-
www.wpmtek.com
WPE2451D1F-T
Integrated in
OVP&OCP products
provider
24V Uni-directional TVS Diode
Package Mechanical Data
Suggested Land Pattern
Contact Information
WPMTEK Incorporated Limited
Floor 1 Building 4#, Binxianghua Industry Park, No.7,
Huada Road, Hualian Community, Longhua New District, Shenzhen
TEL:86755-29308003
FAX:86755-23739900
Wpmtek Incorporated Limited (WPM) reserves the right to make changes to the product specification and data in this document without notice. WPM
makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does WPM assume any liability
arising from the application or use of any products or circuits, and specifically dis- claims any and all liability, including without limitation special,
consequential or incidental damages.
Rev.A_Aug,2017
-5-
www.wpmtek.com
