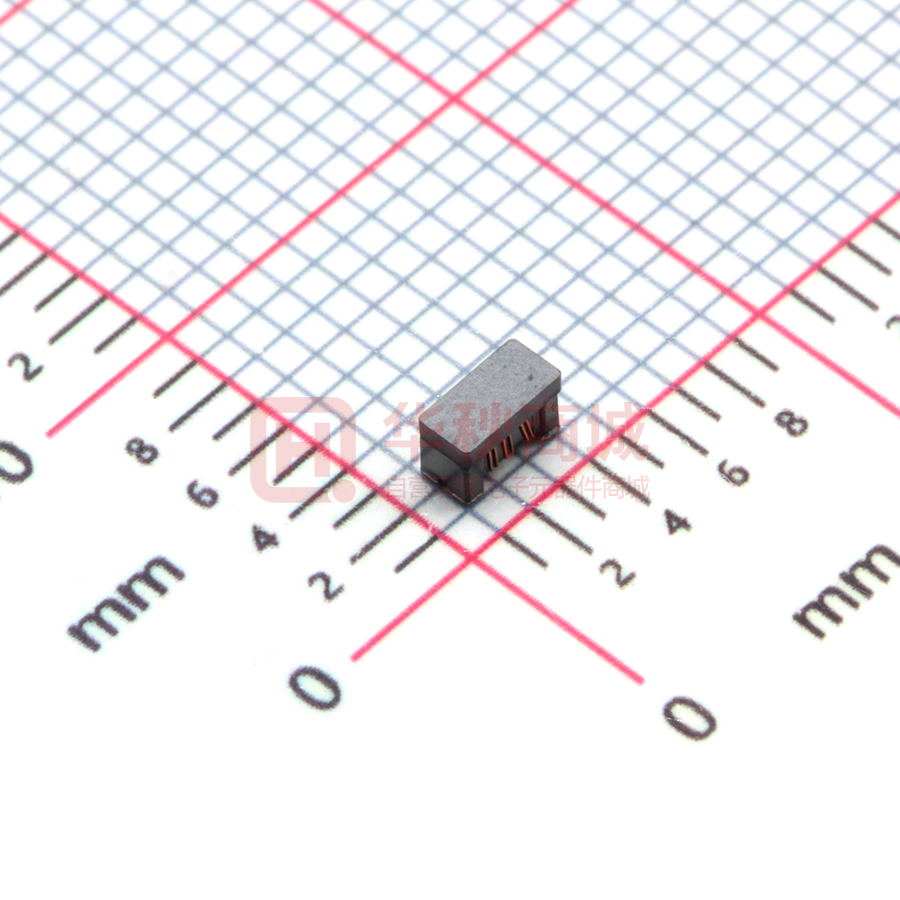

SMD Common Mode Choke
-YLM3216 Series
■ Features
● This filter is characterized by small size, highly effective in noise suppression.
● High common mode impedance at noise band and low differential mode
impedance at signal band.Due to the low differential mode impedance with
high coupling factor,there is almost no distortion on high speed transmission
of high resolution video signals.
■ Applications
● YLM Series is suited for use on the USB2.0 line and IEEE1394 line of Notebook
PC,LVDS lines of PC,LCD Monitor, PCI express,small digital AV equipment
such as digital Camera and Free disk,MP3 player and Serial-ATA.
■ Product Identification
⑴ :Type
⑵ :Dimensions
⑶ :Identification Code
⑷ :Impedance
⑸ :Taping
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Mob:(86)13682526134
-1-
SMD Common Mode Choke
-YLM3216 Series
■ Shapes and Dimensions (Unit:mm)
TYPE
A
B
C
D
E
YLM3216
3.2±0.2
1.6±0.2
2.0±0.2
0.50±0.1
F
0.50±0.1 0.50±0.1
G
H
I
J
0.40
1.60
1.60
3.70
■ YLM3216 Series
Common mode
DC
Rated
Impedance
Resistance
Current
(Ω) @100MHz
(Ω) Max
(mA) max
YLM3216□-900T
90±25%
0.30
YLM3216□-121T
120±25%
YLM3216□-161T
Rated Volt.
Withstand
IR(MΩ)
(Vdc)max.
Volt.(Vdc)max.
min.
400
50
125
10
0.30
350
50
125
10
160±25%
0.40
350
50
125
10
YLM3216□-221T
220±25%
0.45
300
50
125
10
YLM3216□-261T
260±25%
0.50
300
50
125
10
YLM3216□-361T
360±25%
0.60
300
50
125
10
YLM3216□-601T
600±25%
0.80
300
50
125
10
YLM3216□-102T
1000±25%
1.00
200
50
125
10
YLM3216□-222T
2200±25%
1.20
200
50
125
10
Part Number
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Mob:(86)13682526134
-2-
SMD Common Mode Choke
-YLM3216 Series
■ Recommended soldering temp.Graph
■ Mechanical reliability
■ Endurance Reliability
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Mob:(86)13682526134
-3-
SMD Common Mode Choke
-YLM3216 Series
■ Taping Dimensions(Unit:mm)
TYPE
W
A
B
D
P
K
T
MPQ
YLM3216
8.0±0.2
1.88±0.1
3.50±0.1
3.5±0.05
4.0±0.1
2.20±0.1
0.26±0.05
2000
■ Reel Dimensions(Unit:mm)
TYPE
W
W1
A
B
C
D
YLM3216
178±2.0
9.00±0.50
4.3±0.20
5.0±0.10
3.0±0.10
60±2.0
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Mob:(86)13682526134
-4-
SMD Common Mode Choke
-YLM3216 Series
■ Direction of rolling
■ Cover tape peel off condition
Cover tape peel force shall be 0.1N to 1.3N.
Reference peel speed 300±10mm/min.
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Mob:(86)13682526134
-5-
