NBN40-L2-E2-V1

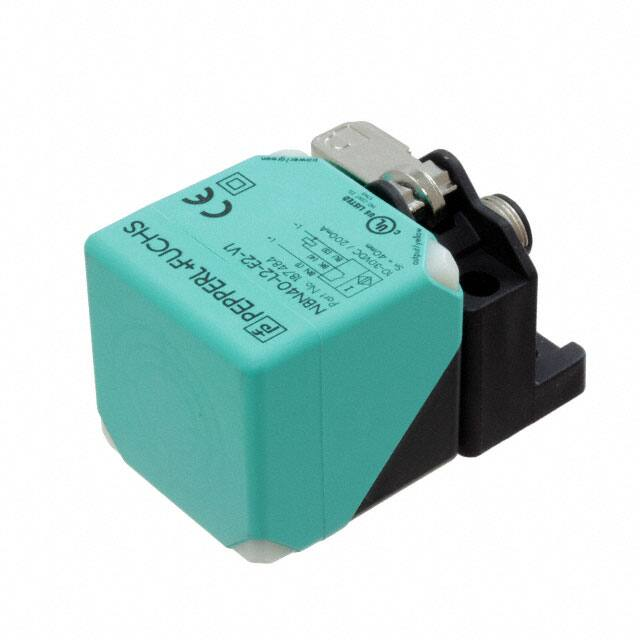

Inductive sensor NBN40-L2-E2-V1 < < < < < Sensor head bidirectional and rotatable 40 mm non-flush 3-wire DC Quick mounting bracket 4-way LED indicator Dimensions LED gn LED ye 7 M12 x 1 20 30 28 LED ye 4 67 LED gn 40 40 5.5 ø 5.5 46 Release date: 2020-03-21 Date of issue: 2020-03-30 Filename: 187484_eng.pdf 60 Technical Data General specifications Switching function Normally open (NO) Output type Rated operating distance PNP sn Installation 40 mm non-flush Output polarity DC Assured operating distance sa 0 ... 32.4 mm Actual operating distance sr 36 ... 44 mm Reduction factor rAl 0.33 Reduction factor rCu 0.31 Reduction factor r304 0.74 Reduction factor rBrass 0.38 Output type 3-wire Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 fa-info@de.pepperl-fuchs.com www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com Singapore: +65 6779 9091 fa-info@sg.pepperl-fuchs.com 1 Inductive sensor NBN40-L2-E2-V1 Technical Data Nominal ratings Operating voltage UB 10 ... 30 V DC Switching frequency f 0 ... 180 Hz Hysteresis H typ. 5 % Reverse polarity protection reverse polarity protected Short-circuit protection pulsing Voltage drop Ud ≤2V Operating current IL 0 ... 200 mA Off-state current Ir 0 ... 0.5 mA No-load supply current I0 ≤ 20 mA Time delay before availability tv 80 ms Operating voltage indicator LED, green Switching state indicator LED, yellow Functional safety related parameters MTTFd 1510 a Mission Time (TM) 20 a Diagnostic Coverage (DC) 0% Compliance with standards and directives Standard conformity Standards EN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 Approvals and certificates EAC conformity TR CU 020/2011 Protection class II Rated insulation voltage Ui 253 V Rated impulse withstand voltage Uimp 4000 V UL approval cULus Listed, General Purpose CCC approval CCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature -25 ... 85 °C (-13 ... 185 °F) Storage temperature -40 ... 85 °C (-40 ... 185 °F) Release date: 2020-03-21 Date of issue: 2020-03-30 Filename: 187484_eng.pdf Mechanical specifications Connection type Connector plug M12 x 1 , 4-pin Housing material PA Sensing face PA Degree of protection IP69K Cable Cable diameter 3.3 mm ± 0.15 mm Mass 130 g Connection 1 L+ 4 3 L- Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 fa-info@de.pepperl-fuchs.com www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com Singapore: +65 6779 9091 fa-info@sg.pepperl-fuchs.com 2 Inductive sensor NBN40-L2-E2-V1 Connection Assignment 1 4 2 3 Wire colors in accordance with EN 60947-5-2 1 2 3 4 BN WH BU BK (brown) (white) (blue) (black) Accessories Female cordset, M12, 4-pin, PUR cable V1-W-2M-PUR Female cordset, M12, 4-pin, PUR cable MHW 01 Modular mounting bracket MH 02-L Mounting aid Release date: 2020-03-21 Date of issue: 2020-03-30 Filename: 187484_eng.pdf V1-G-2M-PUR Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 fa-info@de.pepperl-fuchs.com www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com Singapore: +65 6779 9091 fa-info@sg.pepperl-fuchs.com 3
