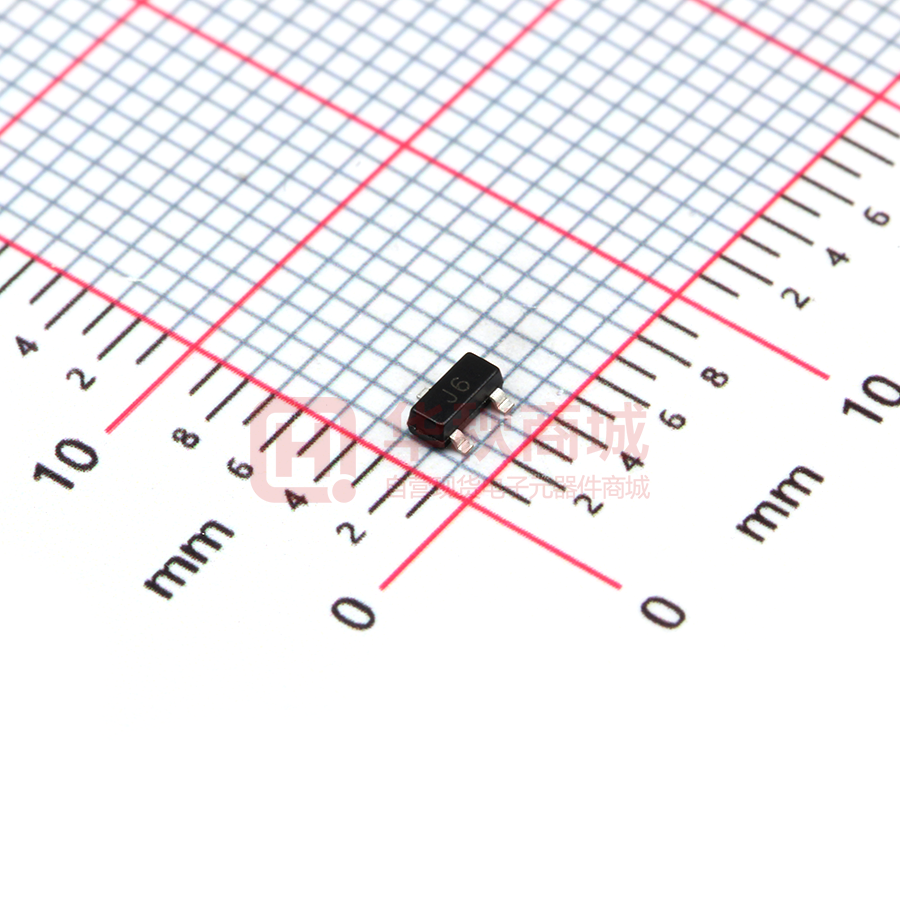

S9014
TRANSISTOR (NPN)
FEATURES
SOT-23
Complementary to S9015
1.BASE
2.EMITTER
3.COLLECTOR
MARKING: J6
MAXIMUM RATINGS (TA=25℃ unless otherwise noted)
Symbol
Parameter
value
units
VCBO
Collector-Base Voltage
50
V
VCEO
Collector-Emitter Voltage
45
V
VEBO
Emitter-Base Voltage
5
V
IC
Collector Current-Continuous
0.1
A
PC
Collector Power Dissipation
0.2
W
TJ
Junction Temperature
150
℃
TSTG
Storage Temperature
-55-150
℃
ELECTRICAL CHARACTERISTICS (Tamb=25℃ unless otherwise specified)
Parameter
Symbol
Test
conditions
MIN
TYP
MAX
UNIT
Collector-base breakdown voltage
V(BR)CBO
IC= 100µA,
IE=0
50
V
Collector-emitter breakdown voltage
V(BR)CEO
IC= 0.1mA, IB=0
45
V
Emitter-base breakdown voltage
V(BR)EBO
IE=100µA, IC=0
5
V
Collector cut-off current
ICBO
VCB=50V,
IE=0
0.1
µA
Collector cut-off current
ICEO
VCE=35V,
IB=0
0.1
µA
Emitter cut-off current
IEBO
VEB= 3V,
IC=0
0.1
µA
DC current gain
hFE
VCE=5V,
IC= 1mA
450
200
Collector-emitter saturation voltage
VCE(sat)
IC=100 mA, IB= 5mA
0.3
V
Base-emitter saturation voltage
VBE(sat)
IC=100 mA,
1
V
Transition frequency
fT
VCE=5V,
B=
5mA
IC= 10mA
150
MHz
f=30MHz
Page 1 of 3
5/30/2011
Page 2 of 3
5/30/2011
PACKAGE OUTLINE
Plastic surface mounted package; 3 leads
Page 3 of 3
SOT-23
5/30/2011
