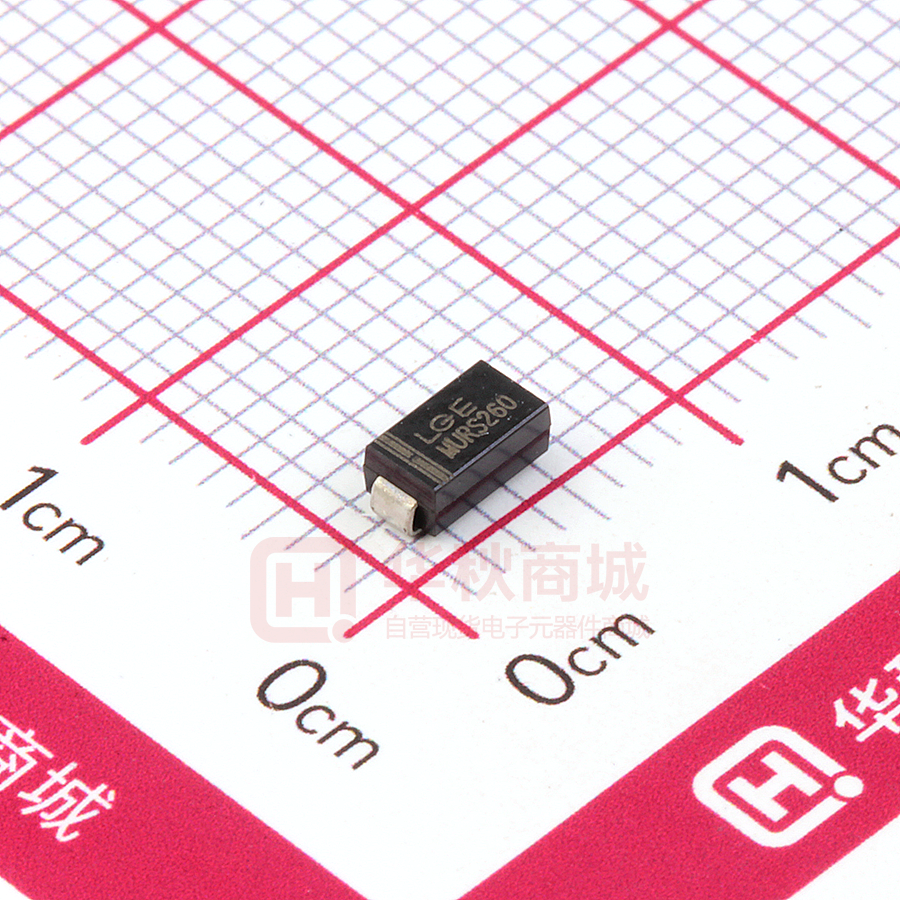

MURS260A

MURS220-MAURS260A Surface Mount Rectifiers VOLTAGE RANGE: 600 V CURRENT: 2.0 A SMA/DO-214AC Features
Low cost 0. 181( 4. 60) 0. 161( 4. 10)
Low leakage
Low forward voltage drop current capability
Easily cleaned with Alcohol,Isopropanol and similar solvents
The plastic material carries U/L recognition 94V-0 0. 108( 2. 75) 0. 096( 2. 45) 0. 063(1.60) 0. 051(1.30)
High 0. 209( 5. 30) 0. 193( 4. 90) 0. 012(0.30) 0. 006(0.15) Mechanical Data 0.096(2.45) 0.078(2.00)
Case:JEDEC DO-214AA,molded 0. 059( 1. 50) 0. 035( 0. 90) plastic 0.008(0.20) 0. 002(0.05)
Polarity: Color band denotes cathode 0.003 ounces,0.093 grams
Mounting position: Any
Weight: Dimensions in inches and(millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 　ambient temperature unless otherwise specified. Single phase,half wave,60 Hz,resistive or inductive load. For capacitive load,derate by 20%. MURS220A MURS240A MURS260A UNITS Maximum recurrent peak reverse voltage VRRM 200 400 600 V Maximum RMS voltage V RMS 200 400 600 V DC blocking voltage VR 200 400 600 V I F(AV) 2.0 2.0 2.0 A IFSM 40 35 35 A VF 0.95 1.4 1.3 V 2.0 5.0 5.0 Average rectified forward current @TL=125 Non-repetitive peak surge current (Surge applied at rated load conditions halfwave,single phase,60Hz) Maximum instantaneous forward @TJ =25 voltage at 2.0 A (Note2) Maximum reverse current at rated DC blocking voltage @TA=25 IR Maximum reverse recovery time A 150 @T A=125 t rr (Note1) R θJL Thermal resistance,junction-to-lead 50 13.0 TJ - 65 ---- + 175 TSTG - 65 ---- + 175 Operating junction temperature range Storage temperature range 25 50 ns ／W NOTE: 1. Measured with I F =0.5A, I R =1A, I rr =0.25A. 2. Pulse Test: Pulse Width = 300µ s,Duty Cycle≤2.0% ht t p : // Revision:20170701-P1 www.lgesemi .c o m mail:lge@lgesemi.com MURS220A-MURS260A Surface Mount Rectifiers Ratings AND Charactieristic Curves 10 TJ=25 Pulse Width=300uS 4 2 1.0 AMPERES 0.4 0.2 0.1 0.06 0.04 0.02 0.01 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 INSTANTANEOUS REVERSE LEAKAGE CURRENT 100 FIG.2 -- TYPICAL REVERSE LEAKAGE CHARACTERISTICS 1000 100 O TJ=125 C 10 O TJ=75 C 1 TJ=25OC 0.1 0.01 0 20 40 60 80 100 PERCENT OF RATED PEAK REVERSE VOLTAGE (%) FIG.3 -- PEAK FORWARD SURGE CURRENT FIG.4 -- FORWARD DERATING CURVE 45 40 TJ =125 8.3ms Single Half Sine-Wave 35 30 25 20 15 10 5 1 2 4 8 10 20 40 60 80 100 AVERAGE FORWARD CURRENT AMPERES INSTANTANEOUS FORWARD VOLTAGE,VOLTS AMPERES PEAK FORWARD SURGE CURRENT INSTANTANEOUS FORWARD CURRENT FIG.1 -- TYPICAL FORWARD CHARACTERISTIC 2.4 2.0 1.6 1.2 0.8 Single Phase Half Wave 60H Z Resistive or Inductive Load 0.4 0 25 50 ht t p : // 100 125 150 175 LEAD TEMPERATURE, NUMBER OF CYCLES AT 60Hz Revision:20170701-P1 75 www.lgesemi .c o m mail:lge@lgesemi.com
