ME6208
150 mA, high input voltage LDO Linear Regulators ME6208 Series
General Description
Features
ME6208 series are low-dropout linear voltage
High output accuracy:
regulators with a built-in voltage reference module, error
± 1%(VOUT =3.0V、3.3V、5.0V)
correction module and phase compensation module.
± 2%(Others)
ME6208 series are based on the CMOS process and
Input voltage:up to 18 V
allow high voltage input with low quiescent current. This
Output voltage:2.1 V ~ 5.0V
series has the function of internal feedback resistor
Ultra-low quiescent current (Typ. = 3 µ A)
setting from 2.1 to 5.0V. The two output voltage
Output Current:Iout = 200mA
(When Vin = 7V and Vout =5V)
accuracies are: ±1% (VOUT =3.0V,3.3V, 5.0V) and ±2%
(other output voltages).
Importation good stability:Typ. 0.05% / V
Low temperature coefficient
Ceramic capacitor can be used
Typical Application
Package
Electronic weighbridge
SCM
Phones, cordless phones
Security Products
Water meters, power meters
3-pin SOT23-3、SOT89-3、TO92
Typical Application Circuit
VIN
CIN
10uF
V08
VOUT
COUT
10uF
RL
VSS
www.microne.com.cn
Page 1 of 11
ME6208
Selection Guide
ME 62 08 X XX XX G
Environment mark
Package
M3:SOT23-3
P:SOT89-3
T:TO92
Output Voltage
21:2.1V
30:3.0V
33:3.3V
……
Function
Product Type
Product Series
Microne
product series
product description

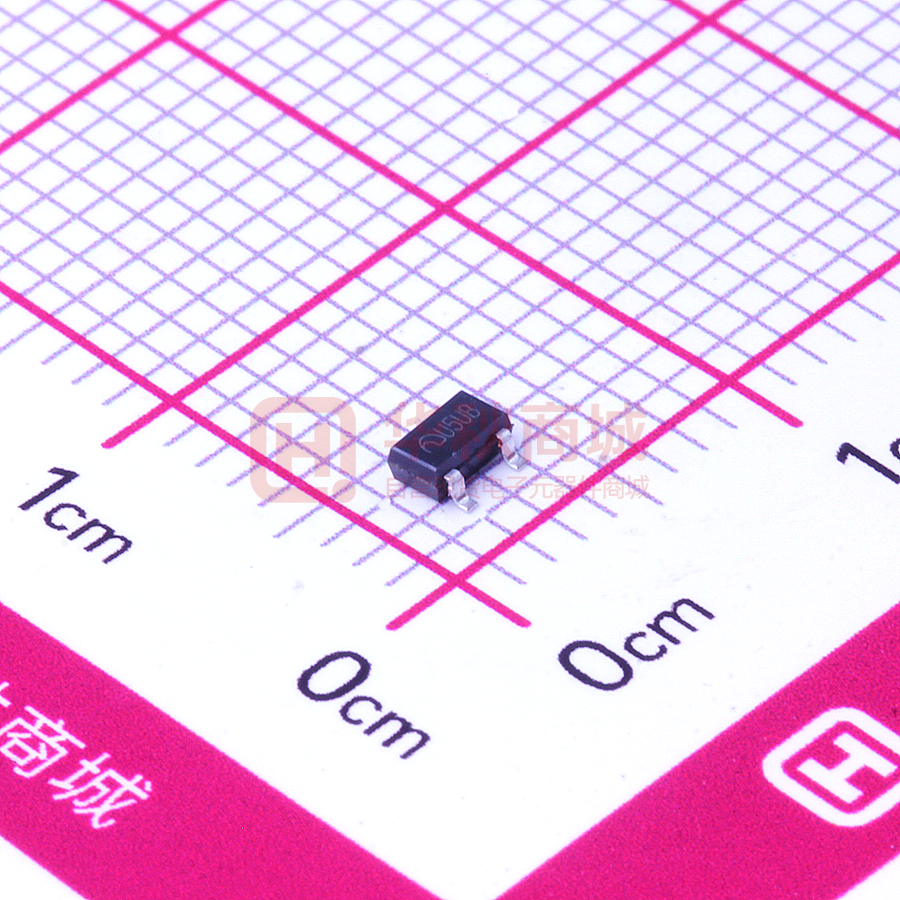

ME6208A21M3G
VOUT =2.1V±2%;Package:SOT23-3
ME6208A30M3G
VOUT =3.0V±1%; Package:SOT23-3
ME6208A30PG
VOUT =3.0V±1%; Package:SOT89-3
ME6208A33M3G
VOUT =3.3V±1%; Package::SOT23-3
ME6208A33TG
VOUT =3.3V±1%; Package::TO92
ME6208A36M3G
VOUT =3.6V±2%; Package:SOT23-3
ME6208A40PG
VOUT =4.0V±2%; Package::SOT89-3
ME6208A44M3G
VOUT =4.4V±2%; Package:SOT23-3
ME6208A50M3G
VOUT =5.0V±1%; Package:SOT23-3
ME6208A50TG
VOUT =5.0V±1%; Package:TO92
NOTE: At present ,there are seven kinds of voltage value:
2.1V、3.0V、3.3V、3.6V、4.0V、4.4V、5.0V。
If you need other voltage and package, please contact our sales staff。
V08
www.microne.com.cn
Page 2 of 11
ME6208
Pin Configuration
3
1
2
3
SOT89-3
1
2
SOT23-3
1
3
2
TO92
Pin Assignment
Pin Number
Pin Name
Functions
1
VSS
Ground
2
3
VIN
Power Input
3
2
VOUT
Output
SOT89-3 / TO92
SOT23-3
1
Block Diagram
V08
www.microne.com.cn
Page 3 of 11
ME6208
Absolute Maximum Ratings
Parameter
Symbol
Ratings
Units
Input Voltage
VIN
18
V
Output Current
IOUT
250
mA
Output Voltage
VOUT
Vss-0.3~VIN +0.3
V
SOT89-3
Power Dissipation
Thermal resistance
1.25
TO92
PD
0.83
SOT23-3
0.54
SOT89-3
100
θJA
TO92
W
℃/W
150
SOT23-3
230
Operating Temperature Range
TOPR
-45 ~ +85
℃
Storage Temperature Range
TSTG
-55 ~ +150
℃
Lead Temperature
260℃,10sec
Electrical Characteristics
(VIN= VOUT+2.0V,CIN=CL=10uF,Ta=25OC, unless otherwise noted)
Parameter
Output Voltage
Input Voltage
Maximum Output
Current
Load Regulation
Dropout Voltage
(Note 3)
Supply Current
Line Regulations
Symbol
Conditions
VOUT=3.0V,3.3V,5.0V
VOUT(E)
IOUT=10mA,
(Note 2)
VIN=Vout+2V
VOUT=others
Min.
X 0.99
X 0.98
Typ.
VOUT (T)
(Note 1)
VOUT (T)
(Note 1)
VIN
Max.
Units
X 1.01
V
X 1.02
18
150
V
IOUT _max
VIN=Vout+2V
mA
∆VOUT
VIN=Vout+2V, 1mA≤IOUT≤100mA
10
mV
Vdif1
IOUT =50mA
250
mV
Vdif2
IOUT =100mA
500
mV
Vdif3
IOUT =200mA
1000
mV
ISS
VIN=Vout+2V
3
∆VOUT
IOUT =10mA
∆VIN ×VOUT
Vout+2V ≤VIN≤18V
5
0.05
μ A
%/V
Note :
1. VOUT (T) :Specified Output Voltage
2.VOUT (E) :Effective Output Voltage ( ie. The output voltage when “VOUT (T)+2.0V”is provided at the Vin pin while
maintaining a certain Iout value.)
3.VDIF:VIN1 –VOUT (E)’
VIN1 :The input voltage when VOUT(E)’ appears as input voltage is gradually decreased.
VOUT (E)’=A voltage equal to 98% of the output voltage whenever an amply stabilized Iout and {VOUT (T)
+2.0V} is input.
V08
www.microne.com.cn
Page 4 of 11
ME6208
Precautions
During the test, if AC/DC power supply and the ceramic chip capacitors collocation is used, there may be
serious voltage spike phenomenon instantaneously. When the power supply access to 16V, the voltage is
rushed to about 30V instantaneously. Because of exceeding the limit voltage of chip, the chip is damaged. If
you string a small resistance of 1 ohm in the input end during the test, the peak phenomenon can be
avoided.
In the test, there is serious burr phenomenon only when the AC/DC power is used with ceramic chip
capacitors. But electrolytic capacitors and tantalum capacitance won't appear above phenomenon. Please
be sure to pay attention to this point when you use AC/DC power.
In normal use, when any type of capacitor is used with battery or the supply of fire power, the above
phenomenon doesn’t occur.
Type Characteristics
(1)Output CurrentVS.Output Voltage( Ta = 25 °C)
ME6208A50
Output Voltage VS. Output Current
Output Voltage (V)
5.30
5.20
5.10
5.00
4.90
4.80
4.70
0
20
40
60
80
100
120
140
160
180
200
Output Current(mA)
V08
www.microne.com.cn
Page 5 of 11
ME6208
(2)Input VoltageVS.Output Voltage(Ta = 25 °C)
ME6208A50
Output Voltage(V)
Output Voltage VS. Input Voltage
5.50
5.00
4.50
4.00
3.50
3.00
2.50
2.00
1.50
1.00
0.50
0.00
Io=0mA
Io=40mA
1
2
3
4
5
6
7
8
9 10 11 12 13 14 15 16 17 18
Input Voltage(V)
(3)Output Current VS.Droput Voltage( Ta = 25 °C)
ME6208A50
Dropout Voltage VS.Output Current
Dropout Voltage(mV)
1200
1000
800
600
400
200
0
0
50
100
150
200
Output Current (mA)
V08
www.microne.com.cn
Page 6 of 11
ME6208
(4)Input Voltage VS. Supply Current(Ta = 25 °C)
ME6208A50
Quiescent Current VS. Input Voltage
Quiescent Current (uA)
5
4
3
2
1
0
0
2
4
6
8
10
12
14
16
18
Input Voltage(V)
(5)Output Voltage VS. Temperature
ME6208A33
Output Voltage VS.Temperature
3.34
Output Voltage(V)
3.32
3.3
3.28
3.26
3.24
3.22
3.2
-45 -40 -30 -20 -10 0
10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
Temperature(℃)
V08
www.microne.com.cn
Page 7 of 11
ME6208
Packaging Information
Packaging Type: SOT23-3
Millimeters
DIM
Inches
Min
Max
Min
Max
A
1.05
1.45
0.0413
0.0571
A1
0
0.15
0.0000
0.0059
A2
0.9
1.3
0.0354
0.0512
A3
0.6
0.7
0.0236
0.0276
b
0.25
0.5
0.0098
0.0197
c
0.1
0.25
0.0039
0.0098
D
2.8
3.1
0.1102
0.1220
E
2.6
3.1
0.1023
0.1220
E1
1.5
1.8
0.0591
0.0709
e
0.95(TYP)
L
0.25
L1
0.0374(TYP)
0.6
0.0098
0.59(TYP)
θ
0
c1
0.0232(TYP)
8°
0.2(TYP)
V08
0.0236
0.0000
8°
0.0079(TYP)
www.microne.com.cn
Page 8 of 11
ME6208
Packaging Type: SOT89-3
Millimeters
DIM
Inches
Min
Max
Min
Max
A
1.4
1.6
0.0551
0.063
b
0.32
0.52
0.0126
0.0205
b1
0.4
0.58
0.0157
0.0228
c
0.35
0.45
0.0138
0.01772
D
4.4
4.6
0.1732
0.1811
D1
1.55(TYP)
0.061(TYP)
D2
1.75(TYP)
0.0689(TYP)
e1
3(TYP)
0.1181(TYP)
E
2.3
2.6
0.0906
0.1023
E1
3.94
4.4
0.1551
0.1732
E2
1.9(TYP)
0.0748(TYP)
e
1.5(TYP)
0.0591(TYP)
L
0.8
θ
1.2
45°
V08
0.0315
0.0472
45°
www.microne.com.cn
Page 9 of 11
ME6208
Packaging Type:TO-92
Millimeters
DIM
Inches
Min
Max
Min
Max
A
3.3
3.7
0.1299
0.1457
A1
1.1
1.4
0.0433
0.0551
b
0.38
0.55
0.015
0.0217
c
0.36
0.51
0.0142
0.0201
D
4.3
4.7
0.1693
0.185
D1
3.43
一
0.135
一
E
4.3
4.7
0.1693
0.185
e
1.27
0.05
e1
2.44
2.64
0.0961
0.1039
L
14.1
14.5
0.5551
0.5709
h
0
0.38
0
0.015
Φ
一
1.6
一
0.063
V08
www.microne.com.cn
Page 10 of 11
ME6208
The information described herein is subject to change without notice.
Nanjing Micro One Electronics Inc is not responsible for any problems caused by circuits or diagrams
described herein whose related industrial properties, patents, or other rights belong to third parties.
The application circuit examples explain typical applications of the products, and do not guarantee the
success of any specific mass-production design.
Use of the information described herein for other purposes and/or reproduction or copying without the
express permission of Nanjing Micro One Electronics Inc is strictly prohibited.
The products described herein cannot be used as part of any device or equipment affecting the human
body, such as exercise equipment, medical equipment, security systems, gas equipment, or any
apparatus installed in airplanes and other vehicles, without prior written permission of Nanjing Micro
One Electronics Inc.
Although Nanjing Micro One Electronics Inc exerts the greatest possible effort to ensure high quality
and reliability, the failure or malfunction of semiconductor products may occur. The user of these
products should therefore give thorough consideration to safety design, including redundancy,
fire-prevention measures, and malfunction prevention, to prevent any accidents, fires, or community
damage that may ensue.
V08
www.microne.com.cn
Page 11 of 11
