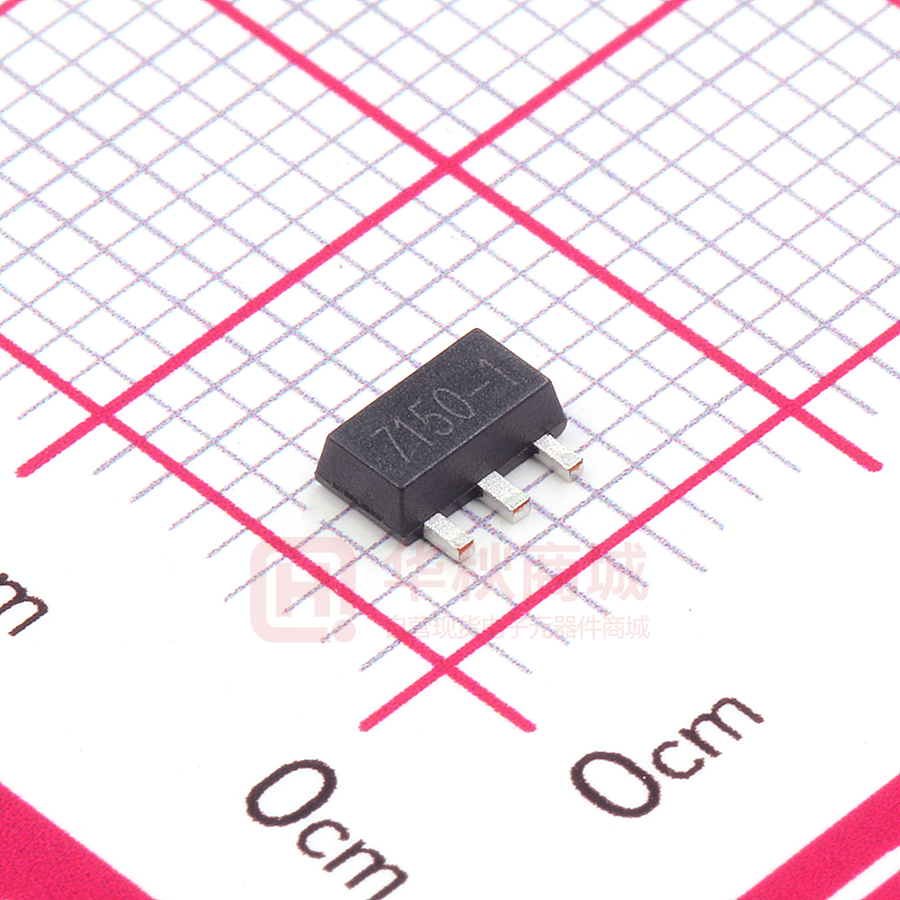

H7150-1- SOT-89

H71XX-1 50mA Low Power LDO Features  Low power consumption  High input voltage (up to 15V)  Low voltage drop  Output voltage accuracy: tolerance ±2%  Low temperature coefficient  TO92, SOT89 and SOT23 package  Audio/Video equipment Applications  Battery-powered equipment  Communication equipment General Description technology ensures low voltage drop and low power high voltage regulators implemented in quiescent current. Although designed primarily as CMOS technology. They allow input voltages as fixed voltage regulators, these devices can be high as 18V. They are available with several fixed used with external components to obtain variable output voltages ranging from 2.1V to 5.0V. CMOS voltages and currents. Selection Table Package Marking PR O Output Voltage 2.1V 2.3V 2.5V 2.7V 3.0V 3.3V 3.6V 4.4V 5.0V TO92 SOT89 SOT23 71XXA-1(for TO92) 71XX-1(for SOT89) HTXX(for SOT23) SI Part No. H7121-1 H7123-1 H7125-1 H7127-1 H7130-1 H7133-1 H7136-1 H7144-1 H7150-1 IN The H71XX-1 series is a set of three-terminal low Note:”XX” stands for output voltages. Other voltages can be specially customized. Order Information H71①②-1③④ Designator ① ② ③ ④ Ver1.8 Symbol Integer T P N R G Description Output Voltage(2.1V~5.0V) Package:TO-92 Package:SOT89 Package:SOT23 RoHS / Pb Free Halogen Free 1 Shanghai Siproin Microelectronics Co. H71XX-1 50mA Low Power LDO Block Diagram PR O IN Pin Assignment SI Absolute Maximum Ratings Supply Voltage ................................-0.3V to 18V Storage Temperature ..................-50℃ to 125℃ Operating Temperature .................-40℃ to 85℃ Note: These are stress ratings only. Stresses exceeding the range specified under “Absolute Maximum Ratings” may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability. Thermal Information Symbol Parameter θJA Thermal Resistance (Junction to Ambient) (Assume no ambient airflow, no heat sink) PD Power Dissipation Package TO92 SOT89 SOT23 TO92 SOT89 SOT23 Max. 200 200 500 0.50 0.50 0.20 Unit ℃/W ℃/W ℃/W W W W Note: PD is measured at Ta= 25℃ Ver1.8 2 Shanghai Siproin Microelectronics Co. H71XX-1 50mA Low Power LDO Electrical Characteristics H7121-1, +2.1V Output Type Test Conditions Symbol Parameter VIN Conditions Min. Typ. Max. Unit VOUT Output Voltage 4.1V IOUT=10mA 2.058 2.100 2.142 V IOUT Output Current 4.1V - 30 50 - mA ΔVOUT Load Regulation 4.1V 1mA≤IOUT≤20mA - 60 100 mV VDIF Voltage Drop(Note) - IOUT=1mA - 100 - mV ISS Current 4.1V No load - 2.5 3 μA - 0.2 - %/V 15 V - mV/℃ Consumption ∆VOUT ∆V IN × VOUT Line Regulation - VIN Input Voltage - ∆VOUT ∆Ta Temperature 3.1V≤VIN≤16V IN - - IOUT=10mA 4.1V 0℃
