A
B
C
D
E
F
G
H

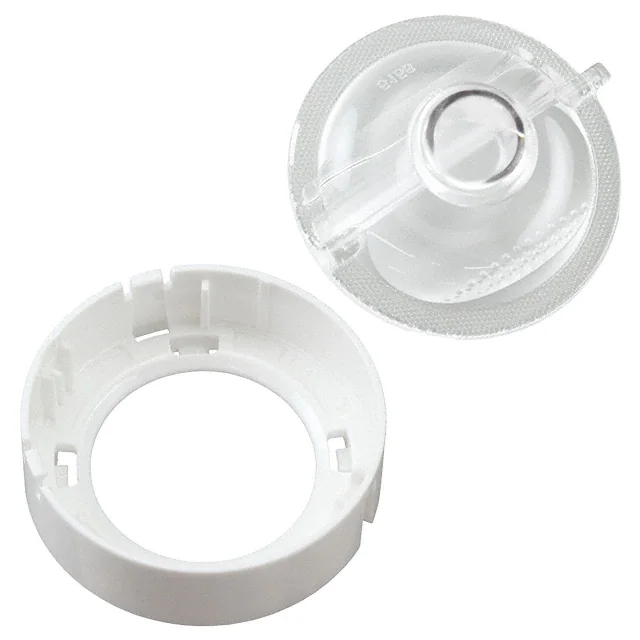

OPTIC/HOLDER ASSEMBLY
4
4
1. Place pin on the side of the lens into relative
hole on the holder.
2.Press the lens under clips on the holder,
ensuring both clips are fixed.
Ronda optics
Pin
Holder hole
F15635_RONDA-HLD-C
3
3
M3 screw+washer
Hekla socket, see compatibility www.ledil.com
Clips
Led, see compatibility www.ledil.com
Oval beam direction
2
Holder C can be turned 90 ->fixing screw can be
at beam direction or 90 angle to it
20.46
2
3.42
54.95
(with socket)
Tolerances if not otherwise shown
According to DIN ISO 2768-1
Linear measures:
Up to 30mm class M, otherwise class C.
According to DIN ISO 2768-2
Form and position: class L
THIRD ANGLE PROJECTION:
16.61
1
Leads out
AWG20 recommended
Max. 28.2
(F156156_Ronda WAS)
H
G
53.9
This drawing is the property
of LEDiL Oy. It may not be
reproduced, copied or
communicated without a written
agreement with LEDiL Oy.
Ledil Oy
Salorankatu 10
FIN 24240 SALO
Finland
DRAWING TITLE
RONDA-C_Datasheet
SIZE
1
PART NUMBER
A3
SCALE
1:1 WEIGHT
SHEET
B
A
1/1
