Form No: T00298-1-0000-TBM02-200400622
Specification for Approval
Date: 2020/04/27
Customer : 天诚科技
BPH853025R5-101T
TAI-TECH P/N:
CUSTOMER P/N:
DESCRIPTION:
pcs
QUANTITY:
REMARK:
Customer Approval Feedback
西北臺 慶科技股份有限公司
TAI-TECHAdvancedElectronicsCo.,Ltd
■
□
代理商:
深圳市天诚科技有限公司
Shenzhen TsaSun Technology Co.,Ltd.
Room 209, 2/F, Block A, Tengfei Industrial Building, No.
6, Taohua Road, Futian District, Shenzhen
TEL:0755-8335 8885 / 0755-8335 9885
E-mail:sales@tsasun.com
www.tsacoil.com
臺慶精密電子(昆山)有限公司
TAI-TECH ADVANCED ELECTRONICS(KUNSHAN) CO., LTD
SHINWHA ROAD, KUNJIA HI-TECH INDUSTRIAL PARK, KUN-SHAN,
JIANG-SU, CHINA
TEL: +86-512-57619396 FAX: +86-512-57619688
E-mail: sales@tai-tech.cn
□ 慶邦電子元器件(泗洪)有限公司
TAIPAQ ELECTRONICS (SIHONG) CO., LTD
Sihong development zone Suqian City, Jiangsu , CHINA.
TEL: +86-527-88601191 FAX: +86-527-88601190
E-mail: sales@taipaq.cn
Sales Dep.
APPROVED
CHECKED
陳暐治
鍾明君
Sable Chen
Mandy Chung
R&D Center
APPROVED
CHECKED
DRAWN
楊祥忠
林旻昇
何玉蓮
Mike Yang
Mars Lin
Anna Ho
TA834002
TAI-TECH
P2
Ferrite Bead

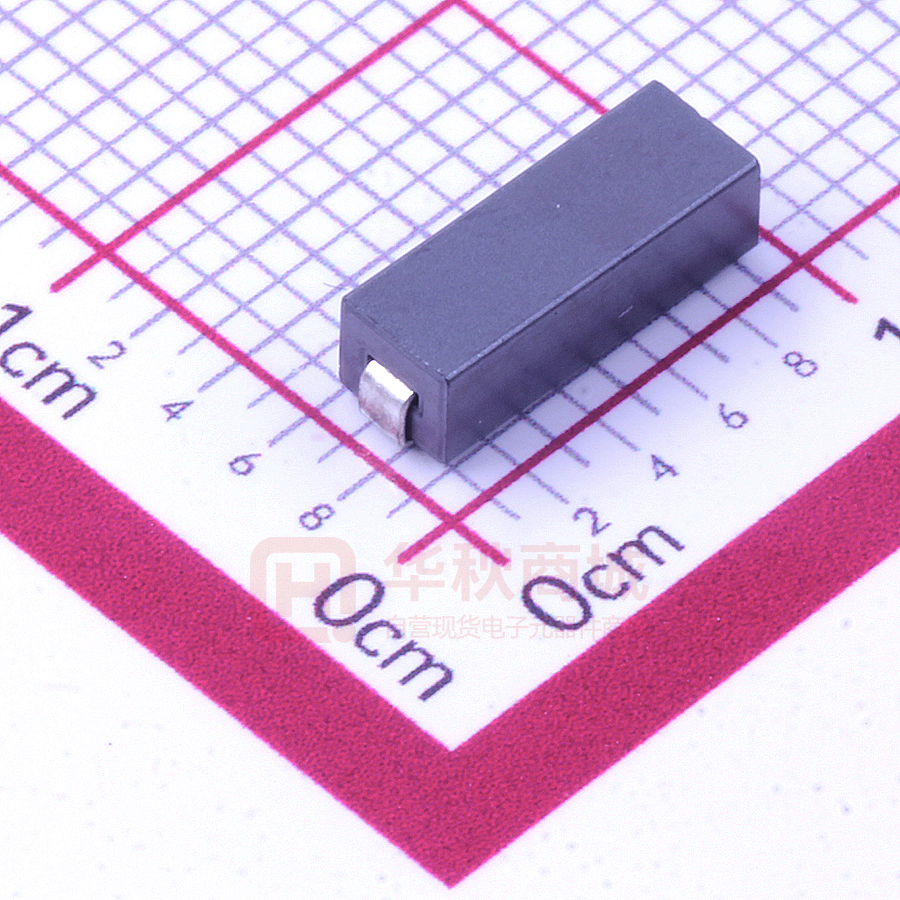

BPH853025R5-101T
1. Features
1. 100% Lead(Pb) & Halogen-Free and RoHS compliant.
Halogen
2. Operating temperature -40~+125℃ (Including self - temperature rise)
Halogen-free
2. Dimension
CORE SIZE
A(mm)
B(mm)
C(mm)
D(mm)
8.5 ±0.25
3.0 ±0.15
2.5 ±0.15
1.5 ±0.15
PRODUCT SIZE
A(mm)
B(mm)
C(mm)
D(mm)
E(mm)
9.0 ±0.40
3.0 ±0.15
2.8 ±0.25
1.50±0.50
1.25±0.20
3. Part Numbering
BPH
853025 R5
A
B
-
C
101
T
D
E
A: Series
B: Dimension
C: Material
Ferrite Core
D: Impedance
E: Packaging
101=100Ω
T=Taping and Reel
4. Specification
TAI-TECH
Part Number
BPH853025R5-101T
ELECTRICAL
REQUIREMENTS 1
ELECTRICAL
REQUIREMENTS 2
Test
Test
Impedance Tolerance
Impedance Tolerance
Frequency
Frequency
(Ω)
(%)
(Ω)
(%)
(MHz)
(MHz)
65
25
±25
100
±25
Note:
Rated Current :
(1) : Chroma high current test fixture.
(2) :PCB test fixture ( 30x45mm copper pattern , 50um copper thickness).
www.tai-tech.com.tw
100
DCR
(mΩ)
Max.
1.00
Rated Current(A)
△T=40℃
TYP.
△T=60℃
TYP.
30(1)
13(2)
40(1)
18(2)
TAI-TECH
P3
Typical Impedance v.s. Frequency Curve
5. Material List
No.
a.
Description
Specification
a
Core
Ferrite Core
Wire
Electroplated nickel-tin flat copper wire
b.
(1.25W X 0.20T)m/m
b
www.tai-tech.com.tw
TAI-TECH
P4
6. Reliability and Test Condition
Item
Performance
Operating temperature
-40~+125℃ (Including self - temperature rise)
Storage temperature
-40~+125℃ (on board)
Test Condition
Electrical Performance Test
Agilent E4991A,Agilent Fixture 16197A
Z( Impedance)
Refer to standard electrical characteristics list.
DCR
LCR Meter.
Agilent33420A Micro-Ohm Meter.
Heat Rated Current (Irms) will cause the coil temperature rise
△T(℃) without core loss.
Heat Rated Current (Irms)
Approximately △T≦40℃
1.Applied the allowed DC current(keep 1 min.).
2.Temperature measured by digital surface thermometer
Reliability Test
Preconditioning: Run through IR reflow for 2 times.( IPC/JEDEC
J-STD-020DClassification Reflow Profiles)
Temperature: 125±2℃(Inductor)
Life Test
Applied current:rated current
Duration:1000±12hrs
Measured at room temperature after placing for 24±2 hrs
Preconditioning: Run through IR reflow for 2 times.( IPC/JEDEC
J-STD-020DClassification Reflow Profiles
Humidity:85±2﹪R.H,
Load Humidity
Temperature:85℃±2℃
Duration:1000hrs Min. with 100% rated current
Measured at room temperature after placing for 24±2 hrs
Moisture Resistance
Appearance:No damage.
Impedance:within±15% of initial value
RDC:within ±15% of initial value and shall not
exceed the specification value
Preconditioning: Run through IR reflow for 2 times.( IPC/JEDEC
J-STD-020DClassification Reflow
Profiles
1. Baked at50℃ for 25hrs, measured at room temperature after
placing for 4 hrs.
2. Raise temperature to 65±2℃ 90-100%RH in 2.5hrs, and
keep 3 hours, cool down to 25℃ in 2.5hrs.
3. Raise temperature to 65±2℃ 90-100%RH in 2.5hrs, and
keep 3 hours, cool down to 25℃ in
2.5hrs,keep at 25℃ for 2 hrs then keep at -10℃ for 3 hrs
4. Keep at 25℃ 80-100%RH for 15min and vibrate at the
frequency of 10 to 55 Hz to 10 Hz, measure at
room temperature after placing for 1~2 hrs.
Preconditioning: Run through IR reflow for 2 times.( IPC/JEDEC
J-STD-020DClassification
Reflow Profiles
Condition for 1 cycle
Step1:-40±2℃ 30±5min
Thermal
shock
Step2:25±2℃ ≦0.5min
Step3:125±2℃ 30±5min
Number of cycles: 500
Measured at room temperature after placing for 24±2 hrs
Oscillation Frequency: 10Hz~2KHz~10Hz for 20 minute
Equipment: Vibration checker
Total Amplitude:10g
Testing Time : 12 hours(20 minutes, 12 cycles each of 3
orientations)。
Vibration
www.tai-tech.com.tw
TAI-TECH
Item
P5
Performance
Bending
Appearance:No damage.
Impedance:within±15% of initial value
RDC:within ±15% of initial value and shall not
exceed the specification value
Shock
Solder ability
More than 95% of the terminal electrode should
be covered with solder。
Test Condition
Shall be mounted on a FR4 substrate of the
following dimensions: >=0805 inch(2012mm):40x100x1.2mm
=0805 inch(2012mm):1.2mm
0805:1kg ,
