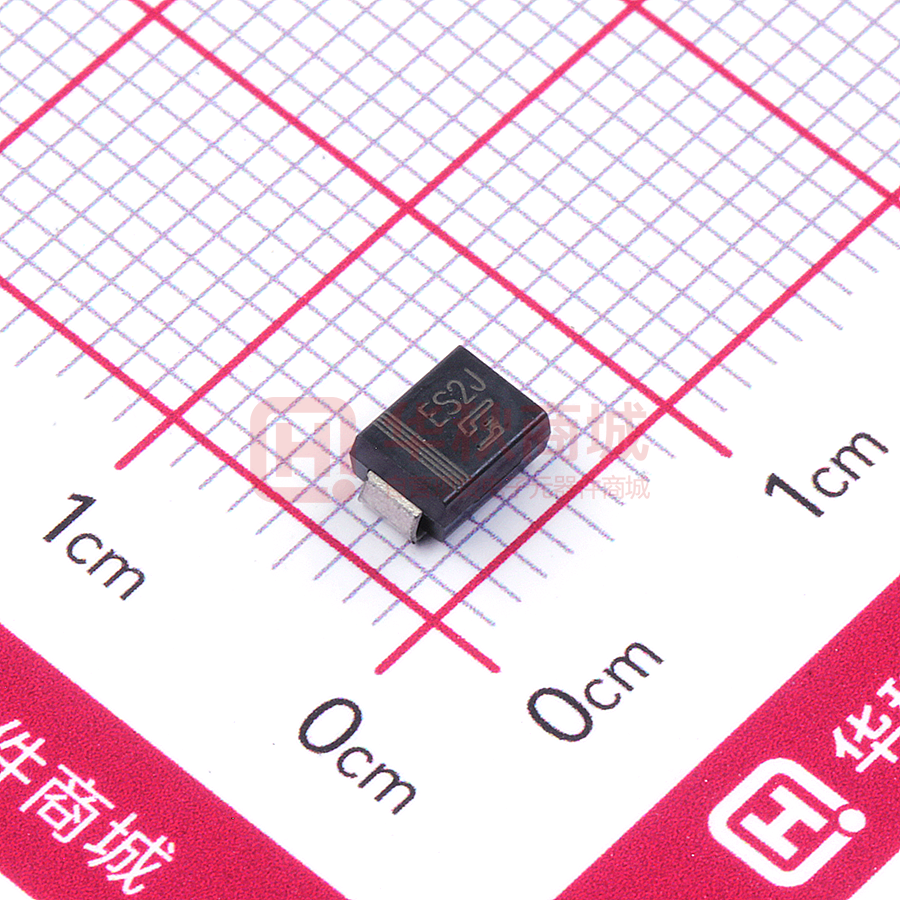

ES2A - ES2J SURFACE MOUNT SUPER FAST RECTIFIER DIODES VOLTAGE RANGE: 50 - 600V CURRENT: 2.0 A Features ! Glass Passivated Die Construction ! ! ! ! ! Ideally Suited for Automatic Assembly Low Forward Voltage Drop, High Efficiency Low Power Loss Super-Fast Recovery Time Plastic Case Material has UL Flammability Classification Rating 94V-O B A Mechanical Data ! ! ! ! ! SMB(DO-214AA) Case: SMB/DO-214AA, Molded Plastic Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 Polarity: Cathode Band or Cathode Notch Marking: Type Number Weight: 0.093 grams (approx.) C D J G E H Maximum Ratings and Electrical Characteristics Dim Min Max A 3.30 3.94 B 4.06 4.70 C 1.91 2.21 D 0.15 0.31 E 5.00 5.59 G 0.10 0.20 H 0.76 1.52 J 2.00 2.62 All Dimensions in mm TA = 25C unless otherwise specified Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Characteristic Symbol Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Rectified Output Current ES2B ES2C ES2D ES2E ES2G ES2J Unit VRRM VRWM VR 50 100 150 200 300 400 600 V VR(RMS) 35 70 105 140 210 280 420 V IO 2.0 A Non-Repetitive Peak Forward Surge Current 8.3ms Single half sine-wave superimposed on rated load (JEDEC Method) IFSM 50 A Forward Voltage @IF = 2.0A VFM @TA = 25°C @TA = 100°C IRM 5.0 200 µA Reverse Recovery Time (Note 1) trr 35 nS Typical Junction Capacitance (Note 2) Cj 62 pF R
JL 40 °C/W Tj, TSTG -65 to +150 °C Peak Reverse Current At Rated DC Blocking Voltage @TL = 75 °C ES2A Typical Thermal Resistance (Note 3) Operating and Storage Temperature Range 0.95 1.25 1.7 V Note: 1. Measured with IF = 0.5A, IR = 1.0A, Irr = 0.25A. See figure 5. 2. Measured at 1.0 MHz and applied reverse voltage of 4.0 V DC. 3. Mounted on P.C. Board with 8.0mm2 land area. 1 of 2 www.sunmate.tw RATING AND CHARACTERISTIC CURVES ES2A THRU ES2J Fig. 1 - REVERSE RECOVERY TIME CHARACTERISTIC AND TEST CIRCUIT DIAGRAM ES1A THRU ES1G trr 10 Noninductive +0.5A ( ) D.U.T. (+) 25 Vdc (approx) ( ) AVERAGE FORWARD RECTIFIED CURRENT, AMPERES 50 Noninductive Fig. 2 - MAXIMUM AVERAGE FORWARD CURRENT RATING 0 PULSE GENERATOR NOTE 2 1 NONInductive -0.25 (+) OSCILLOSCOPE NOTE 1 -1.0 NOTES:1. Rise Time=7ns max. Input Impedance=1 megohm. 22pF 2. Rise Time=10ns max. Source Impedance=50 Ohms. 1cm SET TIME BASE FOR 10ns/cm 2.4 2.0 SINGLE PHASE HALF W AVE 60HZ RESISTIVE OR INDUCTIVE LOAD P.C.B MOUNTED ON 0.3x0.3"(8.0x8.0mm) COPPER PAD AREAS 1.6 1.2 0.8 0.4 0 0 20 40 60 80 100 120 140 160 LEAD TEMPERATURE, oC Fig. 3 - TYPICAL REVERSE CHARACTERISTICS 1000 Fig. 4 - TYPICAL FORWARD CHARACTERISTICS INSTANTANEOUS FORWARD CURRENT, AMPERES 50.0 0 INSTANTANEOUS REVERSE CURRENT, MICROAMPERES TJ=100C 100 10 TJ=750C 0 TJ=25 C 1.0 0.1 40 60 80 100 120 ES2E-ES2G 1.0 ES2J 0 140 PULSE WIDTH=300 S 2% DUTY CYCLE 0.6 0.8 1.0 1.2 1.4 1.6 1.8 INSTANTANEOUS FORWARD VOLTAGE, VOLTS PERCENT OF RATED PEAK INVERSE VOLTAGE, VOLTS Fig. 6 - TYPICAL JUNCTION CAPACITANCE Fig. 5 - MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 60 60 50 50 CAPACITANCE, pF PEAK FORWARD SURGE CURRENT, AMPERES TJ=25 C 0.1 0.01 0.4 0.01 20 ES2A-ES2D 10.0 8.3ms SINGLE HALF SINCE-WAVE JEDEC METHOD 40 30 20 40 0 TJ=25C f=1.0MHZ Vslg=50mVp-p 30 20 10 10 1 2 5 10 20 50 100 0.1 NUMBER OF CYCLES AT 60Hz 0.5 1 5 10 20 50 100 200 500 1000 REVERSE VOLTAGE, VOLTS 2 of 2 www.sunmate.tw
