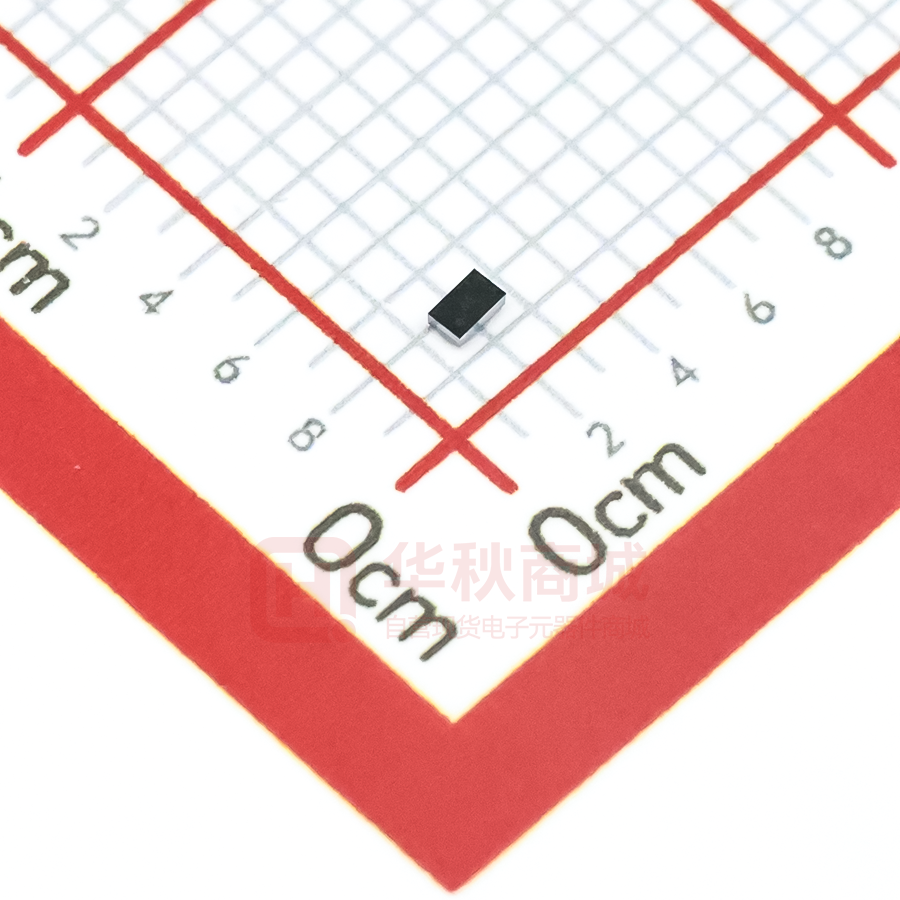

WS3221C WS3221C Over-Voltage-Protection load switch with Http//:www.willsemi.com Adjustable OVLO threshold Descriptions The WS3221 is an Over-Voltage-Protection (OVP) load switch with adjustable OVLO threshold voltage. The device will switch off internal MOSFET to disconnect IN to OUT to protect load when any of input CSP-6L (Bottom View) voltage over the threshold. When the OVLO input set below the external OVLO select voltage, the WS3221 automatically chooses the internal fixed OVLO threshold voltage. The over voltage protection threshold voltage can be adjusted with external resistor divider and the OVLO threshold voltage range is 4~20V. The Over temperature protection (OTP) function monitors chip temperature to protect the device. Pin configuration (Top view) The WS3221 is available in standard CSP-6L Package. Standard products are Pb-free and Halogen-free. Features  Maximum input voltage : 29V  Switch ON resistance : 28mΩ Typ.  Ultra fast OVP response time : 50ns Typ.  OVLO threshold voltage Marking Reference voltage for adjustable version 1.2V : WS3221C with ±2.5% accuracy Internal threshold voltage for fixed version 6.8V : WS3221C68 with ±2% accuracy 10.5V : WS3221CB with ±2% accuracy 14.0V : WS3221CE with ±2% accuracy Applications A = Device code * = Month code (A~Z) Order information Device Marking Package Shipping WS3221C-6/TR A* CSP-6L 3000/Reel&Tape  Mobile Handsets and Tablets WS3221C68-6/TR F* CSP-6L 3000/Reel&Tape  Portable Media Players WS3221CB-6/TR B* CSP-6L 3000/Reel&Tape  Peripherals WS3221CE-6/TR E* CSP-6L 3000/Reel&Tape Will Semiconductor Ltd. 1 Sep, 2019 - Rev. 1.2 WS3221C Function Block Diagram Typical Applications Note1: R1 and R2 are only required for External OVP, otherwise connect OVLO to GND Note2: Recommend 10K≤R2≤50K Pin Descriptions Pin No. Symbol A1, B1 IN A2, B2 OUT Descriptions Switch Input and Device Power Supply. Switch Output to Load. External OVLO adjustment. Connect a resistor-divider to set different OVLO C1 OVLO threshold, VOVLO=1.2x(1+R1/R2) as shown typical application diagram. Connect OVLO to GND when using the internal fixed threshold voltage. C2 GND Will Semiconductor Ltd. Ground 2 Sep, 2019 - Rev. 1.2 WS3221C Absolute Maximum Ratings Parameter Symbol Value Unit VIN -0.3 ~ 29 V Output voltage (OUT pin) VOUT -0.3 ~ 22 V Input voltage (OVLO pin) VOVLO -0.3~15 V IOUT 4 A IDIODE 2.5 A 20 A 50 A RθJA 98 oC/W Junction temperature TJ 150 o Lead temperature(10s) TL 260 o Tstg -55 ~ 150 o HBM ±4000 V MM ±200 V Input voltage (IN pin) MAX Continuous Output current Switch FET Body Diode Continuous Current Body Diode Forward Pulse Width=10ms Peak Pulse Current Pulse Width=20μs *1 IPP Thermal resistance Storage temperature ESD Ratings C C C *1 Single Pulse These are stress ratings only. Stresses exceeding the range specified under “Absolute Maximum Ratings” may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability. Recommend Operating Conditions (Ta=25oC, unless otherwise noted) Parameter Input voltage Ambient operating temperature Will Semiconductor Ltd. Symbol Value VIN 2.5 ~ 28 Topr -40 ~ 85 3 Unit V C o Sep, 2019 - Rev. 1.2 WS3221C Electronics Characteristics (VIN=5V, CIN=1μF, COUT=4.7μF, Ta=25oC, unless otherwise noted) Parameter Symbol Conditions Input voltage range VIN Quiescent current IQ NO Load ON resistance RON VIN=5V, IOUT=1A OVP response time tOVP VIN rising, CIN=CL=0pF OVP threshold voltage Adjust OVP voltage range External OVLO select Threshold VOVLO_TH VOVLO_RANGE Min. Typ. 2.5 Max. Units 28 V 110 28 VOVLO_TH adj. version VOVLO_HYS* 35 50 *1 WS3221C, μA 1.17 1.2 ns 1.23 35 2 mΩ V mV WS3221C68, fixed version 6.66 6.8 6.93 V WS3221CB, fixed version 10.29 10.5 10.71 V WS3221CE, fixed version 13.58 14.0 14.42 V 4 20 V 0.2 0.3 V VIN rising VOVLO_SELECT UVLO threshold voltage VUVLO VIN rising 2.3 V UVLO hysteresis voltage VUVLO_HYS VIN falling 0.25 V Turn ON time TON 16 ms Output discharge resistance RDCHG VIN=5V 220 Ω OTP threshold temperature TOTP VIN=5V 150 o OTP hysteresis temperature THYS VIN=5V 20 o VIN>UVLO to VOUT=VIN*90% CL=0 C C *1: Guaranteed by design *2: If connect a resistor-divider to set different OVLO threshold, then VOVLO_HYS = 35 x (1+R1/R2) mV Will Semiconductor Ltd. 4 Sep, 2019 - Rev. 1.2 WS3221C Typical Characteristics (TA=25°C, unless otherwise noted) Will Semiconductor Ltd. 5 Sep, 2019 - Rev. 1.2 WS3221C Will Semiconductor Ltd. 6 Sep, 2019 - Rev. 1.2 WS3221C PACKAGE OUTLINE DIMENSIONS CSP-6L D e e E d TOP VIEW BOTTOM VIEW A2 A A1 SIDE VIEW Symbol Dimensions in Millimeters Min. Typ. Max. A 0.52 0.57 0.63 A1 0.16 0.19 0.22 A2 0.33 0.36 0.39 D 1.22 1.25 1.28 E 0.74 0.77 0.80 e 0.40Typ. e1 0.40Typ. d Will Semiconductor Ltd. 0.19 0.23 7 0.27 Sep, 2019 - Rev. 1.2 WS3221C TAPE AND REEL INFORMATION Reel Dimensions RD Reel Dimensions W Tape Dimensions P1 Quadrant Assignments For PIN1 Orientation In Tape Q1 Q2 Q1 Q2 Q3 Q4 Q3 Q4 User Direction of Feed RD Reel Dimension 7inch 13inch W Overall width of the carrier tape 8mm 12mm 16mm P1 Pitch between successive cavity centers 2mm 4mm 8mm Pin1 Pin1 Quadrant Q1 Q2 Q3 Will Semiconductor Ltd. 8 Q4 Sep, 2019 - Rev. 1.2
