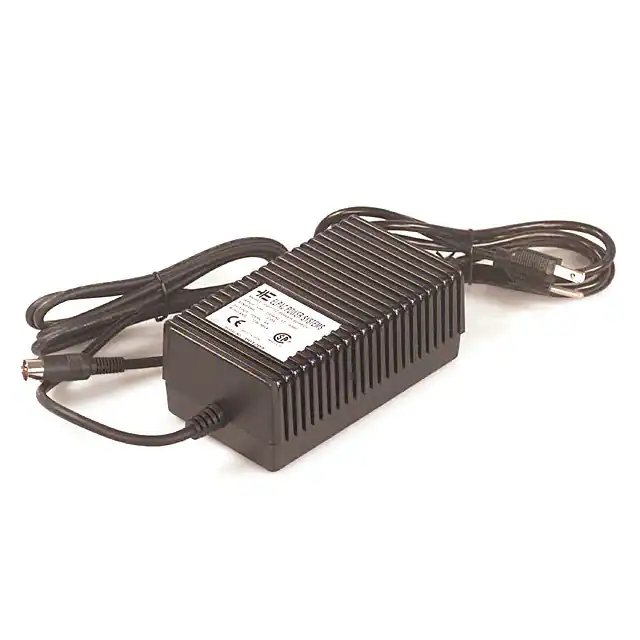

FW7212-D5-NC

FW72 series 72 Watt AC Adapter 6.50" [165mm] 3.85" [98 mm] 2.60" [66mm] Features Electrical Specifications Wide range AC input Fully regulated output High efficiency 5 year warranty RoHS compliant version available Input Voltage................................ 100 - 240 VAC Current................................ 2.0 Amp @ 100 VAC Frequency........................... 47 - 63 Hz AC cord.............................. Optional Input connector................... 3 Pin IEC 320 input receptacle Environmental Output Line regulation.................... TYP +/- 1% Load regulation................... TYP +/- 5% Set point.............................. +/- 3% at 60% load Hold up time........................ 20 ms min at full load, 115 VAC Over voltage protection....... Built-in Over current protection....... Built-in Short circuit protection........ Pulsing mode, auto recovery Efficiency............................. 80% min at full load and 115 VAC Transient response............. 2 ms for 50% load change typical Ripple/noise (Vp-p)............... +/- 1% (20 MHz bandwidth) Output connector................ 5 pin DIN Operating temperature.......... 0 C to 40 C Storage temperature............. -55 C to 85 C Weight = 2.5 lbs EMI/EMC Meets FCC class B, CISPR 22 class B Safety CSA Certified to CSA 950 NRTL/C : UL 1950, CSA 950 CE Marked Polarity DIN-5 1 2 3 DIN-5 4 Com Com +V Com 5 +V 1 3 4 2 5 Model No. Polarity, 760: FW7212-D5-NC Com FW7212-D5F-NC +V Ordering Information FW = 72 = XX = D5 = F= NC = Series Watts DC Output Voltage DC Output Output Connector (options available) RoHS Compliant No AC input Cord (options available) FW7224-D5-NC Voltage Power Current 12V 72W 6.0A 24V 72W 3.0A FW7224-D5F-NC FW7224-760-NC FW7224-760F-NC Rev 1005 Elpac Power Supplies 1562 Reynolds Ave. Irvine, CA 92614 USA TEL +1 949-476-6070 www.elpac.com info@elpac.com
