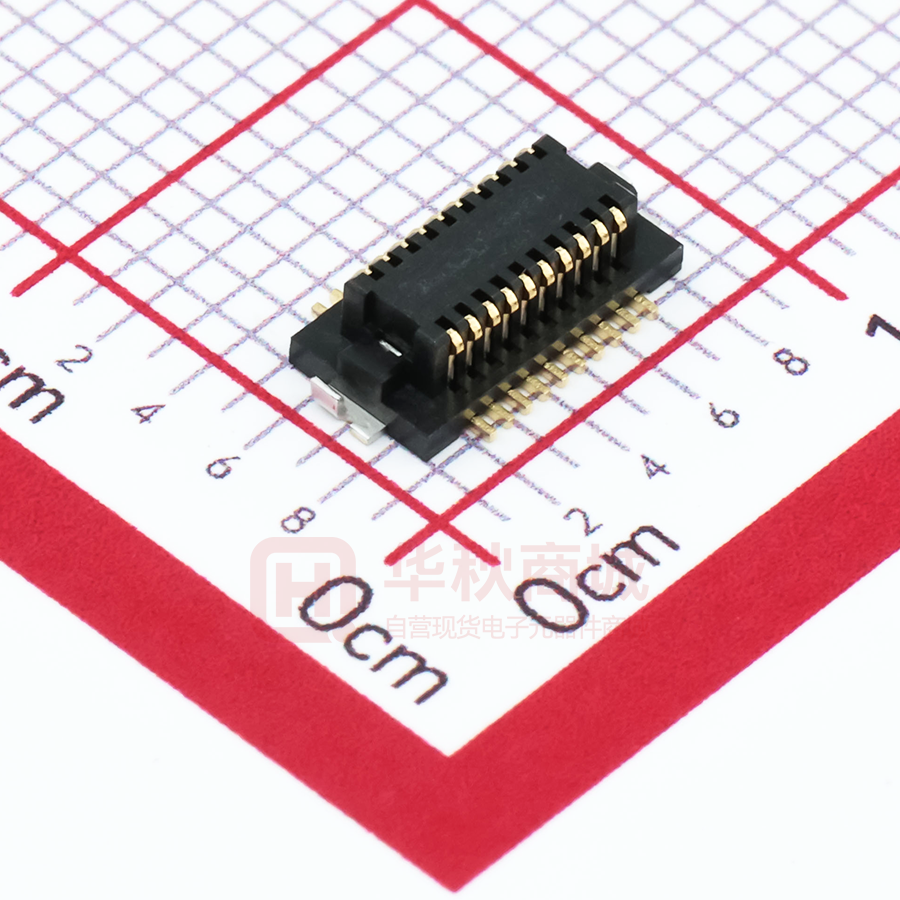

DF12NB(3.0)-20DS-0.5V(51)

0.5mm Pitch SMT Board-to-Board Connectors DF12N Series Pick & Place Mounting Dec.1.2022 Copyright 2022 HIROSE ELECTRIC CO., LTD. All Rights Reserved. Vacuum Pick-up Area Available for Pick & Place Mounting Machines. Fig.1 ■Features 1. Wide Variety of Stacking Heights Stacking heights of 3mm, 3.5mm 4mm and 5mm are provided in addition to the ultra-compact size of 0.5mm pitch. DF12#(3.0)-*DS-0.5V Combination Stacking Height DF12#-*DS-0.5V Combination Stacking Height DF12#(3.0)-*DP-0.5V 3.0 ––––––– DF12#(3.5)-*DP-0.5V ––––––– 3.5 DF12#(4.0)-*DP-0.5V ––––––– 4.0 DF12#(5.0)-*DP-0.5V ––––––– 5.0 Header/Receptacle Note 1 : The (**) after DF12# indicates the stacking height. Note 2 : The stacking height does not include the soldering paste thickness. [Stacking Height Variations] Stacking Height 3.0mm 3.5mm 4.0mm 5.0mm 10pos. ––––––– ––––––– ––––––– 14pos. ––––––– ––––––– ––––––– 20pos. 30pos. No. of Pos. 32pos. ––––––– ––––––– 36pos. 40pos. 50pos. 60pos. 80pos. ––––––– ––––––– ––––––– 2. Pick & Place Mounting The connector has the vacuum pick-up area to enable automatic mounting with the embossed tape packaging. (Fig.1) 3. Solder Tabs on the Soldering Portion In consideration of mounting on FPC, solder tabs are provided on the product in order to prevent solder peeling. 4. 5Gbps Transmission Speed In cases where the application will demand a high level of reliability, such as automotive, please contact a company representative for further information. 2021.5② 1 DF12N Series●0.5mm Pitch SMT Board-to-Board Connectors ■Product Specifications Ratings Operating Temperature -55 to +125ç (Note 1) Storage Temperature Range -10 to +60ç (Note 2) Rated Current 0.3A Storage Humidity Range -40 to 70% (Note 2) Rated Voltage 50V AC Operating Humidity Range -40 to 80% Items Specifications Conditions 1. Insulation Resistance 500MΩ min. 100V DC 2. Withstanding Voltage No flashover or insulation breakdown. 150V AC per min. 3. Contact Resistance 50mΩ max. 20mV AC or less 1kHz, 1mA. 4. Vibration No electrical discontinuity of 1μs or more Frequency : 10 to 55 Hz, single amplitude of 0.75mm, 2 hours in each of the 3 directions. 5. Humidity (Steady State) Contact resistance : 50mΩ max. Insulation resistance : 500MΩ min 96 hours at temperature of 40±2ç and humidity of 90% to 95% 6. Temperature Cycle Contact resistance : 50mΩ max. Insulation resistance : 500MΩ min (-65ç : 30 minutes 5 to 35ç : 3 minutes 125ç : 30 minutes 5 to 35ç : 3 minutes) 5 cycles 7. Mating Durability Contact resistance : 50mΩ max. 50 cycles Dec.1.2022 Copyright 2022 HIROSE ELECTRIC CO., LTD. All Rights Reserved. 8. Resistance to Soldering Heat No deformation of components affecting performance. SMT Reflow : At the recommended temperature profile Type Manual soldering : 350ç for 3 seconds Note 1 : Includes temperature rise due to current flow. (105ç in automotive vibration environment) Note 2 : The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation. ■Materials / Finish Product Receptacle/Header Part Material Finish Remarks Insulator Polyamide Black UL94V-0 Contact Phosphor Copper Gold Plated − Solder Tab Brass Tin Plated − Product Number Structure Refer to the chart below when determining the product specifications from the product number. Please select from the product numbers listed in this catalog when placing orders.  ●Receptacle DF12 ＃（※※）- ＊ DS - 0.5 V（＊＊） ❶ q Series Name ❷ ❸ ❹ ❺ ❻ ❼ e Stacking Height : DF12 w Type 3.0 y Contact Pitch : 0.5mm u Contact Style : 3.0mm Blank : 3.5 to 5.0mm Solder Tab V : Straight SMT NB r No. of Pos. : 10, 14, 20, 30, 32, 36, 40, NC 50, 60, 80 ∞ ❽ i Packaging Type (51) : Embossed Tape Packaging t Connector Type (1,000pcs/reel) DS : Double-row Receptacle ●Header DF12 ＃（※※）- ＊ DP - 0.5 V（＊＊） ❶ q Series Name ❷ ❸ ❹ ❺ ❻ ❼ e Stacking Height : DF12 w Type Indication Stacking Height Solder Tab NB NC ∞ 3.0 3.0mm 3.5 3.5mm 4.0 4.0mm 5.0 5.0mm ❽ t Connector Type DP : Double-row Pin Header y Contact Pitch : 0.5mm u Contact Style V : Straight SMT i Packaging Type (51) : Embossed Tape Packaging rNo. of Pos. : 10, 14, 20, 30, 32, 36, 40, 50, 60, 80 2 (1,000pcs/reel) DF12N Series●0.5mm Pitch SMT Board-to-Board Connectors Dec.1.2022 Copyright 2022 HIROSE ELECTRIC CO., LTD. All Rights Reserved. ■Receptacle Without Solder Tab ●Stacking Height : 3mm Product Unit : mm Part No. HRS No. No. of Pos. A B C DF12NC(3.0)-10DS-0.5V(51) 537-0191-0 51 10 4.6 2.0 3.1 DF12NC(3.0)-14DS-0.5V(51) 537-0192-0 51 14 5.6 3.0 4.1 DF12NC(3.0)-20DS-0.5V(51) 537-0193-0 51 20 7.1 4.5 5.6 DF12NC(3.0)-30DS-0.5V(51) 537-0194-0 51 30 9.6 7.0 8.1 DF12NC(3.0)-32DS-0.5V(51) 537-0195-0 51 32 10.1 7.5 8.6 DF12NC(3.0)-36DS-0.5V(51) 537-0196-0 51 36 11.1 8.5 9.6 DF12NC(3.0)-40DS-0.5V(51) 537-0197-0 51 40 12.1 9.5 10.6 DF12NC(3.0)-50DS-0.5V(51) 537-0198-0 51 50 14.6 12.0 13.1 DF12NC(3.0)-60DS-0.5V(51) 537-0199-0 51 60 17.1 14.5 15.6 DF12NC(3.0)-80DS-0.5V(51) 537-0285-0 51 80 22.1 19.5 20.6 E Remarks RoHS 2.2 Without Solder Tab YES ●Stacking Height : 3.5 to 5mm Product Unit : mm Part No. HRS No. No. of Pos. A B C DF12NC-20DS-0.5V(51) 537-0292-0 51 20 7.1 4.5 5.6 DF12NC-30DS-0.5V(51) 537-0293-0 51 30 9.6 7.0 8.1 DF12NC-32DS-0.5V(51) 537-0294-0 51 32 10.1 7.5 8.6 DF12NC-36DS-0.5V(51) 537-0295-0 51 36 11.1 8.5 9.6 DF12NC-40DS-0.5V(51) 537-0296-0 51 40 12.1 9.5 10.6 DF12NC-50DS-0.5V(51) 537-0297-0 51 50 14.6 12.0 13.1 DF12NC-60DS-0.5V(51) 537-0298-0 51 60 17.1 14.5 15.6 E Remarks RoHS 2.7 Without Solder Tab YES Note : Please order the embossed tape packaging product per reel. (1,000pcs/reel) 3 DF12N Series●0.5mm Pitch SMT Board-to-Board Connectors ■Receptacle With Solder Tab F A B C Dec.1.2022 Copyright 2022 HIROSE ELECTRIC CO., LTD. All Rights Reserved. 0.25 E 0.2 1.5 4.6 2.4 1.5 3.6 0.5 P=0.5 ●Stacking Height : 3mm Product Unit : mm Part No. HRS No. No. of Pos. A B C E F DF12NB(3.0)-10DS-0.5V(51) 537-0097-0 51 10 4.6 2.0 3.1 5.6 DF12NB(3.0)-14DS-0.5V(51) 537-0098-0 51 14 5.6 3.0 4.1 6.6 DF12NB(3.0)-20DS-0.5V(51) 537-0099-0 51 20 7.1 4.5 5.6 8.1 DF12NB(3.0)-30DS-0.5V(51) 537-0185-0 51 30 9.6 7.0 8.1 10.6 DF12NB(3.0)-32DS-0.5V(51) 537-0186-0 51 32 10.1 7.5 8.6 11.1 DF12NB(3.0)-36DS-0.5V(51) 537-0187-0 51 36 11.1 8.5 9.6 DF12NB(3.0)-40DS-0.5V(51) 537-0188-0 51 40 12.1 9.5 10.6 2.2 12.1 Remarks RoHS With Solder Tab YES 13.1 DF12NB(3.0)-50DS-0.5V(51) 537-0189-0 51 50 14.6 12.0 13.1 15.6 DF12NB(3.0)-60DS-0.5V(51) 537-0190-0 51 60 17.1 14.5 15.6 18.1 DF12NB(3.0)-80DS-0.5V(51) 537-0095-0 51 80 22.1 19.5 20.6 23.1 ●Stacking Height : 3.5 to 5mm Product Unit : mm Part No. HRS No. No. of Pos. A B C F DF12NB-20DS-0.5V(51) 537-0286-0 51 20 7.1 4.5 5.6 8.1 DF12NB-30DS-0.5V(51) 537-0287-0 51 30 9.6 7.0 8.1 10.6 DF12NB-32DS-0.5V(51) 537-0288-0 51 32 10.1 7.5 8.6 11.1 DF12NB-36DS-0.5V(51) 537-0289-0 51 36 11.1 8.5 9.6 2.7 12.1 DF12NB-40DS-0.5V(51) 537-0290-0 51 40 12.1 9.5 10.6 13.1 DF12NB-50DS-0.5V(51) 537-0291-0 51 50 14.6 12.0 13.1 15.6 DF12NB-60DS-0.5V(51) 537-0096-0 51 60 17.1 14.5 15.6 18.1 Note : Please order the embossed tape packaging product per reel. (1,000pcs/reel) 4 E Remarks RoHS With Solder Tab YES DF12N Series●0.5mm Pitch SMT Board-to-Board Connectors Dec.1.2022 Copyright 2022 HIROSE ELECTRIC CO., LTD. All Rights Reserved. ■Header Without Solder Tab ●Stacking Height : 3mm Product Part No. Unit : mm HRS No. No. of Pos. A B C DF12NC(3.0)-10DP-0.5V(51) 537-0396-0 51 10 4.7 2.0 3.2 DF12NC(3.0)-14DP-0.5V(51) 537-0397-0 51 14 5.7 3.0 4.2 DF12NC(3.0)-20DP-0.5V(51) 537-0398-0 51 20 7.2 4.5 5.7 DF12NC(3.0)-30DP-0.5V(51) 537-0399-0 51 30 9.7 7.0 8.2 DF12NC(3.0)-32DP-0.5V(51) 537-0487-0 51 32 10.2 7.5 8.7 DF12NC(3.0)-36DP-0.5V(51) 537-0488-0 51 36 11.2 8.5 9.7 DF12NC(3.0)-40DP-0.5V(51) 537-0489-0 51 40 12.2 9.5 10.7 DF12NC(3.0)-50DP-0.5V(51) 537-0490-0 51 50 14.7 12.0 13.2 DF12NC(3.0)-60DP-0.5V(51) 537-0491-0 51 60 17.2 14.5 15.7 DF12NC(3.0)-80DP-0.5V(51) 537-0492-0 51 80 22.2 19.5 20.7 E Remarks RoHS 2.3 Without Solder Tab YES Note : Please order the embossed tape packaging product per reel. (1,000pcs/reel) 5 DF12N Series●0.5mm Pitch SMT Board-to-Board Connectors Dec.1.2022 Copyright 2022 HIROSE ELECTRIC CO., LTD. All Rights Reserved. ■Header Without Solder Tab ●Stacking Height : 3.5 to 5mm Product Unit : mm Part No. HRS No. No. of Pos. A B C DF12NC(3.5)-20DP-0.5V(51) 537-0499-0 51 20 7.2 4.5 5.7 DF12NC(3.5)-30DP-0.5V(51) 537-0587-0 51 30 9.7 7.0 8.2 DF12NC(3.5)-36DP-0.5V(51) 537-0588-0 51 36 11.2 8.5 9.7 DF12NC(3.5)-40DP-0.5V(51) 537-0589-0 51 40 12.2 9.5 10.7 DF12NC(3.5)-50DP-0.5V(51) 537-0590-0 51 50 14.7 12.0 13.2 DF12NC(3.5)-60DP-0.5V(51) 537-0591-0 51 60 17.2 14.5 15.7 DF12NC(4.0)-20DP-0.5V(51) 537-0599-0 51 20 7.2 4.5 5.7 DF12NC(4.0)-30DP-0.5V(51) 537-0699-0 51 30 9.7 7.0 8.2 DF12NC(4.0)-32DP-0.5V(51) 537-0872-0 51 32 10.2 7.5 8.7 DF12NC(4.0)-36DP-0.5V(51) 537-0873-0 51 36 11.2 8.5 9.7 DF12NC(4.0)-40DP-0.5V(51) 537-0874-0 51 40 12.2 9.5 10.7 DF12NC(4.0)-50DP-0.5V(51) 537-0875-0 51 50 14.7 12.0 13.2 DF12NC(4.0)-60DP-0.5V(51) 537-0876-0 51 60 17.2 14.5 15.7 DF12NC(5.0)-20DP-0.5V(51) 537-0883-0 51 20 7.2 4.5 5.7 DF12NC(5.0)-30DP-0.5V(51) 537-0884-0 51 30 9.7 7.0 8.2 DF12NC(5.0)-36DP-0.5V(51) 537-0885-0 51 36 11.2 8.5 9.7 DF12NC(5.0)-40DP-0.5V(51) 537-0886-0 51 40 12.2 9.5 10.7 DF12NC(5.0)-50DP-0.5V(51) 537-0887-0 51 50 14.7 12.0 13.2 DF12NC(5.0)-60DP-0.5V(51) 537-0888-0 51 60 17.2 14.5 15.7 Note : Please order the embossed tape packaging product per reel. (1,000pcs/reel) 6 E Remarks RoHS Without Solder Tab YES 2.8 3.3 4.3 DF12N Series●0.5mm Pitch SMT Board-to-Board Connectors ■Header With Solder Tab F A B 4.6 1.5 2.45 3.8 0.4 P=0.5 Dec.1.2022 Copyright 2022 HIROSE ELECTRIC CO., LTD. All Rights Reserved. 0.25 E 0.25 C ●Stacking Height : 3mm Product Unit : mm Part No. HRS No. No. of Pos. A B C E F DF12NB(3.0)-10DP-0.5V(51) 537-0299-0 51 10 4.7 2.0 3.2 5.6 DF12NB(3.0)-14DP-0.5V(51) 537-0387-0 51 14 5.7 3.0 4.2 6.6 DF12NB(3.0)-20DP-0.5V(51) 537-0388-0 51 20 7.2 4.5 5.7 8.1 DF12NB(3.0)-30DP-0.5V(51) 537-0389-0 51 30 9.7 7.0 8.2 10.6 DF12NB(3.0)-32DP-0.5V(51) 537-0390-0 51 32 10.2 7.5 8.7 DF12NB(3.0)-36DP-0.5V(51) 537-0391-0 51 36 11.2 8.5 9.7 2.3 11.1 12.1 DF12NB(3.0)-40DP-0.5V(51) 537-0392-0 51 40 12.2 9.5 10.7 13.1 DF12NB(3.0)-50DP-0.5V(51) 537-0393-0 51 50 14.7 12.0 13.2 15.6 DF12NB(3.0)-60DP-0.5V(51) 537-0394-0 51 60 17.2 14.5 15.7 18.1 DF12NB(3.0)-80DP-0.5V(51) 537-0395-0 51 80 22.2 19.5 20.7 23.1 Remarks RoHS With Solder Tab YES Note : Please order the embossed tape packaging product per reel. (1,000pcs/reel)      7 DF12N Series●0.5mm Pitch SMT Board-to-Board Connectors ■Header With Solder Tab F A B 4.6 1.5 2.45 3.8 0.4 P=0.5 Dec.1.2022 Copyright 2022 HIROSE ELECTRIC CO., LTD. All Rights Reserved. 0.25 E 0.25 C ●Stacking Height : 3.5 to 5mm Product Part No. HRS No. Unit : mm No. of Pos. A B C F DF12NB(3.5)-20DP-0.5V(51) 537-0493-0 51 20 7.2 4.5 5.7 8.1 DF12NB(3.5)-30DP-0.5V(51) 537-0494-0 51 30 9.7 7.0 8.2 10.6 9.7 DF12NB(3.5)-36DP-0.5V(51) 537-0495-0 51 36 11.2 8.5 DF12NB(3.5)-40DP-0.5V(51) 537-0496-0 51 40 12.2 9.5 10.7 DF12NB(3.5)-50DP-0.5V(51) 537-0497-0 51 50 14.7 12.0 13.2 15.6 DF12NB(3.5)-60DP-0.5V(51) 537-0498-0 51 60 17.2 14.5 15.7 18.1 2.8 RoHS With Solder Tab YES 13.1 DF12NB(4.0)-20DP-0.5V(51) 537-0592-0 51 20 7.2 4.5 5.7 8.1 537-0593-0 51 30 9.7 7.0 8.2 10.6 DF12NB(4.0)-32DP-0.5V(51) 537-0594-0 51 32 10.2 7.5 8.7 11.1 DF12NB(4.0)-36DP-0.5V(51) 537-0595-0 51 36 11.2 8.5 9.7 3.3 12.1 DF12NB(4.0)-40DP-0.5V(51) 537-0596-0 51 40 12.2 9.5 10.7 13.1 DF12NB(4.0)-50DP-0.5V(51) 537-0597-0 51 50 14.7 12.0 13.2 15.6 DF12NB(4.0)-60DP-0.5V(51) 537-0598-0 51 60 17.2 14.5 15.7 18.1 DF12NB(5.0)-20DP-0.5V(51) 537-0877-0 51 20 7.2 4.5 5.7 8.1 DF12NB(5.0)-30DP-0.5V(51) 537-0878-0 51 30 9.7 7.0 8.2 10.6 9.7 DF12NB(5.0)-36DP-0.5V(51) 537-0879-0 51 36 11.2 8.5 DF12NB(5.0)-40DP-0.5V(51) 537-0880-0 51 40 12.2 9.5 10.7 DF12NB(5.0)-50DP-0.5V(51) 537-0881-0 51 50 14.7 12.0 13.2 15.6 DF12NB(5.0)-60DP-0.5V(51) 537-0882-0 51 60 17.2 14.5 15.7 18.1 4.3 Remarks 12.1 DF12NB(4.0)-30DP-0.5V(51) Note : Please order the embossed tape packaging product per reel. (1,000pcs/reel)      8 E 12.1 13.1 DF12N Series●0.5mm Pitch SMT Board-to-Board Connectors BEmbossed Carrier Tape Dimensions H A±0.3 B±0.1 H-H A±0.3 B±0.1 H-H 1.75±0.1 C±0.1 .1 +0 0 H 2±0.1 4±0.1 .5 Ø1 C±0.1 .1 +0 0 .5 Ø1 2±0.1 4±0.1 1.75±0.1 ●Receptacle .75 E D 0.2 0.9 H Unreeling Direction 0.9 H Unreeling Direction E D I-I H H-H I A±0.3 A±0.3 B±0.1 B±0.1 .1 +0 0 H-H 1.75±0.1 C±0.1 .1 +0 0 .5 H 2±0.1 4±0.1 .5 C±0.1 Ø1 2±0.1 4±0.1 1.75±0.1 ●Header Ø1 I .75 I I R0 0.9 H E D Unreeling Direction 0.2 Dec.1.2022 Copyright 2022 HIROSE ELECTRIC CO., LTD. All Rights Reserved. R0 0.9 H E D Unreeling Direction I-I Connector DF12#(3.0)-10DS-0.5V DF12#(3.0)-14DS-0.5V DF12#(3.0)-20DS-0.5V DF12#(3.0)-30DS-0.5V DF12#(3.0)-32DS-0.5V DF12#(3.0)-36DS-0.5V DF12#(3.0)-40DS-0.5V DF12#(3.0)-50DS-0.5V DF12#(3.0)-60DS-0.5V DF12#(3.0)-80DS-0.5V DF12#(3.0)-10DP-0.5V DF12#(3.0)-14DP-0.5V DF12#(3.0)-20DP-0.5V DF12#(3.0)-30DP-0.5V DF12#(3.0)-32DP-0.5V DF12#(3.0)-36DP-0.5V DF12#(3.0)-40DP-0.5V DF12#(3.0)-50DP-0.5V DF12#(3.0)-60DP-0.5V DF12#(3.0)-80DP-0.5V DF12#-20DS-0.5V DF12#-30DS-0.5V DF12#-32DS-0.5V DF12#-36DS-0.5V DF12#-40DS-0.5V DF12#-50DS-0.5V DF12#-60DS-0.5V A B 16 7.5 C D G 0.38 25.5 29.5 32 14.2 44 20.2 7.5 F 17.5 21.5 24 11.5 16 E 0.30 2.6 33.5 37.5 45.5 49.5 0.30 12 17.5 21.5 24 11.5 25.5 29.5 0.38 32 14.2 44 20.2 16 7.5 24 11.5 8 12 8 32 14.2 12 33.5 37.5 45.5 49.5 17.5 21.5 3.1 Connector DF12#(3.5)-20DP-0.5V DF12#(3.5)-30DP-0.5V DF12#(3.5)-36DP-0.5V DF12#(3.5)-40DP-0.5V DF12#(3.5)-50DP-0.5V DF12#(3.5)-60DP-0.5V DF12#(4.0)-20DP-0.5V DF12#(4.0)-30DP-0.5V DF12#(4.0)-32DP-0.5V DF12#(4.0)-36DP-0.5V DF12#(4.0)-40DP-0.5V DF12#(4.0)-50DP-0.5V DF12#(4.0)-60DP-0.5V DF12#(5.0)-20DP-0.5V DF12#(5.0)-30DP-0.5V DF12#(5.0)-36DP-0.5V DF12#(5.0)-40DP-0.5V DF12#(5.0)-50DP-0.5V DF12#(5.0)-60DP-0.5V A 16 B 7.5 24 11.5 32 14.2 16 7.5 24 11.5 C D 12 8 12 8 0.38 3.1 12 8 12 8 E 3.6 F G 17.5 21.5 0.30 25.5 29.5 0.38 0.30 33.5 37.5 0.38 17.5 21.5 0.30 25.5 29.5 0.38 0.30 32 14.2 16 7.5 33.5 37.5 17.5 21.5 12 24 11.5 8 32 14.2 12 0.38 4.6 25.5 29.5 0.30 0.38 33.5 37.5 0.30 25.5 29.5 0.38 0.30 0.38 33.5 37.5 9 DF12N Series●0.5mm Pitch SMT Board-to-Board Connectors Ø1 3± Product Name Label 0.2 ●Reel Dimensions Ø80±1 Ø330±2 PS Lead Hole Depth F±0.5 Dec.1.2022 Copyright 2022 HIROSE ELECTRIC CO., LTD. All Rights Reserved. G±1 BRecommended PCB mounting pattern ■DF12N with Solder Tab ■DF12N without Solder Tab Note 1 : Refer to 3 to 8 for dimensions A and B. Note 2 : 10 If there is a pattern on the shaded area and no resist is applied, it may come into contact with the connector contact. DF12N Series●0.5mm Pitch SMT Board-to-Board Connectors BPrecautions for Use 1.Recommended Temperature Profile (SMT) Temperature (ç) 250 250ç 220ç 200 60sec Max. Soldering 180ç 150 150ç 90 to 120sec Preheating Dec.1.2022 Copyright 2022 HIROSE ELECTRIC CO., LTD. All Rights Reserved. 100 50 Room Temperature 0 50 100 150 200 250 300 Time (sec) Note 1 : Up to 2 cycles of Reflow soldering are possible under the same conditions, provided that there is a return to normal temperature between the first and second cycle. Note 2 : The temperature profile indicates the temperature of the surface of the connector lead. 2.Recommended Manual Soldering Condition (SMT) Soldering iron temperature : 350ç, Soldering time : Within 3 seconds 3.Recommended Screen Thickness and 0.12mm Open Area Ratio(Pattern Area Ratio) Open area ratio : 70% 4.Board Warp(SMT) Maxmum 0.02mm in the connector center area, based on both connector edges 5.Cleaning Condition Refer to "Nylon Connector Use Handbook". 6.Cautions ■ The receptacle is designed with the contacts exposed. Touching the contacts with bare hands may cause contact failure or damage to the device due to static electricity. ■ Insertion/extraction when not mounted to the board may result in damage or contact deformation. ■ Avoid securing the board only with the connector. Please use other methods to secure the board. ■ Excessive prying during insertion and extraction may result in damage. ■ Do not apply flux that will result in flux rise during manual soldering. ■ The color of the mold may differ slightly depending on the production lot however this does not affect the performance. 2-6-3,Nakagawa Chuoh,Tsuzuki-Ku,Yokohama-Shi 224-8540,JAPAN https://www.hirose.com/ The characteristics and the specifications contained herein are for reference purpose. Please refer to the latest customer drawings prior to use. The contents of this catalog are current as of date of 05/2021. Contents are subject to change without notice for the purpose of improvements. 11
