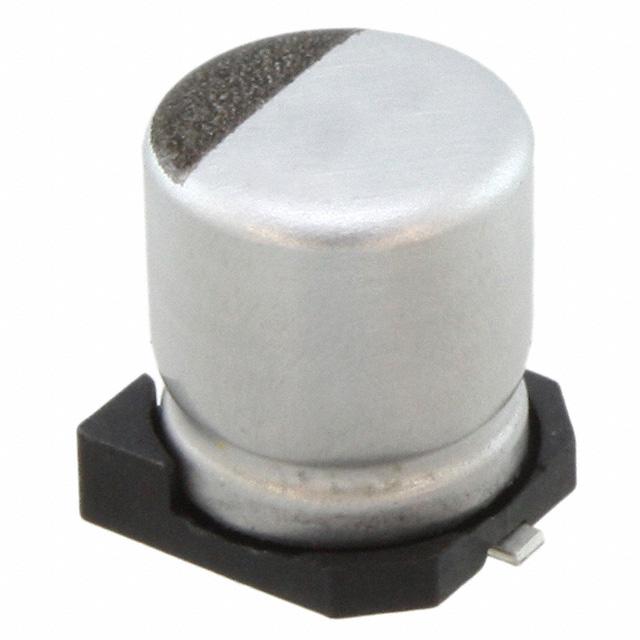

EMZJ160ARA470ME61G

SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS TM AIchip Low ESR, 105℃ MZJ - Series ・Lower ESR, 2,000 hours at 105℃ ・Rated voltage range : 6.3 to 35V ・Nominal capacitance range : 10 to 1,800μF ・Solvent resistant type (see PRECAUTIONS AND GUIDELINES) ・Vibration resistant structure ・RoHS Compliant MZJ Lower ESR MZA P74 ◆SPECIFICATIONS Items Category Temperature Range Rated Voltage Range Capacitance Tolerance Leakage Current Dissipation Factor (tanδ) Low Temperature Characteristics (Max. Impedance Ratio) Endurance Shelf Life Surge Voltage Test Characteristics -55 to +105℃ 6.3 to 35Vdc ±20% (M) (at 20℃, 120Hz) I=0.01CV or 3µA, whichever is greater. Where, I : Max. leakage current (µA), C : Nominal capacitance (µF), V : Rated voltage (V) (at 20℃ after 2 minutes) Rated voltage (Vdc) 35V 25V 16V 10V 6.3V (at 20℃, 120Hz) tanδ(Max.) 0.12 0.14 0.16 0.19 0.26 Rated voltage (Vdc) 35V 25V 16V 10V 6.3V Z(-25℃)/Z(+20℃) 2 2 2 2 2 Z(-40℃)/Z(+20℃) 3 3 3 3 3 Z(-55℃)/Z(+20℃) (at 120Hz) 3 3 4 4 4 The following specifications shall be satisfied when the capacitors are restored to 20℃ after the rated voltage is applied for 2,000 hours at 105℃. Capacitance change ≦±30% of the initial value D.F. (tanδ) ≦200% of the initial specified value Leakage current ≦The initial specified value The following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1,000 hours at 105℃ without voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4. Capacitance change ≦±30% of the initial value D.F. (tanδ) ≦200% of the initial specified value Leakage current ≦The initial specified value The capacitors shall be subjected to 1,000 cycles each consisting of charging with the specified surge voltage for 30±5 seconds through a protective resistor (as required for RC=0.1±0.05sec) and open-circuiting for 5.5 minutes at a room temperature of 15 to 35℃. Rated voltage (Vdc) 6.3V 10V 16V 25V 35V Surge voltage (Vdc) 7.2V 12V 18V 29V 40V Appearance Capacitance change D.F. (tanδ) No significant damage ≦±20% of the initial value ≦200% of the initial specified value ≦The initial specified value Leakage current (Caution) Surge Voltage Test intends to evaluate capacitors in durability of an exceptional excessive voltage under specific conditions.It does not imply long-term use at all. ◆DIMENSIONS [mm] ● Terminal ● Terminal ● Size ● Size 0.3max. L±0.3 (Note) B±0.2 φD±0.5 P C±0.2 W W 0.3max. Vent for JA0 B±0.2 φD±0.5 Vent for JA0 Code : G(Vibration resistant structure) code : HA0 and JA0 Size code D61 E61 F61 F80 HA0 JA0 D 4 5 6.3 6.3 8 10 C B A L 5.8 4.3 4.3 5.1 5.8 5.3 5.3 5.9 5.8 6.6 6.6 7.2 7.7 6.6 6.6 7.2 10.0 8.3 8.3 9.0 10.0 10.3 10.3 11.0 W 0.5 to 0.8 0.5 to 0.8 0.5 to 0.8 0.5 to 0.8 0.7 to 1.1 0.7 to 1.1 P 1.0 1.4 1.9 1.9 3.1 4.5 A±0.2 L±0.5 A±0.2 P C±0.2 Code : A code : D61 to JA0 Note : L±0.5 for HA0 and JA0 : Dummy terminals ◆MARKING EX) 35V10µF 9j 10 VZJ ● Rated voltage symbol Rated voltage (Vdc) Symbol 6.3 j 10 A 16 C 25 E 35 V Applying voltage over the rated voltages causes the capacitors to have short lifetime. Besides, applying voltage over the specified surge voltages may cause to have short circuit failure. A protection circuit should be used if applied voltage will exceed the rated voltages. Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications. 72 CAT. No. E1001N SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS MZJSeries TM AIchip Low ESR, 105℃ - ◆PART NUMBERING SYSTEM 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 E MZ J AAA A DA AAA M AAA G Supplement code Size code Capacitance tolerance code Capacitance code (ex. 10µF:100, 1,000µF:102) Taping code Terminal code Voltage code (ex. 6.3V:6R3, 10V:100, 35V:350) Series code Category Please refer to "Product code guide (surface mount type)" ◆STANDARD RATINGS WV(Vdc) 6.3 10 16 25 35 Cap(µF) Size code tanδ 47 100 220 330 1,000 1,500 1,800 33 150 680 1,000 1,200 22 47 100 150 220 470 680 820 10 22 33 33 47 68 100 330 470 560 10 22 33 47 68 100 100 150 220 330 390 D61 E61 F61 F80 HA0 JA0 JA0 D61 F61 HA0 JA0 JA0 D61 E61 F61 F80 F80 HA0 JA0 JA0 D61 E61 E61 F61 F61 F61 F80 HA0 JA0 JA0 D61 E61 F61 F61 F61 F80 HA0 HA0 HA0 JA0 JA0 0.26 0.26 0.26 0.26 0.26 0.26 0.26 0.19 0.19 0.19 0.19 0.19 0.16 0.16 0.16 0.16 0.16 0.16 0.16 0.16 0.14 0.14 0.14 0.14 0.14 0.14 0.14 0.14 0.14 0.14 0.12 0.12 0.12 0.12 0.12 0.12 0.12 0.12 0.12 0.12 0.12 ESR (Ωmax/20℃, 100kHz) 0.85 0.36 0.26 0.16 0.08 0.06 0.06 0.85 0.26 0.08 0.06 0.06 0.85 0.36 0.26 0.16 0.16 0.08 0.06 0.06 0.85 0.36 0.36 0.26 0.26 0.26 0.16 0.08 0.06 0.06 0.85 0.36 0.26 0.26 0.26 0.16 0.08 0.08 0.08 0.06 0.06 Rated ripple current (mArms/105℃, 100kHz) 160 240 300 600 850 1,190 1,190 160 300 850 1,190 1,190 160 240 300 600 600 850 1,190 1,190 160 240 240 300 300 300 600 850 1,190 1,190 160 240 300 300 300 600 850 850 850 1,190 1,190 Part No. EMZJ6R3ADA470MD61G EMZJ6R3ADA101ME61G EMZJ6R3ADA221MF61G EMZJ6R3ADA331MF80G EMZJ6R3ADA102MHA0G EMZJ6R3ADA152MJA0G EMZJ6R3ADA182MJA0G EMZJ100ADA330MD61G EMZJ100ADA151MF61G EMZJ100ADA681MHA0G EMZJ100ADA102MJA0G EMZJ100ADA122MJA0G EMZJ160ADA220MD61G EMZJ160ADA470ME61G EMZJ160ADA101MF61G EMZJ160ADA151MF80G EMZJ160ADA221MF80G EMZJ160ADA471MHA0G EMZJ160ADA681MJA0G EMZJ160ADA821MJA0G EMZJ250ADA100MD61G EMZJ250ADA220ME61G EMZJ250ADA330ME61G EMZJ250ADA330MF61G EMZJ250ADA470MF61G EMZJ250ADA680MF61G EMZJ250ADA101MF80G EMZJ250ADA331MHA0G EMZJ250ADA471MJA0G EMZJ250ADA561MJA0G EMZJ350ADA100MD61G EMZJ350ADA220ME61G EMZJ350ADA330MF61G EMZJ350ADA470MF61G EMZJ350ADA680MF61G EMZJ350ADA101MF80G EMZJ350ADA101MHA0G EMZJ350ADA151MHA0G EMZJ350ADA221MHA0G EMZJ350ADA331MJA0G EMZJ350ADA391MJA0G ◆RATED RIPPLE CURRENT MULTIPLIERS ・Frequency Multipliers Frequency(Hz) Capacitance(μF) 10 to 150 220 to 560 680 to 1,800 120 1k 10k 100k 0.40 0.50 0.60 0.75 0.85 0.87 0.90 0.94 0.95 1.00 1.00 1.00 The endurance of capacitors is reduced with internal heating produced by ripple current at the rate of halving the lifetime with every 5℃ rise. When long life performance is required in actual use, the rms ripple current has to be reduced. Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications. 73 CAT. No. E1001N
